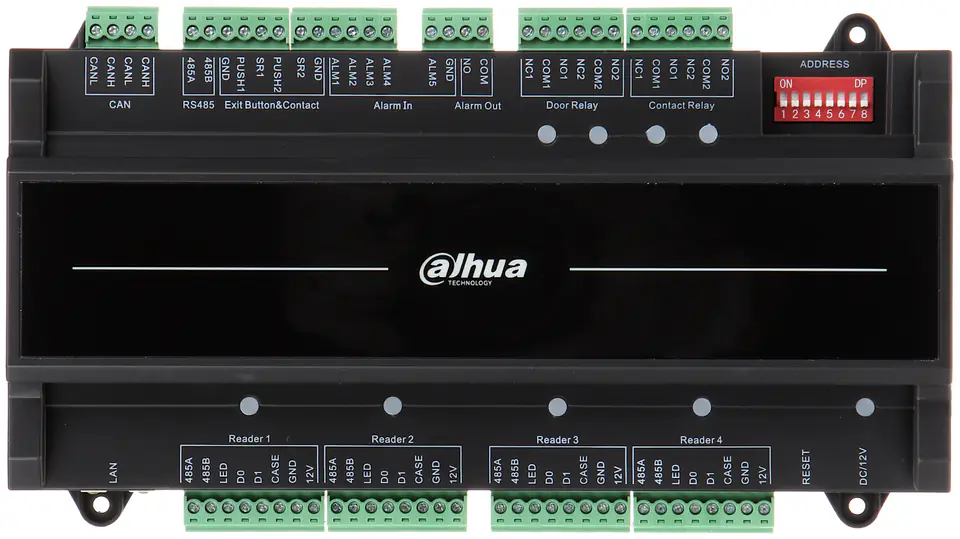

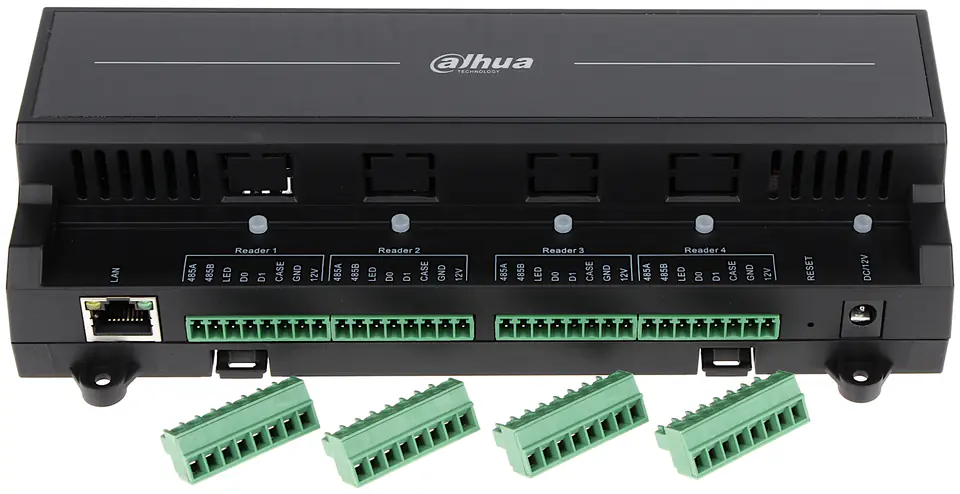

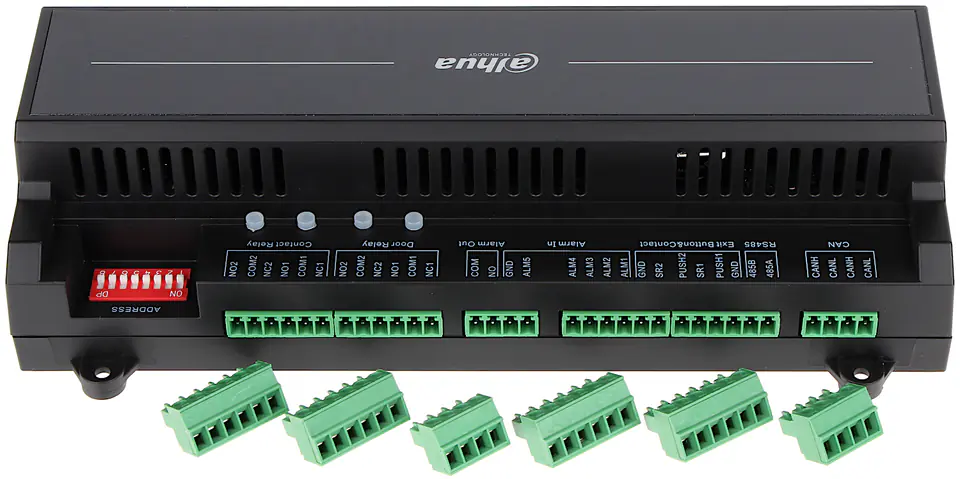

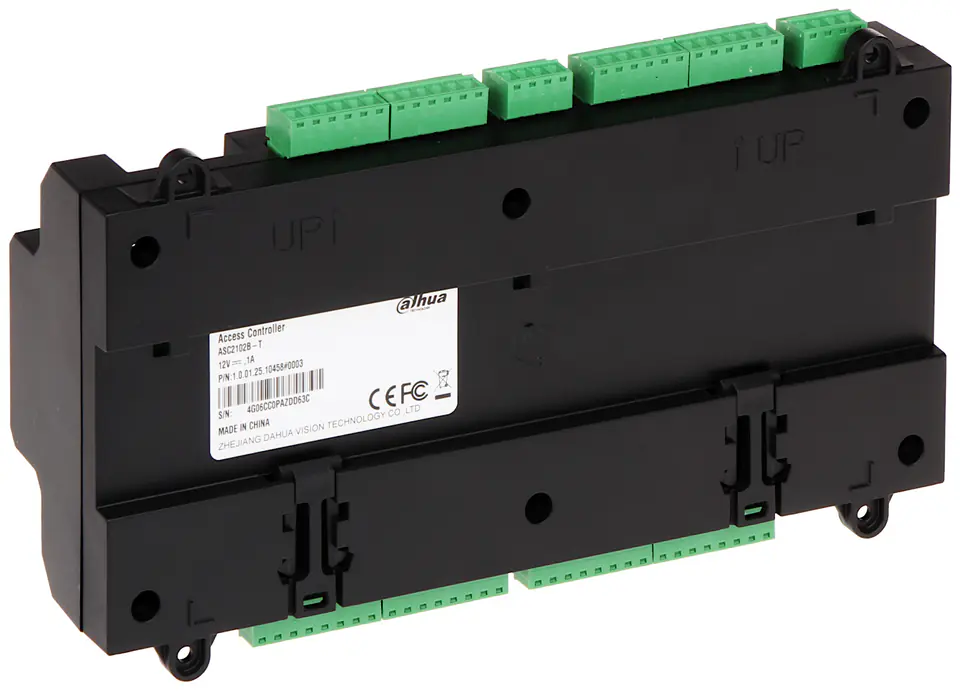

ASC2102B-T DAHUA ACCESS CONTROLLER

€55.38
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Dahua
Product code:
ASC2102B-T / 6939554945298

Specification

Alarm inputs / outputs:5 / 1
Communication:RS-485, Wiegand 34/26, CAN bus (Controler Area Network)
Cooperation:DAHUA ASC2204C-H
Dimensions:209 x 117 x 51 mm
Number of supported readers:4 pcs.
Number of supported transitions:2 (bidirectional)
Operating temperature:-30 °C ... 60 °C
Output lines:5 pcs. -Relay
Permissible relative ambient humidity:.max. 95 % (non-condensing)
Power:12 V DC / 1 A
Producer / brand:DAHUA
Scales:0.384 kg
Selected features:20,000 indexed users History 30,000 events Anti-passback function Alarm for too long to open the door and open without permission Built-in watchdog Can be mounted on the wall or on the TS-35 DIN rail
Warranty:3 years

The ASC2102B-T controller is designed for use in access control systems based on electric door opening controlThe device is used to extend the capabilities of the system based on the ASC2204C-HKontroler central controller works in SLAVE mode and requires connection to the controller in MASTER mode using the CAN bus (Controler Area Network)

Up to 16 SLAVE controllers can be connected to the MASTER controllerThe ASC2102B-T's track in the system is set using dedicated DIP switches

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
