TECHNICAL DATA:
Inlet pressure (Mpa)20
Inlet threadW 21.8x1/14
Outlet threadG 1/4
Hose tip6.3 mm
Throughput (l/min)25
Gas typeArgon / carbon dioxide
Pressure gauge diameter50 mm
Overall dimensions L x W x H167x100x190 mm

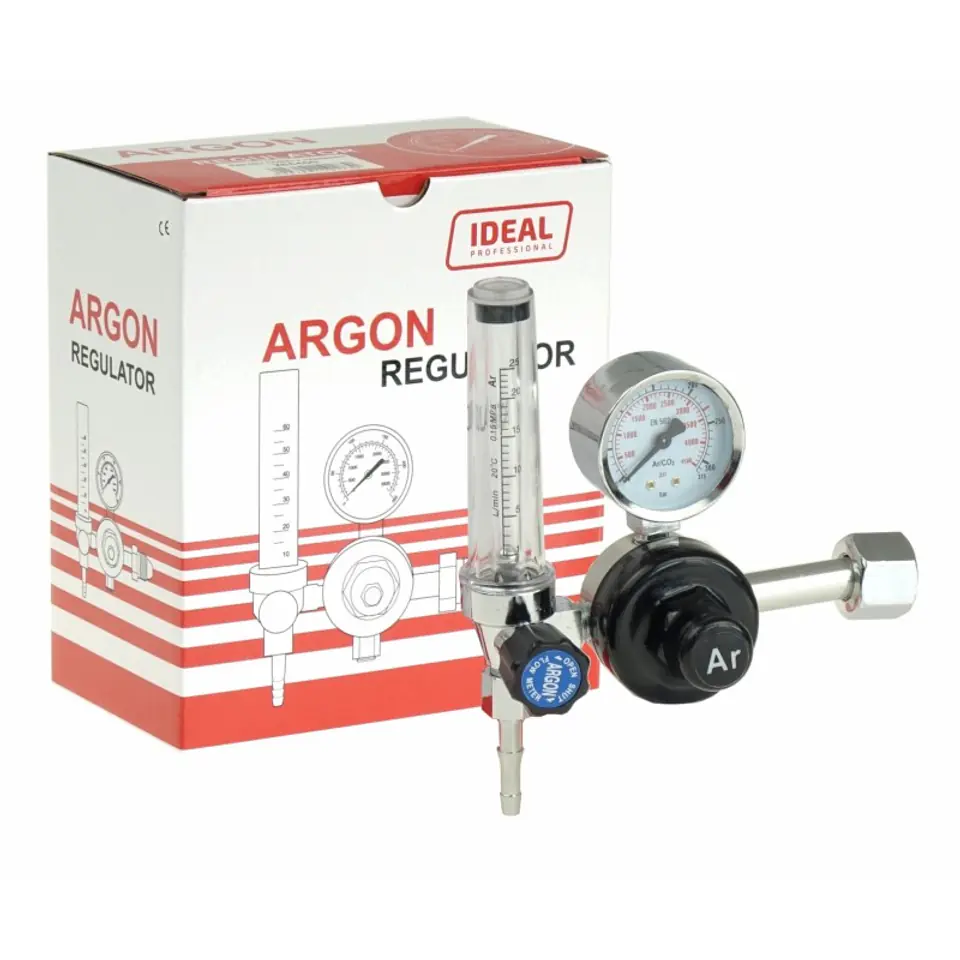

The CO2 / Ar reducer with rotameter is designed to reduce the outlet pressure of the technical gas to the required working pressure.
The reducing valve maintains a constant value of the outlet pressure regardless of the inlet pressure value.
The reducer is equipped with a pressure gauge, rotameter, adjustment screw and safety valve.
A high-pressure pressure gauge indicates the pressure of the technical gas remaining in the cylinder.
The adjustment screw is used to set the gas flow, while the rotameter indicates its value.
The safety valve protects against exceeding the maximum pressure in the outlet chamber.
Inlet pressure (Mpa)20
Inlet threadW 21.8x1/14
Outlet threadG 1/4
Hose tip6.3 mm
Throughput (l/min)25
Gas typeArgon / carbon dioxide
Pressure gauge diameter50 mm
Overall dimensions L x W x H167x100x190 mm

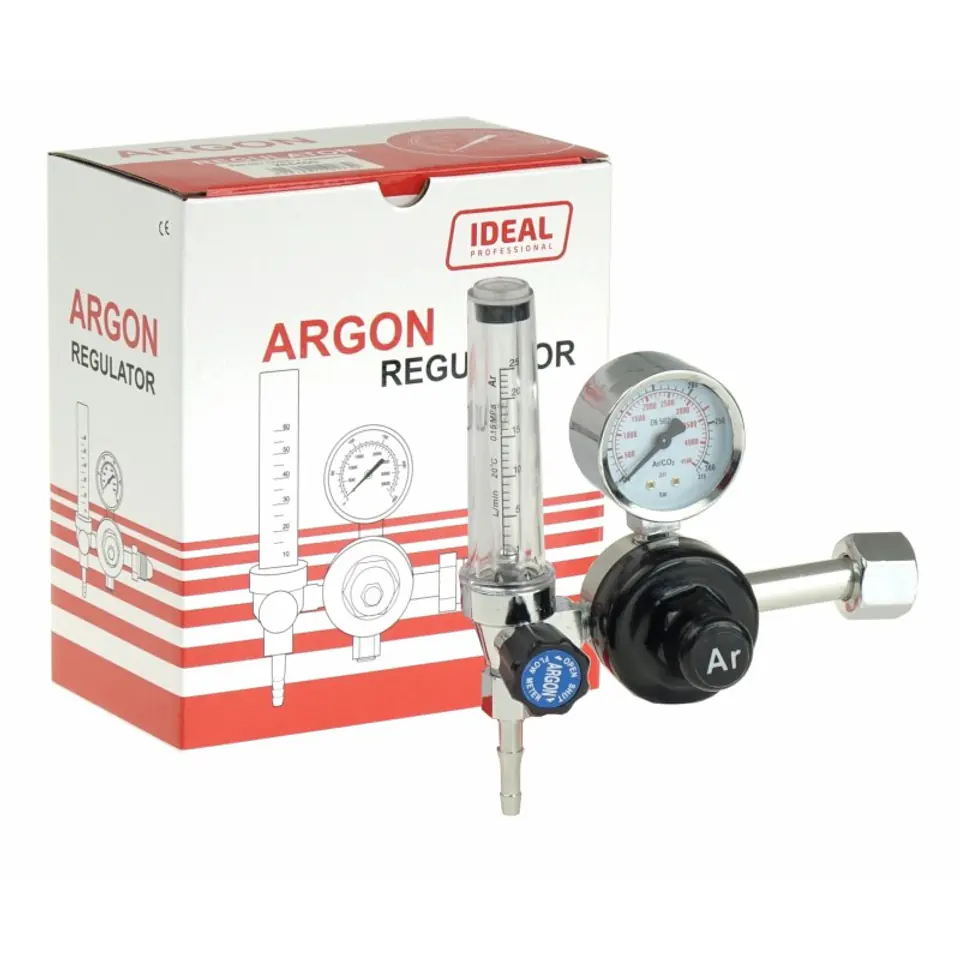

The CO2 / Ar reducer with rotameter is designed to reduce the outlet pressure of the technical gas to the required working pressure.
