TECHNICAL DATA:
Inlet pressure (Mpa)20
Inlet threadW 21.8x1/14
Outlet threadG 1/4
Hose tip6.3 mm
Throughput (l/min)20
Gas typeArgon, Carbon dioxide
Pressure gauge diameter50 mm
Overall dimensions L x W x H135x120x130 mm

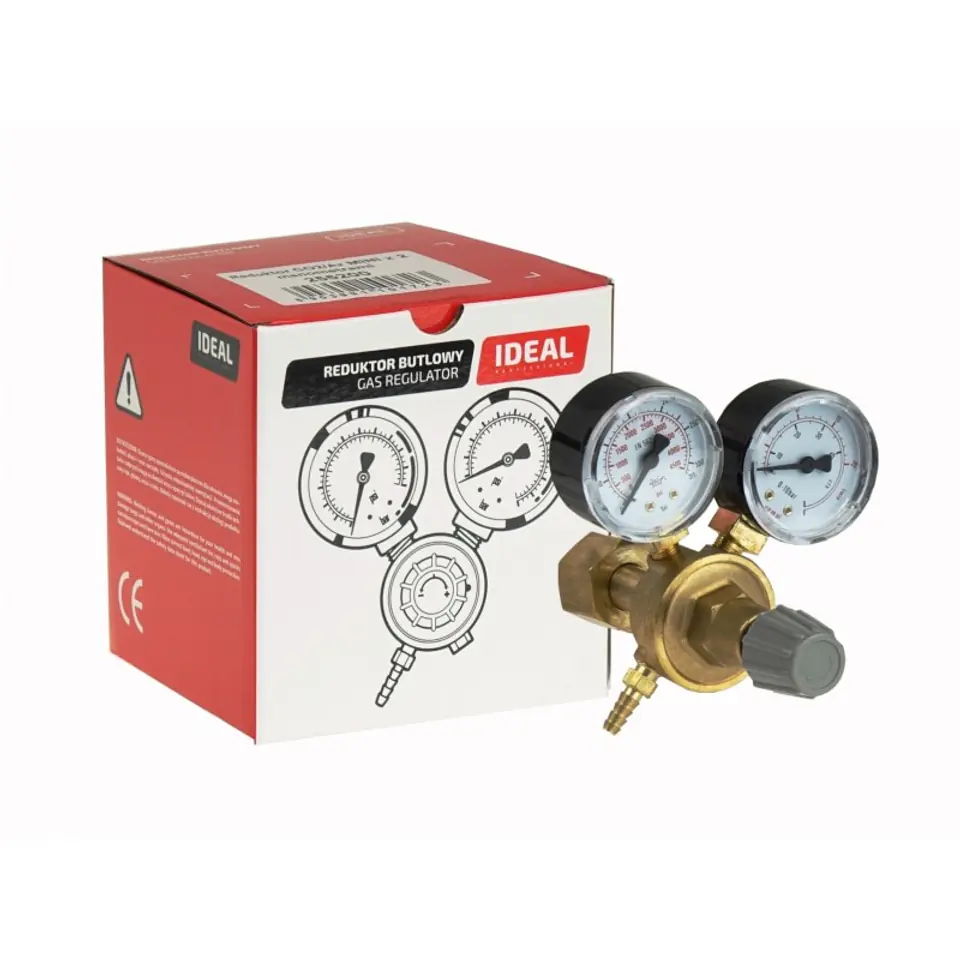

The MINI CO2 / Ar reducer with 2 pressure gauges is designed to lower the outlet pressure of the technical gas to the required working pressure.
The reducing valve maintains a constant value of the outlet pressure regardless of the inlet pressure value.
The reducer is equipped with two pressure gauges, an adjustment screw and a safety valve.
A high-pressure pressure gauge indicates the pressure of the technical gas remaining in the cylinder.
The adjustment screw is used to set the gas flow, while the low-pressure pressure gauge indicates its value.
The safety valve protects against exceeding the maximum pressure in the outlet chamber.
