TECHNICAL DATA :
Inlet pressure (Mpa)20
Inlet threadW 21.8x1/14
Outlet threadG 1/4
Hose tip6.3 mm
Throughput (l/min)30 (CO2) / 32 (Argon)
Gas typeArgon / carbon dioxide
Pressure gauge diameter61 mm
Overall dimensions L x W x H190x65x200 mm

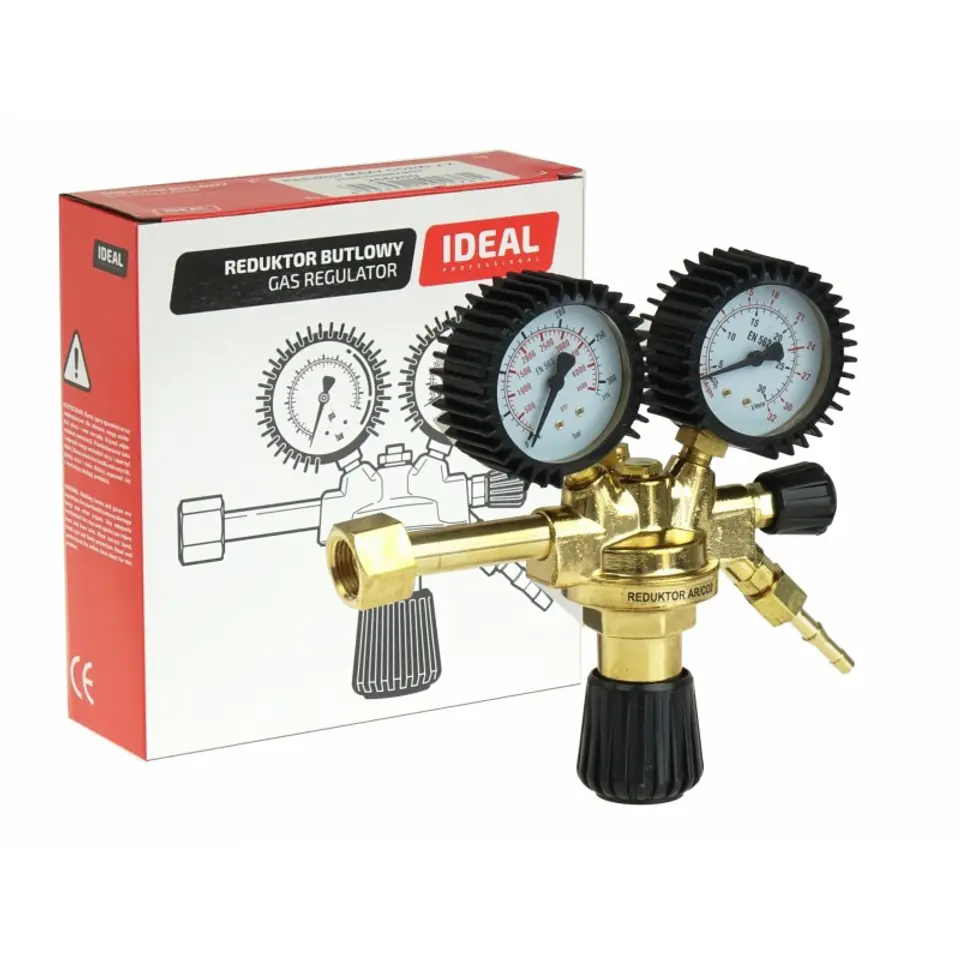

The MAXY CO2 / Ar reducer with 2 pressure gauges is designed to lower the outlet pressure of the technical gas to the required working pressure.
The reducing valve maintains a constant value of the outlet pressure regardless of the inlet pressure value.
The reducer is equipped with two pressure gauges, an adjustment screw, a safety valve and a shut-off valve.
A high-pressure pressure gauge indicates the pressure of the technical gas remaining in the cylinder.
The adjustment screw is used to set the gas flow, while the low-pressure pressure gauge indicates its value.
The safety valve protects against exceeding the maximum pressure in the outlet chamber.
The shut-off valve allows you to turn off the gas supply without having to turn off the valve in the cylinder.
