| Alarm function: | Yes |
|---|---|
| Alarm output: | Wireless |
| Battery: | Battery |
| Battery life: | 4 year(s) |

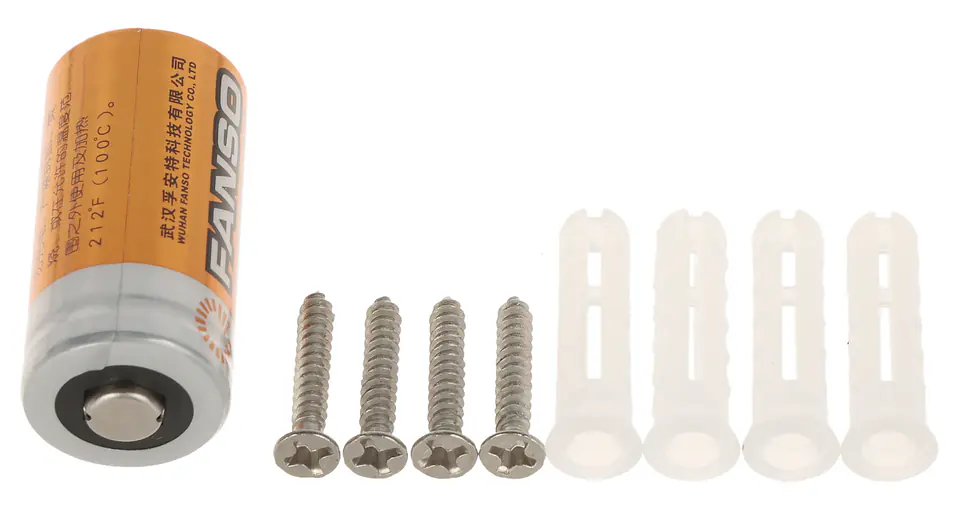

| Battery type: | CR123A |
| Case: | Plastic (PC + ABS) |
| Colour: | white |
| Compliance with standards: | EN50131-1:2006+A2:2017+A3:2020, EN 50131-2-2:2017, EN 50131-6:2017, EN 50131-5-3:2017 |
| Connectivity technology: | Wireless |
| Cooperation: | DAHUA Wireless Alarm Systems |
| Current consumption: | .max. 120 mA |
| Depth: | 51 mm |
| Detectable movement speed: | 0.3 ... 3 m/s |
| Detection distance: | 1.6 m |

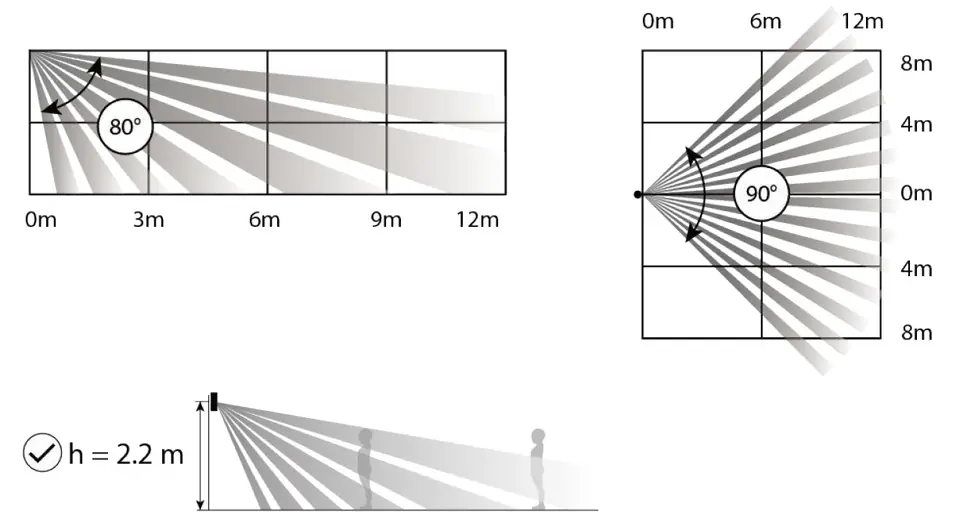

| Detection range / beam angle: | 12m / 90° |

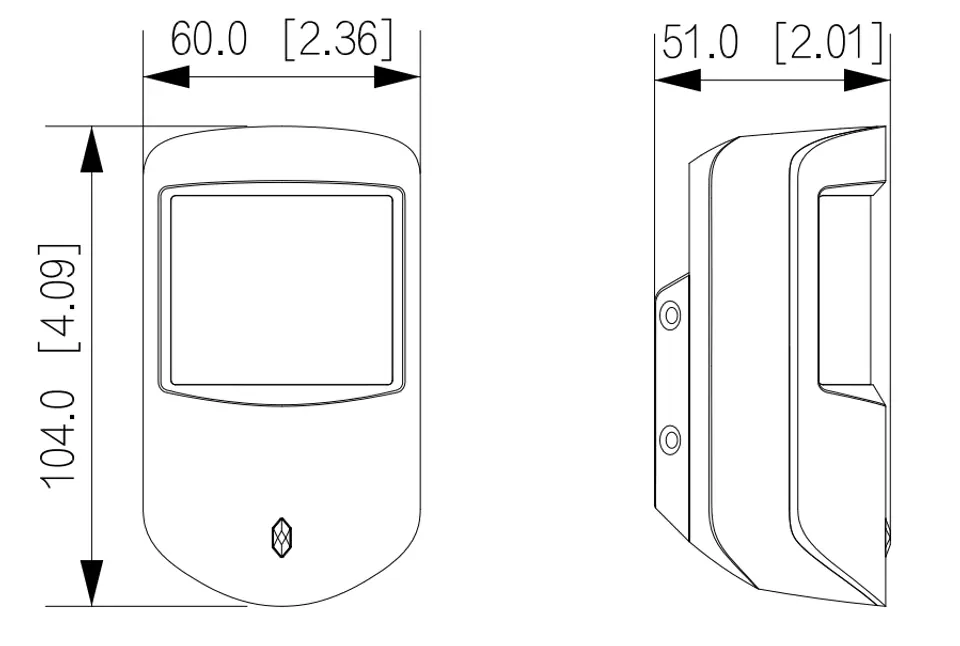

| Dimensions: | 60 x 104 x 51 mm |
| Environmental class: | II |
| Frequency range: | 868.0 ... 868.6 MHz |
| Grade: | Grade 2 |
| Height: | 104 mm |
| Housing material: | Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC) |

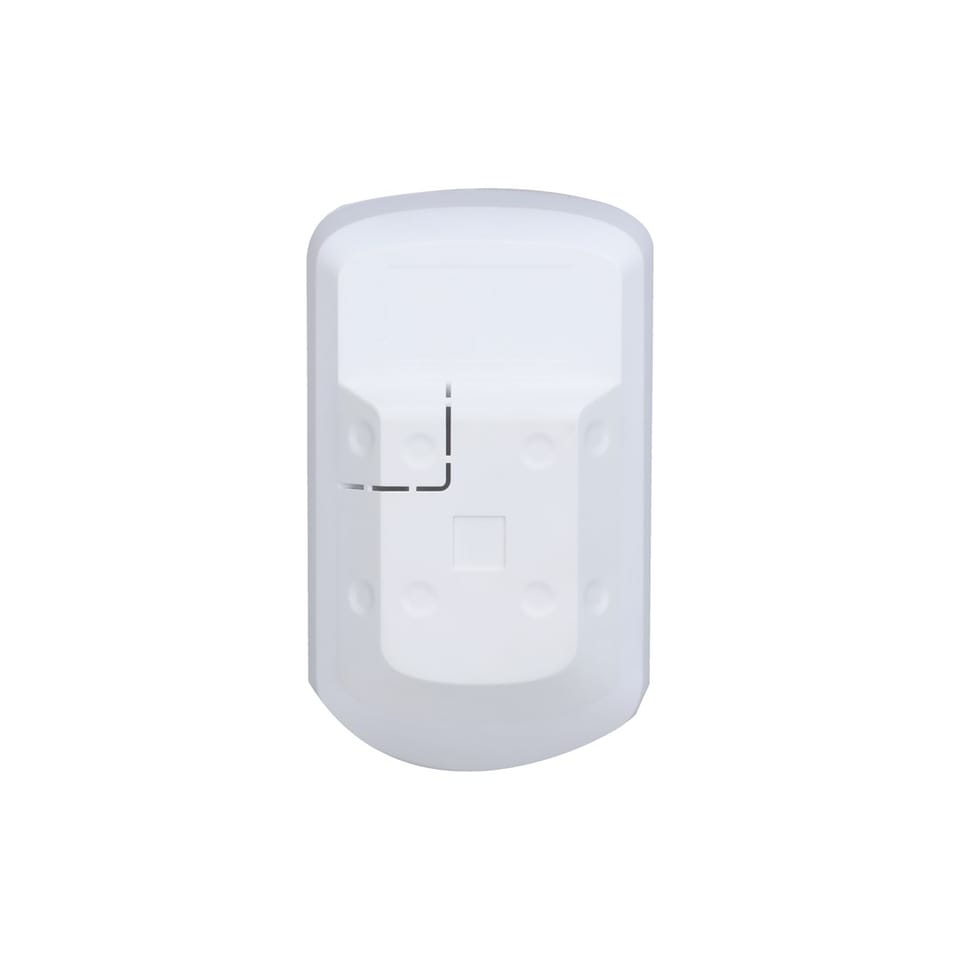

| Mounting type: | Wall |
| Operating frequency: | 868 - 868.6 MHz |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature: | -10 °C ... 55 °C |
| Operating temperature (t-t): | -10 - 55 °C |
| Package depth: | 135 mm |
| Package height: | 56.8 mm |
| Package type: | Box |
| Package weight: | 170 g |
| Package width: | 98.5 mm |
| Power consumption (typical): | 120 W |
| Producer / brand: | DAHUA |
| Product colour: | White |
| Pyroelement: | Dual, Low Noise Ratio |
| Quantity per pack: | 1 pc(s) |
| Radio communication range (in open area): | .max. 1600 m |
| Recommended mounting height: | 2.2 m |
| Remote control included: | Yes |
| Resistance to animals: | ≤ 18 kg |
| Scales: | 0.106 kg |
| Selected features: | Tamper protection Low battery alarm Frequency switching jamming protection for reliable transmission AES128 data encryption Measurement of signal strength and quality Test mode Temperature measurement in the range of -15°C ... +65°C Remote software update LED ON/OFF button |
| Sensitivity adjustment: | Max. 3 levels |
| Sensor type: | Passive infrared (PIR) sensor |
| Test button: | Yes |
| Use: | Internal |
| Warranty: | 3 years |
| Weight: | 100 g |
| Width: | 60 mm |

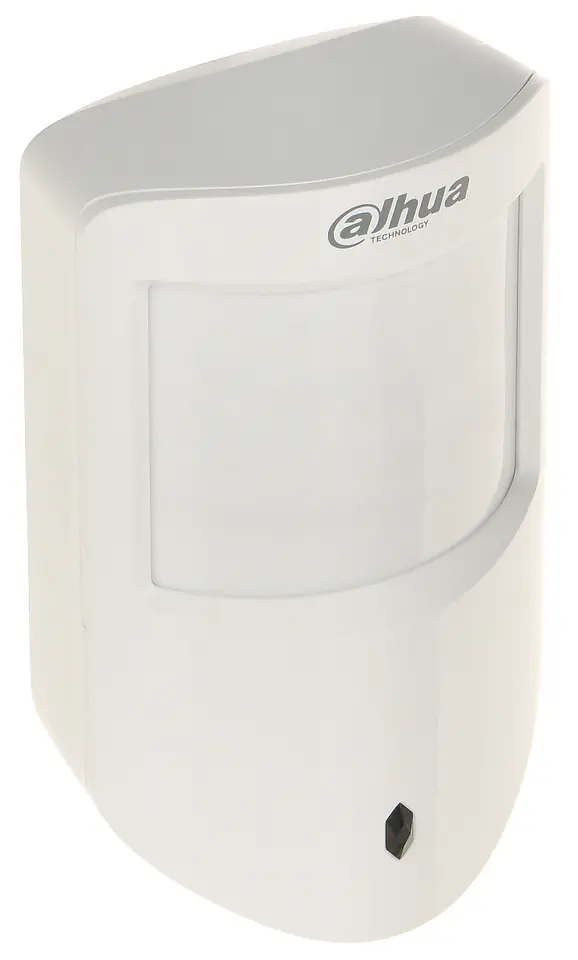

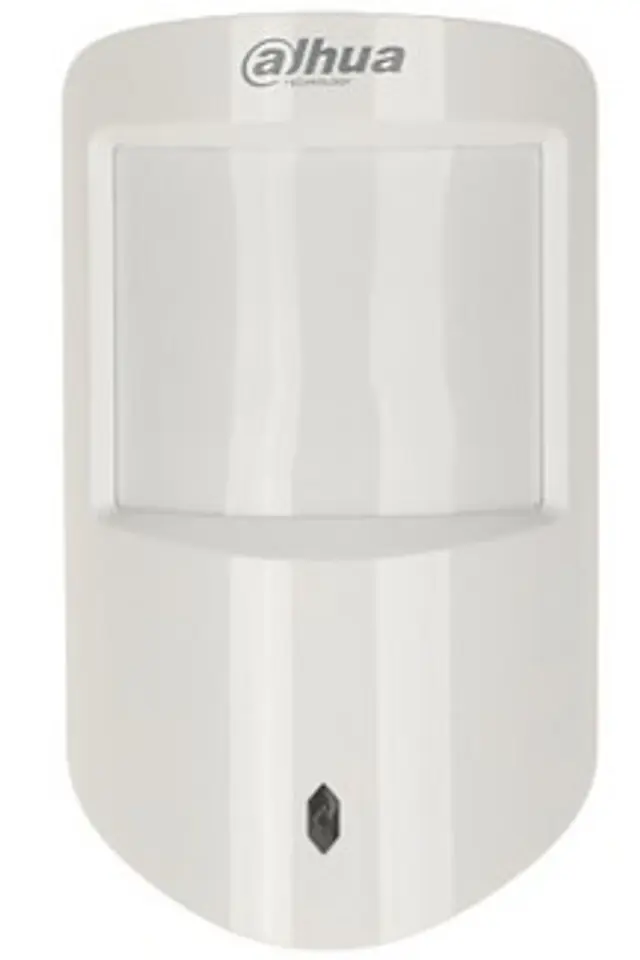

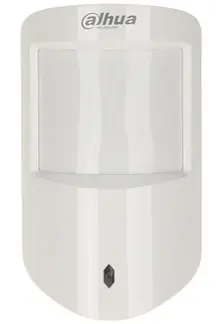

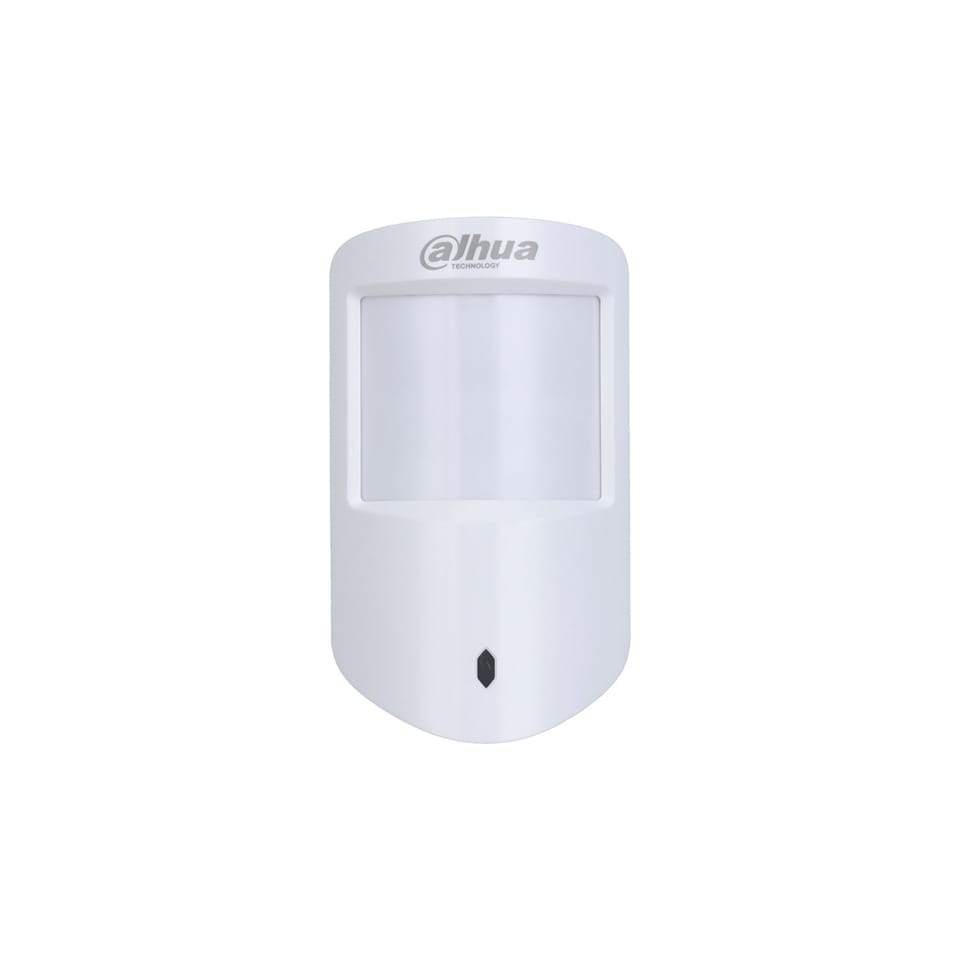

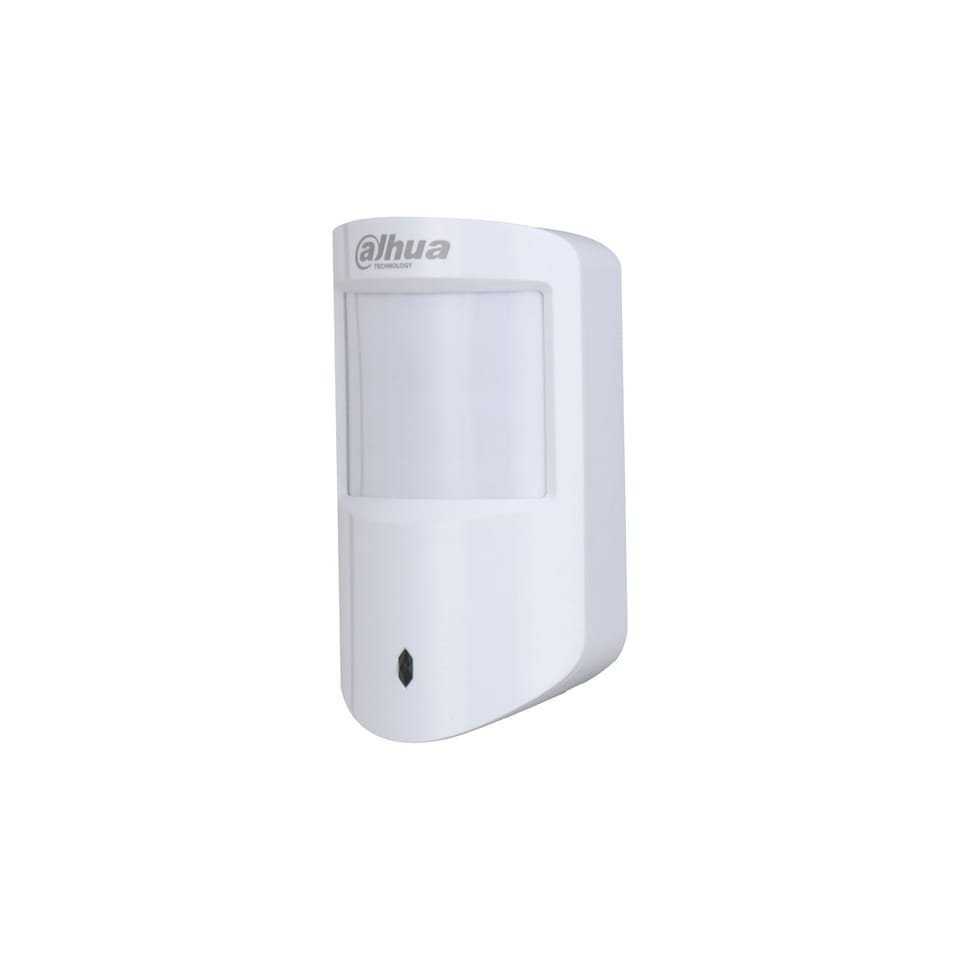

Wireless motion sensor, whose role is to detect a moving intruder in the space protected by the systemThanks to its animal resistance, the ARD1233-W2(868) can provide protection even when small pets are within its range during surveillance

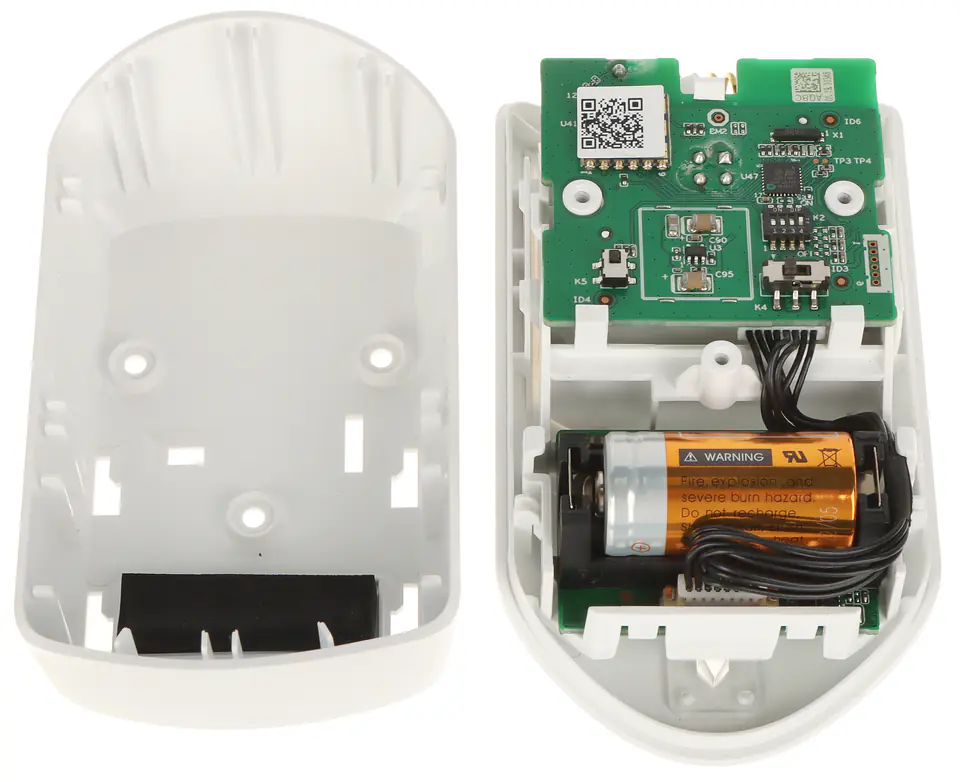

The lithium battery used to power the device guarantees many years of operation without the need to replace it, thanks to which the system is as trouble-free in operation as traditional wired solutions
