AQUARIUS SOCKET HERM.1-FOLD Z/U IP54 Z KL. SMOKY WHITE

This product is not available

Availability:: expected delivery
Brand:: KONTAKT-SIMON
Product code:: AQGZ1/11A / 5902787574093

Specification

Child-resistant:	No
Closed:	No
Color shade:	White
Colour:	White
Connection type:	Screw terminal
Cover:	Complete housing
Degree of protection (ip):	IP54
For use in harsh environments (according to vde):	No
Frequency range [hz] from:	50
Frequency range [hz] to:	60
Halogen-free:	No
Material:	Plastic
Material type:	Thermoplastic
Method of attachment:	Screw mounting
Model:	With grounding pin
Mounting method:	Surface mounting
Number of units:	1
Overcurrent protection:	No
Overprint/symbol:	No print
Power off function:	No
Rated current [a]:	16
Rated prad [a]:	16
Rated voltage [v]:	250
Space for label/marking:	No
Special power supply:	Without special power supply
Surface finish:	Shiny
Surface protection:	Transparent
Swivel central insert:	No
With backlight:	No
With miniature fuse:	No
With plug ejection mechanism:	No
With surge protection:	No
With tilting cover:	Yes

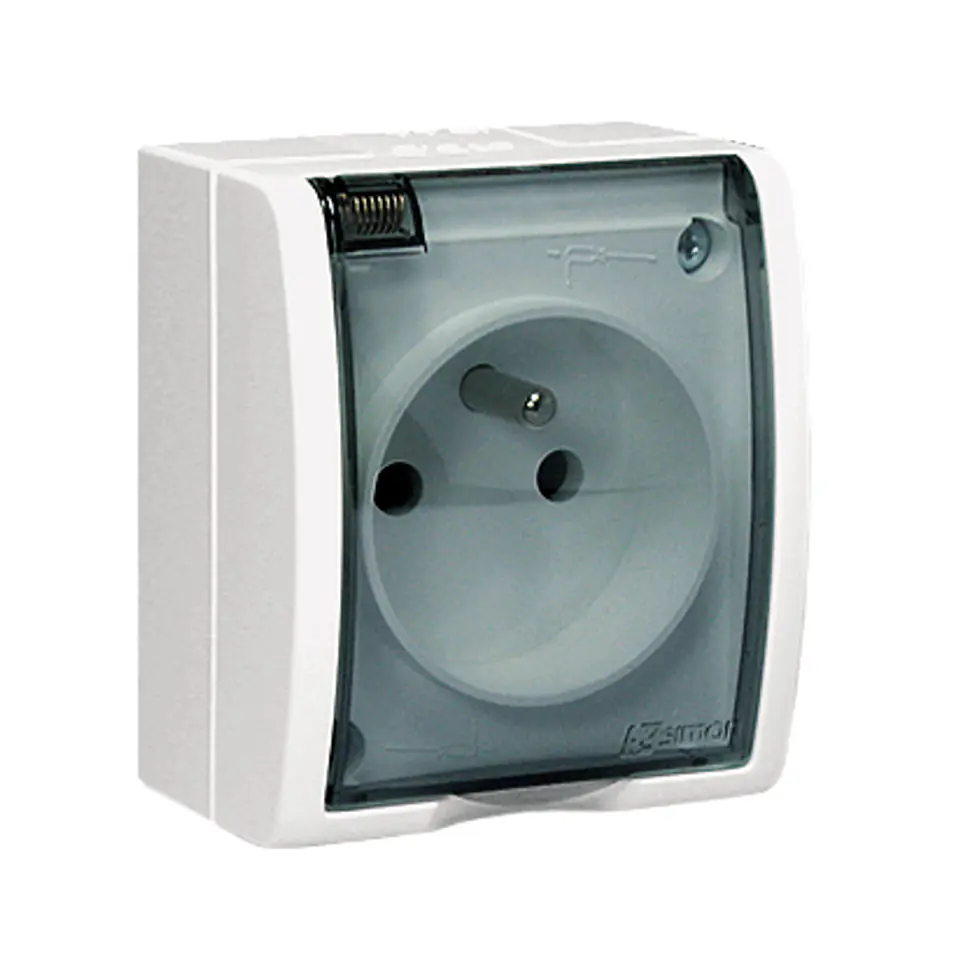

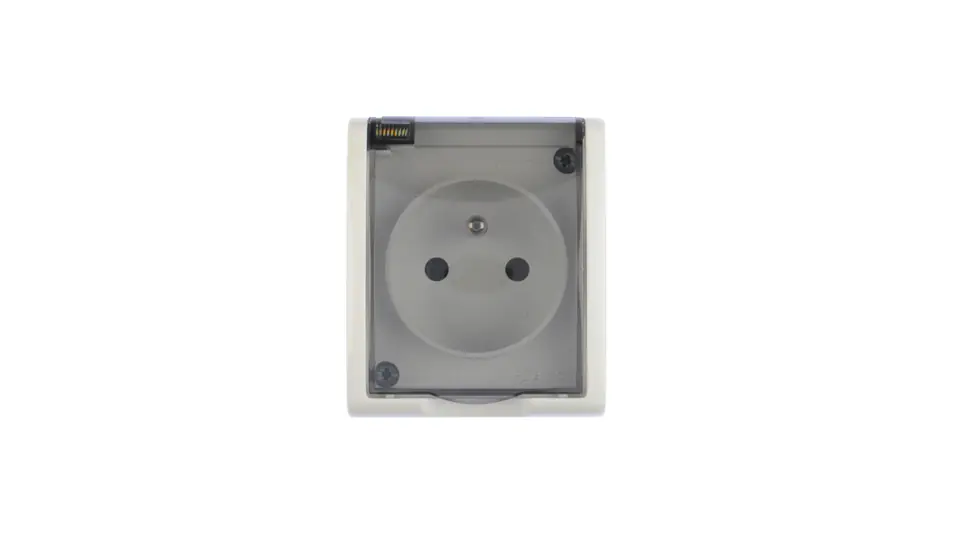

Single socket with grounding, surface-mounted.
The lid of the socket tilts to an angle of 180 degrees, which makes it easier to insert the plug and limits the possibility of breaking the flap.
A connector which is generally part of an electrical installation and is used to connect electricity consumers to it.
White/smoke flap.
Rated voltage 250V~.
Rated current 16AX.
Protection class IP-54.
Screw terminals
