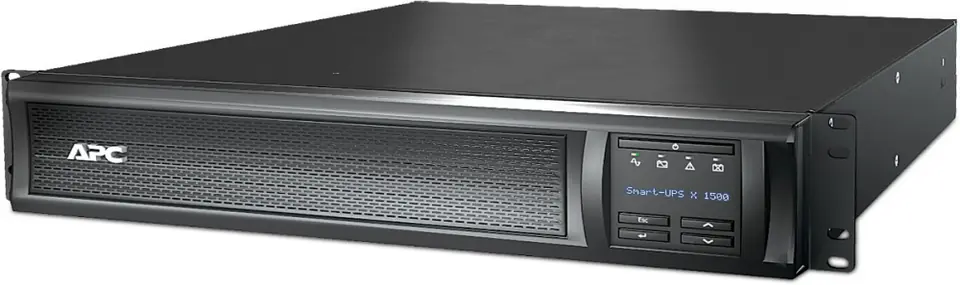

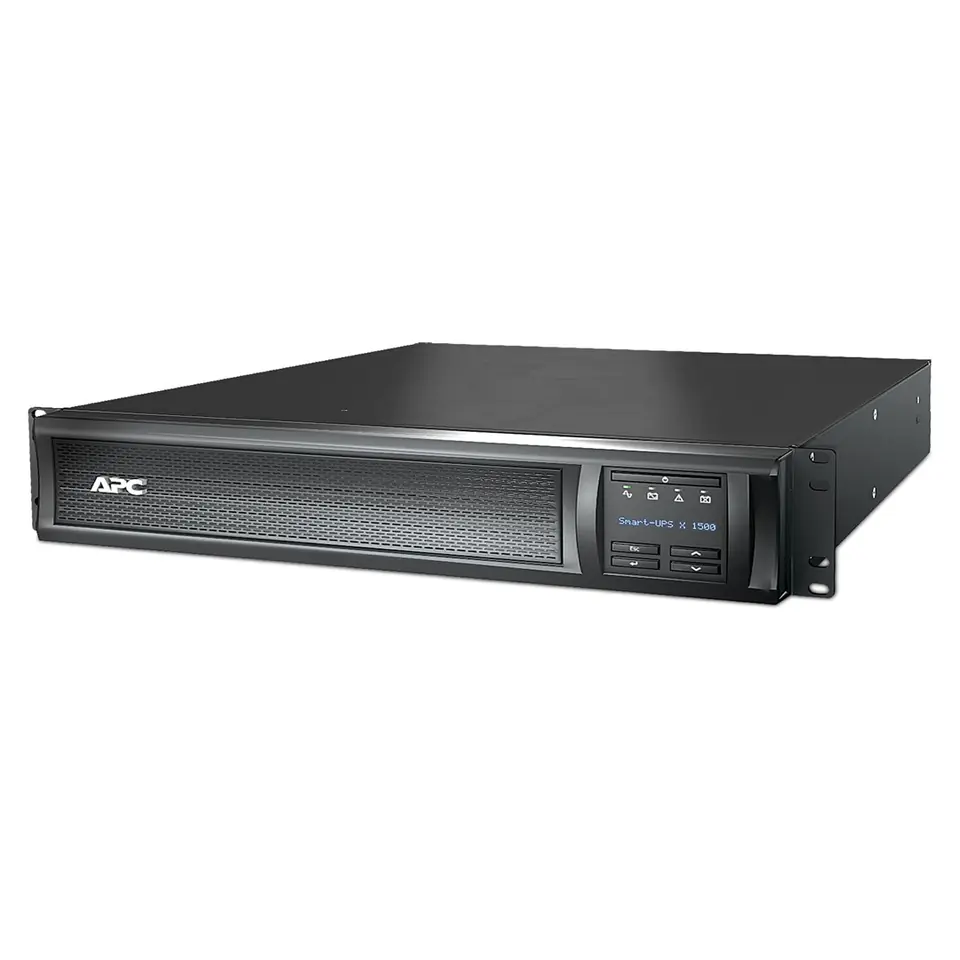

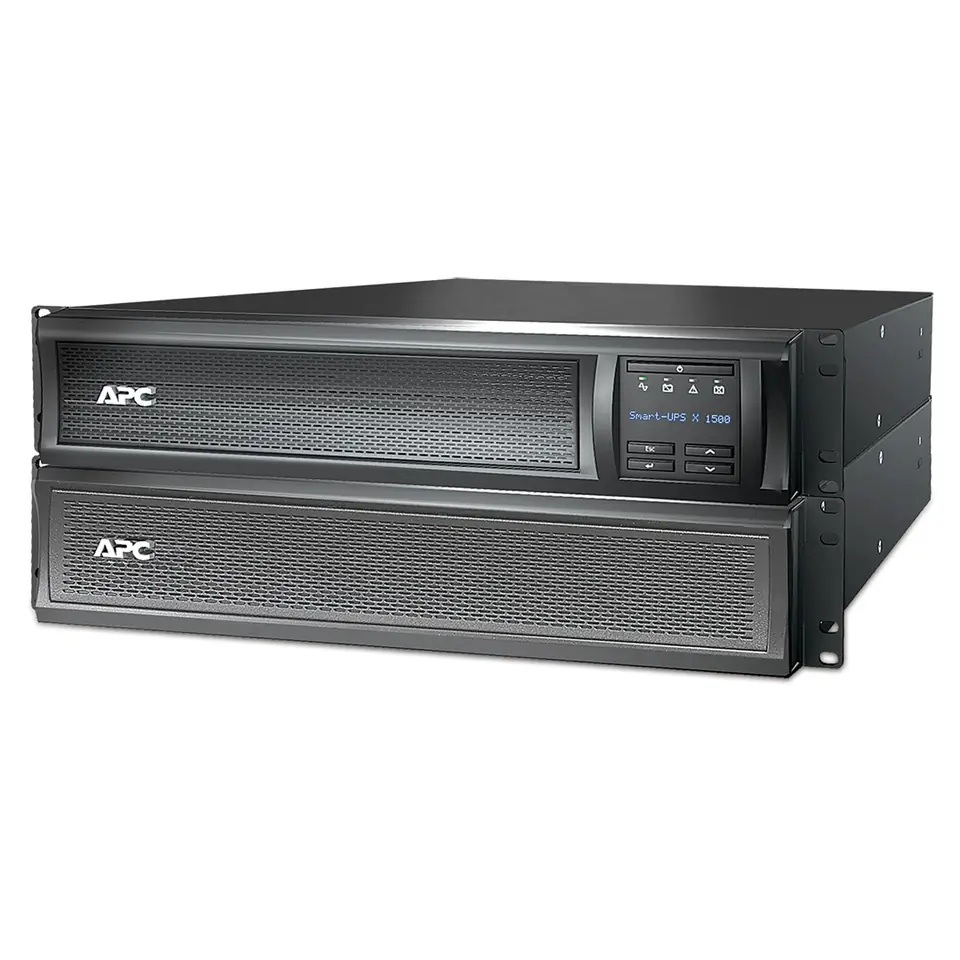

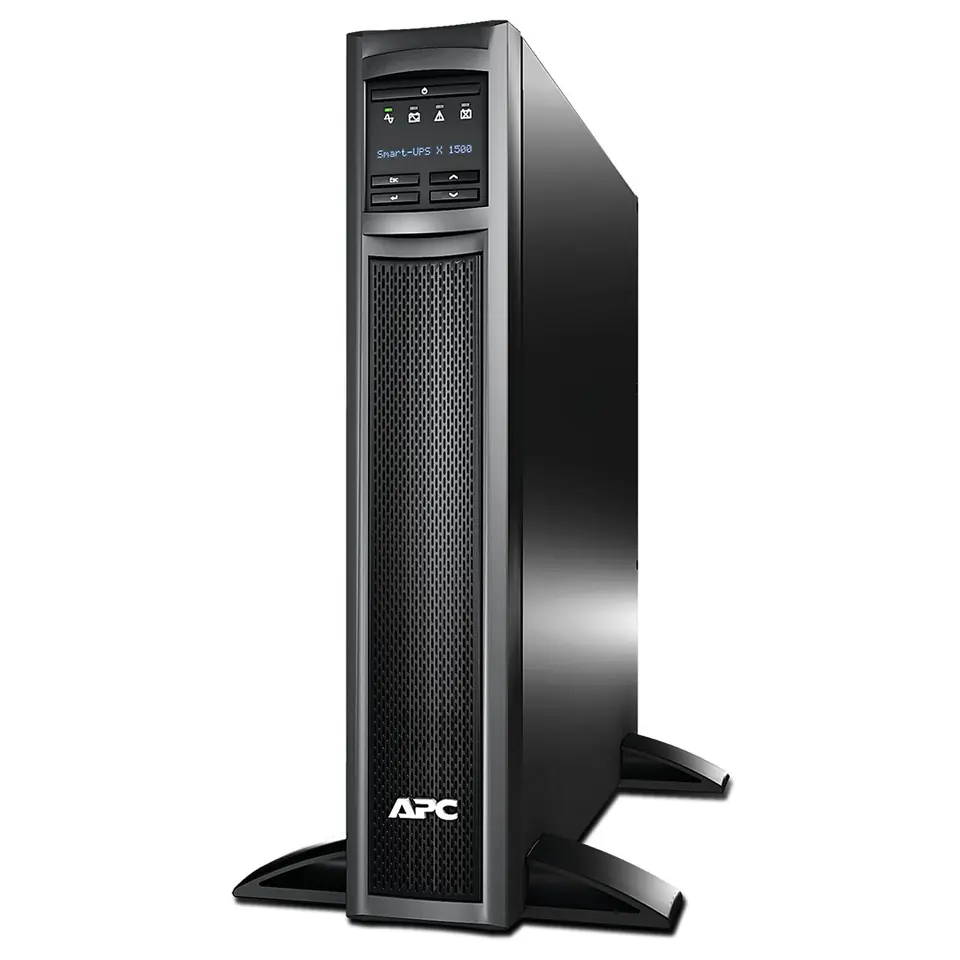

APC Smart-UPS X 1500VA Rack/Tower LCD 230V SMX1500RMI2U 1500VA
This product is not available
- Availability:
- expected delivery
- Brand:
- APC
- Product code:
- SMX1500RMI2U / 0731304268598
Share this product:
Specification

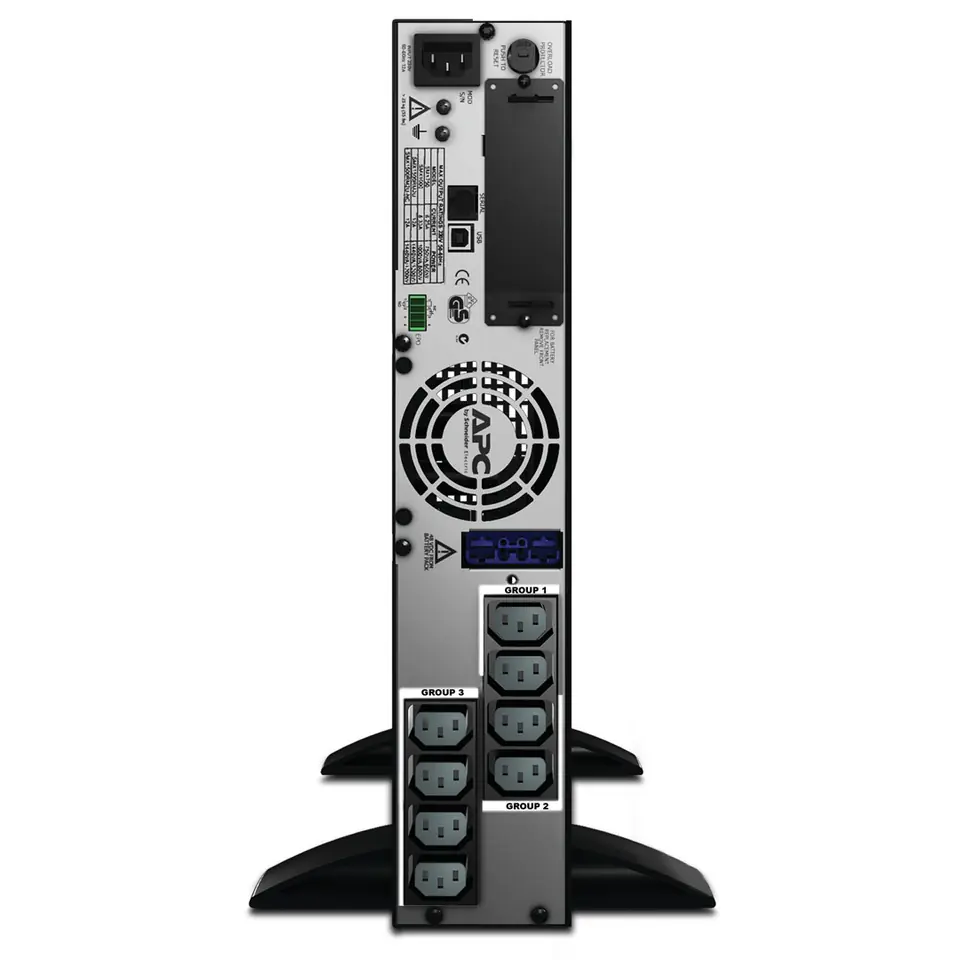

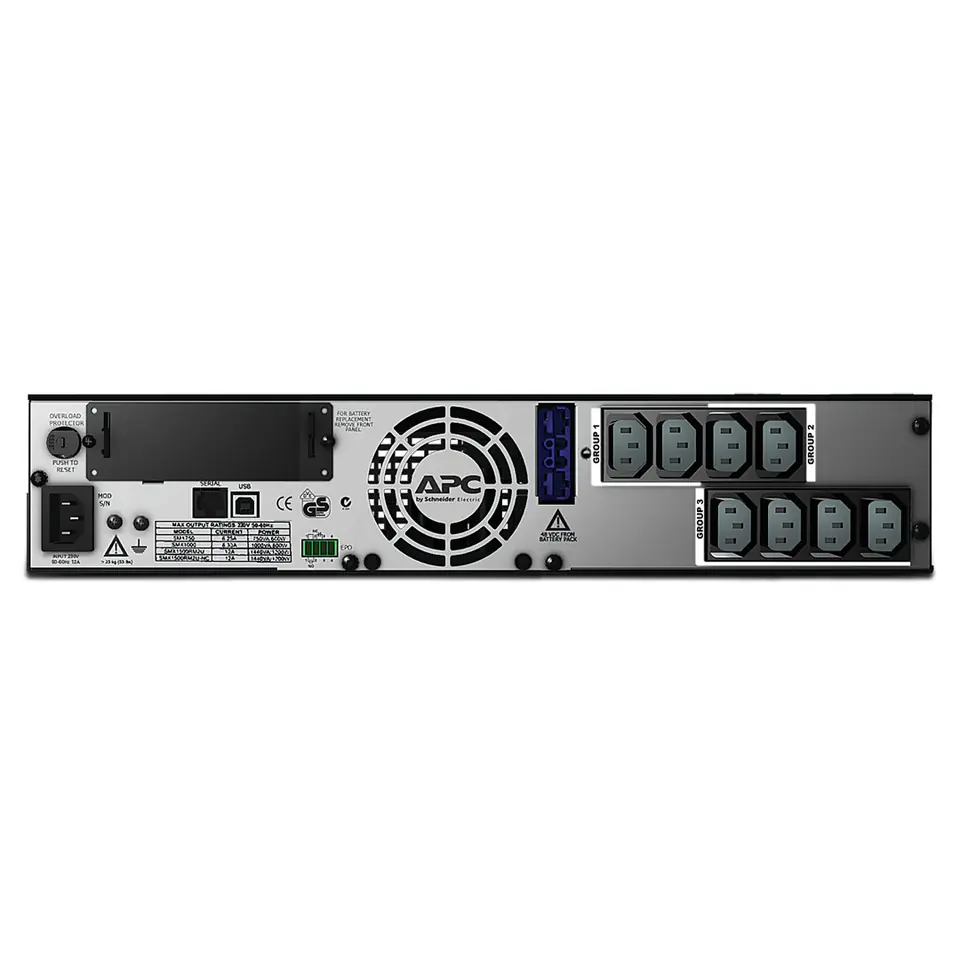

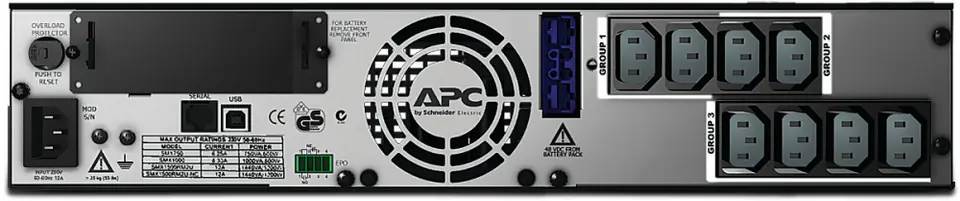

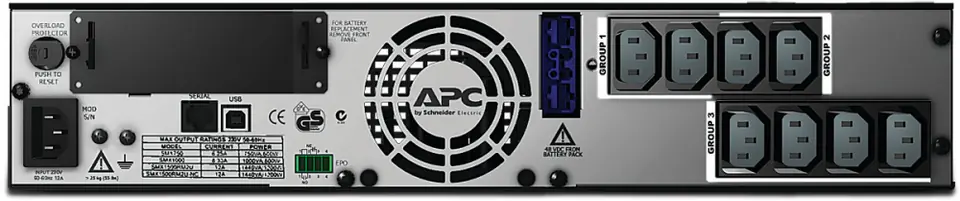

| Ac outlet types: | C13 coupler |
|---|---|
| Ac outlets quantity: | 8 AC outlet(s) |
| Apparent power (va): | 1500 |
| Architecture: | Line-interactive |
| Audible alarm modes: | Low battery alarm, Overload alarm |
| Audible alarm(s): | Yes |
| Auto-restart: | Yes |
| Automatic battery test: | Yes |
| Automatic voltage regulation (avr): | Yes |
| Average charging time: | 3 h |
| Battery capacity: | 311 VAh |
| Battery life (max): | 5 year(s) |
| Battery recharge time: | 3 h |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Cable length: | 1.83 m |
| Cables included: | RS-232, USB cable |
| Case: | 2U Rack |
| Cold start: | Yes |
| Communication connectors: | 1x RS232, 1x USB, SmartSlot |
| Cooling: | 1x Fan |
| Data line protection slots: | no |
| Depth: | 490 mm |
| Depth (cm): | 49 |
| Efficiency: | 98.5% |
| Emergency power off (epo): | Yes |
| Equipment: | Software CD, RS-232 cable, USB cable |
| Form factor: | Rackmount/Tower |
| Harmonized system (hs) code: | 85078000 |
| Height: | 89 mm |
| Height (cm): | 8.9 |

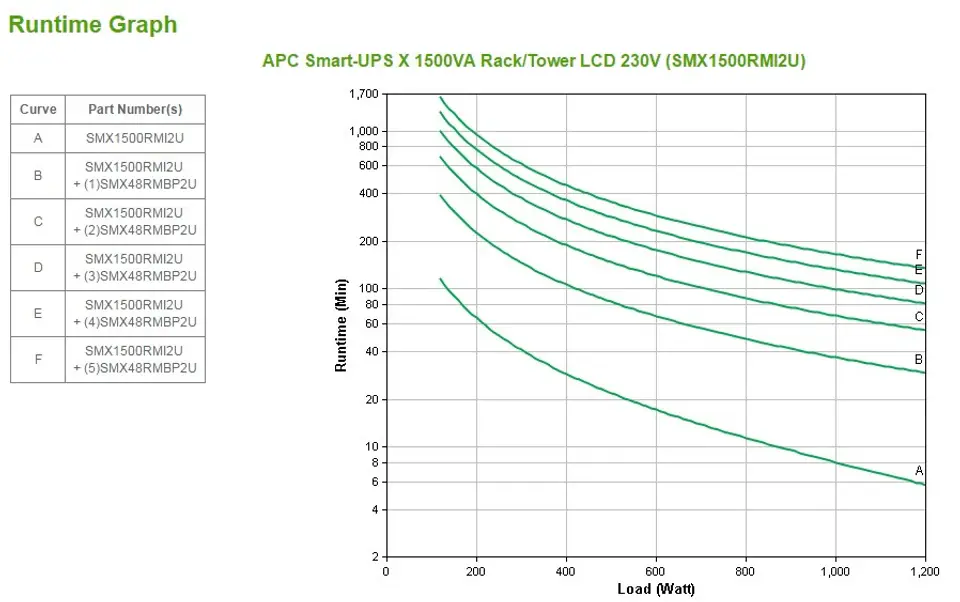

| Hold time: | 14 min - load 50%, 5 min - load 100% |
| Hot-swap battery: | Yes |
| Input frequency: | 50/60 Hz |
| Input operation voltage (max): | 302 V |
| Input operation voltage (min): | 151 V |
| Input voltage (v): | 230 |
| Kind: | Uninterruptible power supply |
| Led indicators: | Yes |
| Network ports: | 8x IEC320 C13 |
| Noise level: | 40 dB |
| Nominal input voltage: | 230 V |
| Nominal output voltage: | 230 V |
| Non-operating altitude: | 0 - 15000 m |
| Number of output iec jumpers: | 2 |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Other parameters: | LCD display, LED status indicator, Audible alarms, Automatic voltage regulation (AVR) with low and high voltage correction, Temperature-adjusted battery charging |
| Output frequency regulation: | 50/60 Hz |
| Output power: | 1200 W |
| Output power capacity: | 1.5 kVA |
| Output voltage (v): | 230 |
| Output voltage shape: | Sine wave |
| Package depth: | 620 mm |
| Package height: | 246 mm |
| Package weight: | 30 kg |
| Package width: | 589 mm |
| Power (w): | 1200 |
| Power plug: | C14 coupler |
| Product colour: | Black |
| Products per pallet: | 8 pc(s) |
| Quick installation guide: | Yes |
| Rack capacity: | 2U |
| Rack mount kit: | Yes |
| Security measures applied: | Overload, RFI/EMI suppression, surge |
| Smartslot: | Yes |
| Software cd: | Yes |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -15 - 45 °C |
| Surge energy rating: | 645 J |
| Sustainability certificates: | RoHS |
| Typical backup time at full load: | 5.8 min |
| Typical backup time at half load: | 17.2 min |
| Ups topology: | Line-Interactive |
| Usb port: | Yes |
| Warranty: | 3 years |
| Waveform: | Sine |
| Weight: | 24.8 kg |
| Weight (kg): | 25 |
| Width: | 432 mm |
| Width (cm): | 43.2 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
