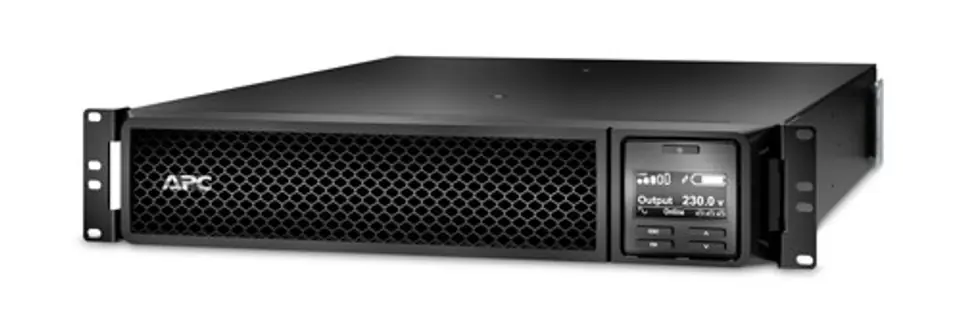

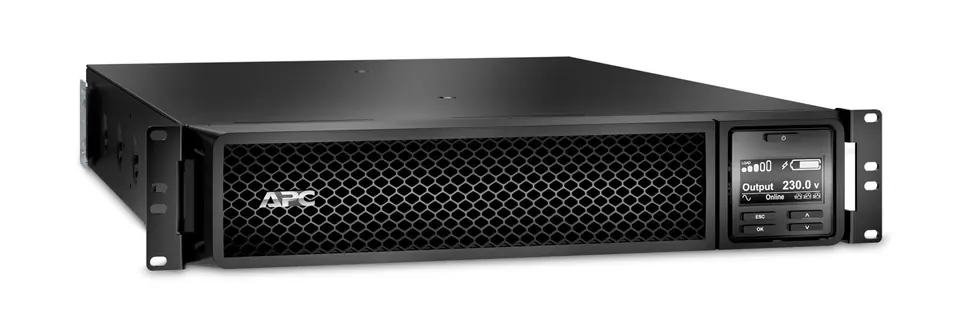

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 230V, 8x C13+2x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit
This product is not available
- Availability:
- expected delivery
- Brand:
- APC
- Product code:
- SRT2200RMXLI-NC / 0731304327561
Share this product:
Specification
| Ac outlet types: | C13 coupler, C19 coupler |
|---|---|
| Ac outlets quantity: | 12 AC outlet(s) |
| Audible alarm(s): | Yes |
| Battery capacity: | 367 VAh |
| Battery life (max): | 5 year(s) |
| Battery recharge time: | 3 h |
| Battery technology: | Sealed Lead Acid (VRLA) |
| Cable length: | 2.44 m |
| Compliance certificates: | RoHS |
| Crest factor: | 3:1 |
| Depth: | 584 mm |
| Display type: | LCD |
| Emergency power off (epo): | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Form factor: | Rackmount |
| Harmonized system (hs) code: | 85078000 |
| Height: | 85 mm |
| Input frequency: | 40 - 70 Hz |
| Input operation voltage (max): | 275 V |
| Input operation voltage (min): | 160 V |
| International protection (ip) code: | IP20 |
| Led indicators: | Yes |
| Noise level: | 55 dB |
| Non-operating altitude: | 0 - 15000 m |
| Number of batteries supported: | 1 |
| Number of output iec jumpers: | 2 |
| Operating altitude: | 0 - 3000 m |
| Operating relative humidity (h-h): | 0 - 95% |
| Operating temperature (t-t): | 0 - 40 °C |
| Output operation voltage (max): | 240 V |
| Output operation voltage (min): | 220 V |
| Output power: | 1980 W |
| Output power capacity: | 2.2 kVA |
| Output voltage: | 230 V |
| Output voltage total harmonic distortion (thd): | 2% |
| Package height: | 246 mm |
| Package width: | 599 mm |
| Product colour: | Black |
| Rack capacity: | 2U |
| Serial interface: | Yes |
| Serial interface type: | RJ-45 |
| Smartslot: | Yes |
| Storage relative humidity (h-h): | 0 - 95% |
| Storage temperature (t-t): | -20 - 50 °C |
| Surge energy rating: | 340 J |
| Sustainability certificates: | ENERGY STAR, Green Premium |
| Ups topology: | Double-conversion (Online) |
| Usb port: | Yes |
| Waveform: | Sine |
| Weight: | 25 kg |
| Width: | 432 mm |
