| 2.4 ghz: | Yes |
|---|---|
| 5 ghz: | No |
| 6 ghz: | No |
| Ac input frequency: | 50 - 60 Hz |
| Ac input voltage: | 100 - 240 V |
| Antenna direction type: | Directional |
| Antenna gain level (max): | 9 dBi |
| Antenna type: | Internal |
| Auto wireless distribution system (wds): | Yes |
| Automatic channel scanning: | Yes |
| Automatic channel selection: | Yes |
| Built-in processor: | Yes |
| Cables included: | AC |
| Dc-in jack: | Yes |
| Depth: | 79 mm |
| Dynamic frequency selection (dfs): | Yes |

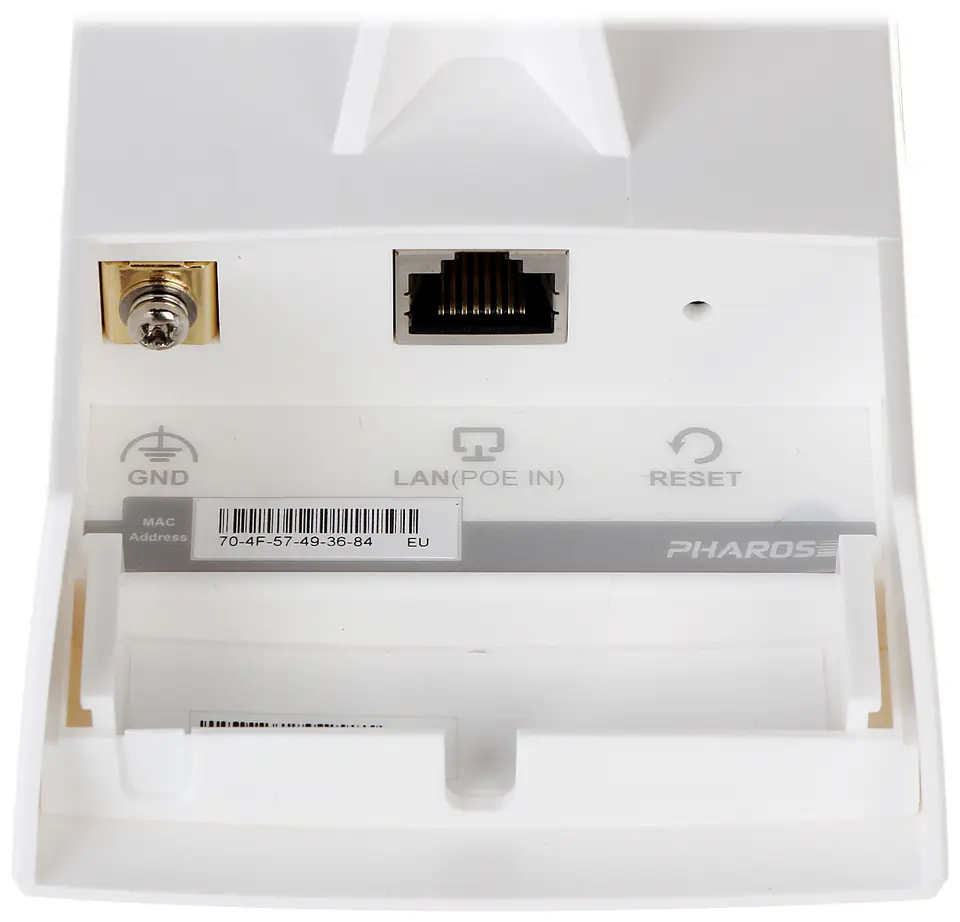

| Ethernet lan (rj-45) ports: | 2 |
| Firmware upgradeable: | Yes |
| Flash memory: | 8 MB |
| Frequency band: | 2.4 - 2.483 GHz |
| Height: | 60 mm |
| Igmp snooping: | Yes |
| Internal memory: | 64 MB |
| International protection (ip) code: | IPX5 |

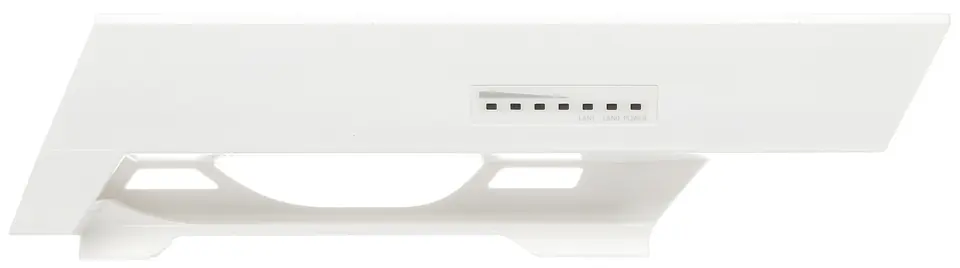

| Led indicators: | Status |
| Mac address filtering: | Yes |
| Main beam width in horizontal plane (h): | 65 ° |
| Main beam width in vertical plane (v): | 35 ° |
| Management platform: | Pharos Control |
| Maximum data transfer rate: | 300 Mbit/s |
| Maximum outdoor range: | 5000 m |
| Mimo: | Yes |
| Mounting kit: | Yes |
| Networking standards: | IEEE 802.11g, IEEE 802.11n, IEEE 802.11b |
| Number of products included: | 1 pc(s) |
| Operating relative humidity (h-h): | 10 - 90% |
| Operating temperature (t-t): | -30 - 70 °C |
| Output current: | 0.25 A |
| Output voltage: | 24 V |
| Package depth: | 270 mm |
| Package height: | 106 mm |
| Package weight: | 760 g |
| Package width: | 132 mm |

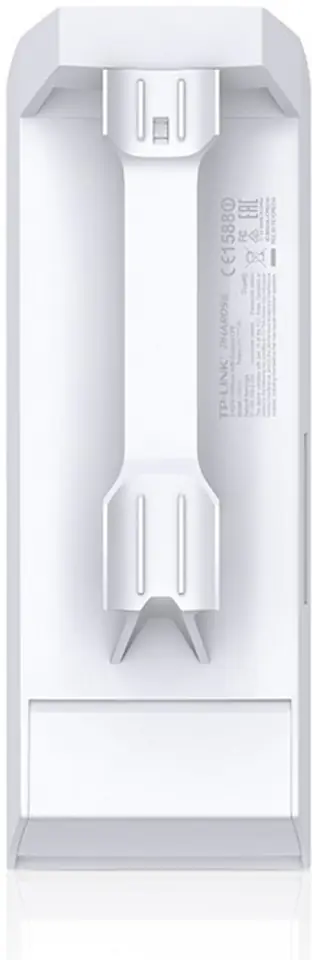

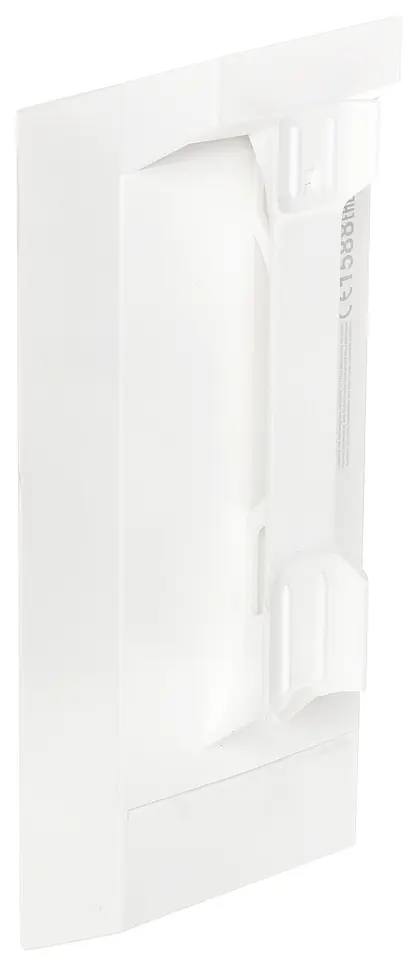

| Placement: | Pole |

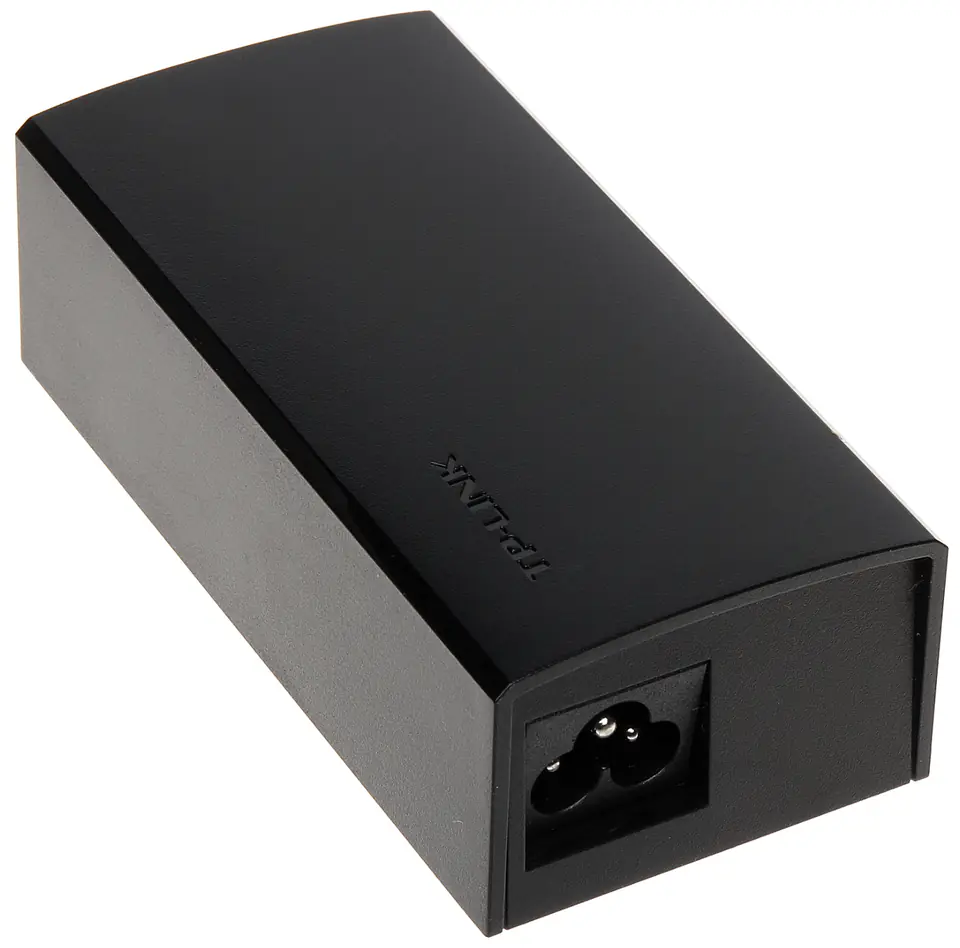

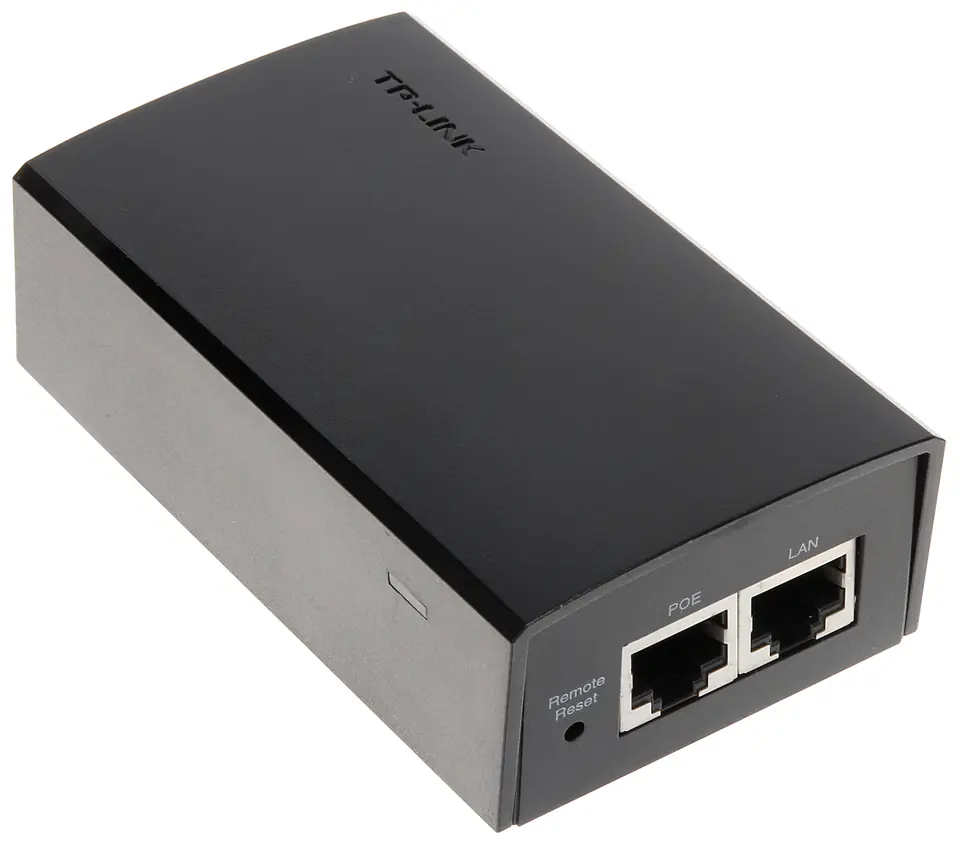

| Poe power supply: | (up to 60 m with UTP cable) |

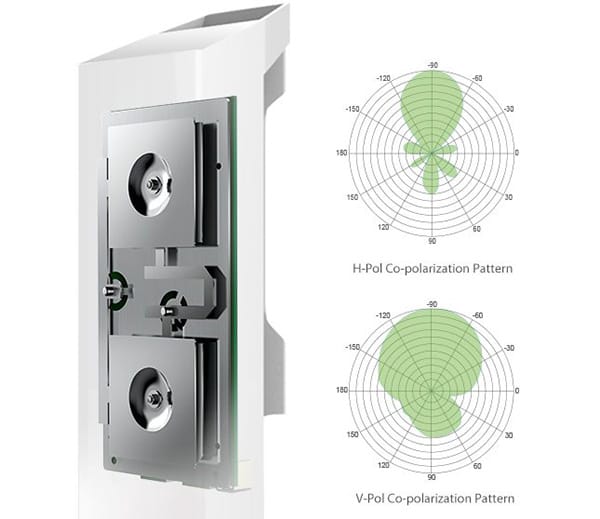

| Polarization: | Dual polarization |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) type supported: | Passive PoE |

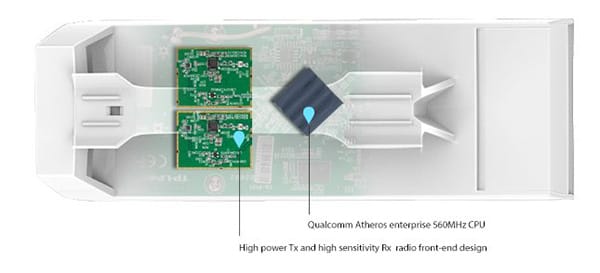

| Processor architecture: | MIPS 74Kc |
| Processor frequency: | 560 MHz |
| Processor model: | Qualcomm Atheros |
| Product colour: | White |
| Quantity per pack: | 1 pc(s) |
| Reset button: | Yes |
| Security algorithms: | WPA2, WPA2-PSK, WPA, AES, TKIP, WPA-PSK |
| Service set identifier (ssid) features: | SSID broadcast, SSID broadcast on/off |
| Storage relative humidity (h-h): | 5 - 95% |
| Storage temperature (t-t): | -40 - 70 °C |
| Surge protection: | 15 kV ESD 6 kV lightning |
| Universal plug and play (upnp): | Yes |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Width: | 224 mm |
| Wireless isolation: | Yes |

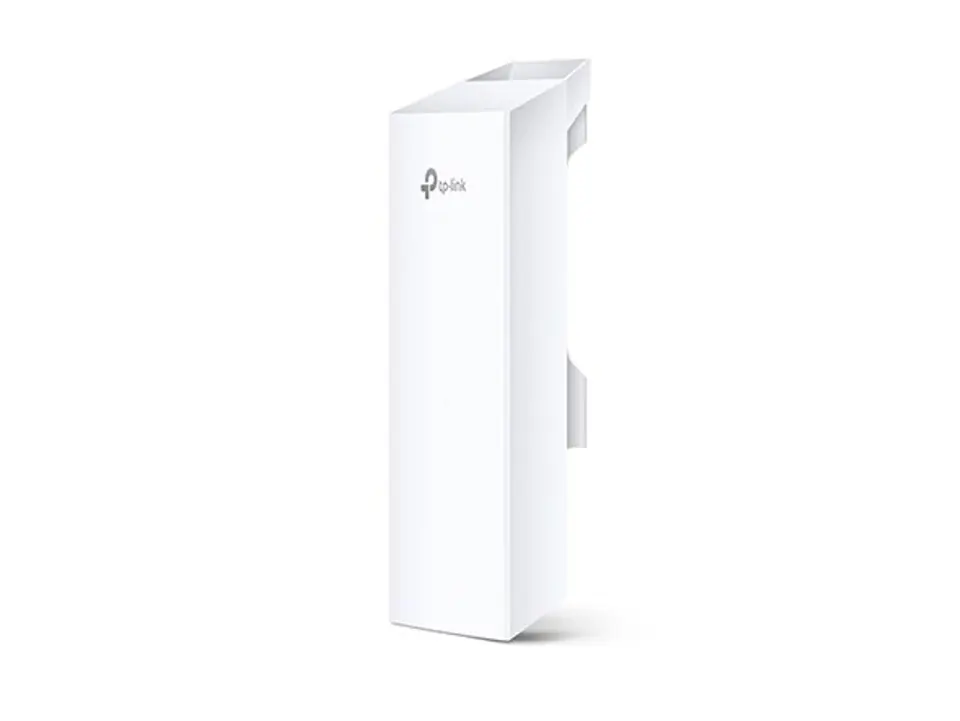

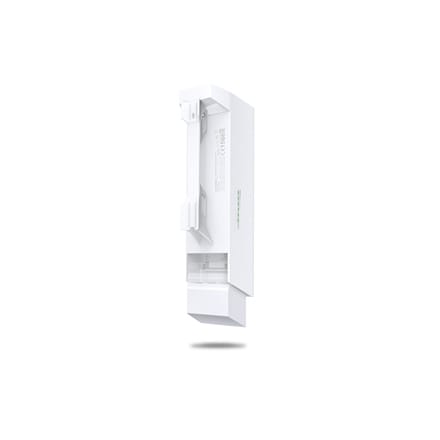

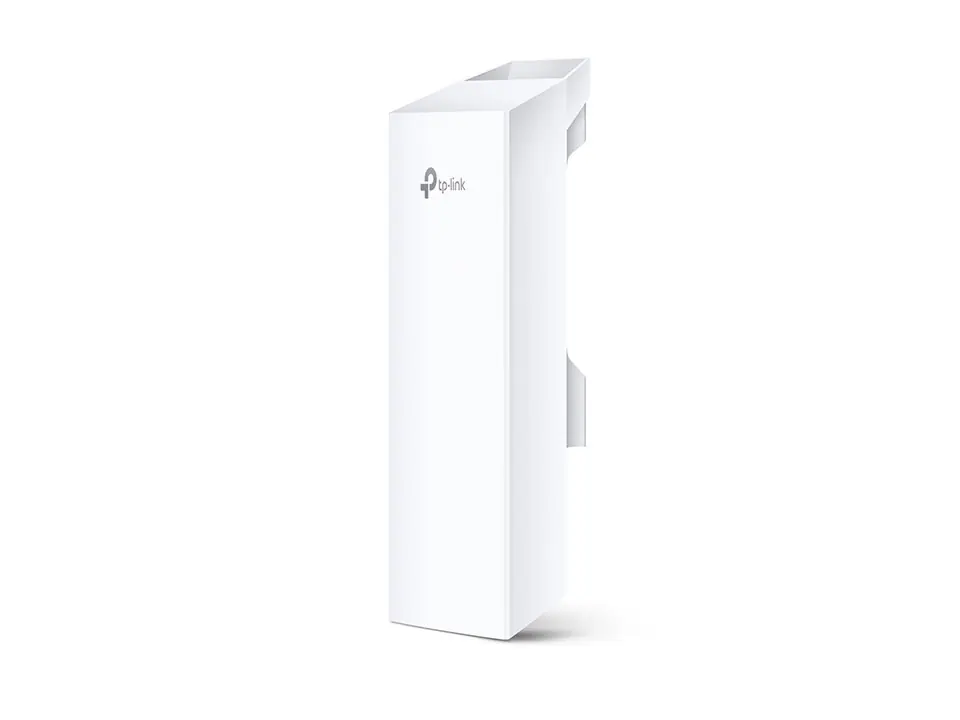

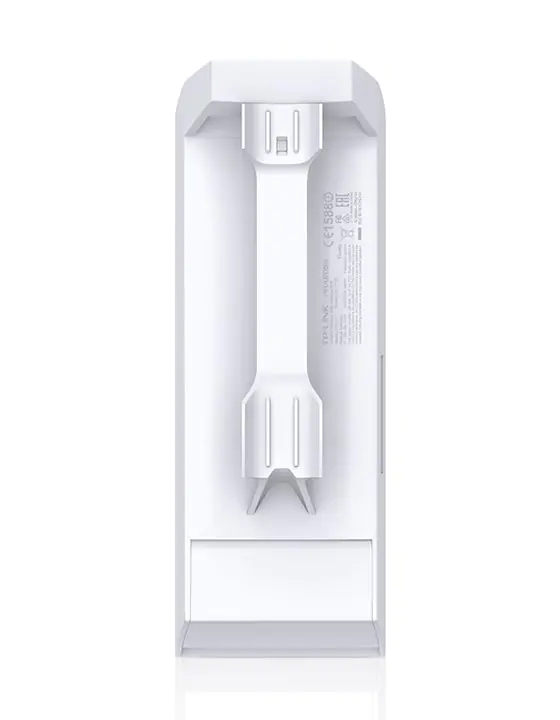

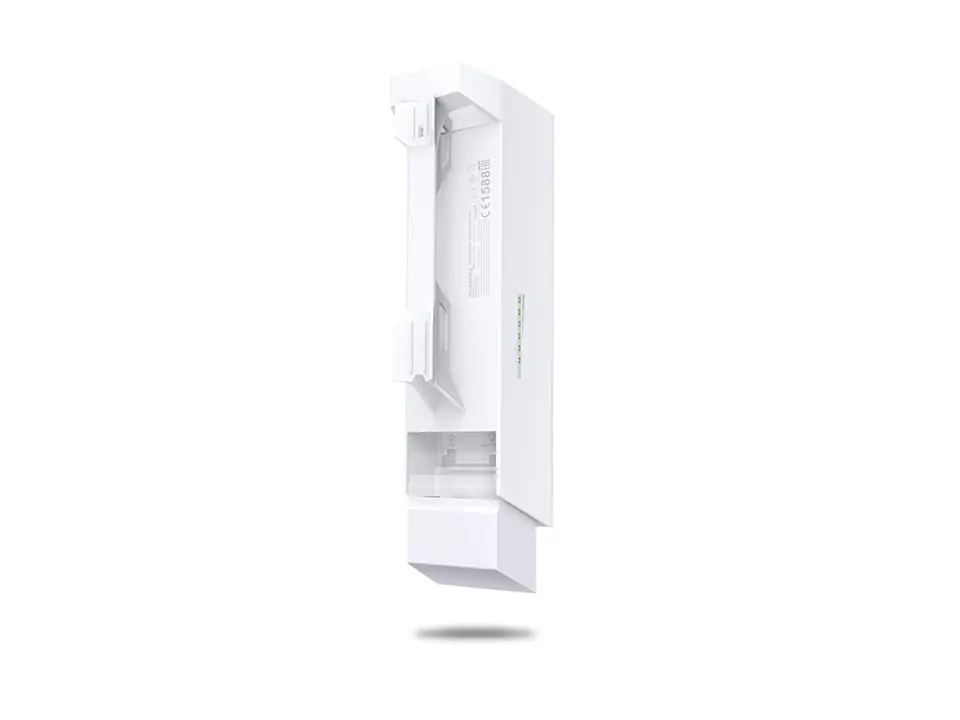

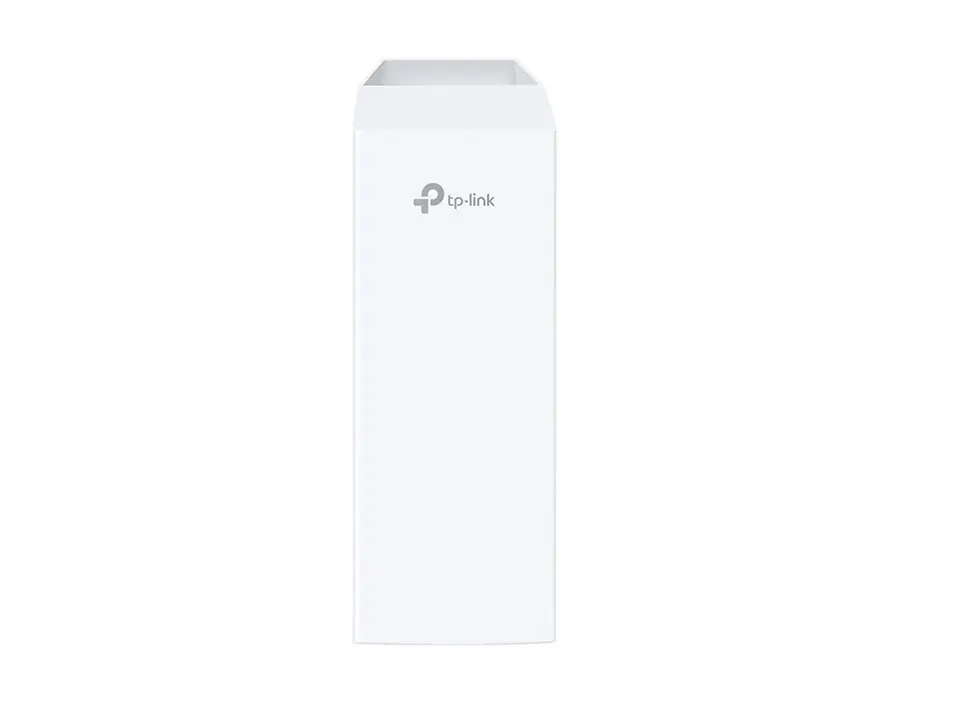

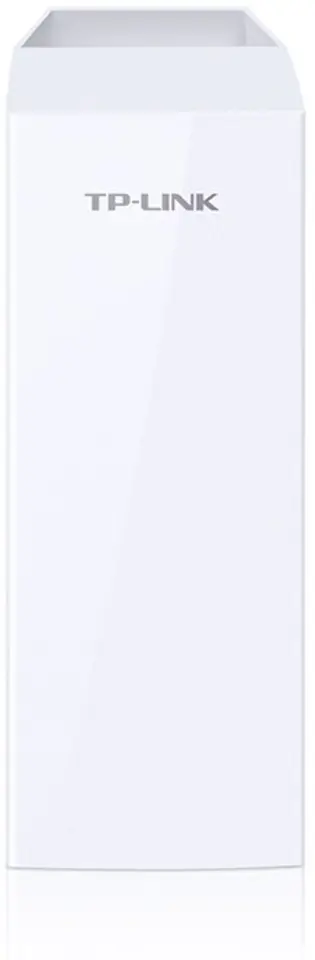

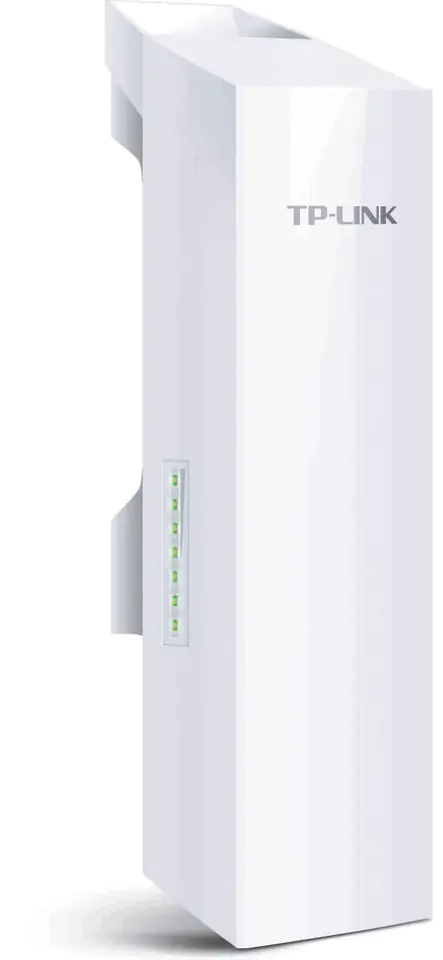

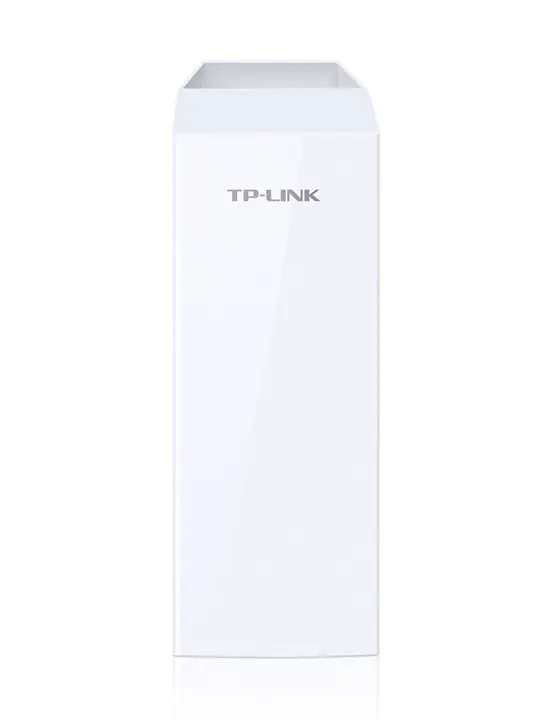

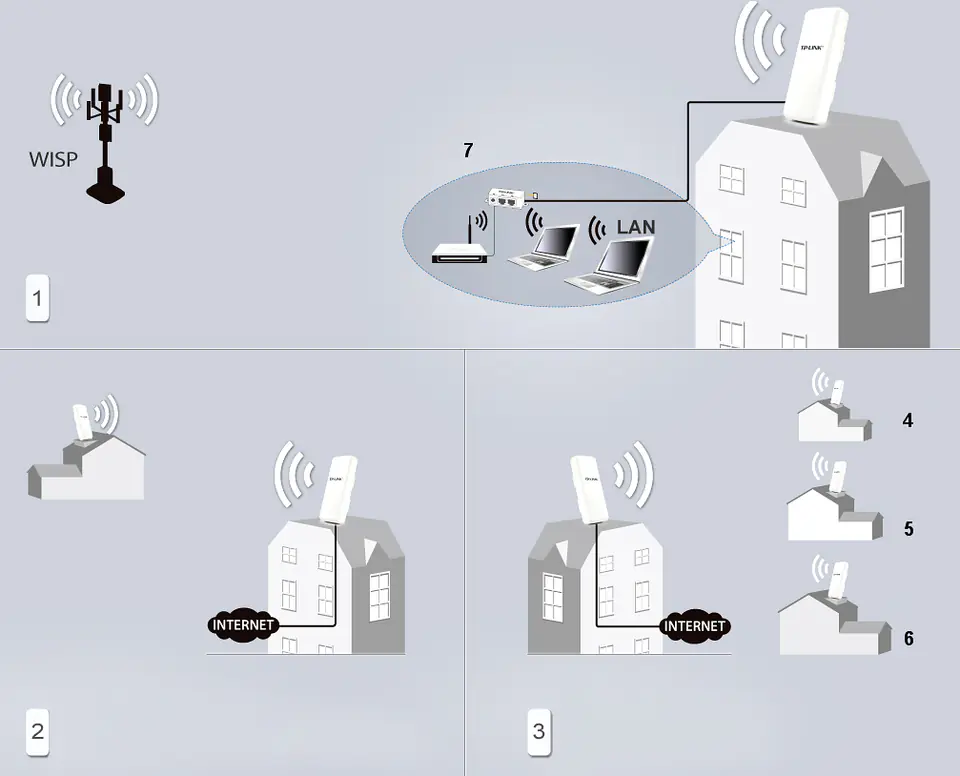

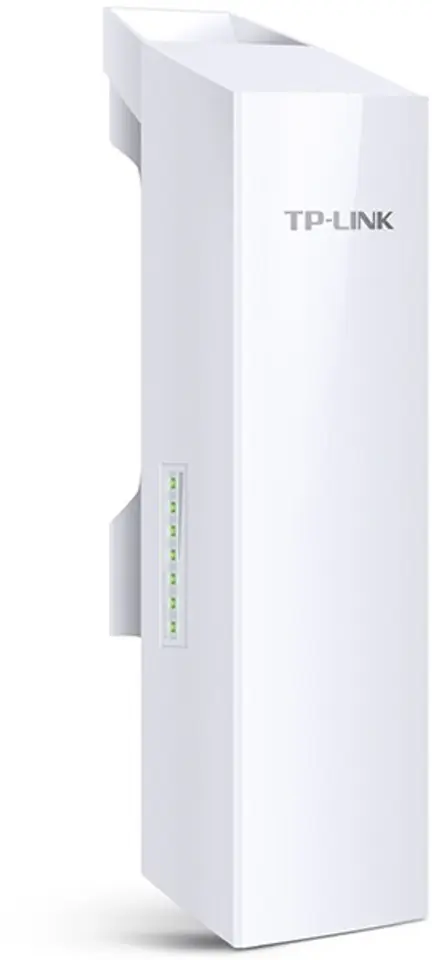

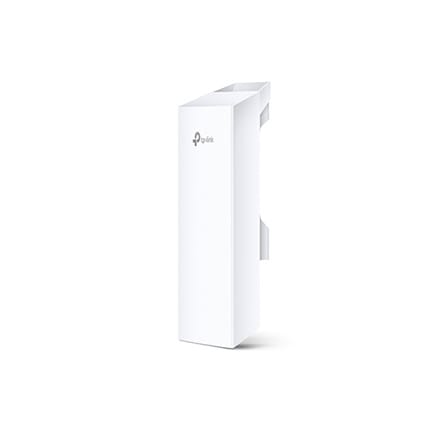

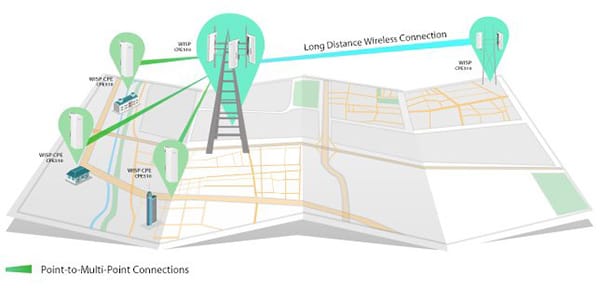

TL-CPE210 High Power 2.4 GHz outdoor access point is designed for wireless data transmission (WISPs) The device is located together with a high-gain antenna in a weatherproof housing
Thanks to the antenna gain of 9 dBi, high output power of 27 dBm and high sensitivity of the radio module, the device allows you to create long, efficient and stable wireless connectionsThe device allows for secure data transmission, protected by encryption: WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (64/128/152 bits)
