AP 5.8 GHz CDS-6IP-3POE CAMSAT

Name: AP 5.8 GHz CDS-6IP-3POE CAMSAT
Brand: CAMSAT
SKU: 798401
Price: 277.47 EUR
Availability: InStock

€277.47

Shipping from warehouse: ⁨D4⁩

Estimated shipping: Mon, Nov 25 - Tue, Nov 26

14 days returnUnconditional return policy

Availability:: moderate quantity
Brand:: CAMSAT
Product code:: CDS-6IP-3POE / 5902610350344

Specification

Antenna type:	Integrated, set of 2 14 dBi MIMO - Interpolarized H/V
Baud:	.max. 60 Mbps
Dimensions:	249 x 88 x 52 mm
Frequency range:	5150 MHz ... 5350 MHz, 5470 MHz ... 5725 MHz
Modulation type:	OFDM
Number of channels:	.max. 16
Operating modes:	Video Bridge - dedicated mode for working with IP Master cameras - Access Point Slave - AP Client
Operating temperature:	-20 °C ... 70 °C

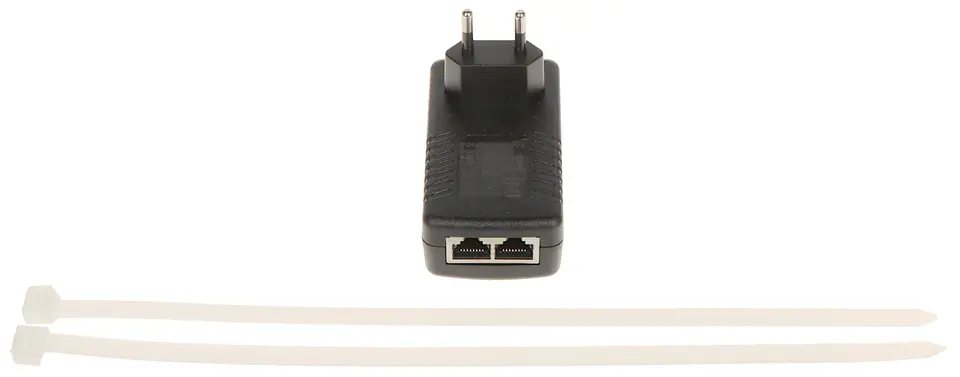

Power:	Passive PoE : 48 V DC (power adapter included) PoE (802.3at), 48 V DC, 12 ... 24 V DC / 1 A
Producer / brand:	CAMSAT
Resolution:	.max. 16 MP
Scales:	0.37 kg
Sealing:	IP55
Security:	64 / 128 / 152 bit WEP, WPA-PSK/WPA2-PSK

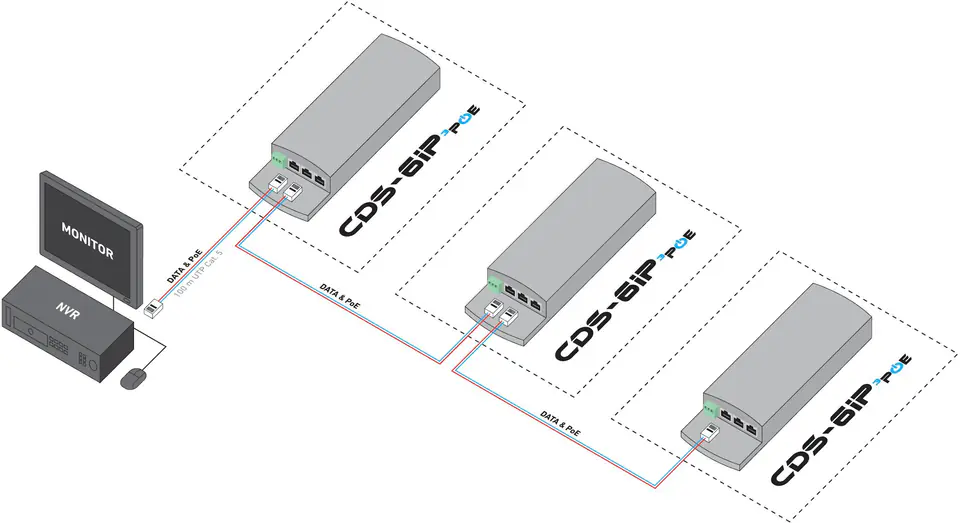

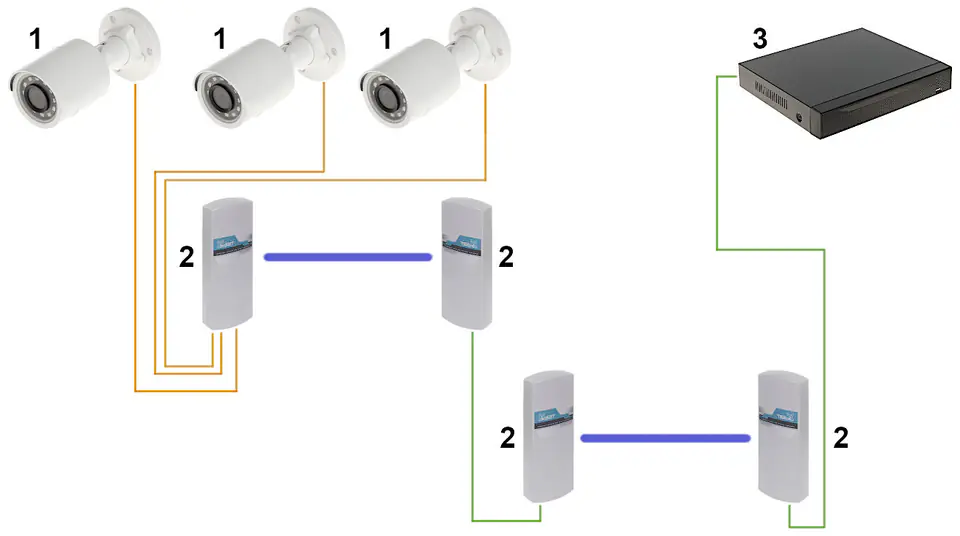

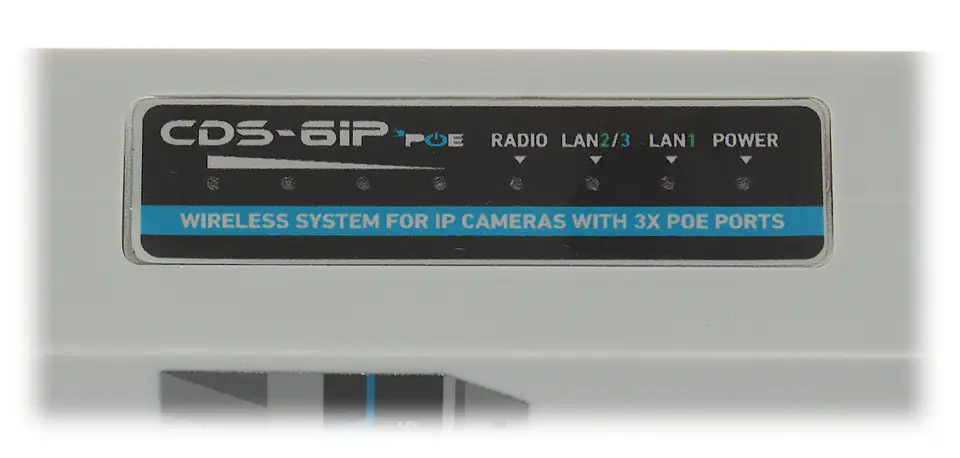

Selected features:	Work in Point-to-Point and Point-to-Multipoint configurations One receiving module can receive signals from 8 transmitters MIMO technology - increases throughput (multi-antenna transmission) Two-way communication IP PTZ control Radio power regulation interference-free transmission of industry, 802.11 Internet networks, Bluetooth, radio telephony, etc. Possibility to power up to 3 PoE 802.3at/af or PASSIVE receivers Radio signal level LED indicator LED indication of device operating status
Transmitter power:	≤ 500 mW ( 27 dBm )
Warranty:	2 years
Wireless transmission range:	.max. 2 km

Wireless CDS-6IP-3POE module for video transmission for megapixel IP cameras and recorders Full HD / IP 4KUthe device is a transmitter and receiver in one module (transceiver)Encrypted with 64/128/152 bit identification code guarantees protection against third-party viewing

The device has a built-in dual antenna (MIMO 5GHz 2 x 13 dBi) and enables precise tuning of antennas and achieving high quality transmission at different distances

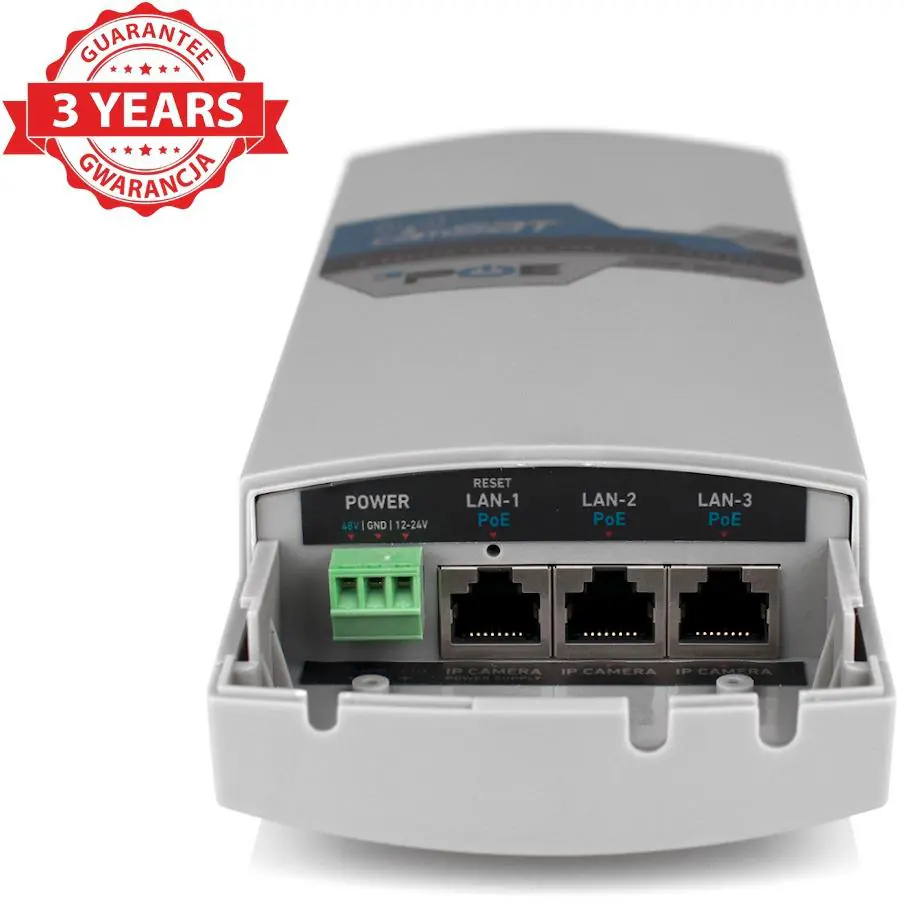

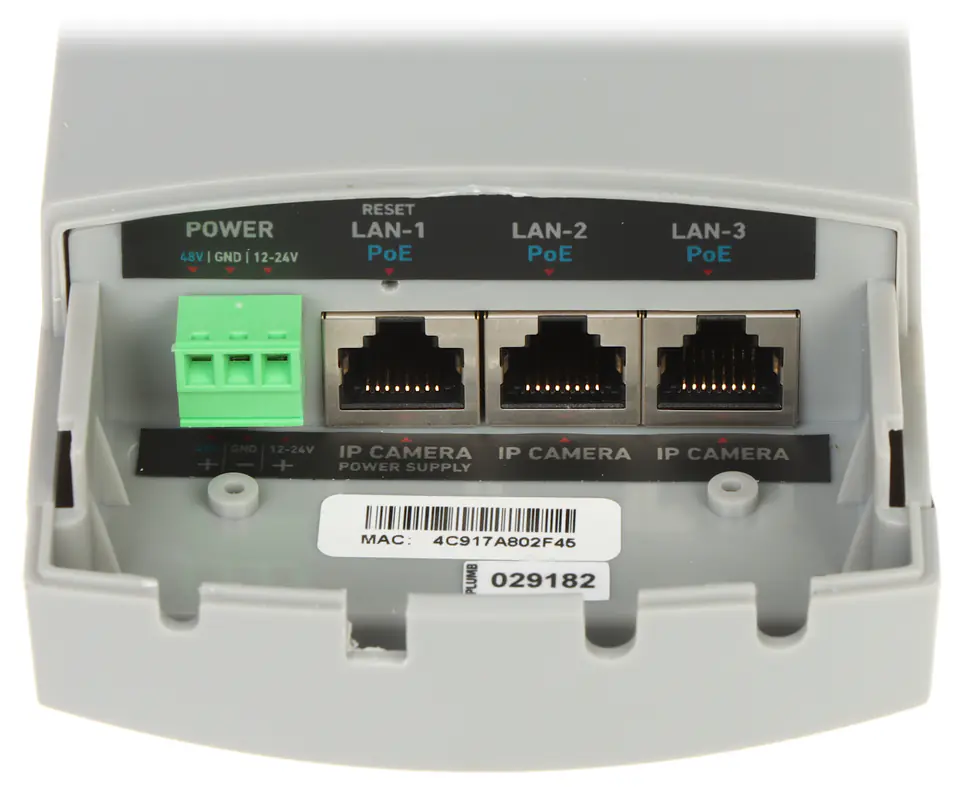

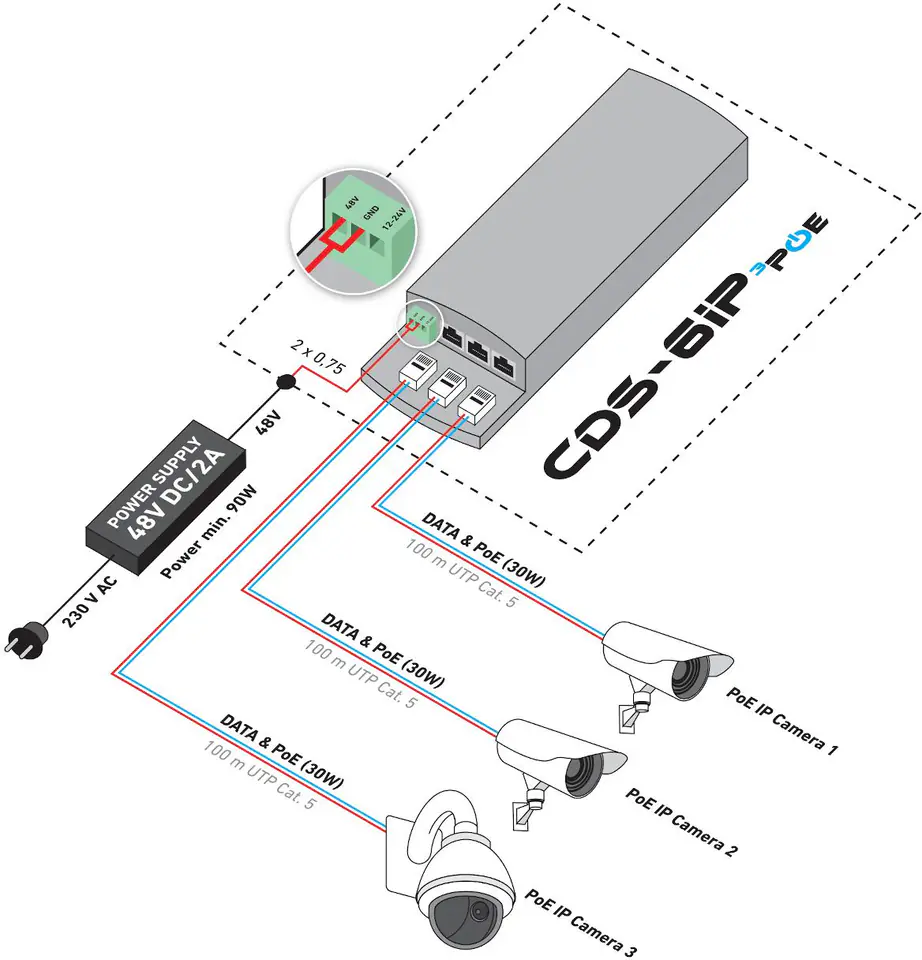

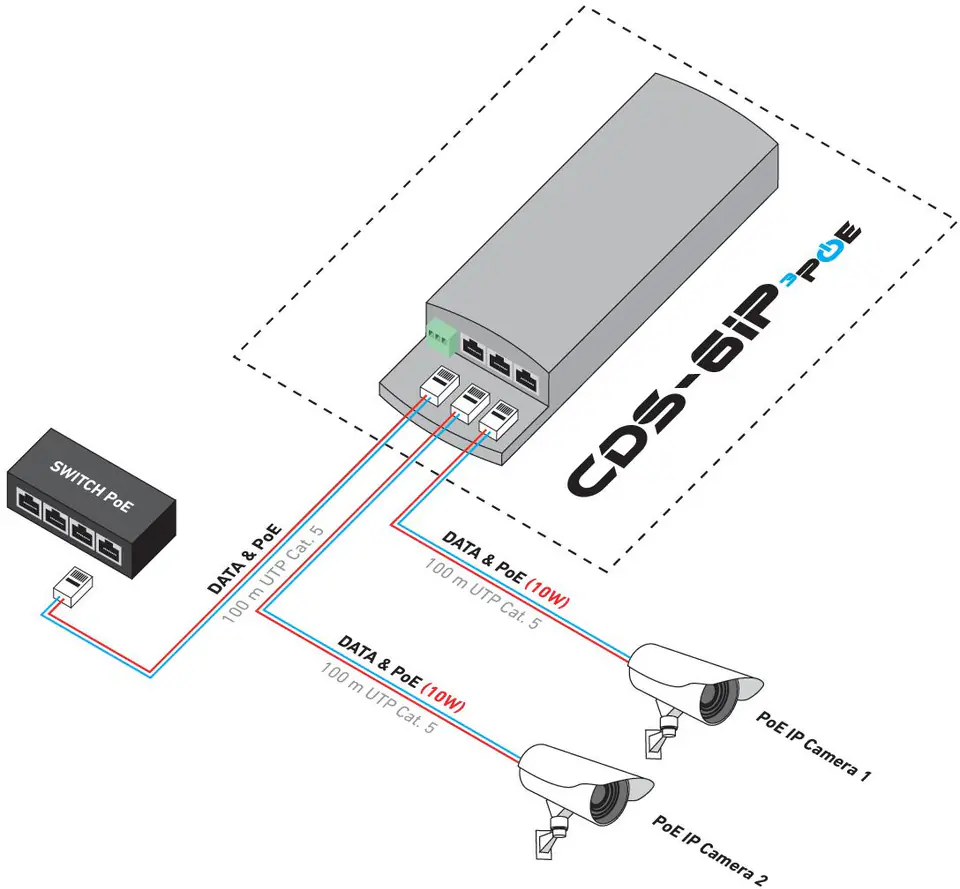

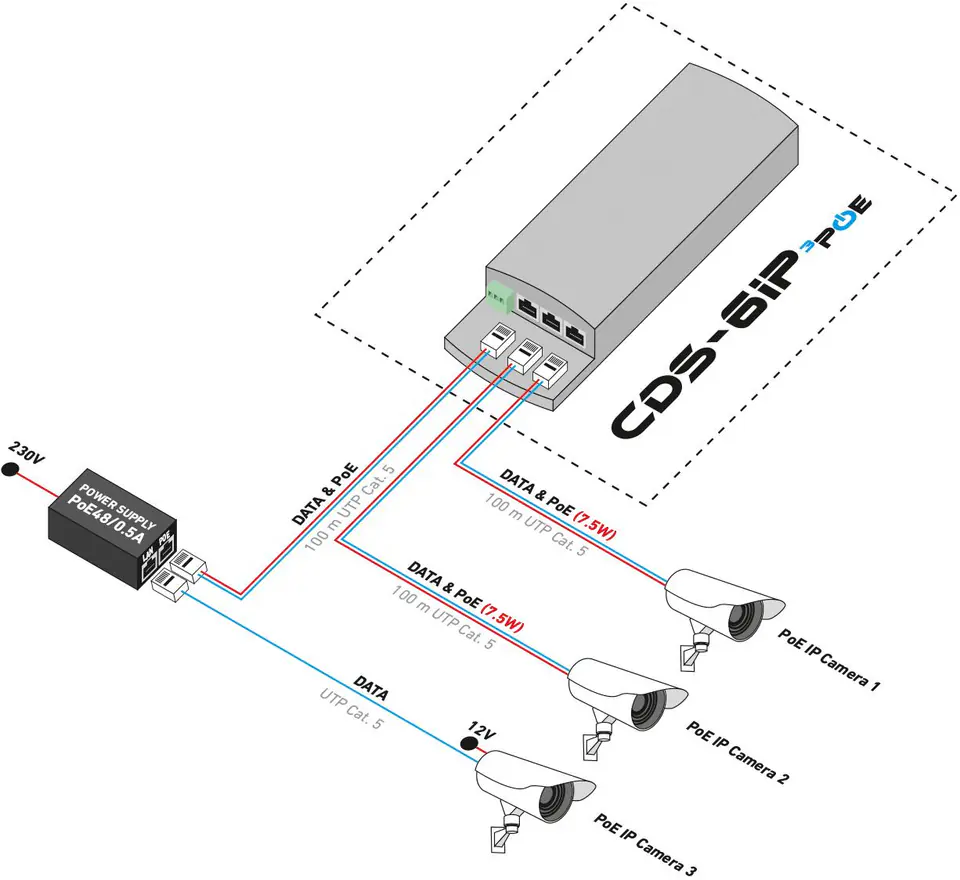

The built-in PoE switch allows you to power up to 3 devices in accordance with the IEEE 802.3 af/at standard, or Passive PoE 48VMit is also possible to power the CDS-6IP-3POE itself via Passive PoE or via a switch supplying power in accordance with the IEEE 802.3 at standard

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
