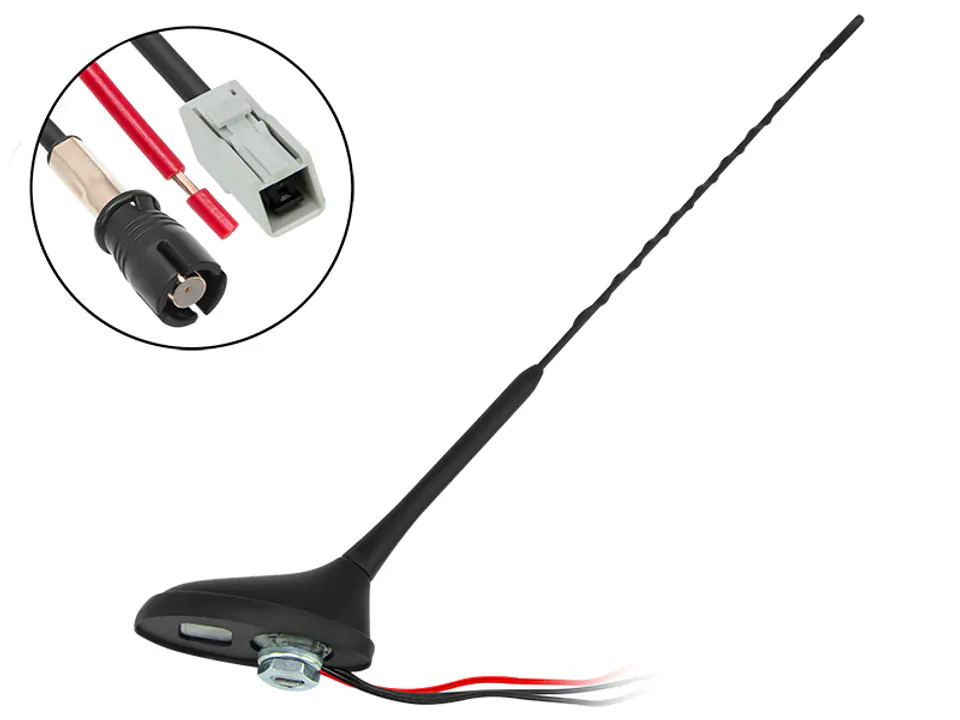

Specification:
- Mast angle: 72 degrees
- Mast length: 40 cm
- FM gain: +24 dB
- AM gain: +20 dB
- Cable length: 120 cm
- Wave impedance AM/FM 75Ω
- Compatibility: with Citroen (C2, C3, C4II, C4 PICASSO, C5, DS3, DS4 II), Peugeot (207, 207 SW, 307, 308, 407, 508, RCZ 3008, RCZ 5008) and Toyota models.
GPS band parameters:
- Frequency range 1575.42 MHz +/- 1.02 MHz
- V.S.W.R 1.5:1
- Bandwidth > 10 Mhz
- Resistance 50 Ohm
- 5 dBic gain
- RHCP polarization
Low noise amplifier:
- Frequency range 1575.42 MHz +/- 1.02 MHz
- Voltage DC 3 - 5 V
- Gain 28 +/- 3dB
- Cut-off ranges >= 25dB (frequency range +100MHz)
- >= 40 dB (frequency range - 100 MHz)
- V.S.W.R output 1.5
- NSR 1.2
- DC current: 10.5 mA
Summary parameters of GPS antenna and amplifier:
- Frequency range: 1575.42 MHz +/- 1.02 MHz
- V.S.W.R. output 1.5
- Gain 28 +/- 3 dBic
- Resistance 50 Ohm
- Working temperature: -25 degree C ~ +65 degree C
