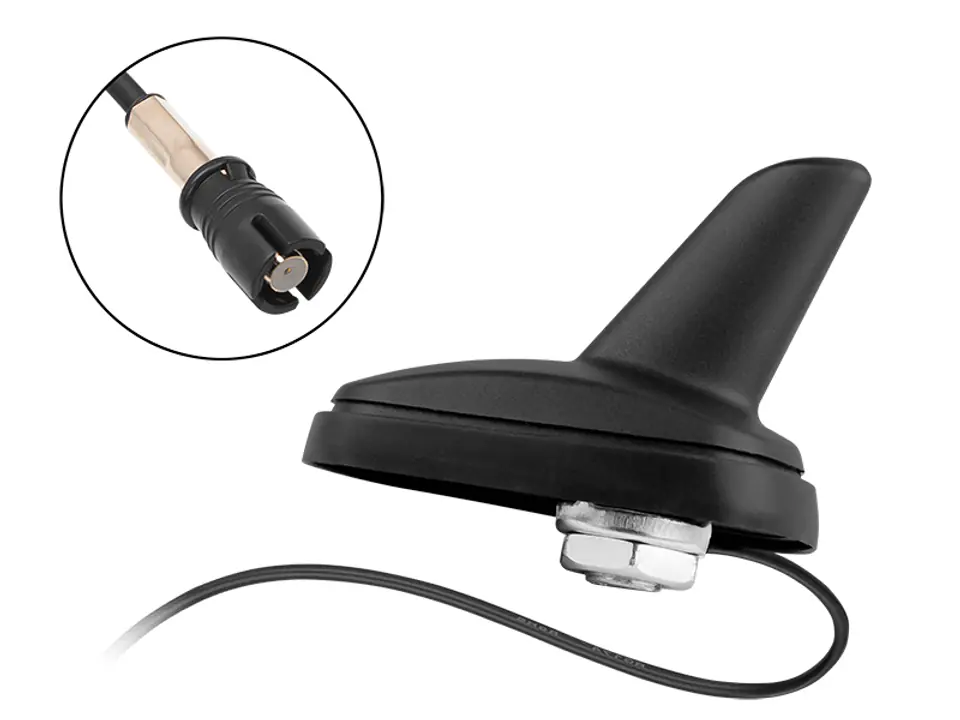

Antenna designed to receive AM/FM radio signals and adapted to connect to a typical car radio with a RAKU antenna connector. Equipped with a signal reception amplifier - Phantom amplifier - the antenna is powered by an antenna cable .
Technical specification:
- Operating frequency: 520 - 1710 KHz, 87 - 108 MHz
- Amplifier gain: AM 15 +/- 1 dB, FM 12 +/- 1 dB
- Output impedance: 75 Ohm
- Wire length: 20cm
- Baffle Cutout Diameter: 15mm
- Fin height: 45 mm
