DYNAMIC UFO OMNIDIRECTIONAL 360st antenna for receiving DVB-T/T2 digital terrestrial TV signals
Omnidirectional UFO antenna (with built-in amplifier) thanks to its pyramidal design allows good reception of signals from different directions without the need to precisely position the antenna in the direction of the transmitter (omnidirectional panel type antenna)
Technical specification:
- Energy gain: max 32 dB
- Maximum signal strength: 56 dB
- Output impedance: 75 Ohm
- Frequency range: VHF 168-230MHz, UHF 470-800MHz
- Receiving angle: 360 degree
- Dimensions: circle diameter 26 cm, thickness 4 cm
- Power supply: 12V (power supply included)
- Power supply parameters: INPUT 220V - 50Hz OUTPUT 12V=300mA
- F connector

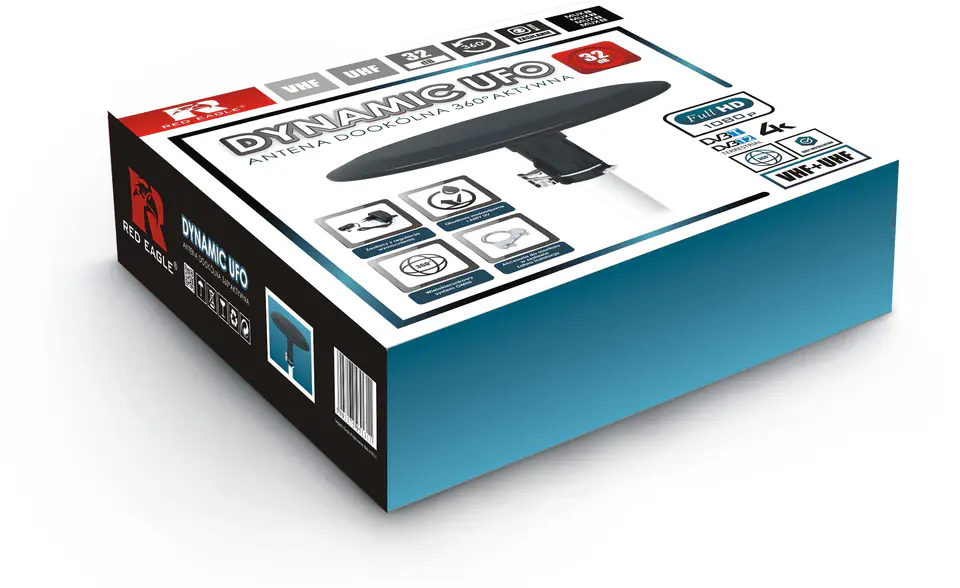

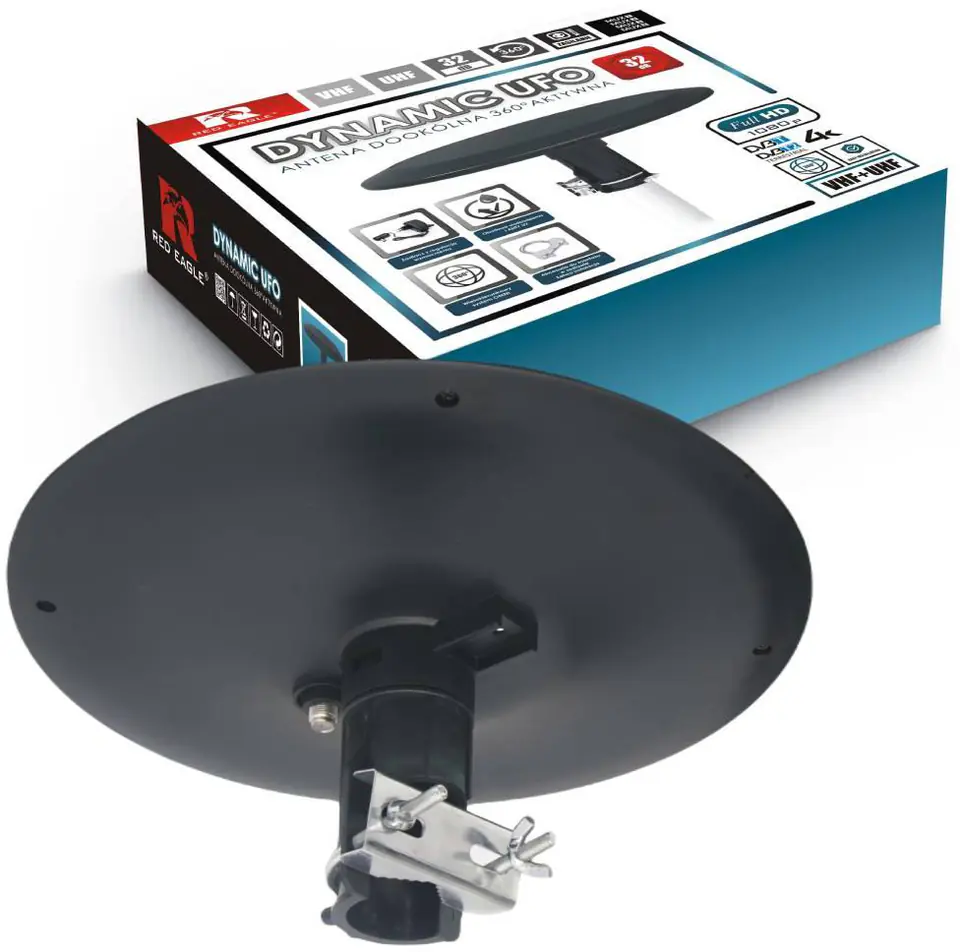

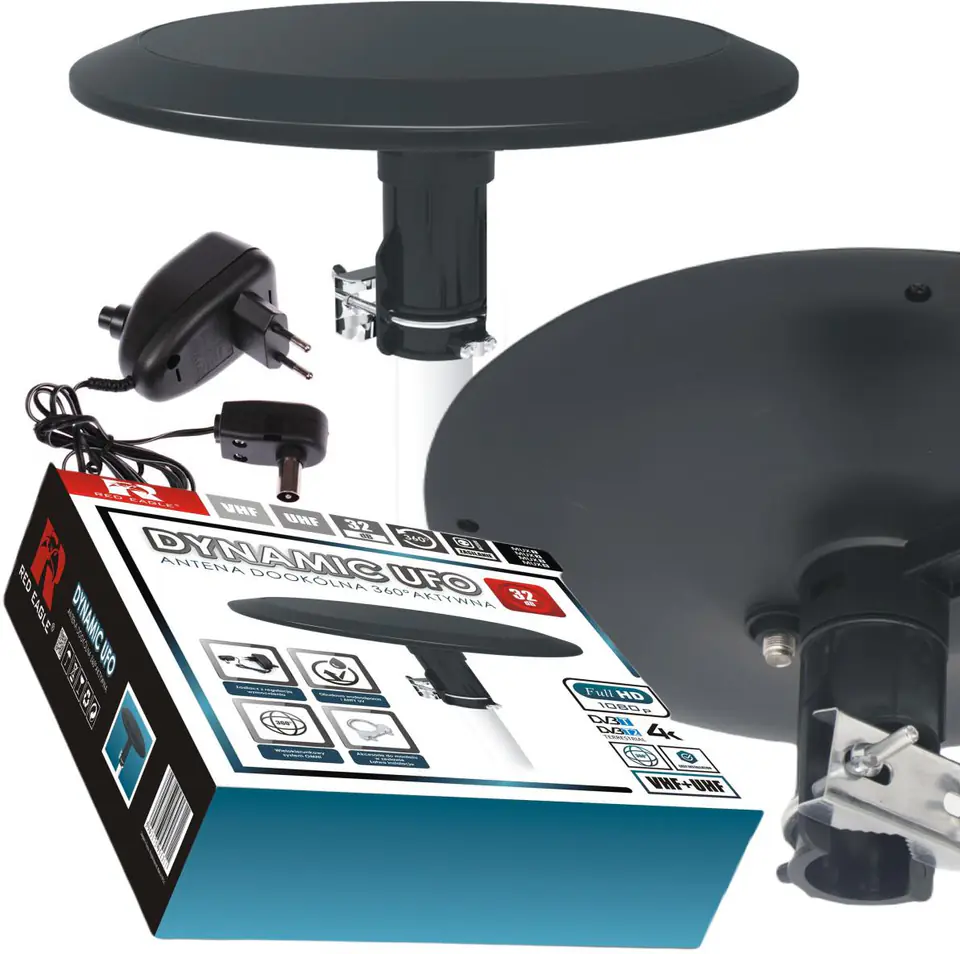

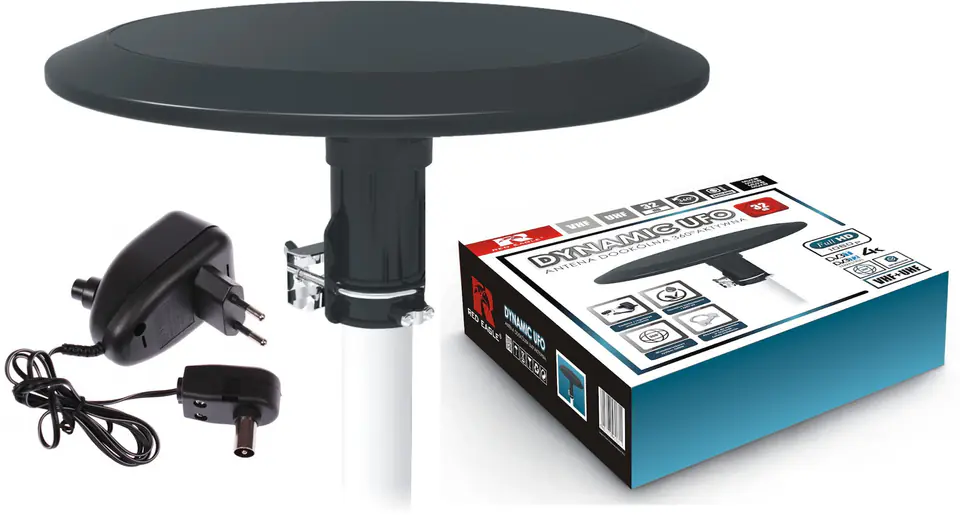

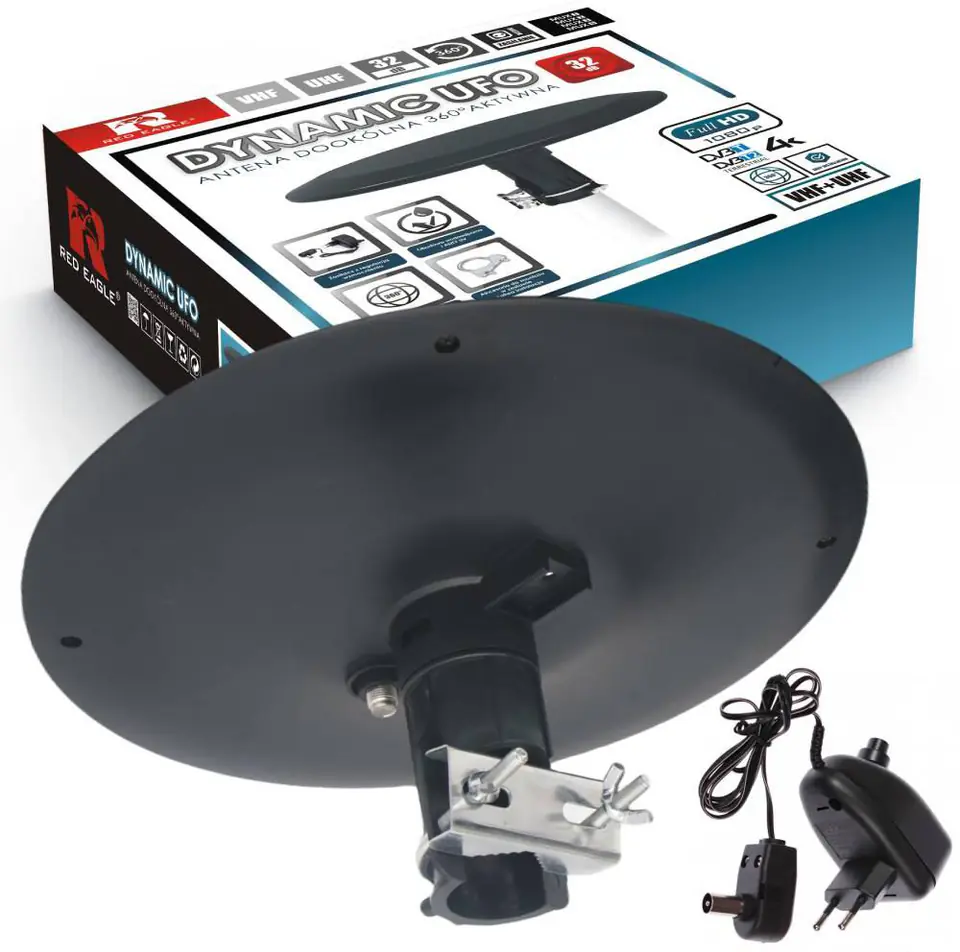

Antenna sold without a wall mount. Recommended diameter of the holder 25-30 mm.Kit contents:- Antenna RED EAGLE DYNAMIC UFO 360
- Adjustable power supply

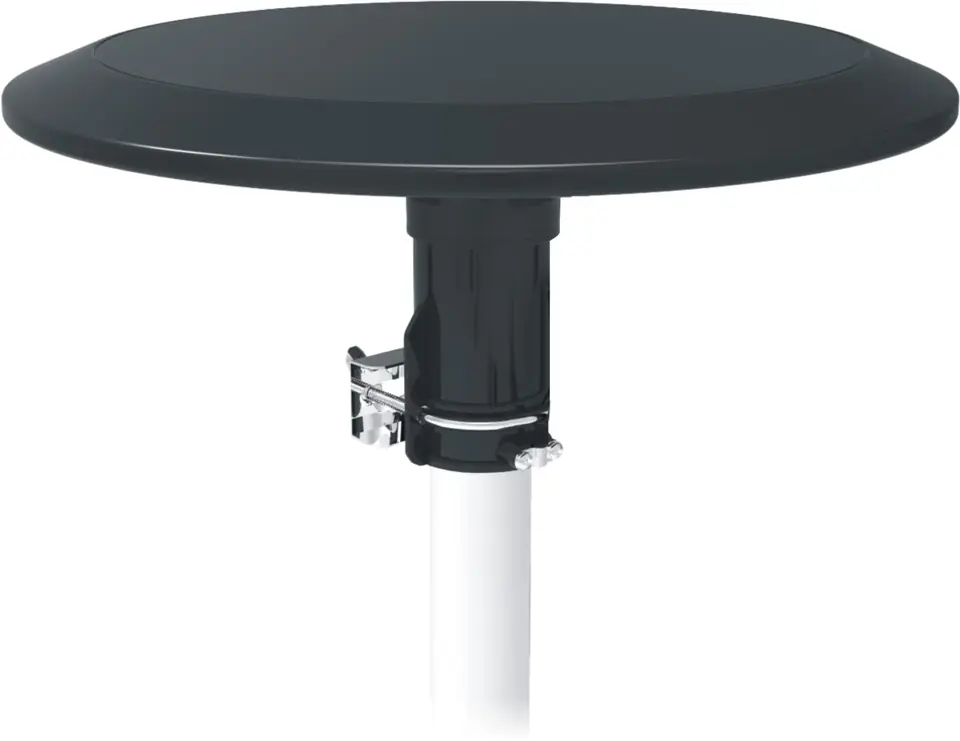

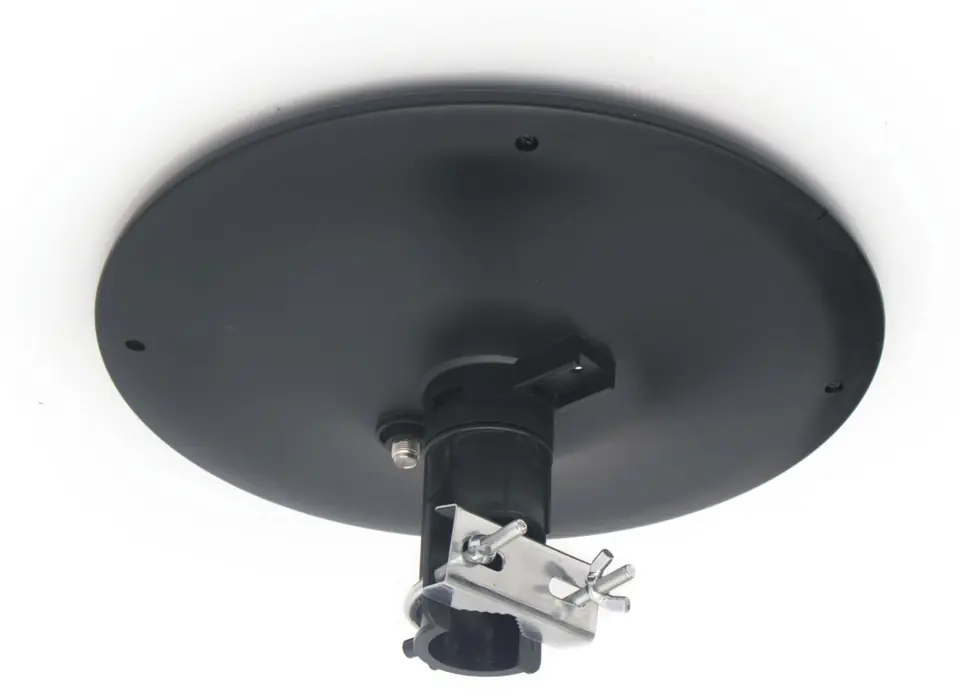

- Mounting clamp, allowing the antenna to be mounted on the holder
