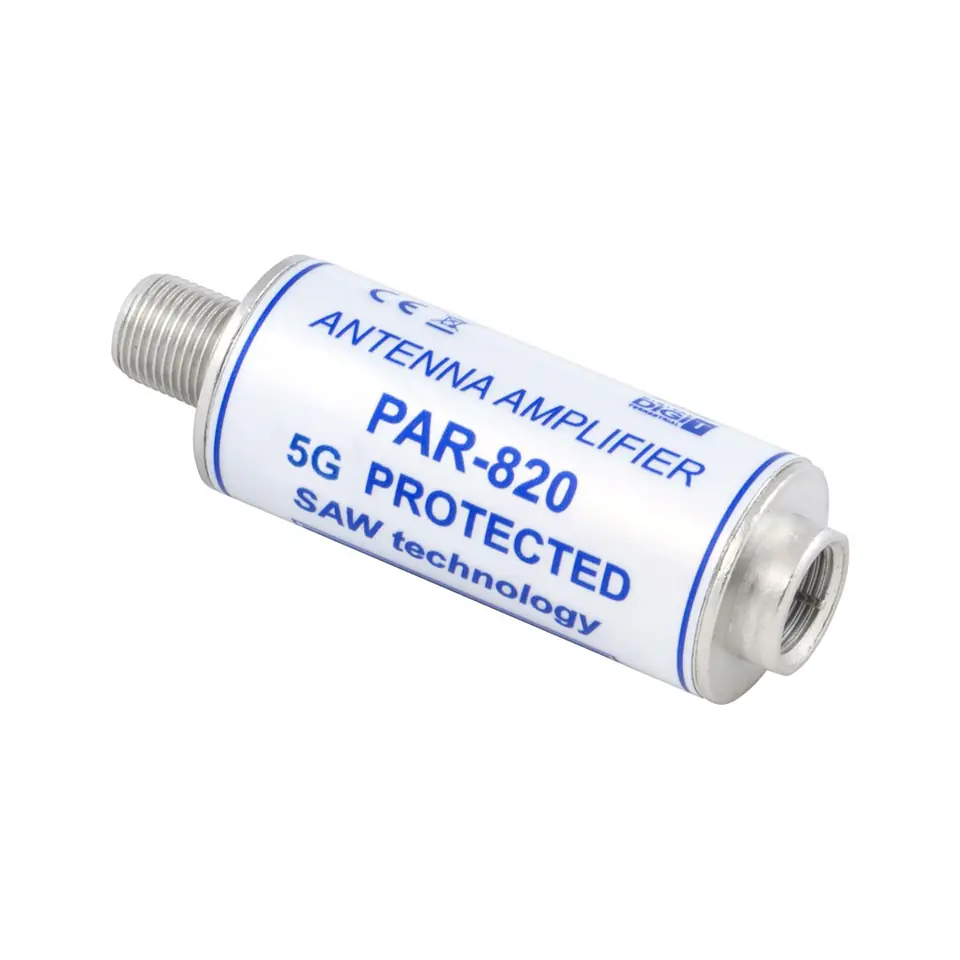

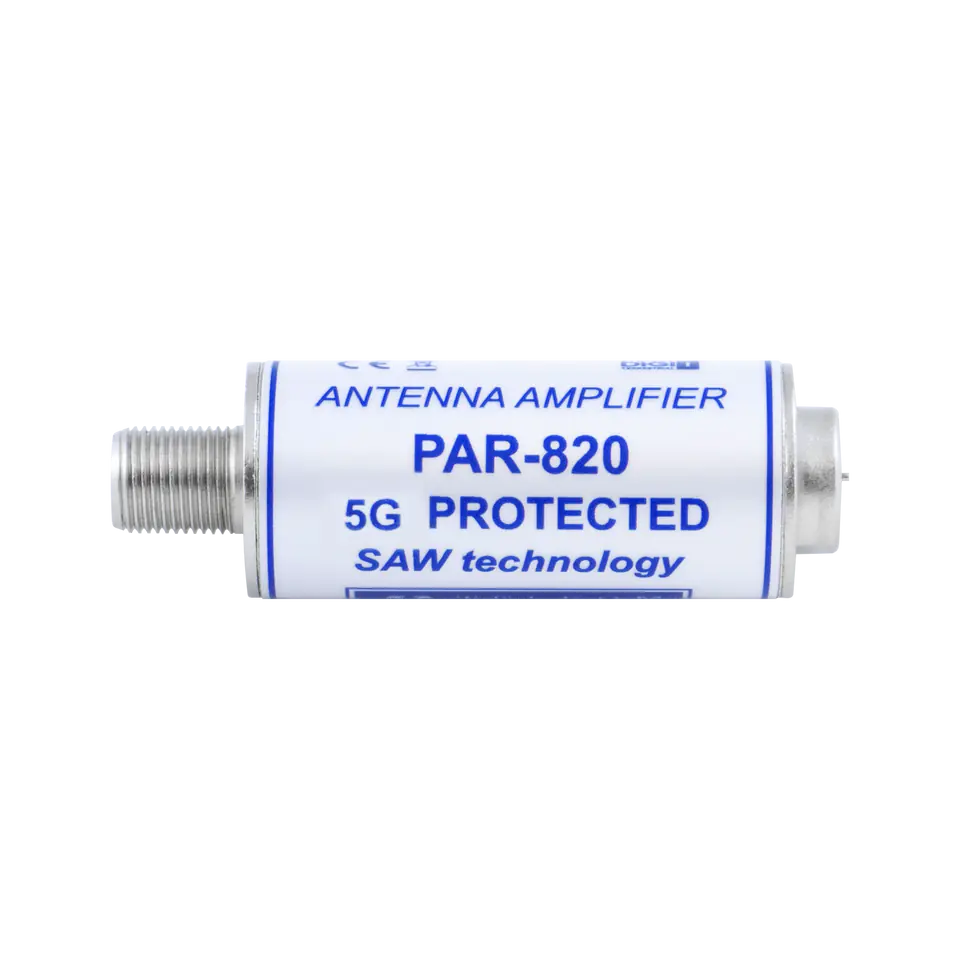

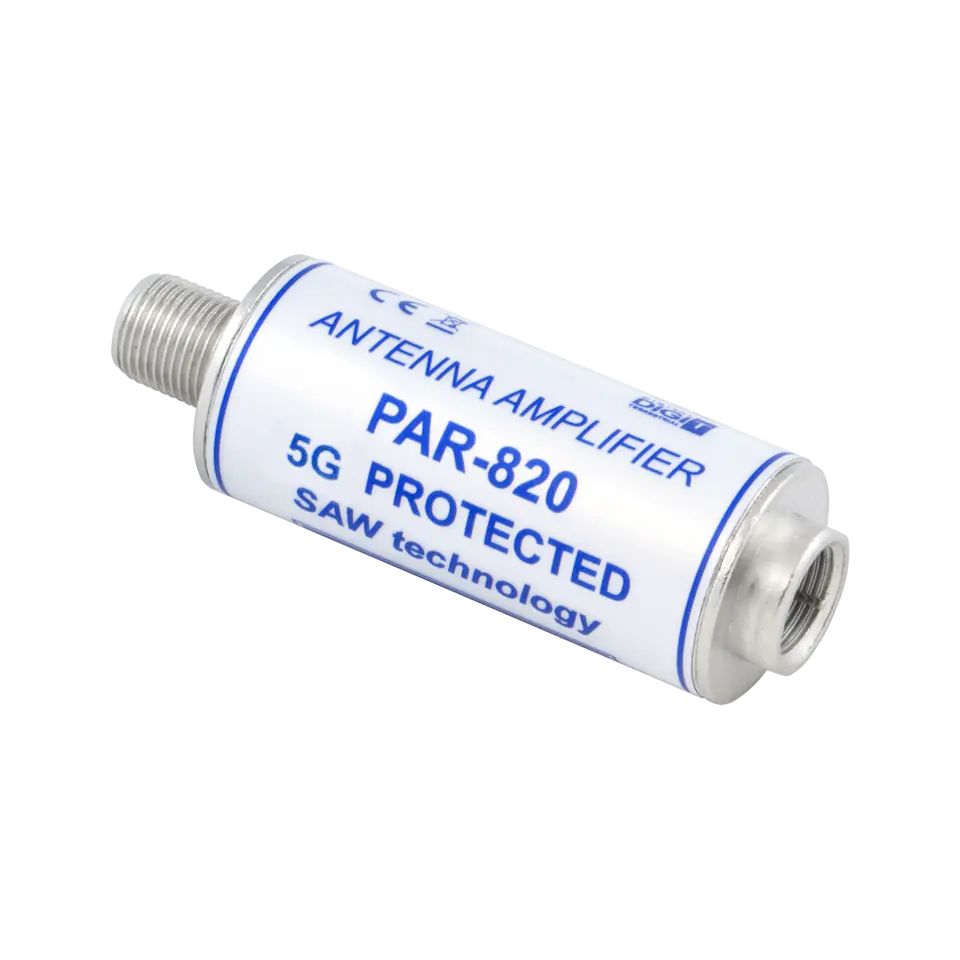

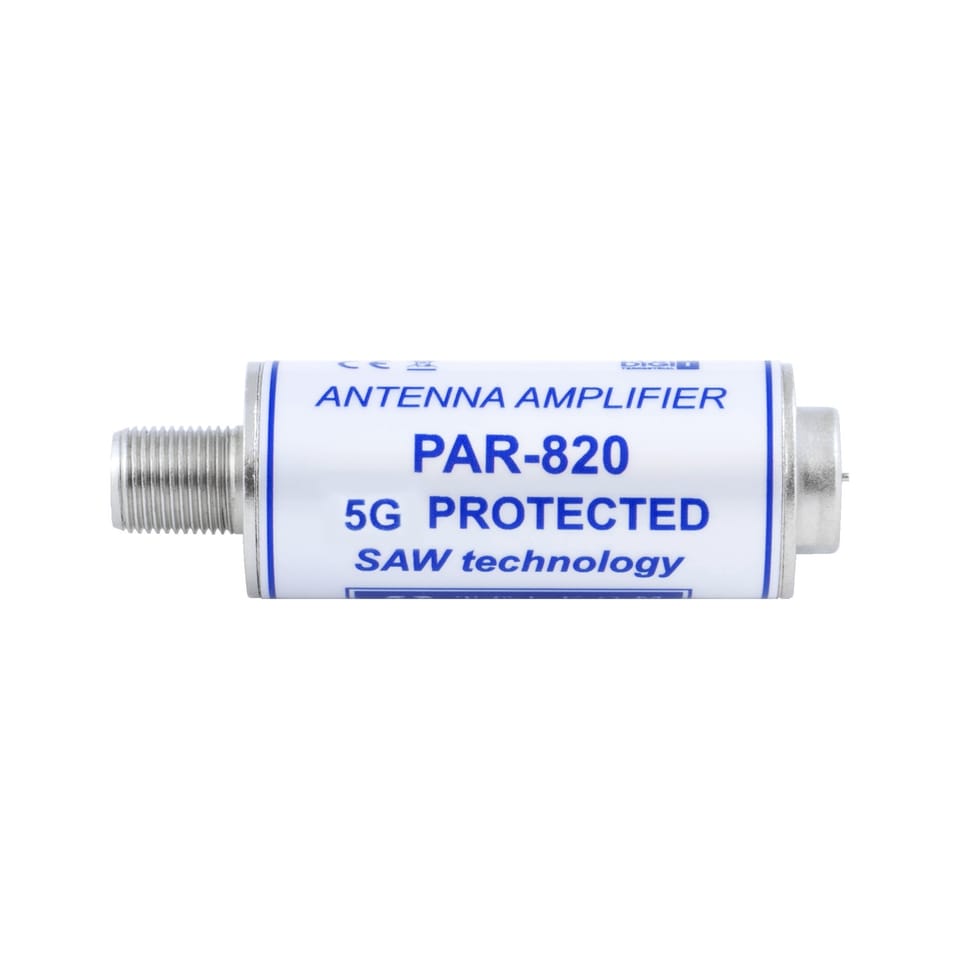

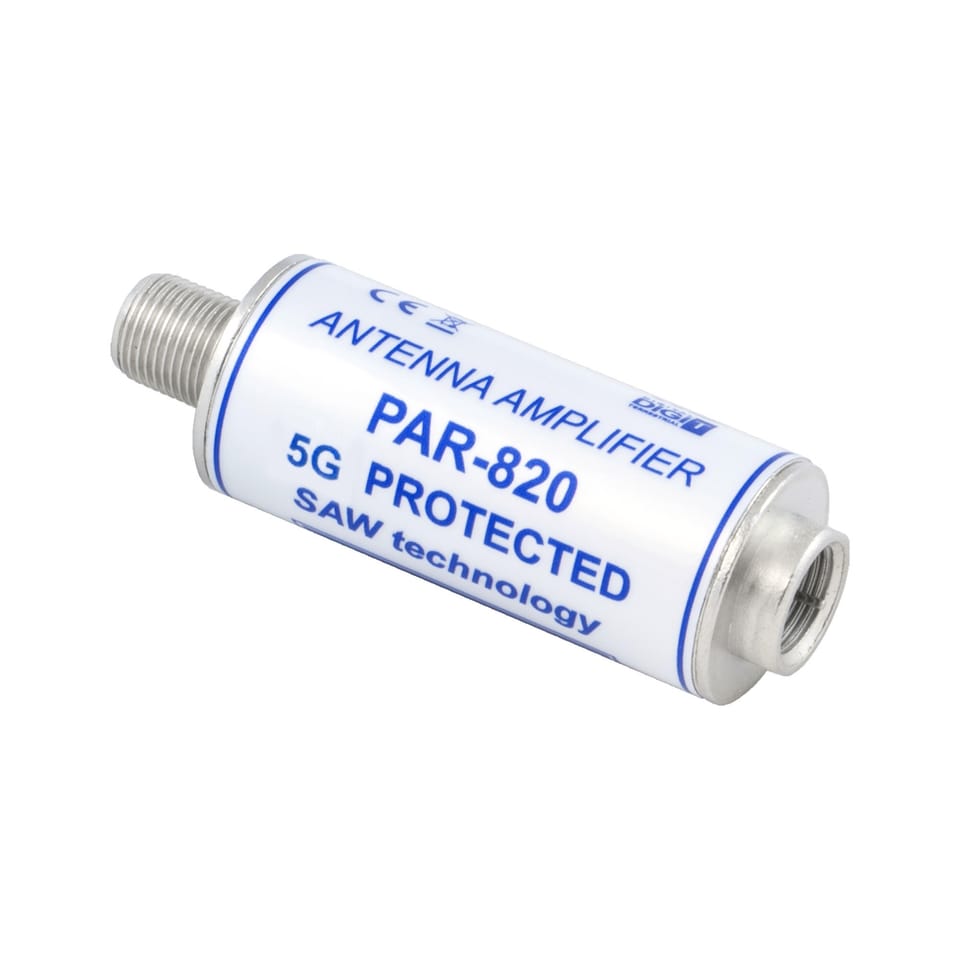

Antenna preamplifier PAR-820 5G Protected Telkom Telmor

----------
Features
----------
Installation in a convenient place of coaxial cable or directly to the antenna or crossover,
Low self-noise
High resistance to intermodulation, low power consumption
Resistance to external electromagnetic fields (solid metal housing)
Low current consumption <40 mA
Polish production and development

----------
Specifications
----------
Operating Frequency Range: 47-694MHz
Gain in pass-through band: 19 dB +/- 2 dB
Barrier band: 694-862 dB
Gain in the barrier band:2 dB/700 MHz; -10 dB/800 MHz
Maximum output level: 104 dBuV
Noise Ratio: 4.0dB
Input/output impedance: 75 Ohm / 75 Ohm
Power Supply: 5-24V DC
Current consumption: 40 mA
I/O connector type: F


The PAR-820 5G PROTECTED type tubular TV preamplifier is designed to amplify weak terrestrial TV signals received by a passive terrestrial antenna. Thanks to the SAW technology, the preamplifier in most cases eliminates 5G/LTE signals without removing DVB-T2 signals.
