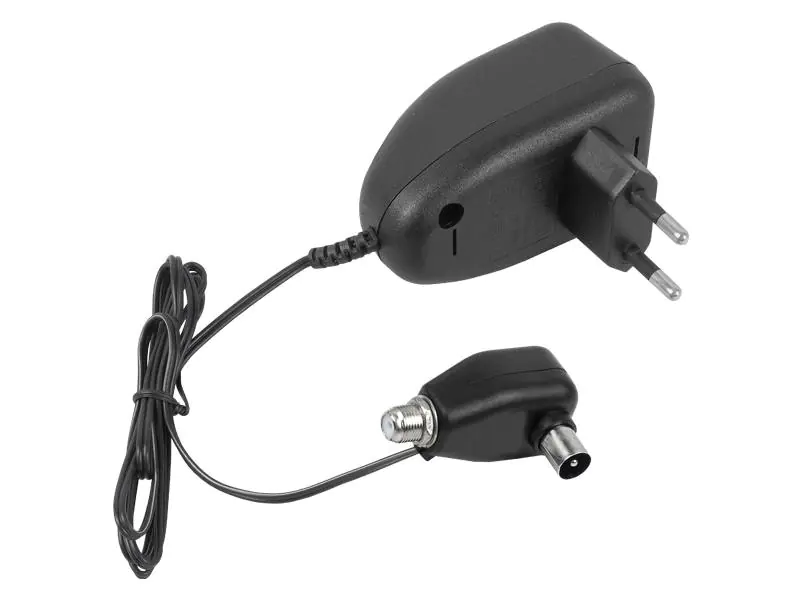

Antenna power supply with separator terminated with F socket
The power supply is designed for continuous operation, it is used to power antenna amplifiers via coaxial antenna cable.
This is possible thanks to the use of a power separator placed in the housing of the antenna plug in which the power supply is equipped.
The mounted F socket in the power separator connector greatly facilitates the installation of the coaxial cable.

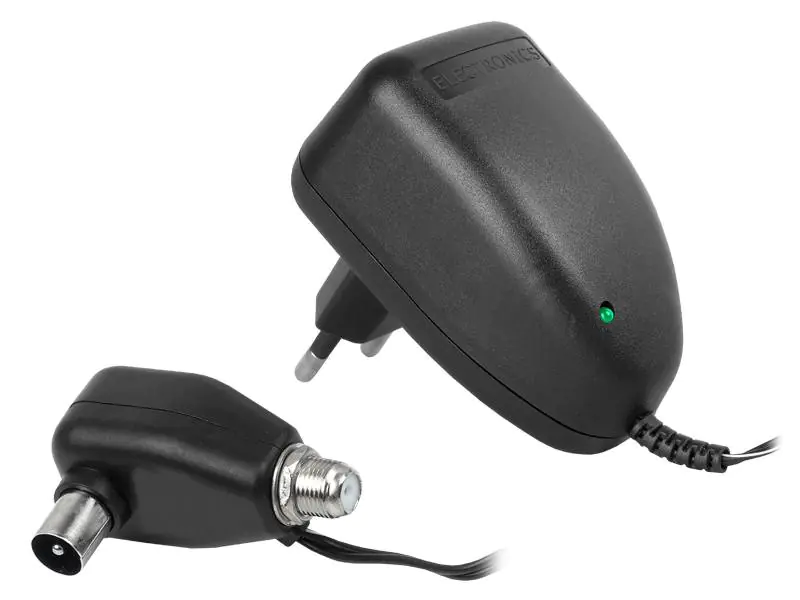

Correct operation of the power supply is indicated by the illumination of the control diode on the housing of the power supply.
Technical parameters:
- Input voltage: AC 230 V, 50 Hz, 21 mA
- Output voltage: 12 V, 100 mA
- Plug with power separator, terminated with F socket
