Antenna: mistral mi-ant07 ufo strong ultra black

Adapted to receive digital terrestrial TV - DVB-T/DVB-T2 in Full HD, 4K quality
360o omnidirectional antenna (works in all directions, without setting)
Suitable for indoor and outdoor applications
Wide operating range (UHF and VHF frequencies)
Ability to receive all MUXs (including MUX-8)
Built-in low-noise amplifier
Three mounting options (magnetic foot, side handle, fixed foot)
Antenna gain: 35dB
Built-in LTE/4G/5G filter
Resistant to harsh weather conditions
Plate diameter: 33 cm
Three mounting options depending on your needs and possibilities (magnetic holder, side mount and the possibility of attaching the antenna permanently to the ground):

Magnetic foot

A very strong magnet with a diameter of 120 mm perfectly adheres to any metal substrate. The bracket is designed for quick installation during standstill. It is forbidden to drive a vehicle with an antenna attached on a magnetic foot.

Antenna Mistral MI-ANT07 - magnet

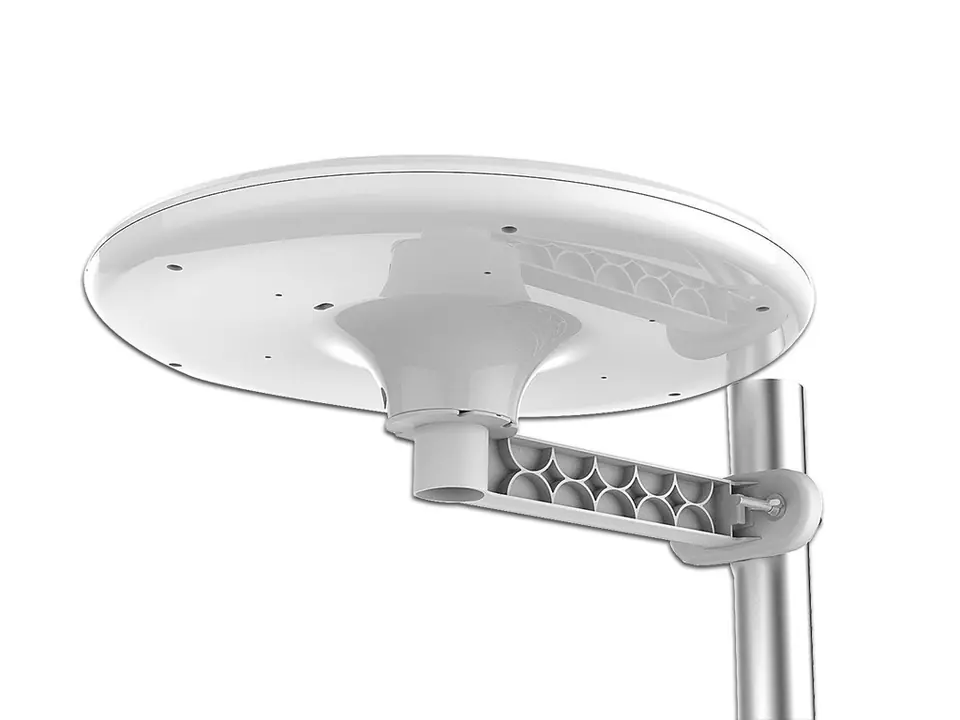

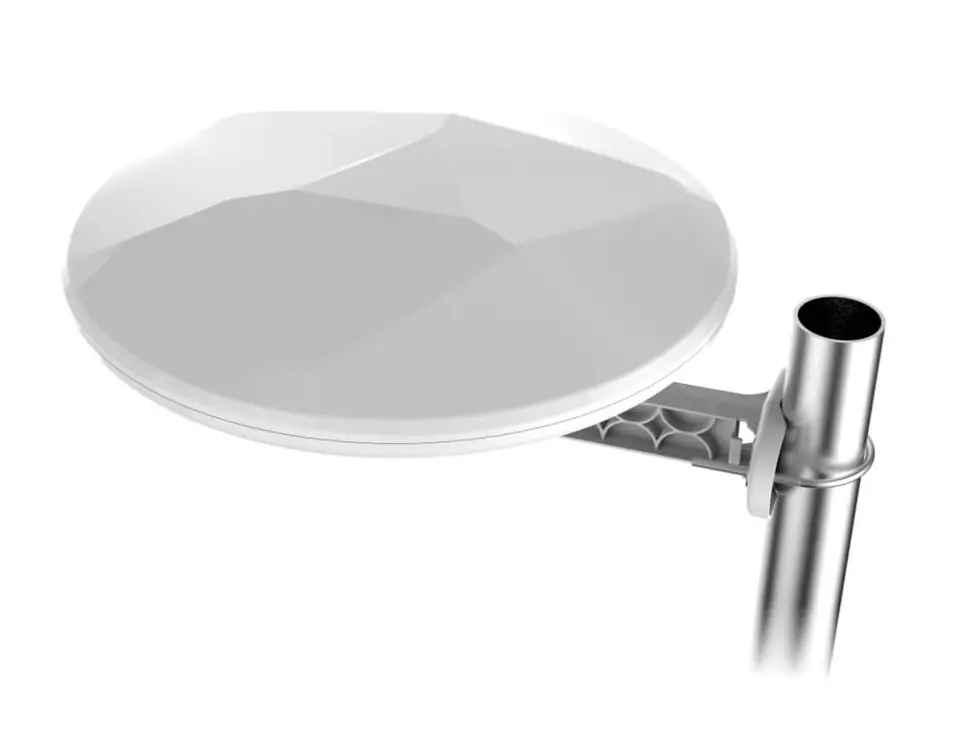

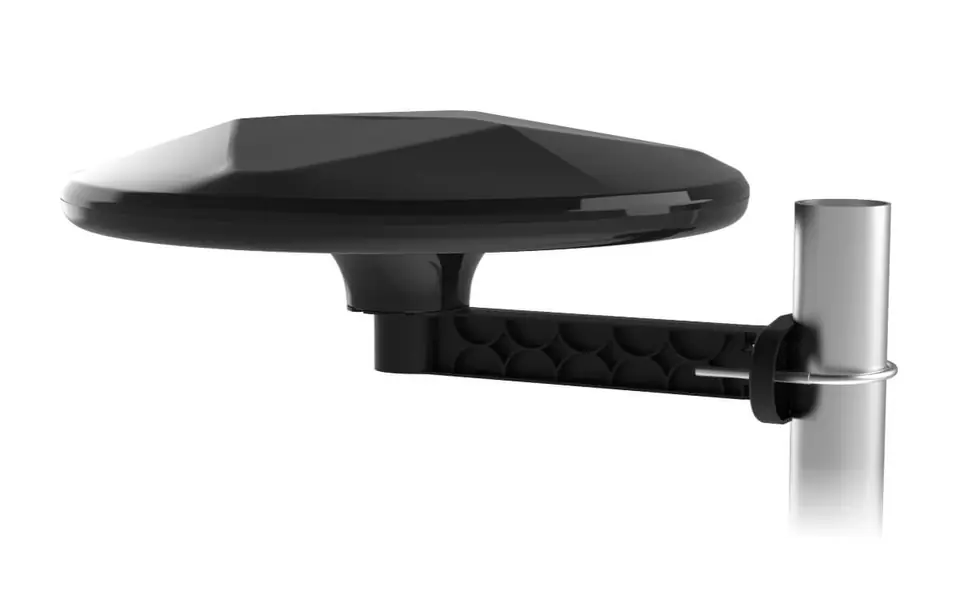

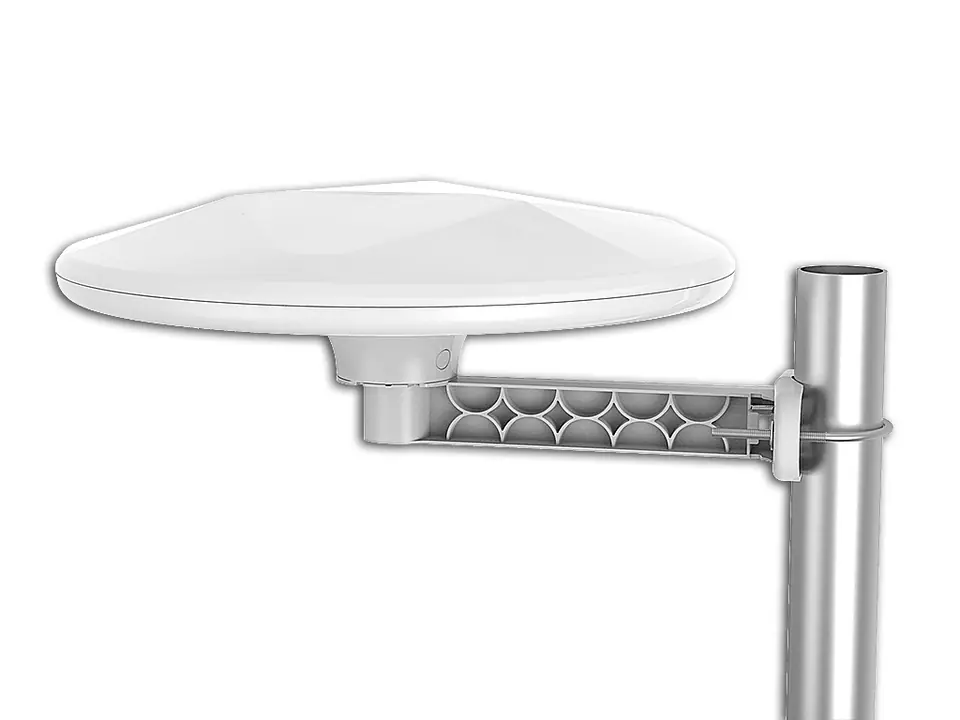

Side handle

The practical bracket allows you to attach the antenna to the tube, mast, balcony railing, etc. (especially useful m.in in motorhomes, on yachts). A set of fasteners included.

Mistral MI-ANT07 antenna - side bracket

Permanent foot

Possibility of attaching the antenna permanently to the ground (e.g. on the roof of the vehicle, under the fairing, etc.) The antenna cable is routed in the middle of the foot, which facilitates installation and increases aesthetics.

Mistral MI-ANT07 antenna - permanently fixed foot

What is important, the cable is hidden in the antenna foot. No additional hole in the roof for the cable is needed - the cable can be passed through the hole at the bottom of the antenna foot. This solution increases aesthetics and facilitates assembly.
The antenna is made of the best quality materials. Housing resistant to adverse weather conditions:

Waterproof
Anti corrosion
covered with a special coating resistant to UV radiation.

In addition, a rubber cap for the antenna cable is included in the kit to minimize the possibility of moisture ingress.

Try the ANT07 antenna in all conditions and be sure of optimal results (with minimal space requirements).
The horizontal design of the antenna in the shape of a flat inch, with a diameter of about 33cm, definitely facilitates the reception of TV signals. The large surface makes it easier and more effective for the antenna to collect the signal and not lose it. This affects a stable connection and smooth video without unnecessary interference.

The integrated circuit inside the antenna is made in SMD technology. A decent amplifier with low noise and high gain of 35dB is a big advantage of the antenna.

power supply for Mistral MI-ANT07 antenna

In addition, the antenna has a built-in LTE/4G/5G filter to avoid interference with digital signal reception. The applied filter allows to eliminate problems resulting from the overlapping of LTE wireless internet frequencies with frequencies used by DVB-T digital terrestrial television signals. This can lead to significant interference and even to a reduction in the DVB-T/T2 signal. The LTE/4G/5G filter eliminates any interference generated by 4G, 5G networks and mobile phones. It allows for full reception of terrestrial DVB-T/T2 signals without interference.

The antenna can be powered directly from the TV's RF socket (if the receiver has this function) or from the TV's USB port.

calizerocalicali unnecessary cables in the cabin (does not require additional power supply from the 12V socket)

6 running meters of the cable allows you to easily connect the antenna in any desired place without the need to extend the cable.


TECHNICAL SPECIFICATION OF THE MI-ANT07 UFO-STRONG ULTRA ANTENNA
UHF Range 470 MHz - 698 MHz
VHF range 174 MHz - 230 MHz
Gain 35 dB
Output signal level (max) 115dBuV
Noise level <3.5dB
Power supply:5V, antenna
Focus: 360 degree
Mounting: Magnetic Holder / Side Holder / Fixed Foot
Cable length: 6 m
Plate diameter: 33 cm
Height (with magnet foot): 17 cm
LTE/4G/5G filter

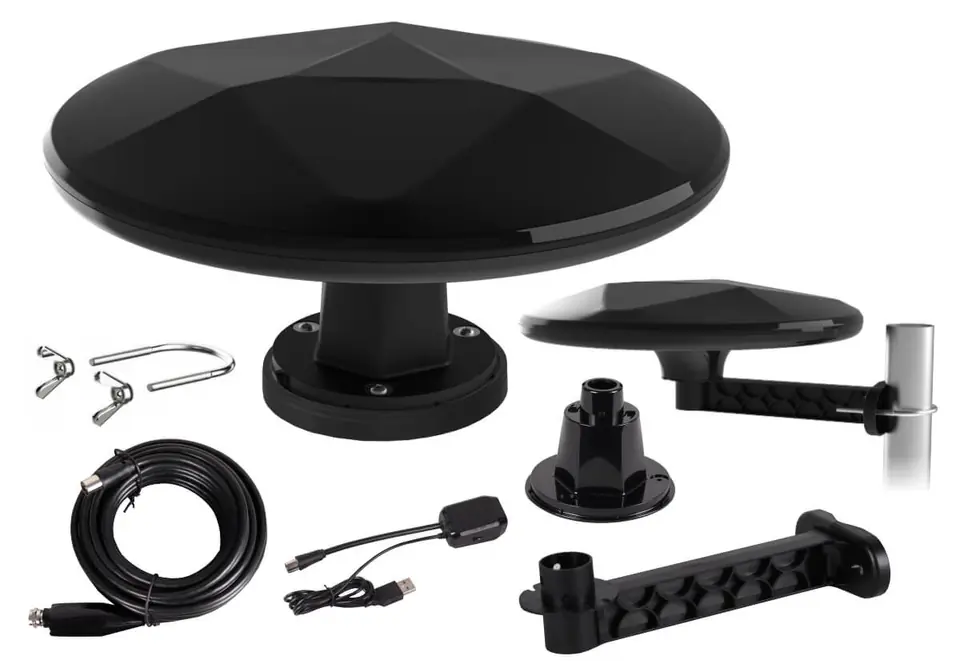

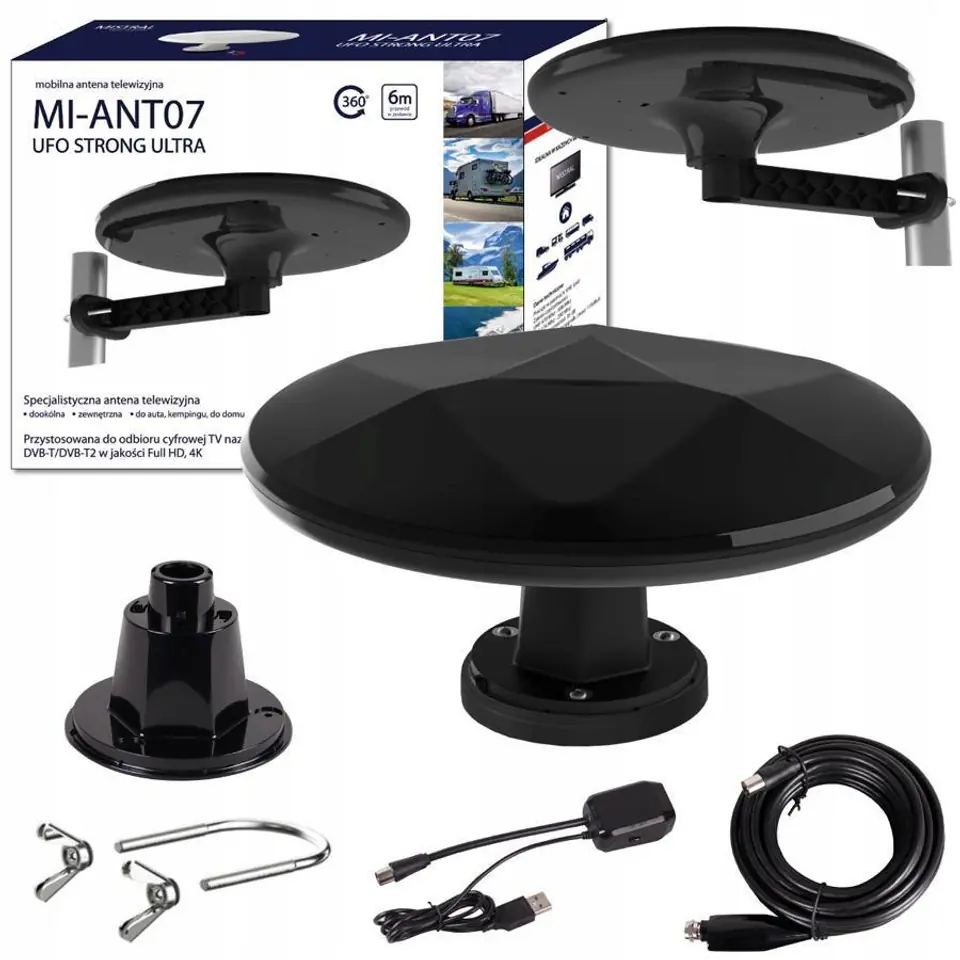

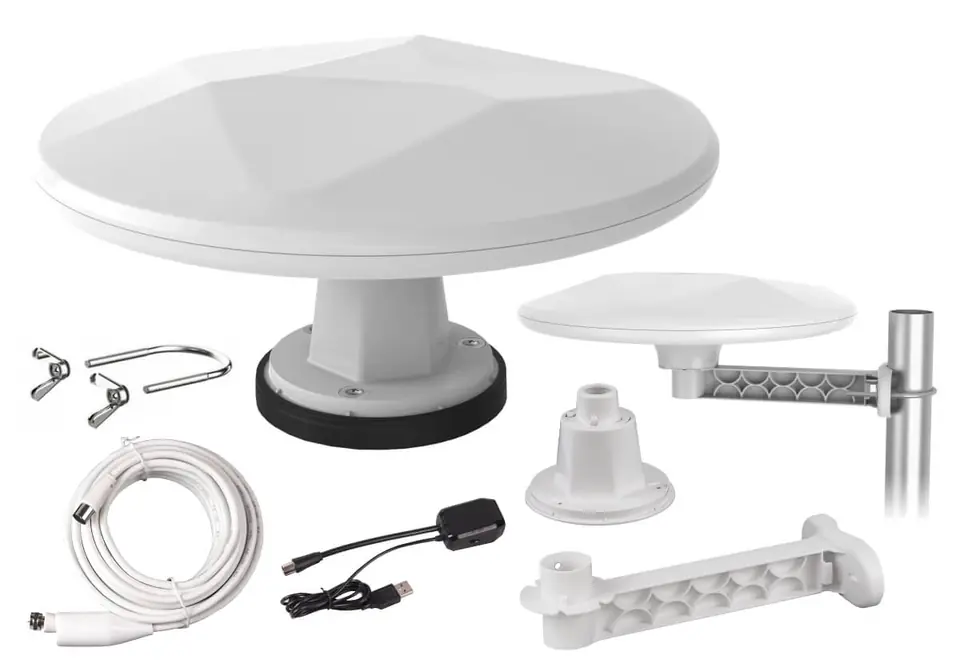

included: MI-ANT07 antenna white, Magnetic holder, Side mount, 6 meters long cable, Voltage separator with USB power cable, Amplifier - built into the antenna, Fasteners for side holder, Manual, Warranty, VAT invoice or receipt,
