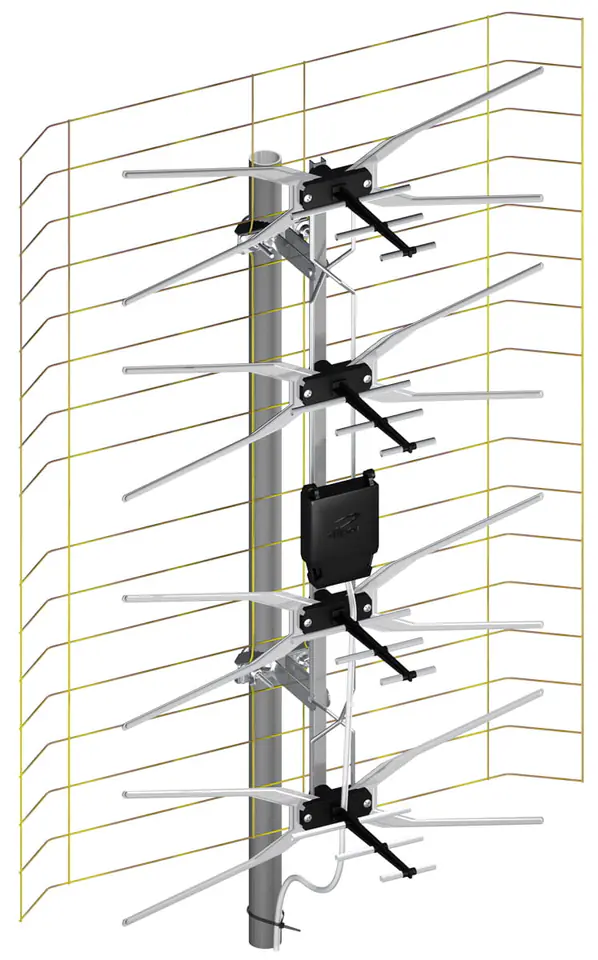

The ASP-8 broadband antenna with symmetrizer (20 elements) receives DVB-T/T2 TV signals in the VHF band and UHF in horizontal polarization.
- Works well in dense areas
- Gain up to 14 dBi
- UHF and VHF band
- Wide half-power angle
The antenna enables reception in the DVB-T/T2 digital standard.
The antenna is made of aluminum, steel mounting elements (cybant, nuts, washers) are galvanized. It is possible to mount the antenna without a mast (e.g. when we want to put the antenna on the window sill).
Antenna type: DVB-T/T2 TV
Name: ASP-8
Manufacturer: DIPOL
RTV Antenna Type: Broadband
Number of elements pcs.: 20
Dimensions mm: 790x560x150
Kg weight: 1.0
Packaging: Foil
impedance Ω: 300

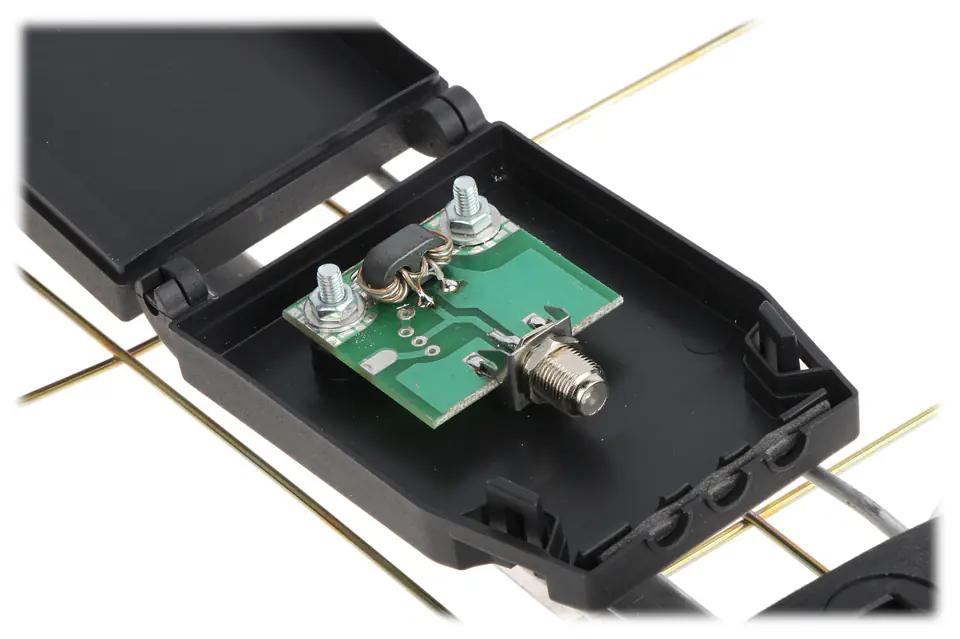

Symmetrizer: Yes (75 Ω)
Bandwidth: VHF+UHF
MHz frequency range: 174 - 790
Channels: 6 - 60
Profit max. DBi: 14
Front/rear dB radiation: 16 - 25
Polarity: H
