ANTENNA AMPLIFIER: AWS-1244 AMS

€42.88
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Wed, Nov 6 - Mon, Nov 11
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
AMS
Product code:
AWS-1244 / 5902887073885

Specification

Amplification:21 / 25 dB ± 2 dB
Connector type:"F"
Dimensions:125 x 88 x 26 mm
Frequency range:87 MHz ... 790 MHz
Gain adjustment:0  ... 10 dB ± 2 dB
Ima2 60db:82 dB
Ima3 60db:95 dB
Input/output impedance:75 Ω
Match damping:≥ 10 dB
Maximum output level:101 dBμV (2kTV)
Noise ratio:≤ 4 dB
Number of inputs/outputs:1  / 4
Operating temperature:-25 °C ... 55 °C

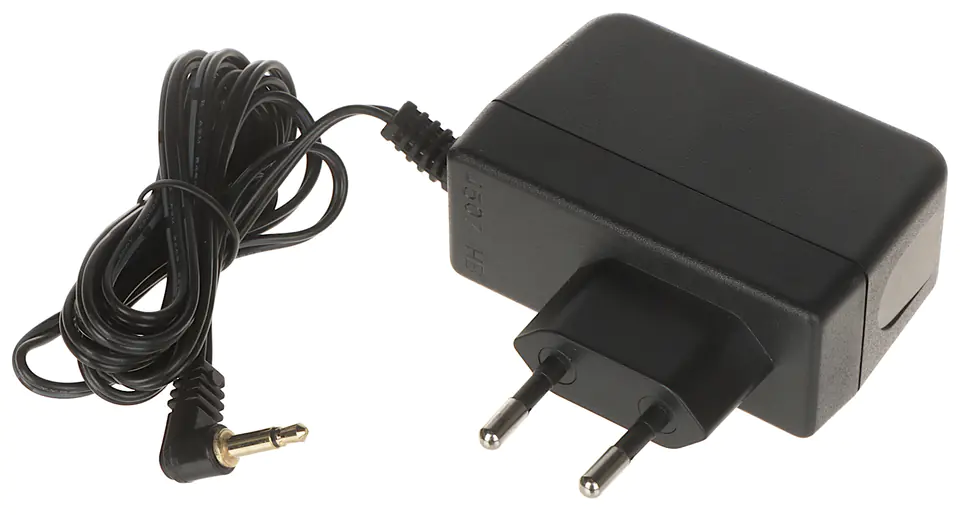

Power:12 V DC / 250 mA (power adapter included)
Producer / brand:AMS
Scales:0.3 kg
Selected features:Built-in throughpass filter 87 ... 790 MHz
Warranty:3 years

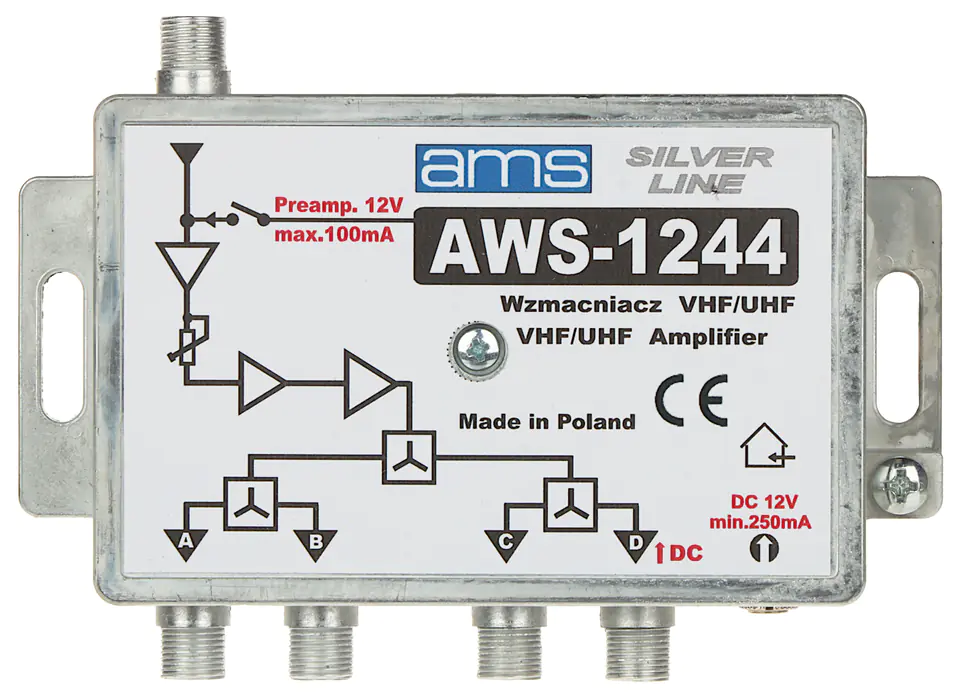

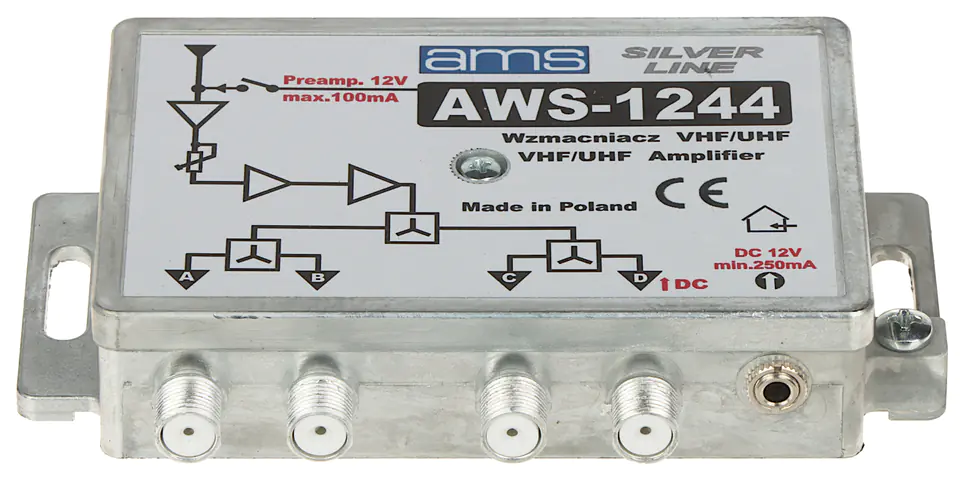

AWS-1244 is used for distribution of TV signals in home antenna systems

The amplifier allows you to power additional amplifiers via INPUT (power supply switched on by armature)The maximum current that can be consumed by an additional amplifier is 100 mA

The amplifier is also equipped with a gain regulator that allows to set the optimal signal level in the antenna installation

The amplifier can be powered directly from the included power supply or through the output using a seperator

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
