| Amplification: | 28 / 31 dB ± 2 dB |
|---|---|
| Connector type: | "F" |
| Dimensions: | 125 x 88 x 26 mm |
| Frequency range: | 87 MHz ... 790 MHz |
| Gain adjustment: | 0 ... 10 dB ± 2 dB |
| Ima2 60db: | 90 dBμV |
| Ima3 60db: | 103 dBμV |
| Input/output impedance: | 75 Ω |
| Match damping: | ≥ 10 dB |
| Maximum output level: | 109 dBμV (2kTV) |
| Noise ratio: | ≤ 4 dB |
| Number of inputs/outputs: | 1 / 1 |
| Operating temperature: | -25 °C ... 55 °C |

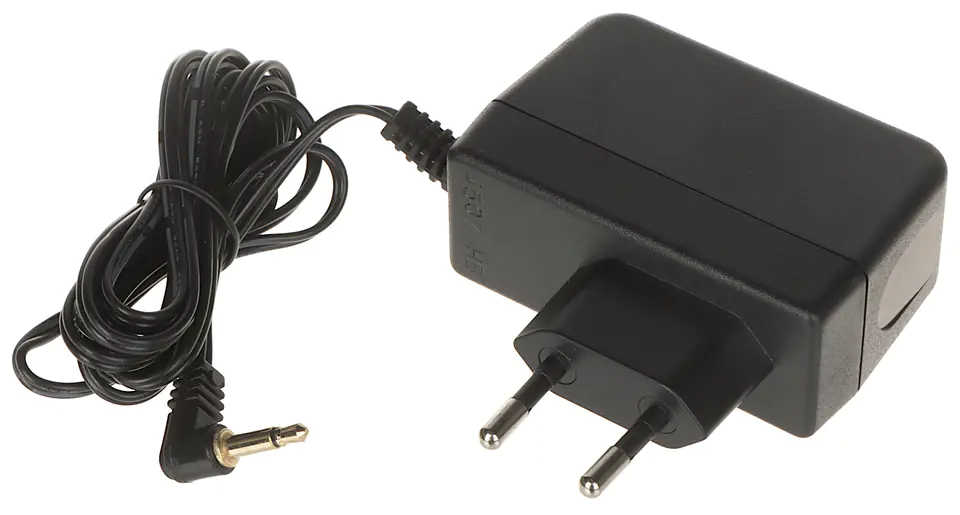

| Power: | 12 V DC / 250 mA (power adapter included) |
| Producer / brand: | AMS |
| Scales: | 0.3 kg |
| Selected features: | Built-in throughpass filter 87 ... 790 MHz |
| Warranty: | 3 years |

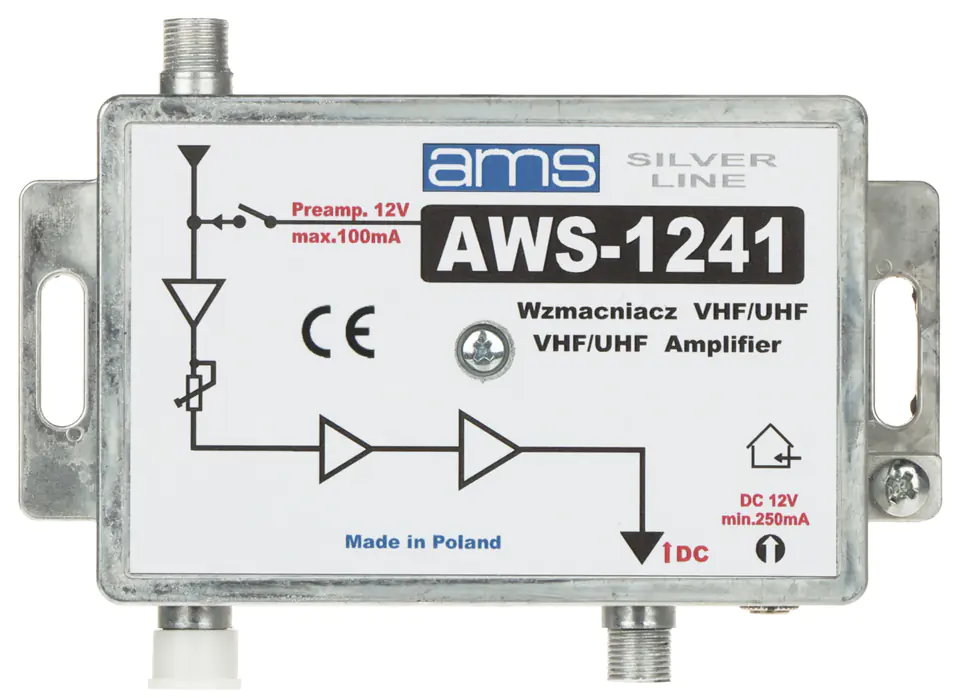

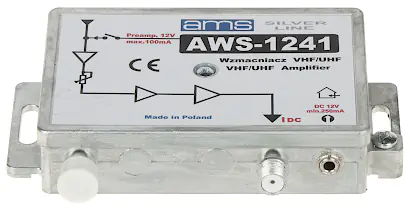

AWS-1241 is used for distribution of TV signals in home antenna systems
The amplifier allows you to power additional amplifiers via INPUT (power supply switched on by armature)The maximum current that can be consumed by an additional amplifier is 100 mA
The amplifier is also equipped with a gain regulator that allows to set the optimal signal level in the antenna installation
The amplifier can be powered directly from the included power supply or through the output using a seperator
