| Amplification:: | 14 dB / 17 dB |
|---|---|
| Connector type:: | "F" |
| Frequency range:: | 87 MHz ... 790 MHz |
| Gain adjustment:: | 0 dB ... 10 dB |
| Ima2 60db:: | 81 dBμV |
| Ima3 60db:: | 94 dBμV |
| Input/output impedance:: | 75 Ω |
| Maximum output level:: | 100 dBμV |
| Mismatch suppression:: | ≥ 10 dB |
| Noise ratio:: | ≤ 4 dB |
| Number of inputs/outputs:: | 1 / 4 |
| Operating temperature:: | -25 °C ... 55 °C |

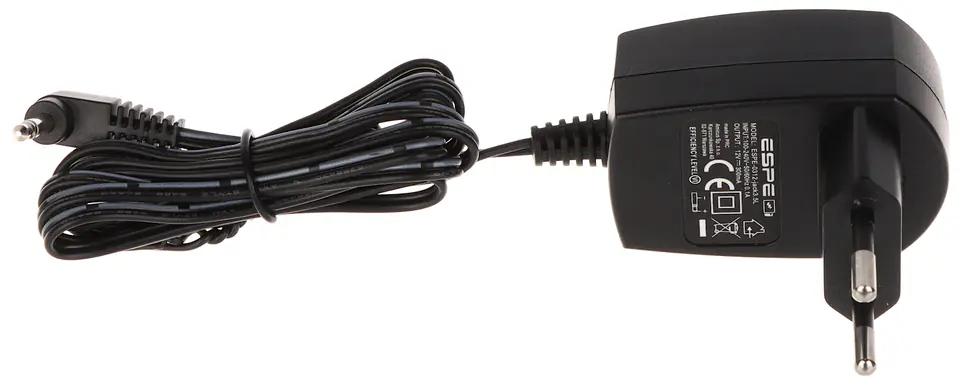

| Power:: | 12 V DC / 300 mA (power supply included) |
| Warranty:: | 2 years |

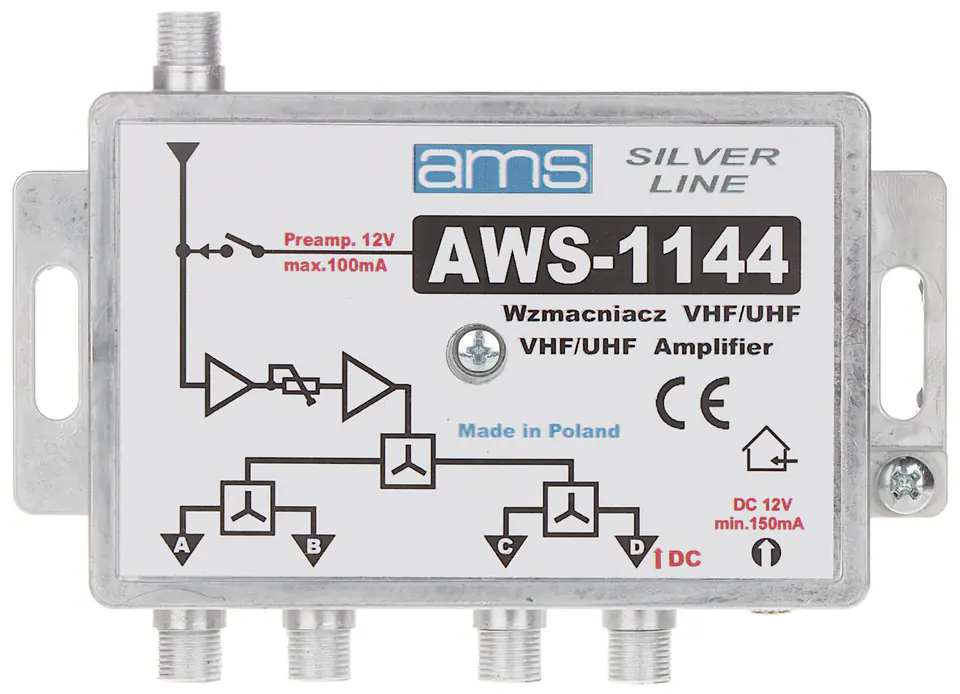

AWS-1144 is used to distribute TV signal in home antenna installationsDepulation allows you to adjust the signal level throughout the installation
The amplifier can be powered directly from the included power supply or via the output using a seperator
