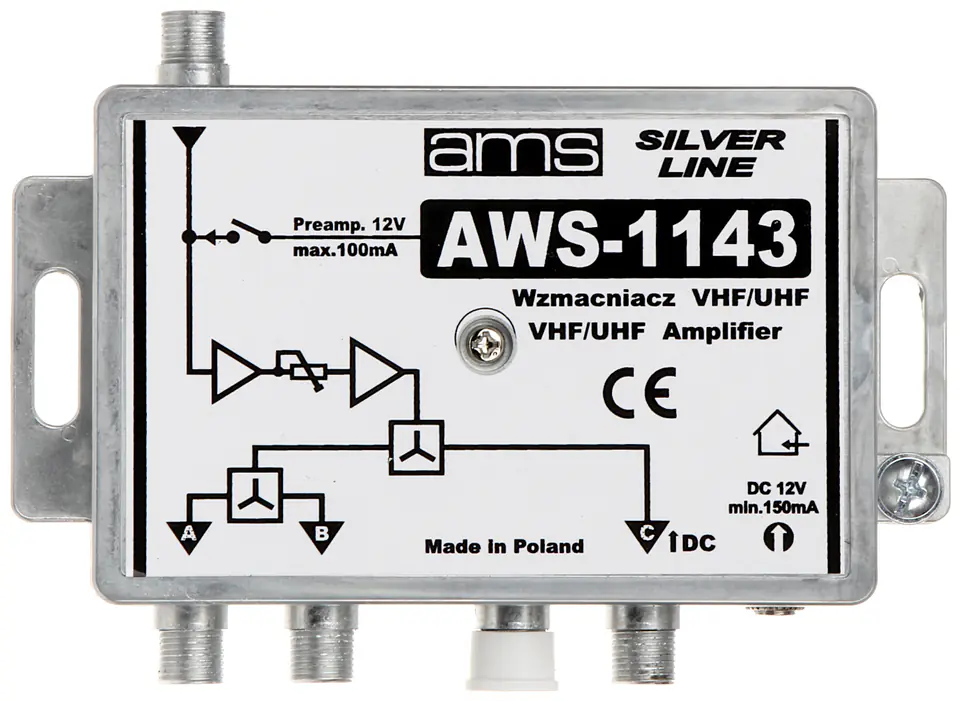

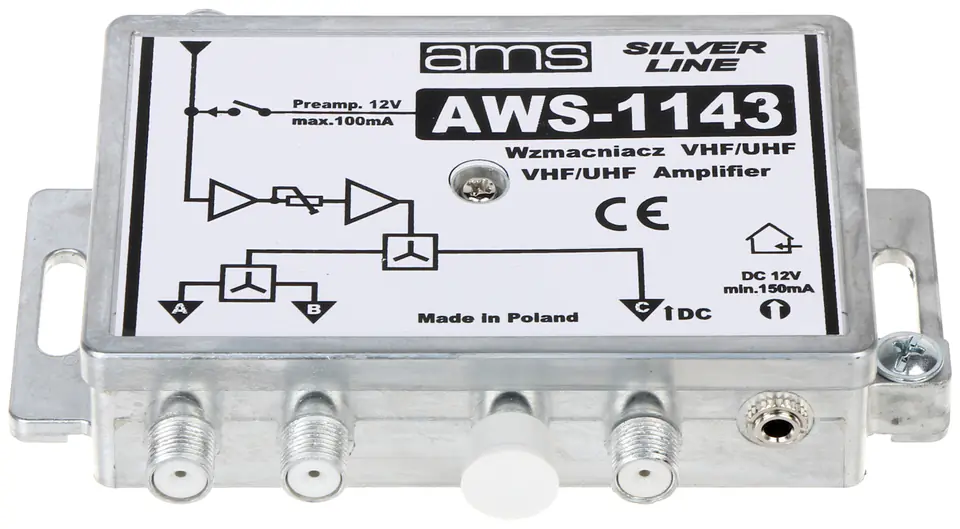

ANTENNA AMPLIFIER AWS-1143 17/19dB

€35.24
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
AMS
Product code:
AWS-1143 / 5902887025266

Specification

Amplification::AB14/16 C17/19 (± 1.5) dB
Connector type::"F"
Frequency range::87 MHz ... 790 MHz
Gain adjustment::0 dB ... 10 dB (+/- 1dB)
Ima2 60db::85 dBμV
Ima3 60db::98 dBμV
Input/output impedance::75 Ω
Maximum output level::104 dBμV
Mismatch suppression::10 dB
Noise ratio::5 dB ± 1 dB
Number of inputs/outputs::1  / 3
Operating temperature::-25 °C ... 55 °C
Power::12 VDC / 150 mA
Warranty::2 years

AWS-1143 is used to distribute TV signal in home antenna installationsDepulation allows you to adjust the signal level throughout the installation

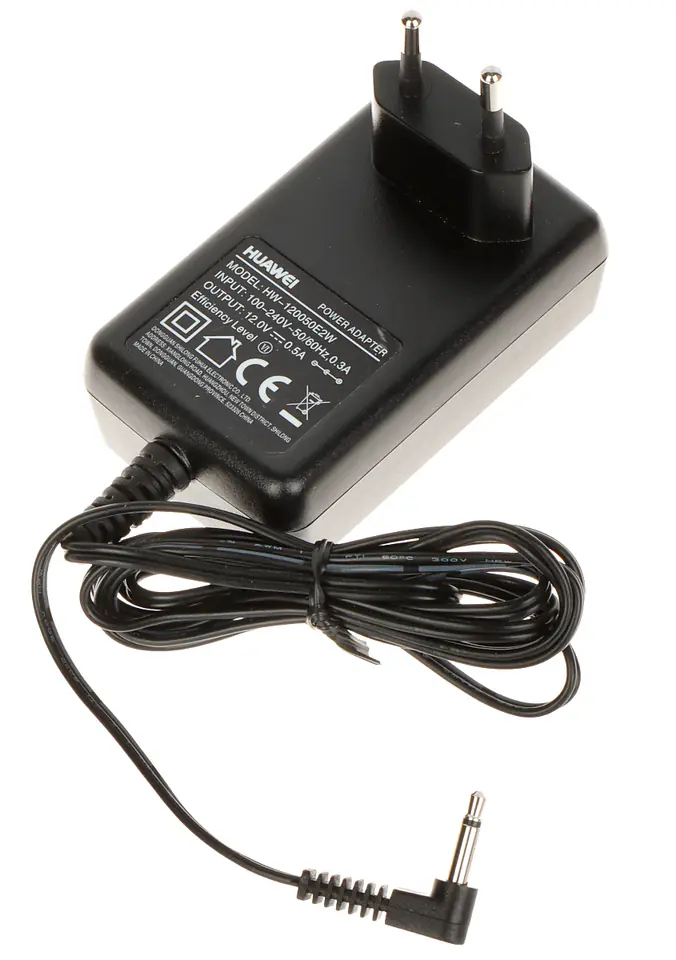

The amplifier can be powered directly from the included power supply or via the output using a seperator

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
