| Amplification:: | 19 dB / 22 dB (± 1.5) dB |
|---|---|
| Connector type:: | "F" |
| Frequency range:: | 87 MHz ... 790 MHz |
| Gain adjustment:: | 0 dB ... 10 dB (+/- 1dB) |
| Ima2 60db:: | 87 dBμV |
| Ima3 60db:: | 100 dBμV |
| Input/output impedance:: | 75 Ω |
| Maximum output level:: | 106 dBμV |
| Mismatch suppression:: | 10 dB |
| Noise ratio:: | 3 dB |
| Number of inputs/outputs:: | 1 / 1 |
| Operating temperature:: | -25 °C ... 55 °C |
| Power:: | 12 VDC / 150 mA |
| Warranty:: | 2 years |

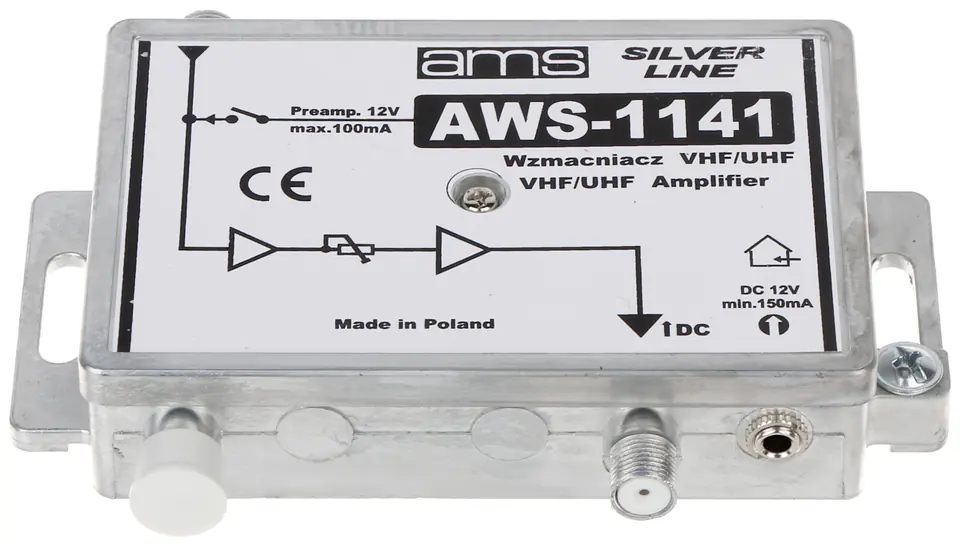

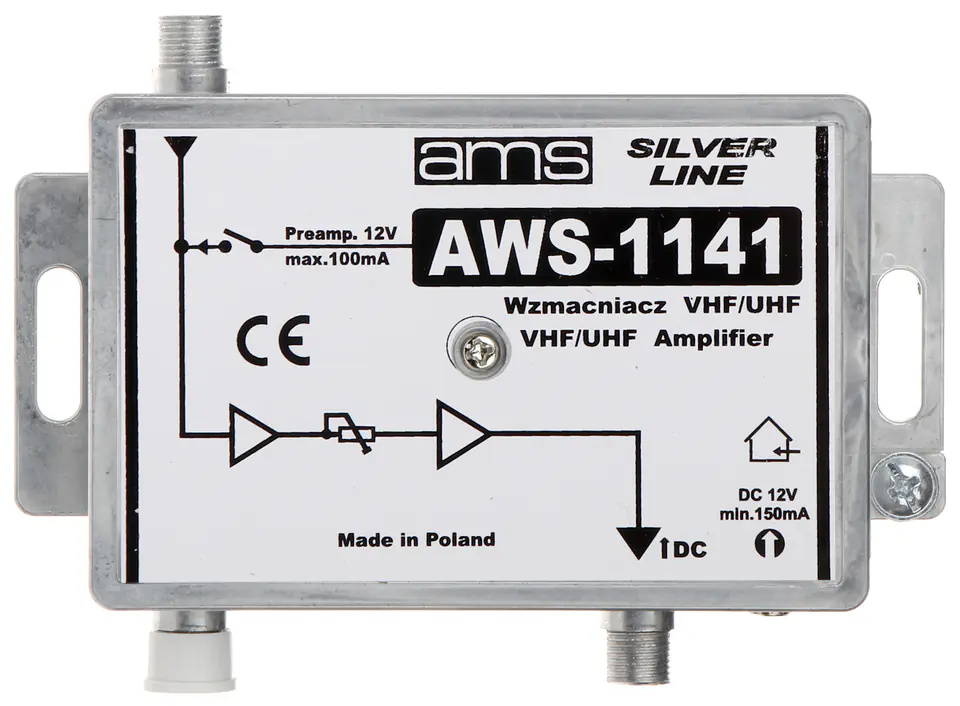

AWS-1141 is used to distribute TV signal in home antenna installationsDepulation allows you to adjust the signal level throughout the installation

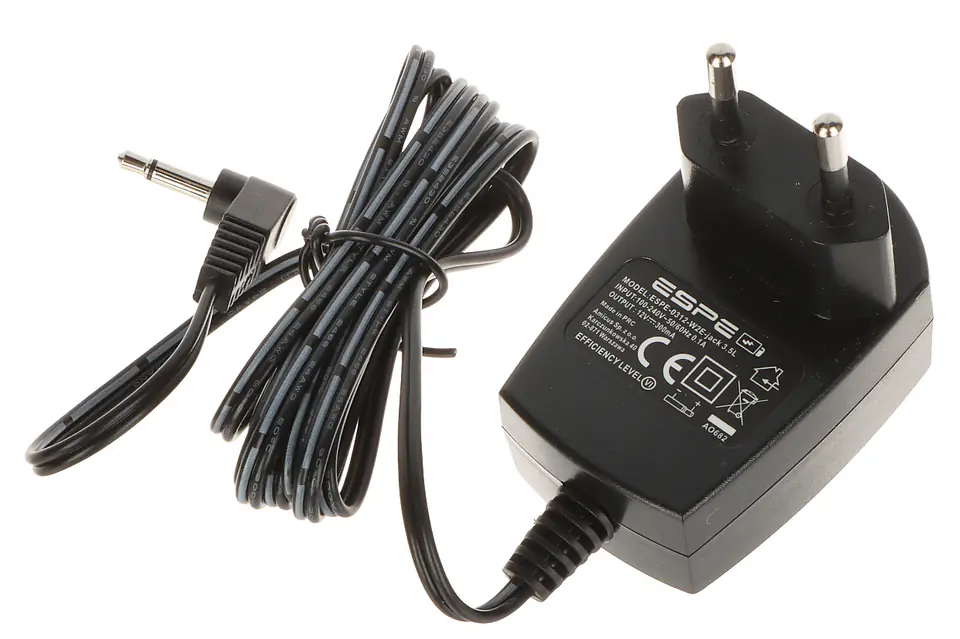

The amplifier can be powered directly from the included power supply or via the output using a seperator
