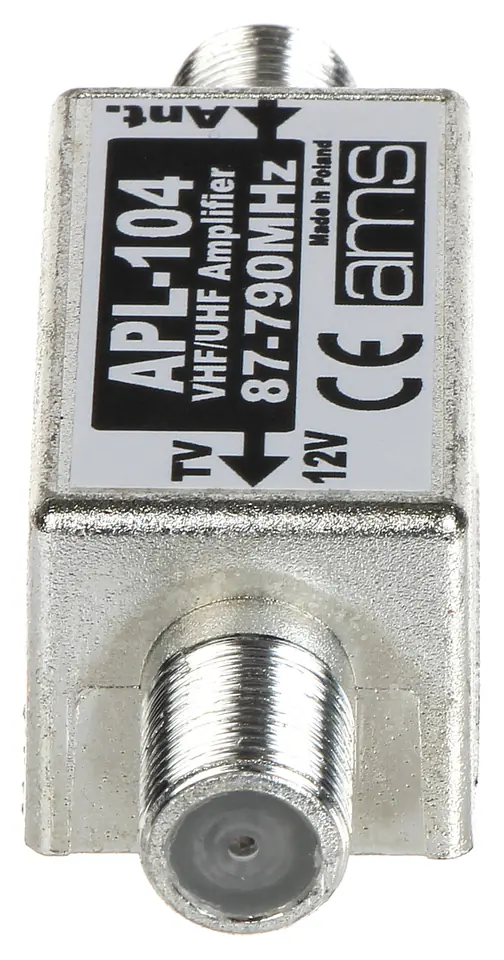

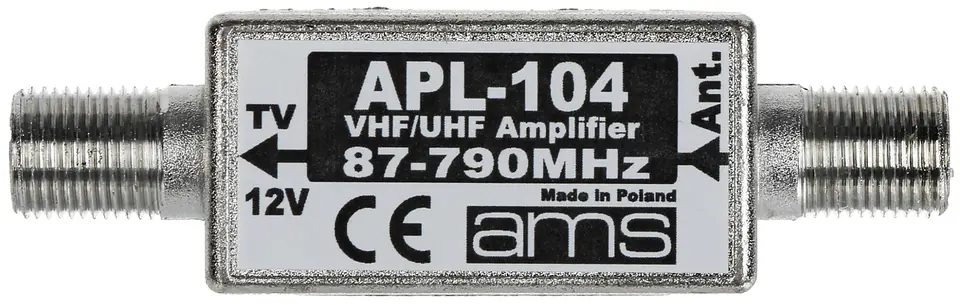

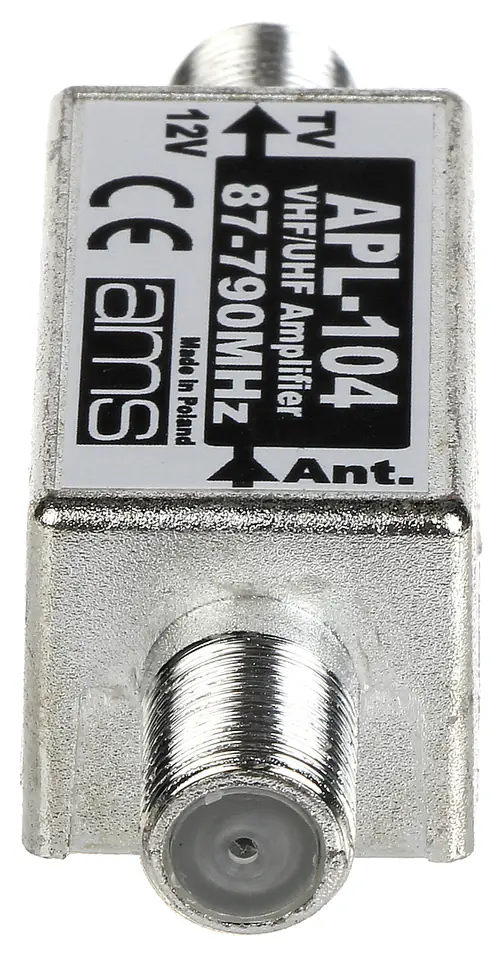

APL-104 antenna amplifier designed for raising the level of weak terrestrial TV signals
The device is powered via coaxial cable, using 12V voltage supplied to the antenna
ANTENNA AMPLIFIER: APL-104 AMS
€8.92
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Product code:
- APL-104 / 5902887029981
Share this product:
Specification
| Amplification: | 18 dB ± 2 dB @ FM 20 dB ± 2 dB @ VHF 20 dB ... 23 dB ± 2 dB @ UHF |
|---|---|
| Connector type: | 1 x F Socket / 1 x F Socket |
| Dimensions: | 66 x 20 x 18 mm |
| Frequency range: | 87 MHz ... 790 MHz - FM, VHF, UHF |
| Input/output impedance: | 75 Ω |
| Max. output level: | 96 dB |
| Number of inputs/outputs: | 1 / 1 |
| Operating temperature: | -30 °C ... 50 °C |
| Own noise: | ≤ 4 dB |
| Power: | 12 V DC / 60 mA |
| Producer / brand: | AMS |
| Scales: | 0.03 kg |
| Warranty: | 2 years |
