ANTENNA AMPLIFIER: APL-103E AMS

€8.15
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
AMS
Product code:
APL-103E / 5902887073908

Specification

Amplification:10 dB ± 1.5 dB @ VHF, 10 dB ... 13 dB ± 1.5 dB @ UHF
Connector type:1 x F Socket / 1 x F Socket
Dimensions:66 x 20 x 18 mm
Frequency range:174 MHz ... 694 MHz - VHF, UHF
Input/output impedance:75 Ω
Max. output level:96 dBμV (2kTV) 90 dBμV (IMA3)
Number of inputs/outputs:1  / 1
Operating temperature:-30 °C ... 50 °C
Own noise:≤ 3 dB
Power:12 V DC / 35 mA
Producer / brand:AMS
Scales:0.03 kg
Warranty:3 years

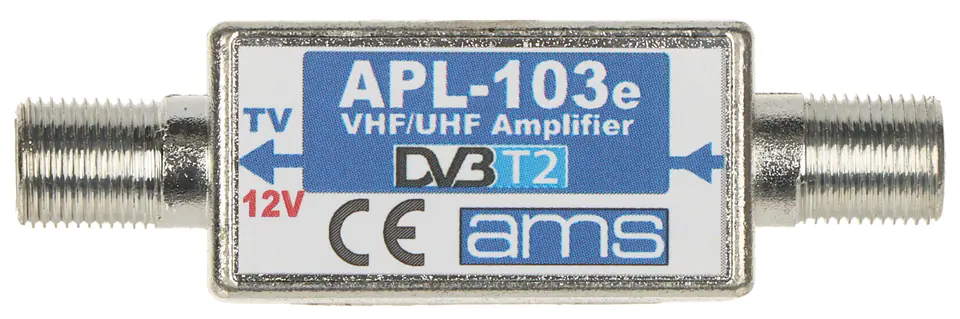

APL-103E antenna amplifier designed for raising the level of weak terrestrial TV signals

The device is powered via coaxial cable, using 12V voltage supplied to the antenna

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
