| Amplification:: | 18 dB |
|---|---|
| Case:: | Plastic |
| Channels:: | 3 - 69 |
| Connector type:: | "F" |

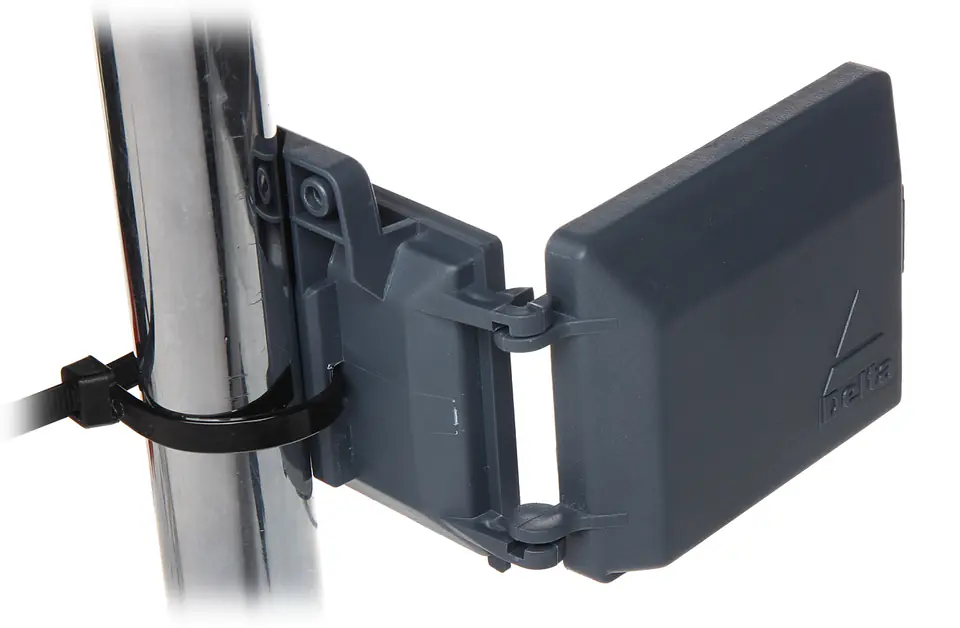

| Fixing:: | on the mast or wall |
| Frequency range:: | 76 MHz ... 860 MHz |
| Ima3 60db:: | 88 dBμV |
| Input/output impedance:: | 75 Ω |
| Manufacturer / brand:: | DELTA |
| Number of inputs/outputs:: | 1 / 1 |
| Power:: | 12 V / 50 mA via antenna cable |
| Warranty:: | 3 years |

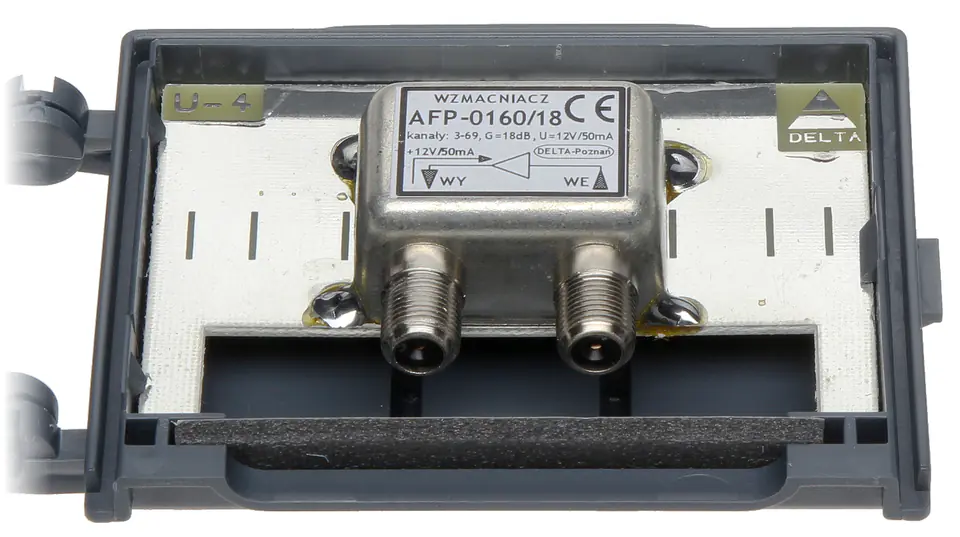

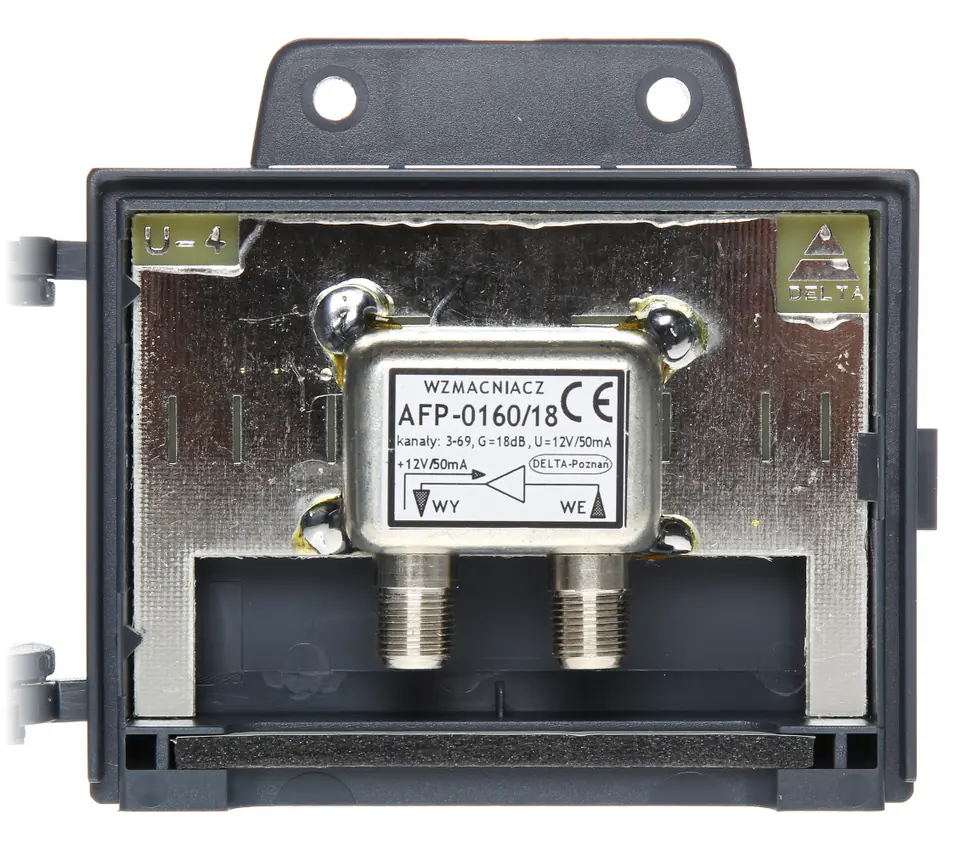

The amplifier is designed to power from several to several antenna socketsIt is mounted in a metal housing with leads to sockets of the \"F\" type"The amount of gain is given for 800 MHz

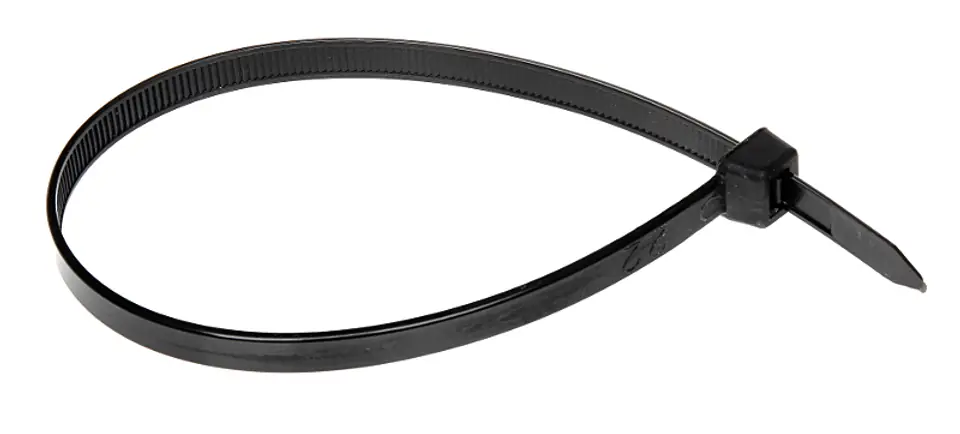

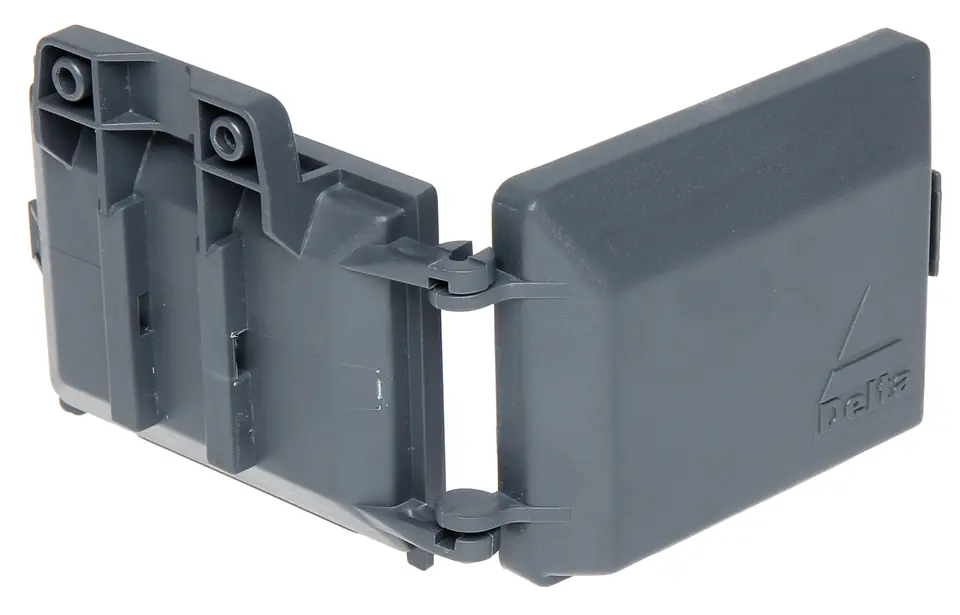

The housing and cable tie (included) are made of UV-resistant plastic
