ANGULAR IMADLE

Specifications:

Brand: Yato
Symbol: YT-65136
Series: GRD
Dimensions: 150x150 mm
Material: Aluminum
Application: locksmith|for making connections from slats or boards
Surface finish: painted|lacquered
Jaw Spacing: 70 mm
Height: 55 mm
Wall thickness: 13 mm
Mounting type: fixed
Working Angle: 90°
Screw diameter: 12mm
Hole size: 10x32 mm



Angular vice for fixing elements at an angle of 90°. Body made of aluminum, base 150 x 150 mm, depth / thickness max. mounted elements approx. 70 mm, external wall height approx. 55 mm, wall thickness about 13 mm, in the base holes for fixing 10 mm x 32 mm. Metal turned screw fi 12mm fixed in the joint gives the ability to change the angle of attachment by pressing to one wall, plastic knob. for fastening materials at an angle of 90 degrees. Most often to make connections from slats or boards.


**

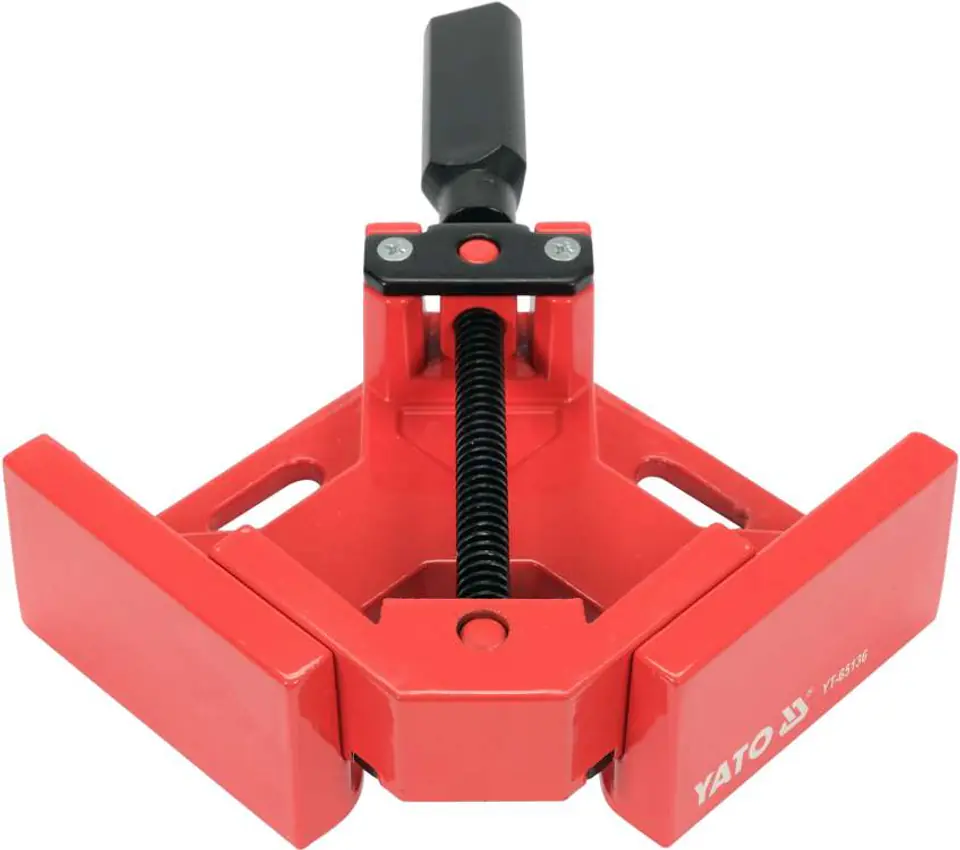

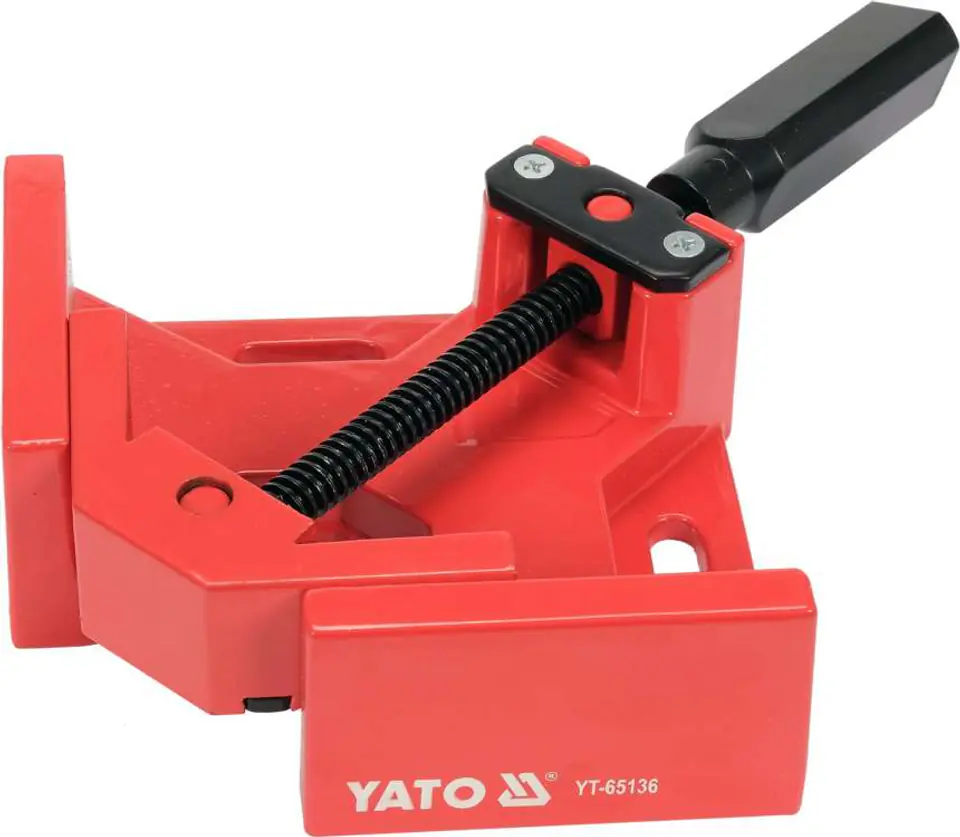

Illustrative photos.
