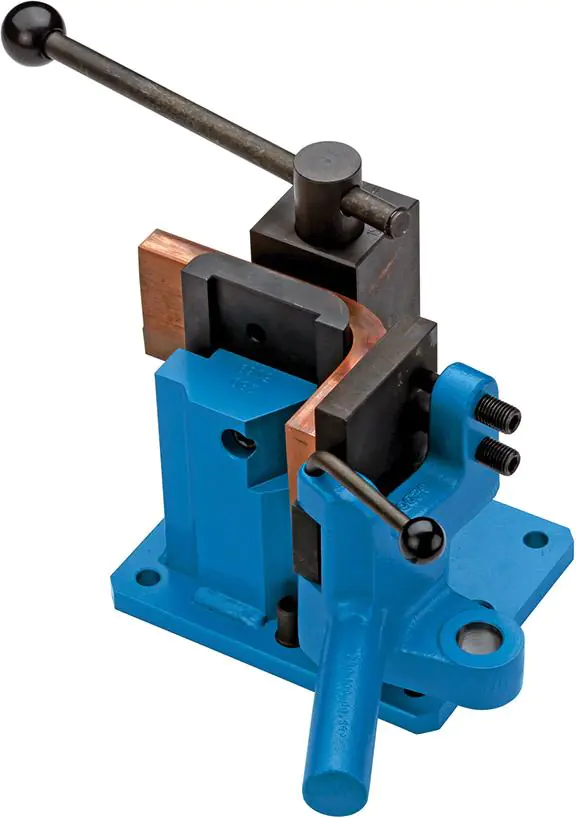

Eccentric angle bender
Execution: with 2 bending tools, one tool with a sharp edge and a radius of 4 mm and one with a radius of 15 and 25 mm. Infinitely adjustable angle stop and length. With lever extension for bending, for mounting on a workbench.
Application: for bending flat bars, quadrangular bars, round bars and angles made of steel, copper and aluminum up to 90°.
Max. bending range: cold mm to warm mm mm
Steel flat bar EN10058 (DIN 1017) 100 x 10 100 x 20
80 x 12 80 x 25
50 x 15 –
Quadcopter steel bar EN 10059 (DIN 1014) 22 30
Round steel bar EN 10060 (DIN 1013) 25 30
Steel angle EN10056-1 (DIN 1028) 100 x 10 100 x 12
Max. bending range modeled on the dimensions of ST 37 material up to material strength 370 N/mm2.
Tip: special bending tools as accessories on request.
