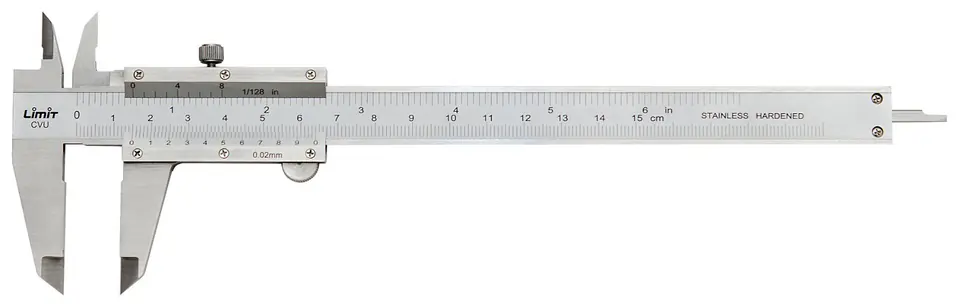

Premium quality mechanical caliper, with special attention to detail and finish. The caliper is characterized by a very soft and smooth movement of the jaw, because the components were ground in several stages. Stainless, hardened and precisely ground measuring jaws and chrome-plated graduation on matt. Jaw thickness of 3.5 to 4 mm ensures high stability. Graduation in mm and inches. Vernier 1/50 mm (0.02 mm) and 1/128 inch (0.0078"), with a pitch length of 48 mm. 4-functions. Equipped with a rectangular depth gauge extension and jaws for internal measurements. Made according to DIN 862. Supplied in a pouch, with a quality control certificate.
Analog caliper CVU 150 mm Limit
€54.12
Shipping from warehouse: B6
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- LIMIT
- Product code:
- 264010109 / 7311662212377
Share this product:
Specification
| Accuracy: | ±0.02 mm |
|---|---|
| Arm thickness (mm): | 3.50 |
| Blockade: | locking screw |
| Depth gauge shape: | Rectangular |
| Item number: | 264010109 |
| Jaw length - inner (mm): | 21.0000 |
| Jaw length - outer (mm): | 40.0000 |
| Measuring length (mm): | 150 |
| Package dimensions (mm): | 16x124x300 |
| Package quantity (pcs): | 1 |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
