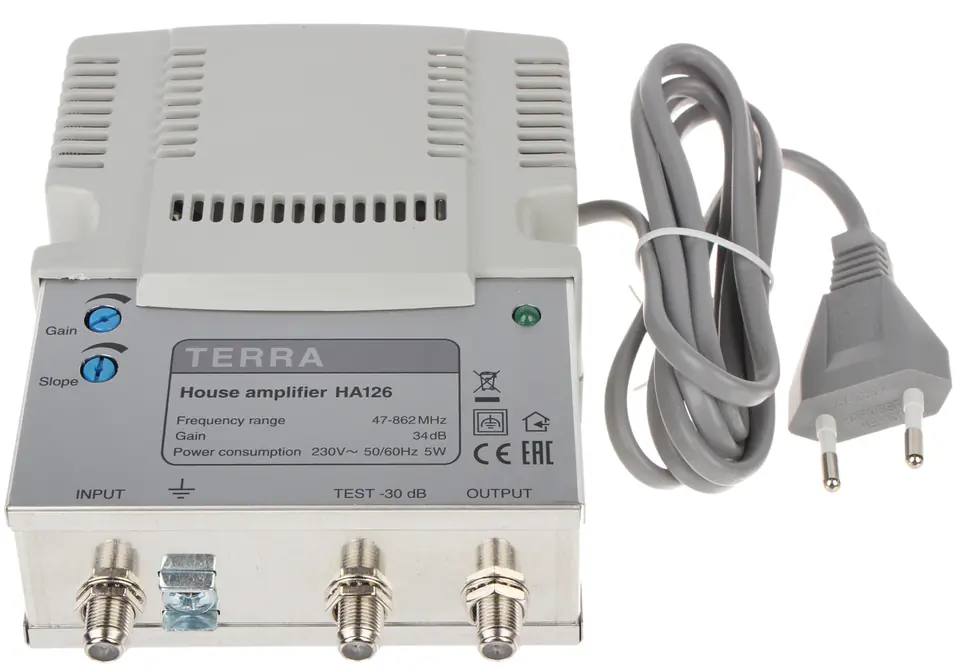

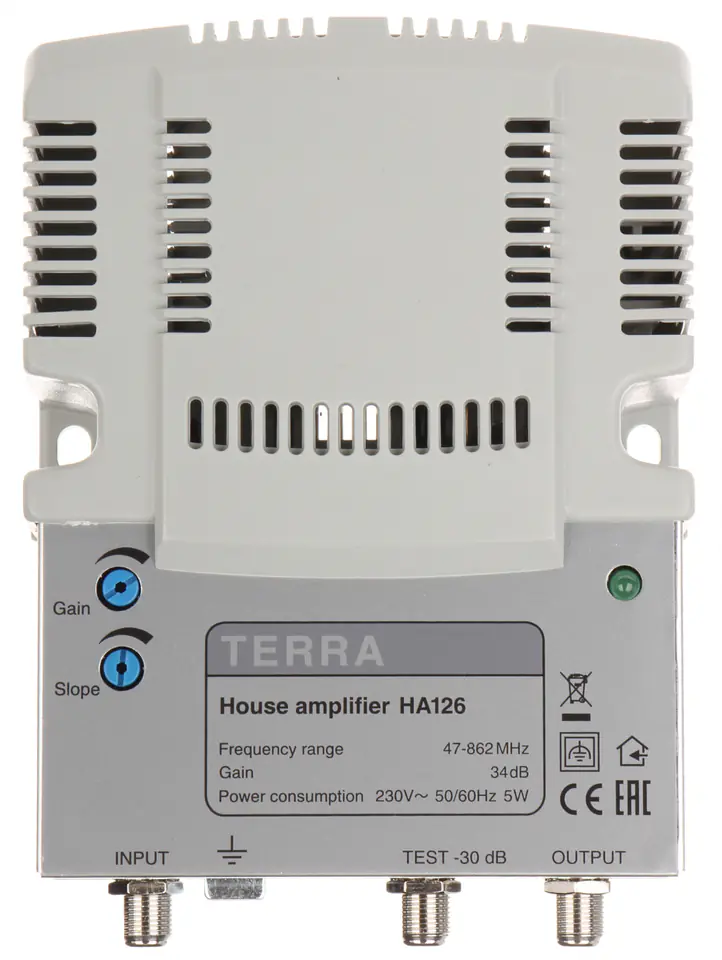

AMPLIFIER TERRA HA-126 34 db
€53.46
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- HA-126 / 5907634569116
Share this product:
Specification
| Cable attenuation correction:: | 0 dB ... 18 dB |
|---|---|
| Dimensions:: | 107 x 145 x 53 mm |
| Frequency range:: | 47 MHz ... 862 MHz |
| Gain adjustment:: | 0 dB ... 20 dB |
| Maximum output level imd2=60 db en50083-3:: | 112 dBμV |
| Maximum output level imd3=60 db din45004b:: | 117 dBμV |
| Mismatch suppression:: | > 14 dB Mismatch attenuation (at f>=47 MHz, mismatch attenuation decreases by 1.5 dB/octave) |
| Noise ratio:: | < 6 dB |
| Number of inputs/outputs:: | 1/1 |
| Operating temperature:: | -20 °C ... 50 °C |
| Power consumption:: | 6 VA / 230 V / 50 Hz |
| Scales:: | 0.930 kg |
| Tv gain (47-862 mhz):: | 34 dB |
| Unevenness of frequency response:: | ± 0.5 dB |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
