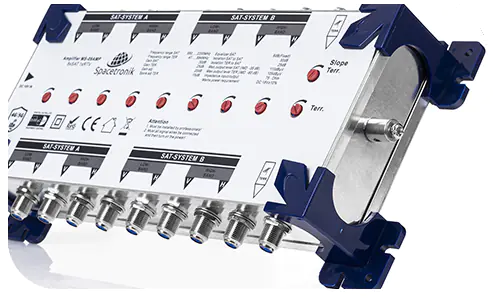

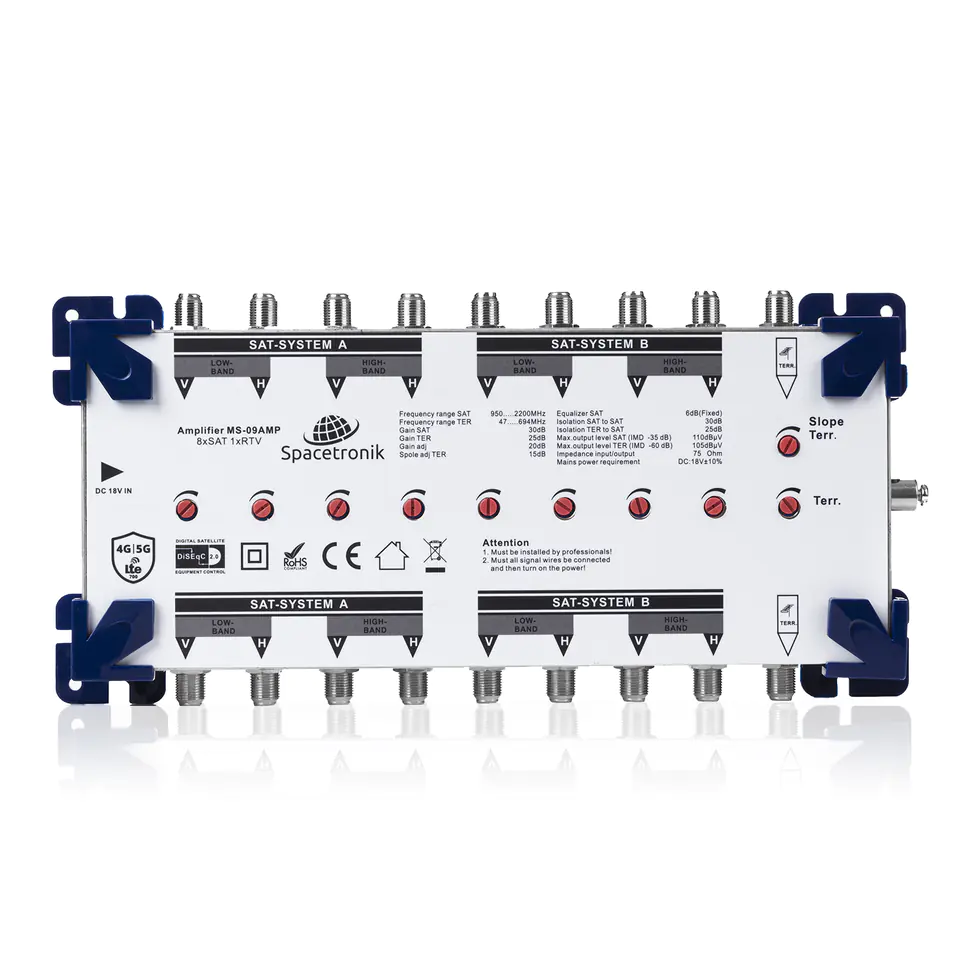

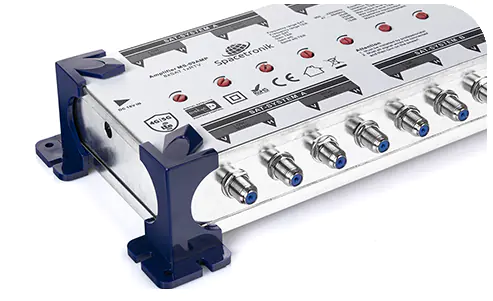

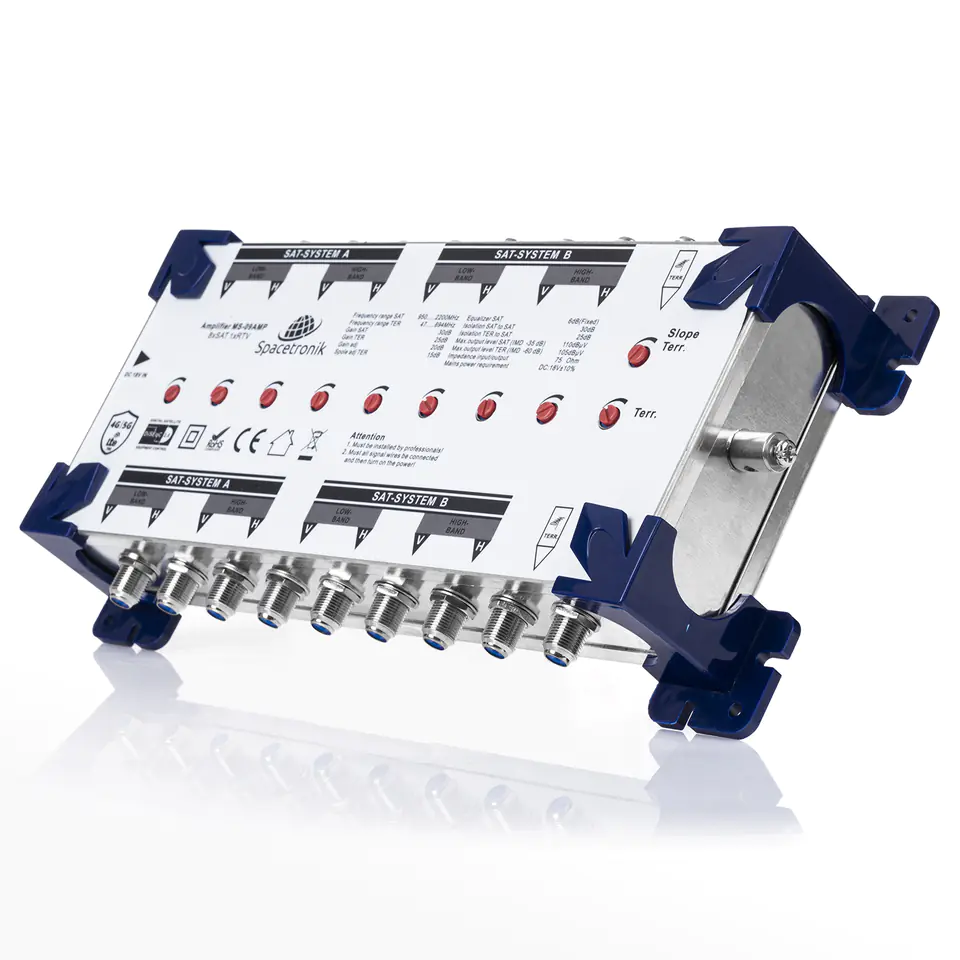

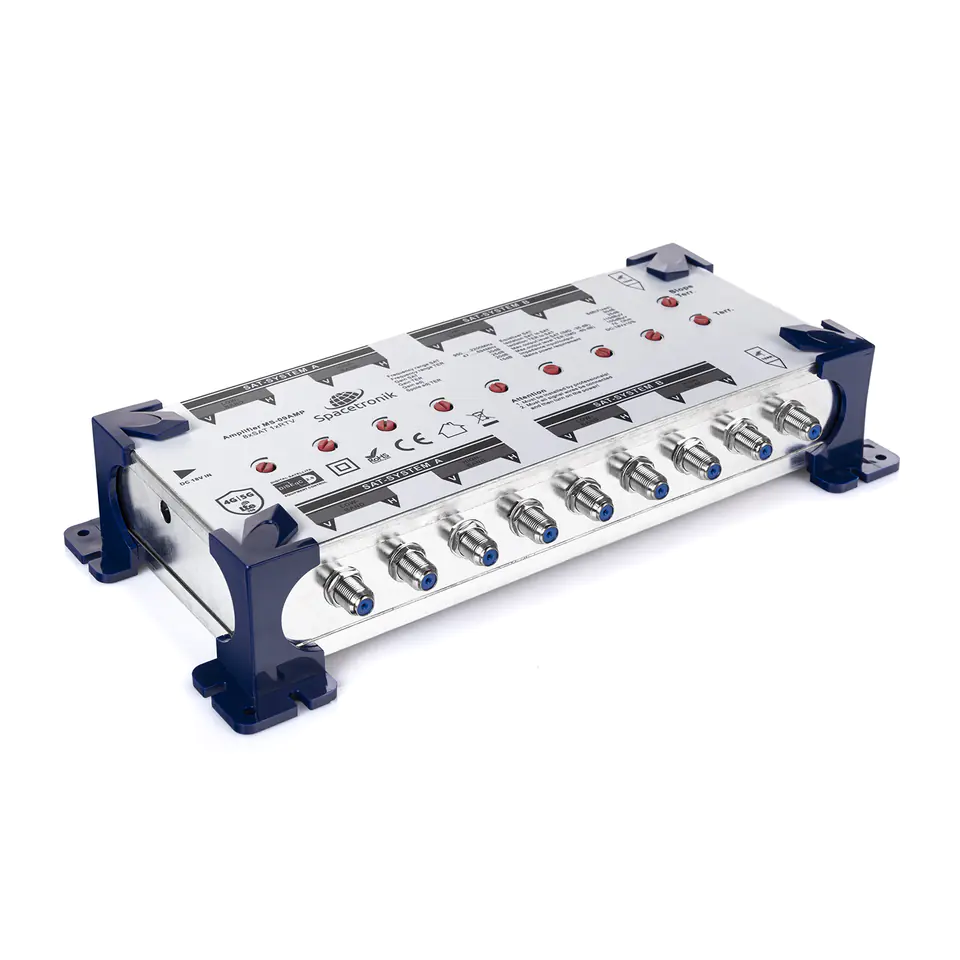

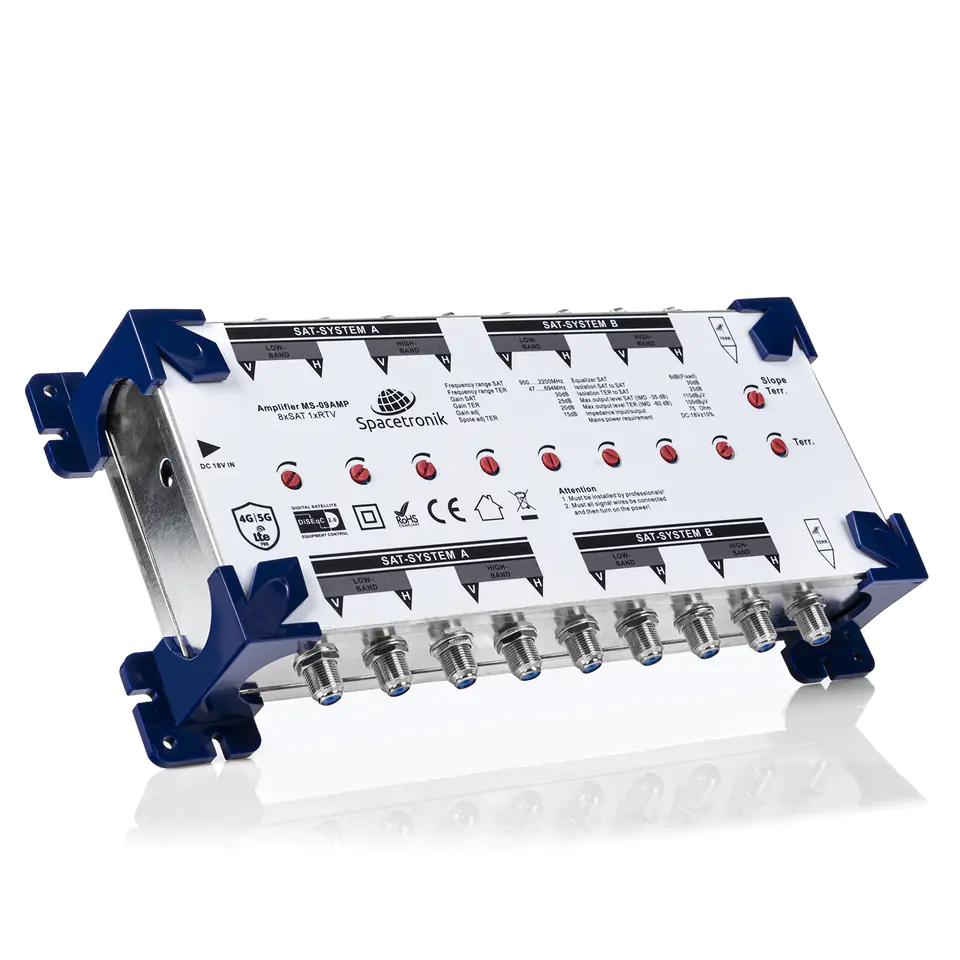

Cascade amplifier Spacetronik Pro Series MS-09AMP LTE

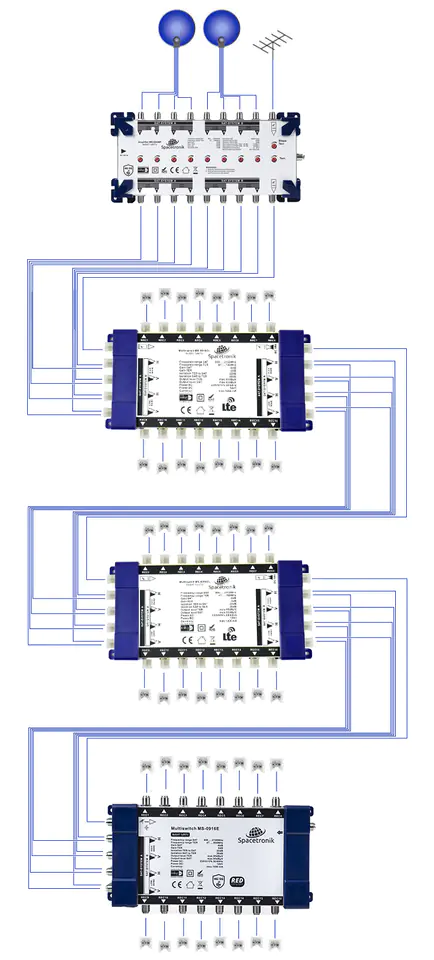

Cascade amplifier with two satellite positions recommended for installations based on cascade multiswitches with terrestrial television, which stabilizes the quality of the delivered signal in situations where it is necessary to cascade a large number of multiswitches or there are very long distances between multiswitches or multiswitches and antennas. The advantage of the Spacetronik amplifier is a very high maximum output level of the amplifier in SAT and DVB-T paths. Such good parameters allow to mount the amplifier at short distances from the SAT antenna.
Number of inputs: 8 SAT, 1 TER
Number of outlets: 9
Connectors: F female
SAT Frequency Range: 950-2150MHz
TER frequency range: 47-694MHz
SAT gain: 30dB
TER gain: 25dB
SAT Regulation: 0~20dB
TER regulation: 0~20dB
TER to SAT isolation: 30dB
SAT to TER Isolation: 15dB
SAT out-out isolation: 30dB
SAT Backprint Attenuation input: 12dB
SAT Reflection Attenuation Output: 10dB
TER Reflection Attenuation input: 10dB
TER Reflection Attenuation Output: 10dB
SAT Output Level (IMD3 - 35dB): 110dBμV
TER Output Level(IMD3 - 60dB): 105dBμV
Input/output impedance: 75Ohm
