Digitally controlled automatic amplifier Profino Revolution 6714 LITE signal inputs: 3x UHF/VHF supporting up to 50 channels / real-time AGC gain / 12-24 V power supply

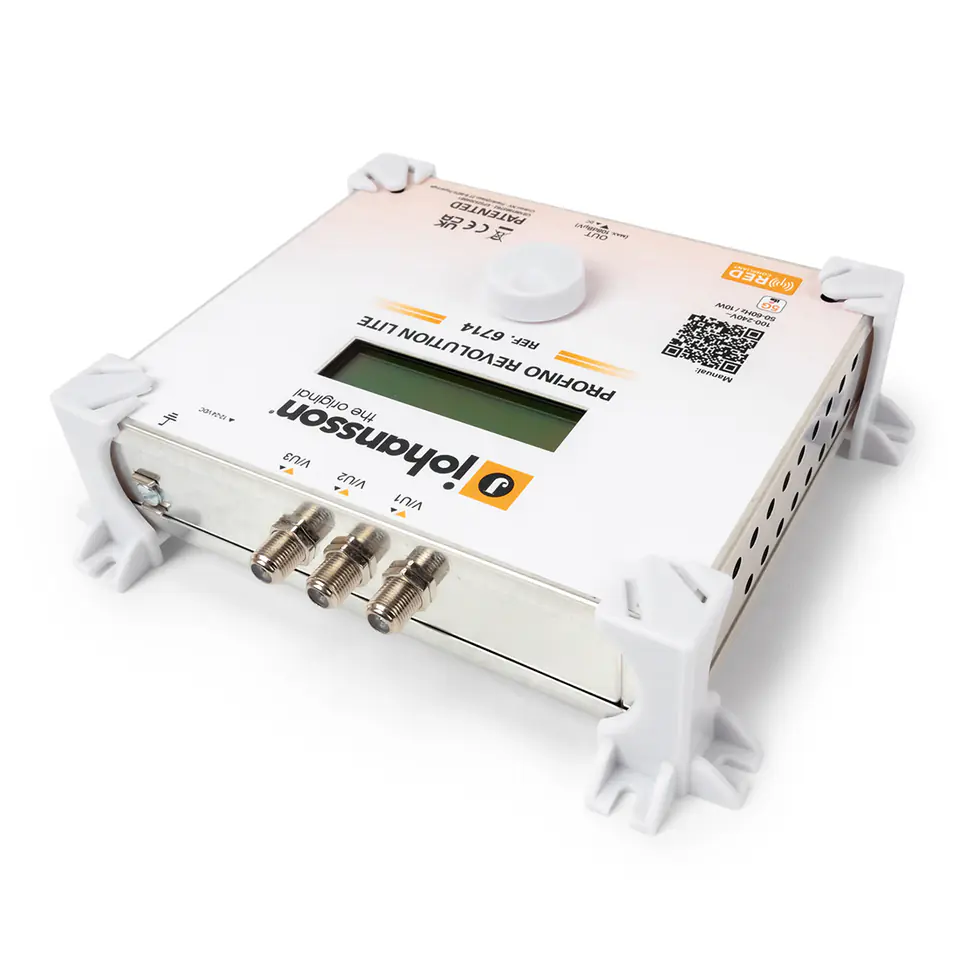

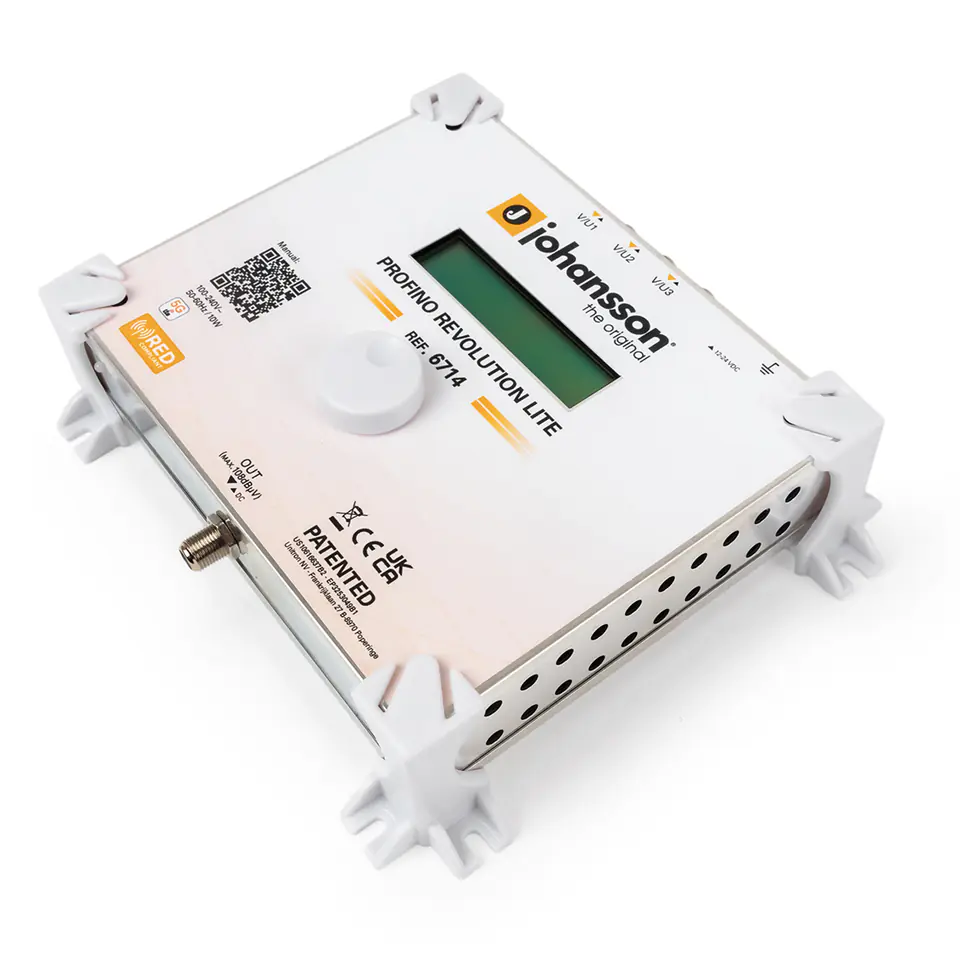

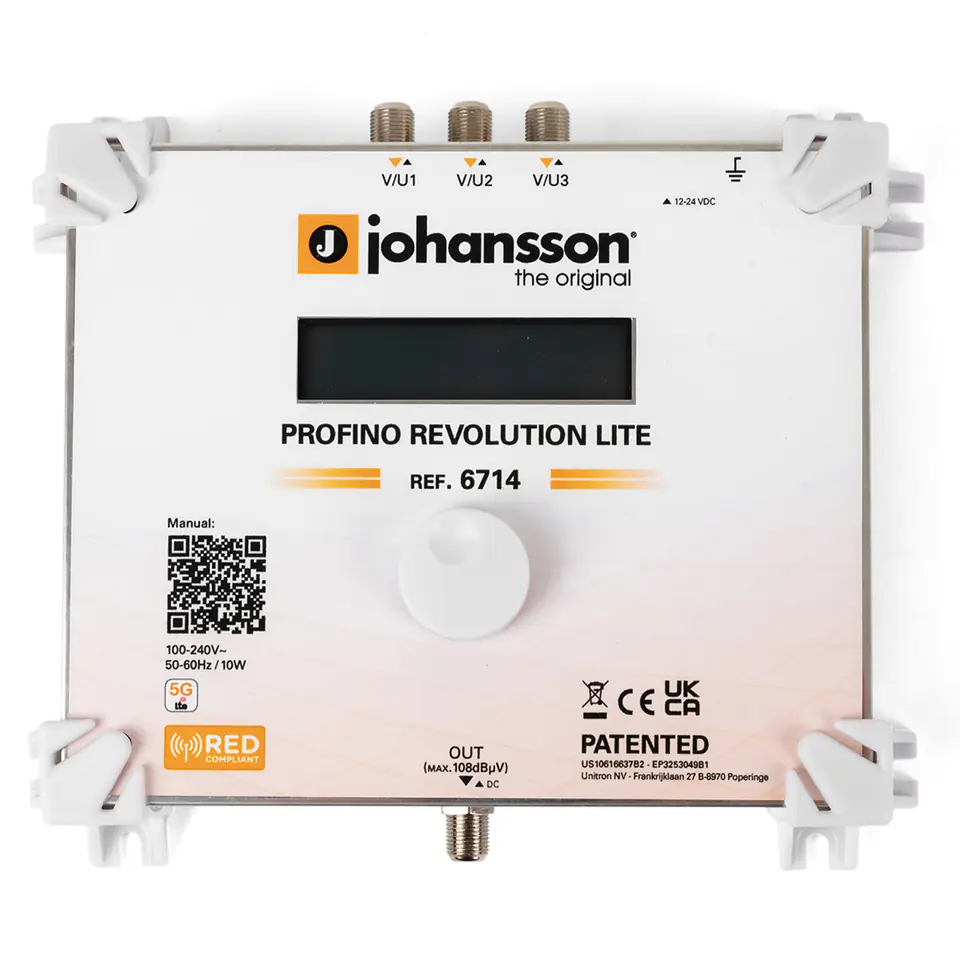

The Johansson Profino 6714 Revolution Lite is an easy-to-use programmable amplifier and converter for terrestrial signals.
Profino optimizes VHF/UHF terrestrial signals from multiple inputs.
The state-of-the-art programmable filter amplifier has no equivalent on the market due to its revolutionary technology:
- Can process and convert more than 50 channels (consisting of 32 filters, each up to 6 MUXs wide)
- Can process S-band output channels
- 5G LTE protection (694 MHz)
- The sharpest filters on the market (50 dB on adjacent channels)
- REAL-time AGC on all individual multiplexes
- Full flexibility in assigning filters from any input.
Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix)
- To prevent unauthorized persons from changing the settings, all Profiler products can be blocked with a security code
- Made in Europe, for worldwide use
- 3 VHF/UHF inputs / 32 filters / AGC / remote power supply 12-24 V

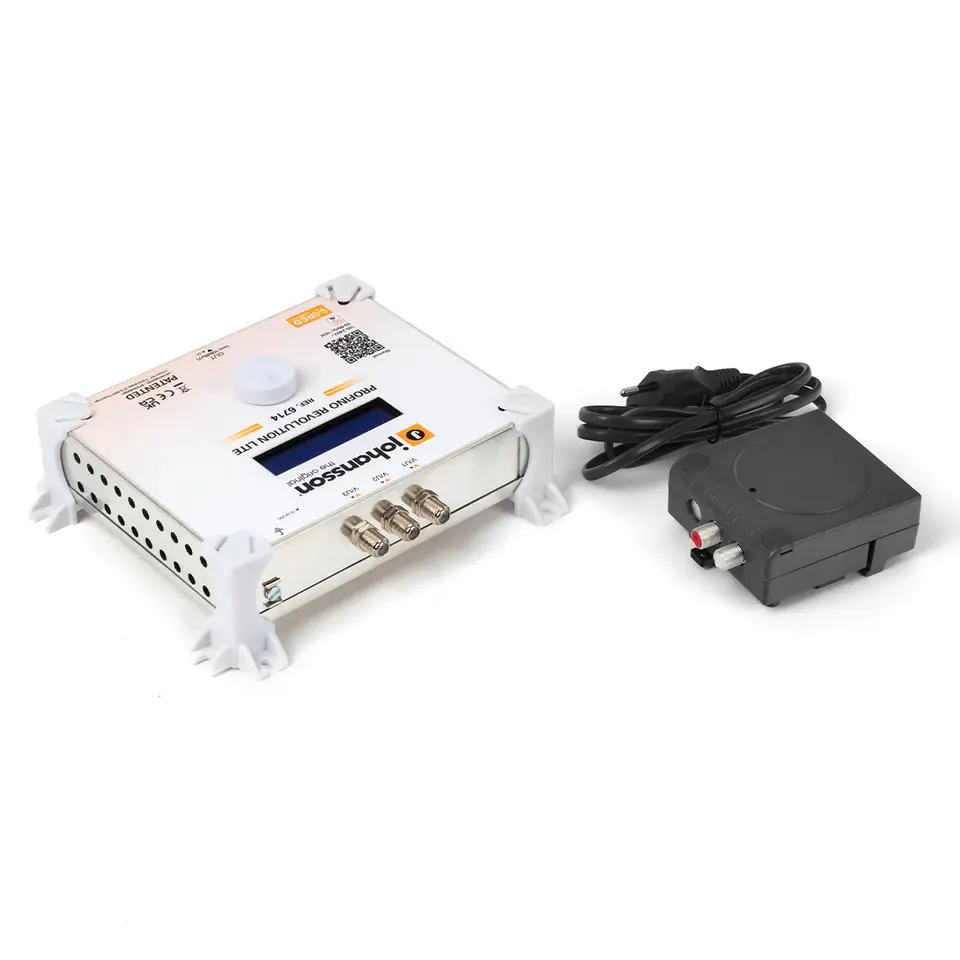

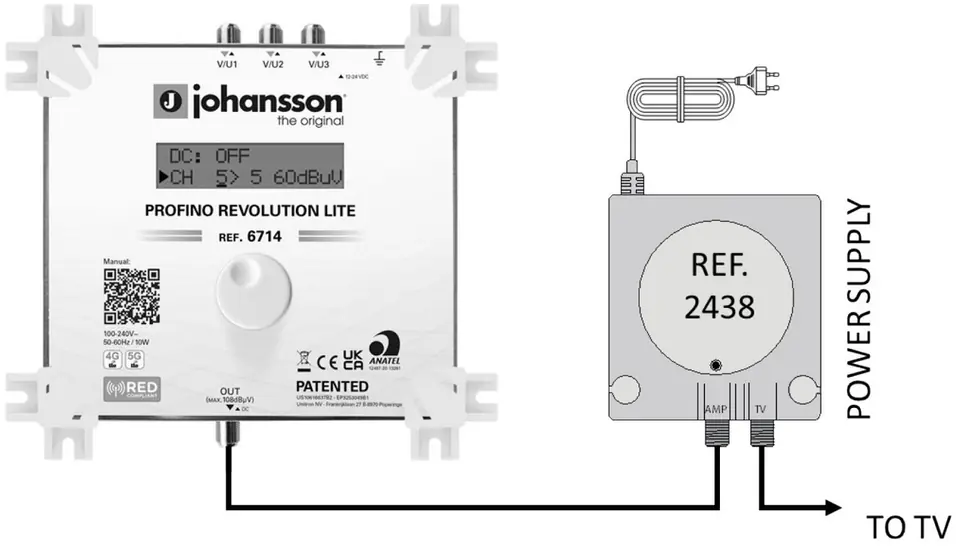

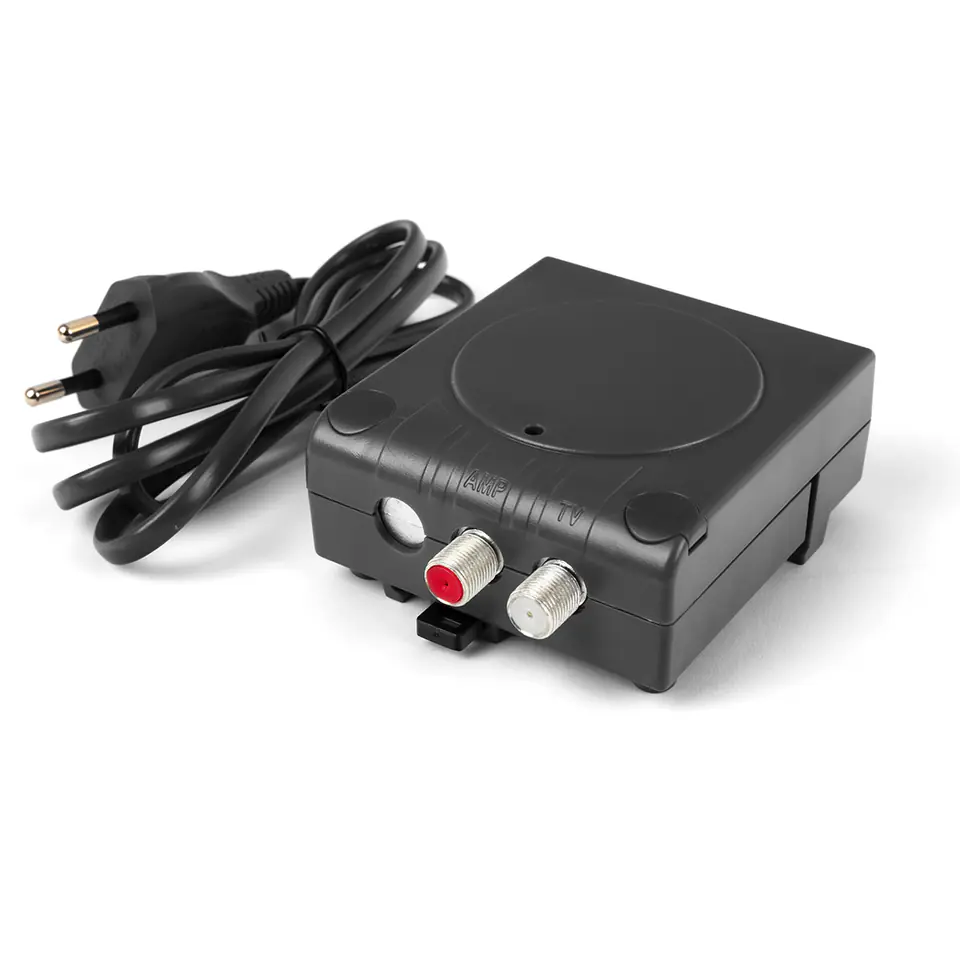

- Powered by F output connector from 2438 power supply (included)
- Product dimensions (WXSXD): 165mm x 190mm x 59mm
Profino Revolution Lite can be used to deliver high-quality TV signal in a wide range of projects, both in the hotel industry and in the residential market.
Typical buildings or infrastructures where Profino Revolution Lite can be used include, but are not limited to:
- Large and small hotels, hostels, guest houses, holiday parks
- Hospitals, nursing homes, prisons, settlements
- Large and small multi-family units
Configuration Profino Revolution 6714 Lite
To activate the correct channel frequency plan, select the country and region where Profiler Revolution Lite is located at the beginning. The default setting is Europe.
Profiler Revolution Lite also works in the following countries/regions: Australia, Brazil, China, Hong Kong, Italy, New Zealand, Russia, South Africa, United Kingdom and USA.

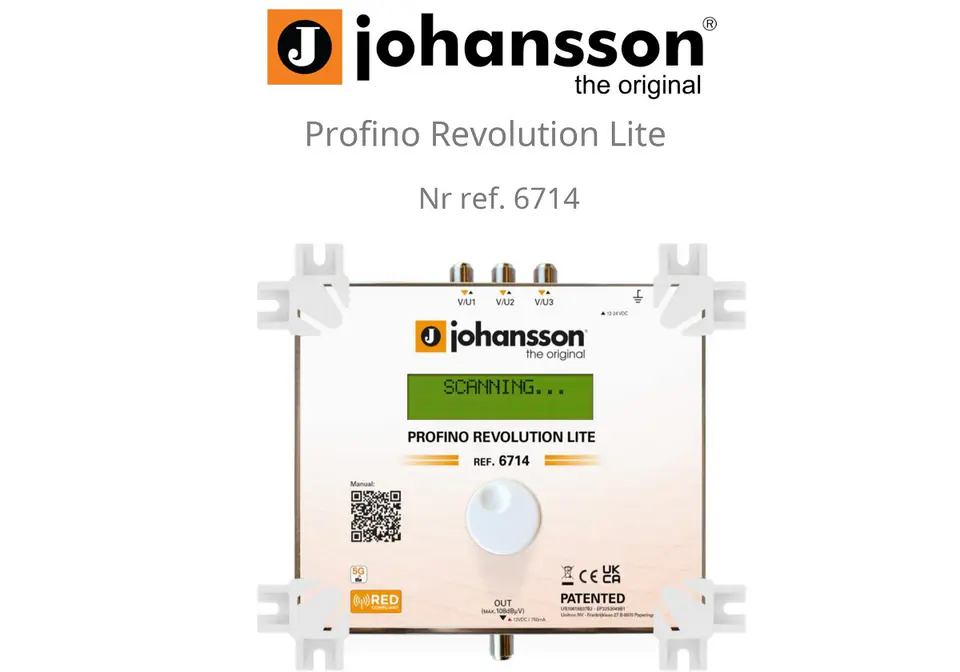

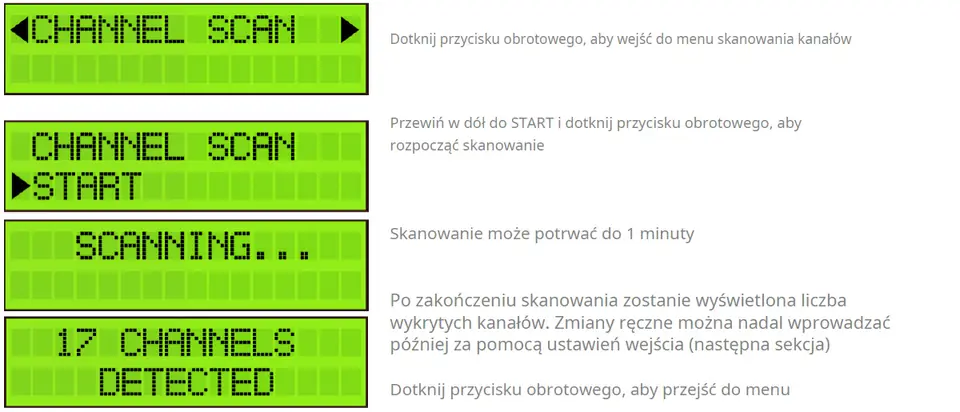

Automatic channel search function in the installation.
This automatic amplifier is distinguished by the fact that when connected to the antenna installation, it will scan the transmitted signal from TV antennas in a very easy and very fast way.
The signal search is done automatically and takes only a few seconds. After scanning the signal, the amplifier informs us about the available number of searched channels / MUX.
Then, automatically, the signal will be amplified and will maintain a constant level of gain to the requirements of the installation, which will guarantee the most optimal signal level for correct signal reception.
Advanced features of the Johansson 6714 amplifier:
- antenna power management, in the case of active antennas with a built-in amplifier, 6714 can power the antennas with 12...24V voltage
- channel converter, this function allows you to transfer the channel / frequency to a completely different one, e.g. CH5 to CH7, etc...
- adjustable output signal level, range from 88 dBμV to 108 dBμV (default output level is 98 dBμV).
- To compensate for signal losses on the cable, you can configure the attenuator up to 15 dB to reduce the VHF output level (up to 300 MHz) (compared to the UHF output level (above 300 MHz))

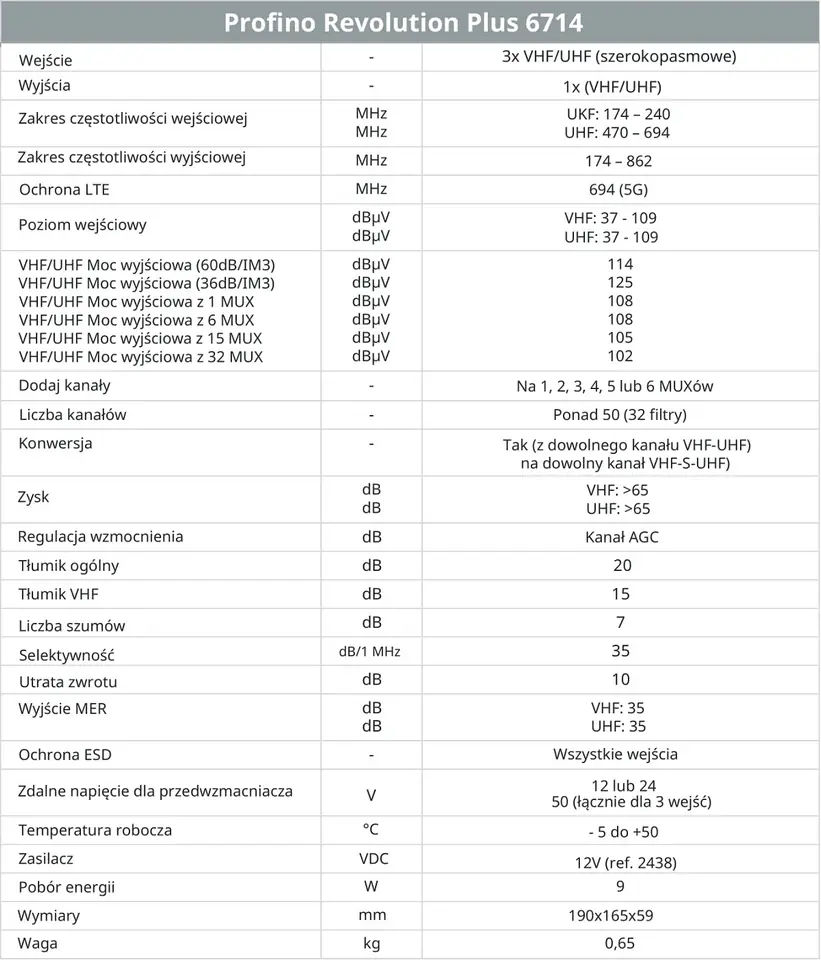

Technical specification:
