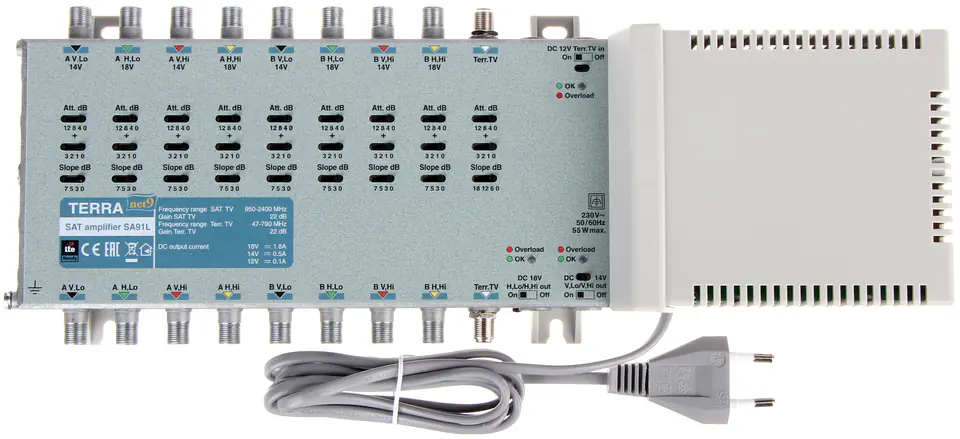

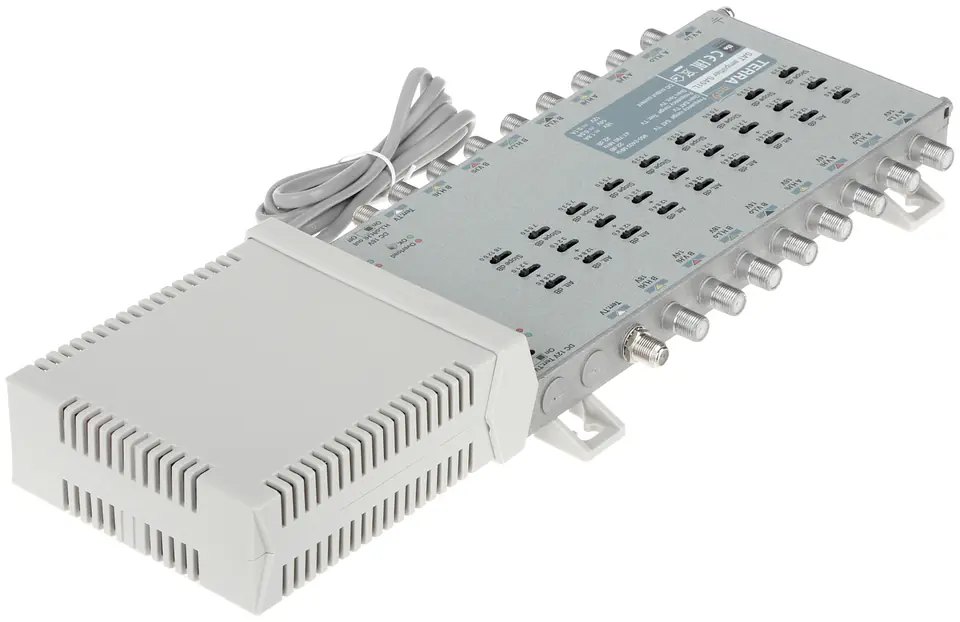

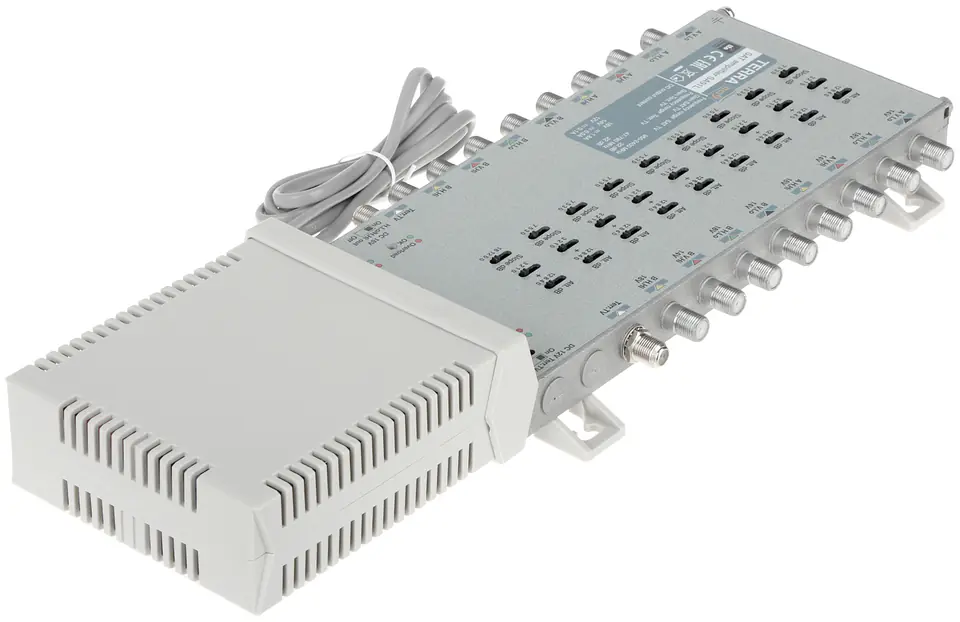

AMPLIFIER FOR TERRA SA-91L MULTISWITCHES 9 INPUTS / 9 OUTPUTS

€264.41
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Mon, Nov 25 - Thu, Nov 28
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
Terra
Product code:
SA-91L / 5907634561943

Specification

Adjustable sat gain::0  ... 15 dB in 1 dB increments
Dc transition (max.)::2 A
Dimensions::364 x 135 x 52 mm
Inputs::8x 950 MHz ... 2400 MHz, 1x 47 MHz ... 790 MHz
Manufacturer / brand::TERRA
Maximum sat output level::114 dBμV
Maximum tv output level::109 dBμV
Operating temperature::-20 °C ... 50 °C
Output::2 x V.Lo, 2 x H.Lo, 2 x V.Hi, 2 x H.Hi, RTV
Own noise::< 9 dB
Power consumption::7 watts
Power supply for preamplifiers::12 VDC / 0.1 A
Power supply of devices::14 V DC / 0.5 A , 18 V DC / 1.8 A ( max. 1 A for 1 line )
Power::230 V AC, 50 / 60 Hz
Reinforcement of sat branches::22 dB
Reinforcement of the tv branch::22 dB
Sat gain (cable correction)::0 / 3 / 5 / 7 dB
Scales::1.07 kg
Separation::Between SAT/SAT inputs 30 dB Between TV/SAT inputs 30 dB
Tv gain (cable correction)::0 / 6 / 12 / 18 dB
Tv gain adjustment::0  ... 15 dB in 1 dB increments
Warranty::2 years

The SA-91L multiswitch bus amplifier is designed for use in SMATV systems based on 9-input multiswitchesThe device is equipped with 8 satellite inputs and 1 DVB-T/Radio input and placed at the input of the system allows to amplify and equalize the signal level before further distribution

The use of SA-91L amplifiers allows the construction of extensive multiswitch systems with up to several hundred outletsRegulation of the signal level by means of switches ensures stability of parameters over time

The die-cast housing guarantees a high level of shielding - class A

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
