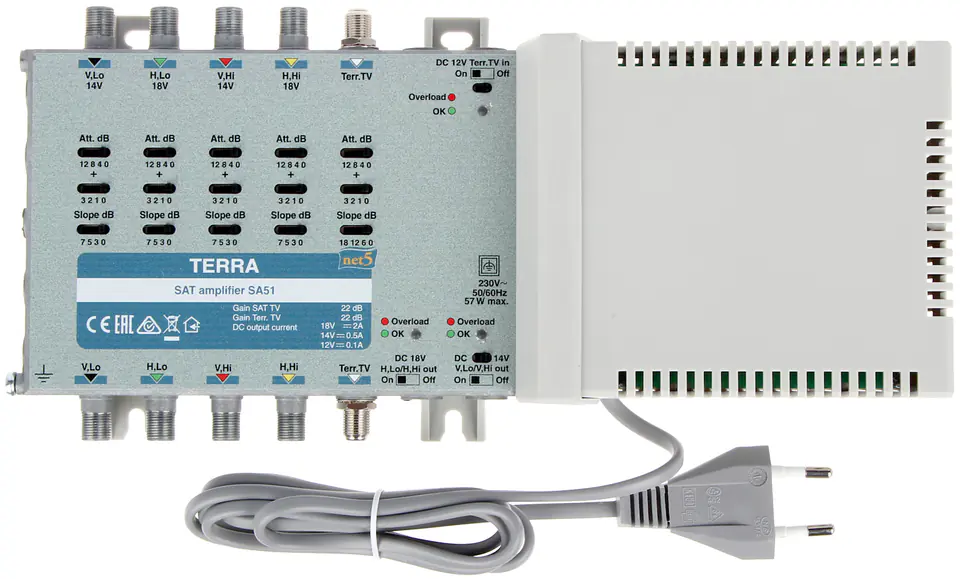

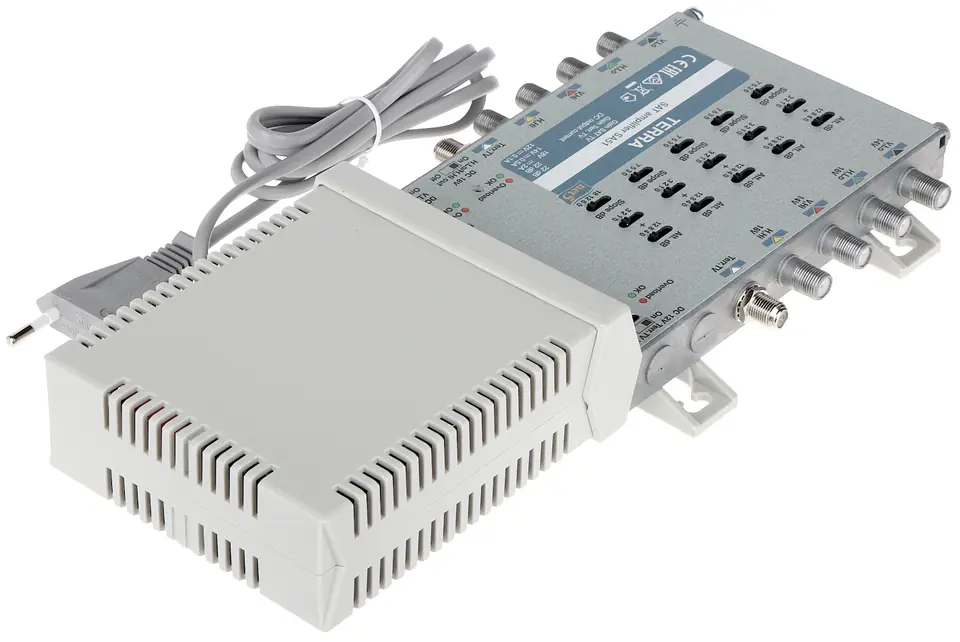

AMPLIFIER FOR TERRA SA-51 MULTISWITCHES 5 INPUTS / 5 OUTPUTS

€179.20
Shipping from warehouse: ⁨D4⁩
Estimated shipping: Thu, Nov 7 - Mon, Nov 11
14 days returnUnconditional return policy
Availability:
running out
Brand:
Terra
Product code:
SA-51 / 5907634561936

Specification

Adjustable sat gain::0  ... 15 dB in 1 dB increments
Dc transition (max.)::2 A
Dimensions::284 x 135 x 52 mm
Inputs::4x 950 MHz ... 2400 MHz, 1x 47 MHz ... 790 MHz
Manufacturer / brand::TERRA
Maximum sat output level::114 dBμV
Maximum tv output level::109 dBμV
Operating temperature::-20 °C ... 50 °C
Output::V.Lo, H.Lo, V.Hi, H.Hi, RTV
Own noise::< 9 dB
Power consumption::5 watts
Power supply for preamplifiers::12 VDC / 0.1 A
Power supply of devices::14 V DC / 0.5 A , 18 V DC / 2 A ( max. 1 A for 1 line )
Power::230 V AC, 50 / 60 Hz
Reinforcement of sat branches::22 dB
Reinforcement of the tv branch::22 dB
Sat gain (cable correction)::0 / 3 / 5 / 7 dB
Scales::0.83 kg
Separation::Between SAT/SAT inputs 30 dB Between TV/SAT inputs 30 dB
Tv gain (cable correction)::0 / 6 / 12 / 18 dB
Tv gain adjustment::0  ... 15 dB in 1 dB increments
Warranty::2 years

The SA-51 multiswitch bus amplifier is designed for use in SMATV systems based on 5-input multiswitchesThe device is equipped with 4 satellite inputs and 1 DVB-T/Radio input and placed at the input of the system allows to amplify and equalize the signal level before further distribution

The use of SA-51 amplifiers allows the construction of extensive multiswitch systems with up to several hundred outletsRegulation of the signal level by means of switches ensures stability of parameters over time

The die-cast housing guarantees a high level of shielding - class A

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
