| Amplification:: | 20 dB / 27 dB ± 2 dB |
|---|---|
| Connector type:: | "F" |
| Dimensions:: | 124 x 88 x 27 mm |
| Frequency range:: | 87 MHz ... 790 MHz |
| Gain adjustment:: | 0 dB ... 14 dB (+/- 1dB) |
| Ima2 60db:: | 83 dBμV |
| Ima3 60db:: | 96 dBμV |
| Input/output impedance:: | 75 Ω |
| Manufacturer / brand:: | AMS |
| Maximum output level:: | 102 dBμV |
| Mismatch suppression:: | 10 dB |
| Noise ratio:: | ≤ 5 dB ± 1 dB |
| Number of inputs/outputs:: | 1 / 4 |
| Operating temperature:: | -25 °C ... 55 °C |
| Power:: | 12 VDC / 250 mA |
| Scales:: | 0.3 kg |
| Warranty:: | 2 years |

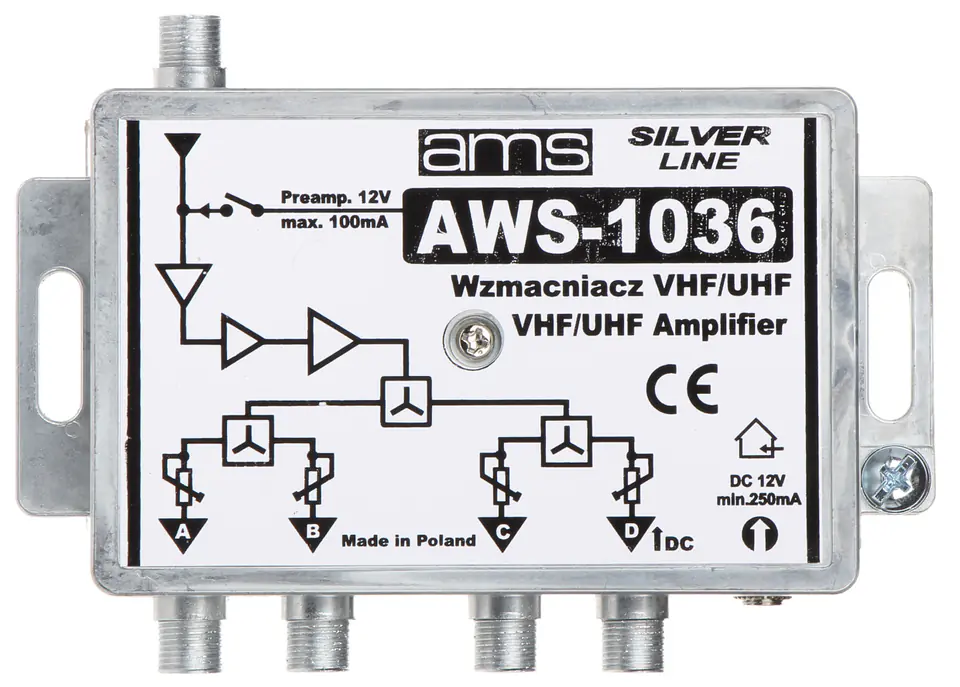

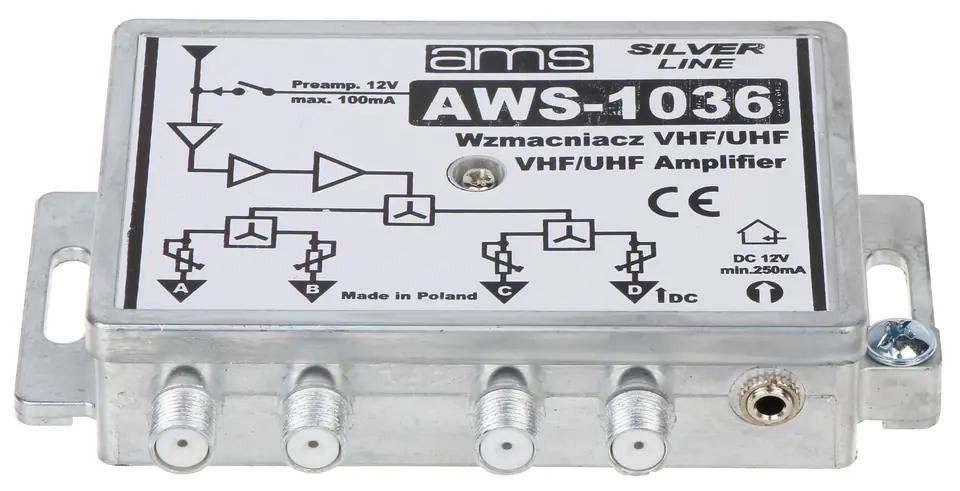

AWS-1036 is designed to amplify and divide the TV signal into 4 home antenna installations built with the use of band antennas connected by a crossoverDepulation allows you to adjust the signal level throughout the installation

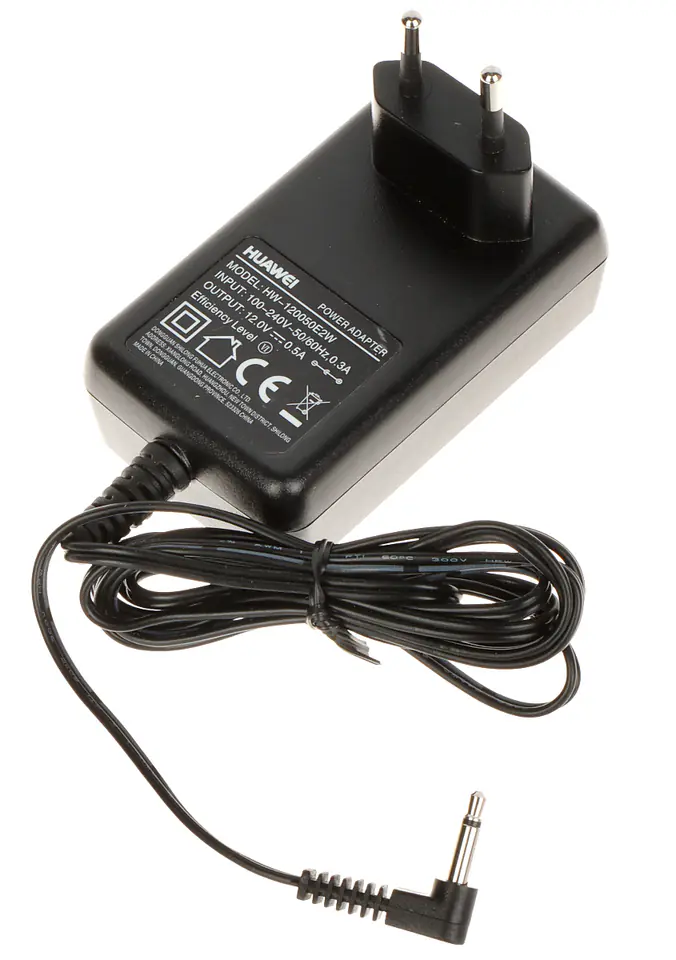

The amplifier can be powered directly from the included power supply or via the output using a seperator
