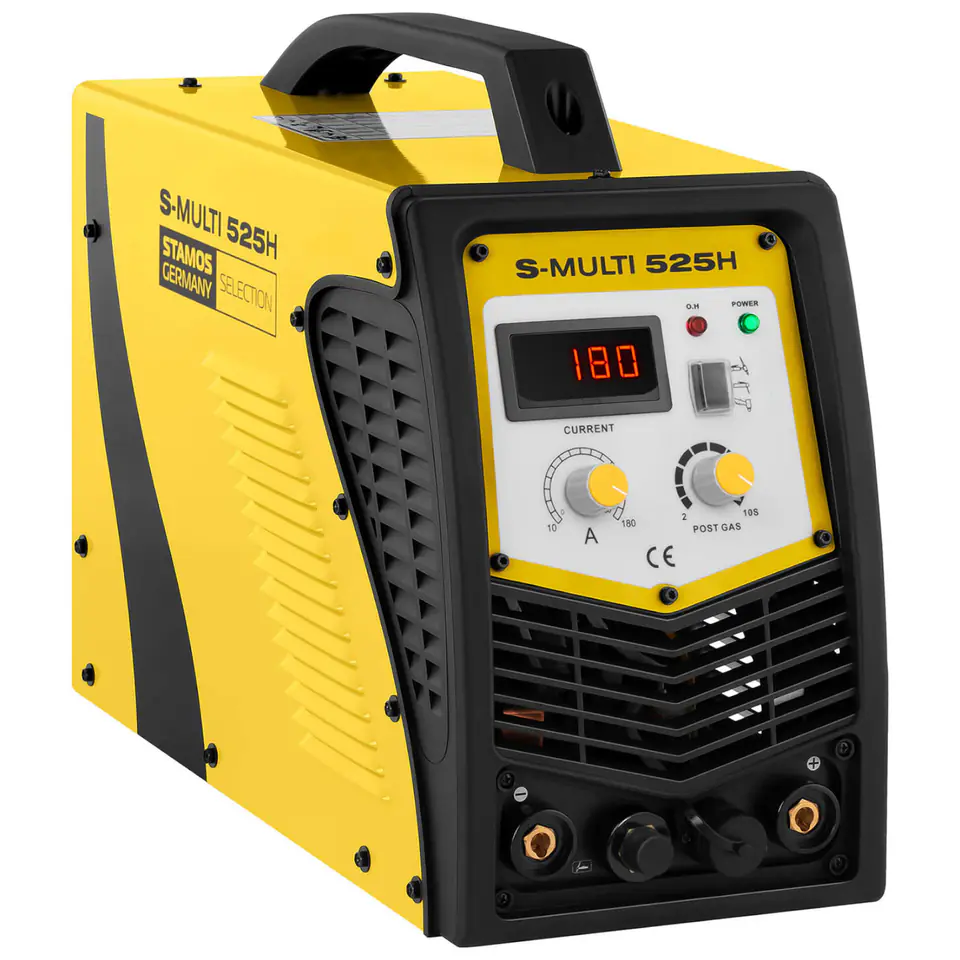

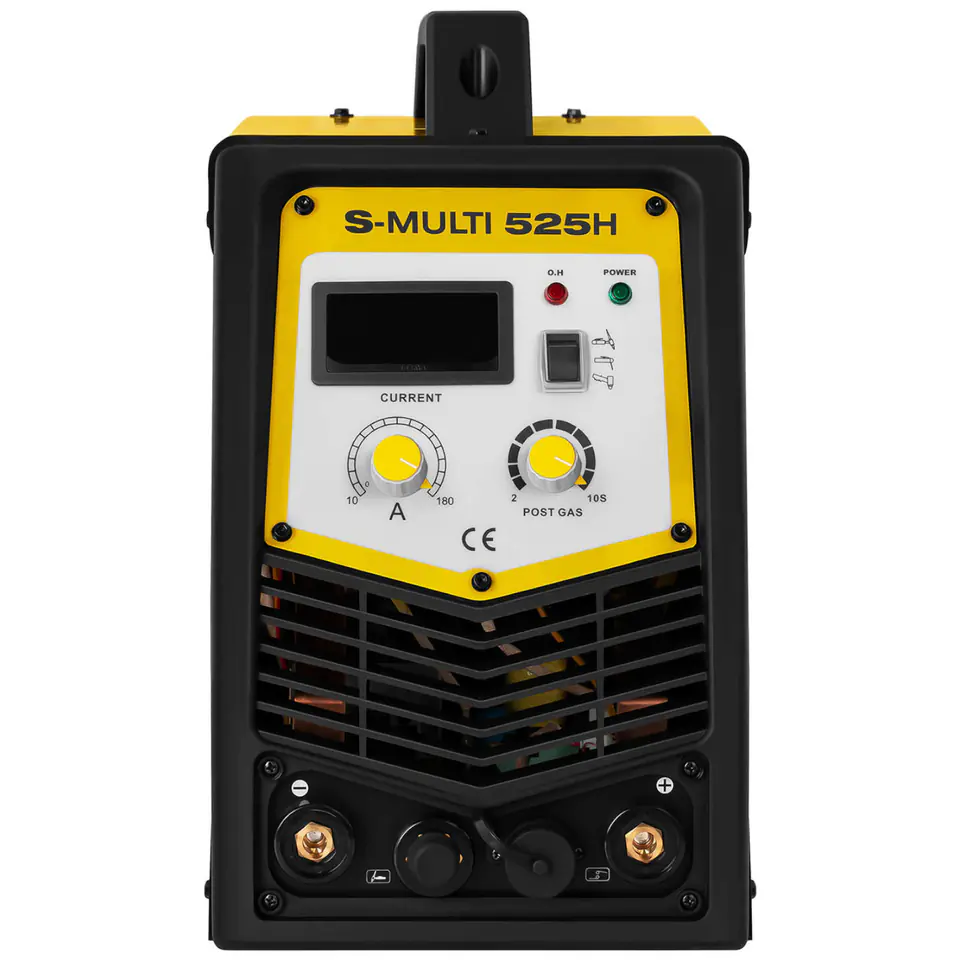

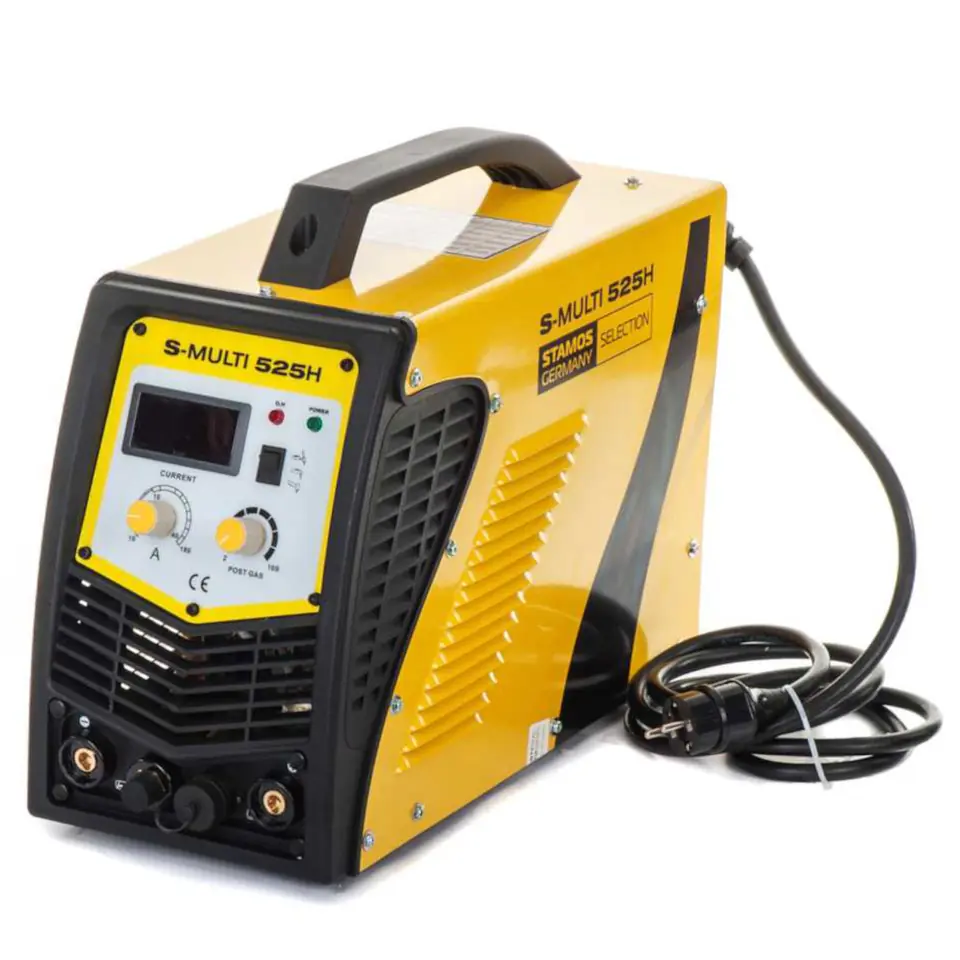

S-MULTI 525H TIG/MMA welding machine (180 A) plasma cutter (40 A) the equipment is durable and also guarantees precise operation of 93% efficiency prevents transistors from burning out while maintaining the small size of the deviceProduct features:
- - Versatility - the device is adapted to TIG and MMA welding, and also has a plasma jet cutting function,
- - Usability - application of many functions: 2T/4T, Non-contact arc ignition (HF), Gas outflow after welding, Hot Start, Arc Force, Anti Stick,
- - Modern - modern MOSFET inverter technology provides up to 93% efficiency and protects transistors from burnout,
- - Convenience - long 4-meter wires allow you to reach hard-to-reach places and ensure comfort of work,
- - Mobility - light weight and dimensions and a comfortable handle allow you to easily carry the device,

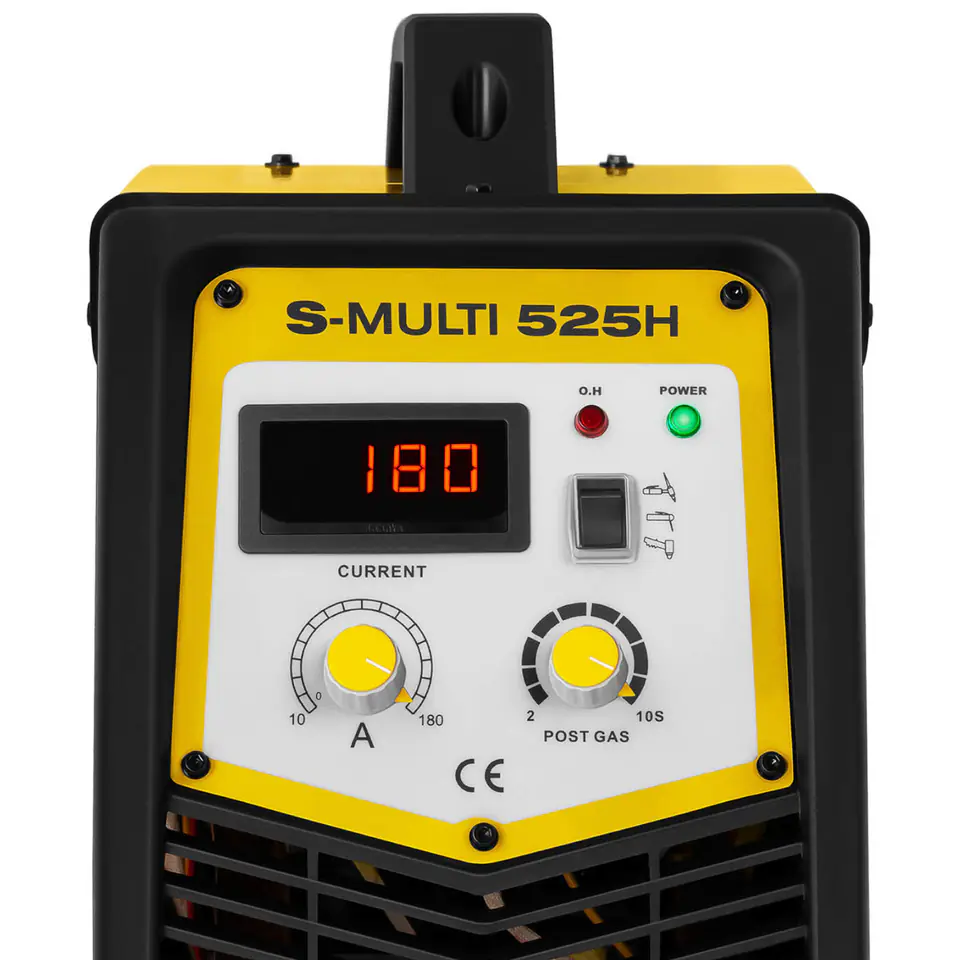

- - Intuitiveness - LED display large knobs allow efficient determination of the appropriate value of welding or cutting current,
- - Safety - overheating protection system, built-in cooling fan, IP20s protection enclosure

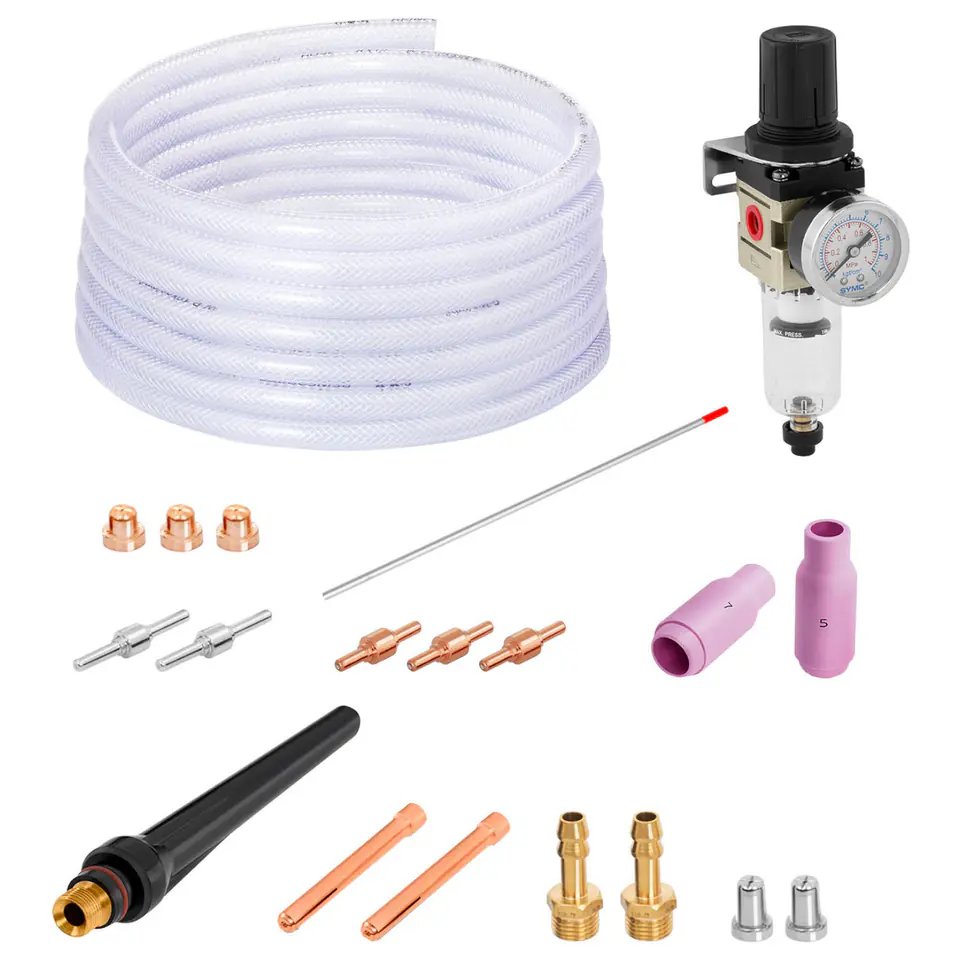

- - Rich set - TIG bushings 1.6, 2.0, 2.4 mm, TIG sleeve body, gas nozzle 4, 5, 6 mm, tungsten electrode 1.6 mm, long cap, short cap, pressure regulator, pressure gauge, shield nozzles, tip, swirl ring, plasma sleeve, plasma electrode, accessory bag.
- - Model - S-MULTI525H
- - Catalogue number - 2049
- - Article status - New
- - Voltage/frequency - 230 V, 1 phase/50 Hz
- - Features - TIG welding, MMA, plasma cutting
- - Input rated current - 20 A
- - Maximum input current - 28 A
- - Input rated power - 4,4 kVA
- - Maximum input power - 6.2 kVA
- - No load voltage - 56 V (TIG/MMA) / 230 V (Plasma)
- - Welding current (TIG/MMA) - 10–180 A
- - Cutting current - 0–40 A
- - Duty cycle - 60%
- - Duty cycle cutting current 60% - 180 A (TIG/MMA) / 40 A (Plasma)
- - Duty cycle cutting current 100% - 139.4 A (TIG/MMA) / 34 A (Plasma)
- - Hot Start - Yes

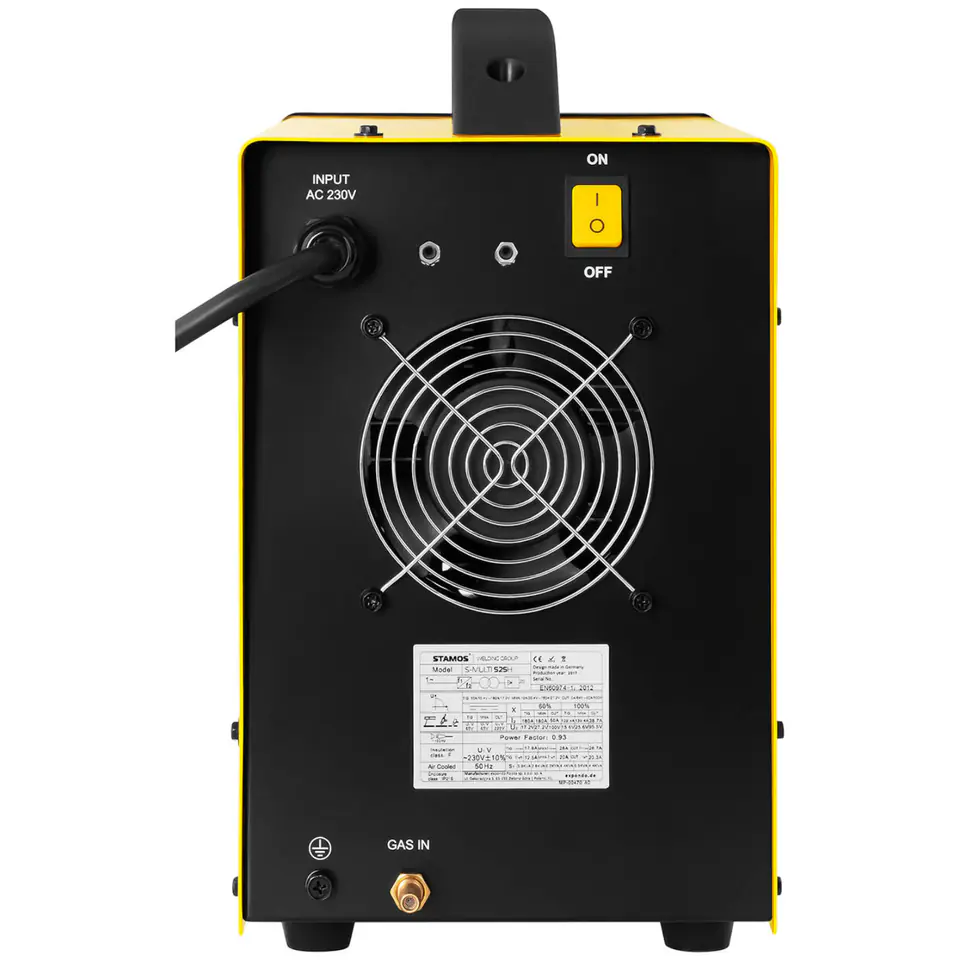

- - Ventilation - Fans
- - Handle cooling - Gas
- - Efficiency - over 0.85%
- - TIG handle - 4 m
- - MMA cable - 3 m
- - Ground wire length - 3 m
- - Cutting handle length - 4 m
- - Air hose length - 4 m
- - Maximum cutting thickness - 12 mm
- - Cutting width - 1.2 mm
- - Required air flow - 170 l/min
- - Air pressure - 4.5 bar
- - Electrode diameter range - 1–3.2 mm (TIG) / 1.6–4 mm (MMA)
- - Welding thickness - 1–8 mm (TIG) / 1.5–9 mm (MMA)
- - Insulation class - F
- - Ip protection class - IP20s
- - Compliance with standards - EN 60974-1 / EN 60974-10
- - Declaration of conformity - CE
- - Dimensions (LxWxH) - 50 x 37 x 22 cm
- - Weight - 18 kg
- - Shipping dimensions (LxWxH) - 59 x 45 x 44 cm
- - Shipping weight - 21.3 kg

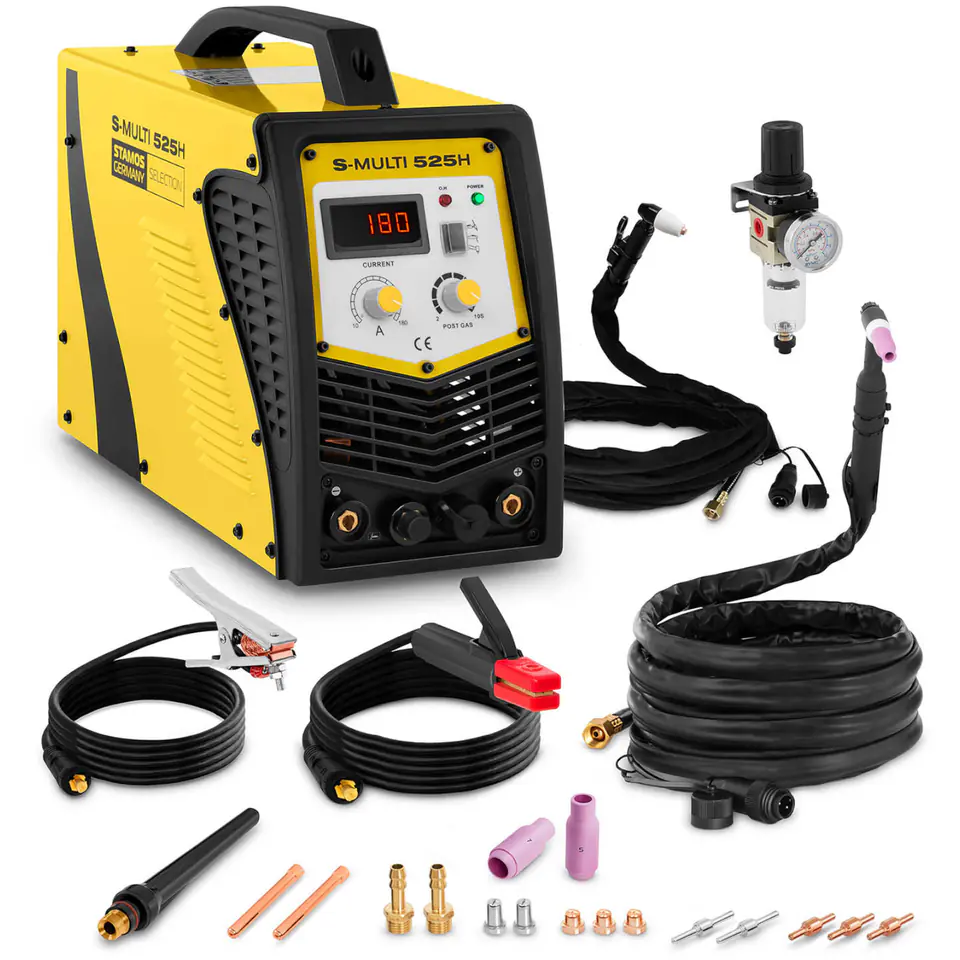

- - Multifunction device S–MULTI 525H

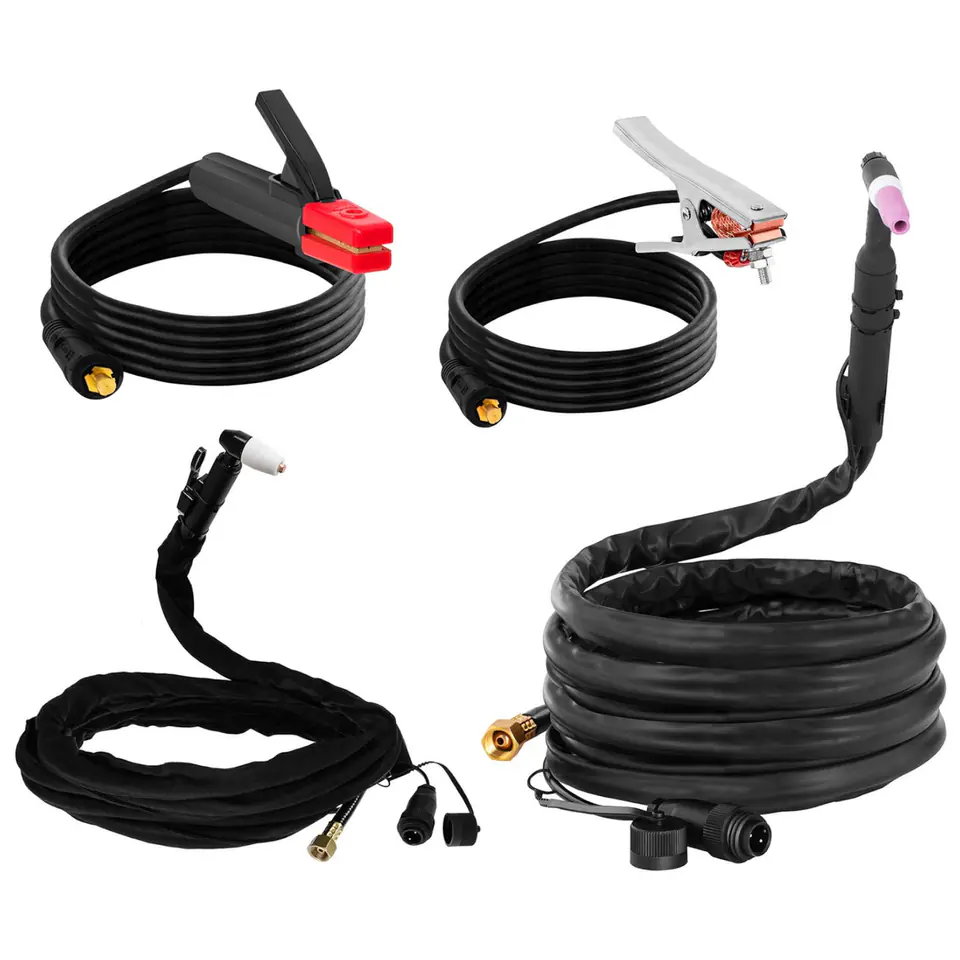

- - Cable with TIG holder 4 m
- - MMA welding cable with electrode holder 4 m
- - Ground wire with 4 m terminal
- - Plasma torch 4 m
- - Gas line 4 m
- - Bushings TIG 1.6, 2.0, 2.4 mm
- - TIG sleeve body
- - Gas nozzle 4, 5, 6 mm (3 pcs.)
- - Tungsten electrode 1.6 mm (3 pcs.)
- - Long cap
- - Short cap
- - Pressure regulator
- - Pressure gauge
- - Shield nozzles (2 pcs.)
- - Tip (2 pcs.)
- - Swirl ring (2 pcs.)
- - Plasma sleeve (2 pcs.)
- - Plasma electrode (2 pcs.)
- - Accessory bag
- - Manual EN
