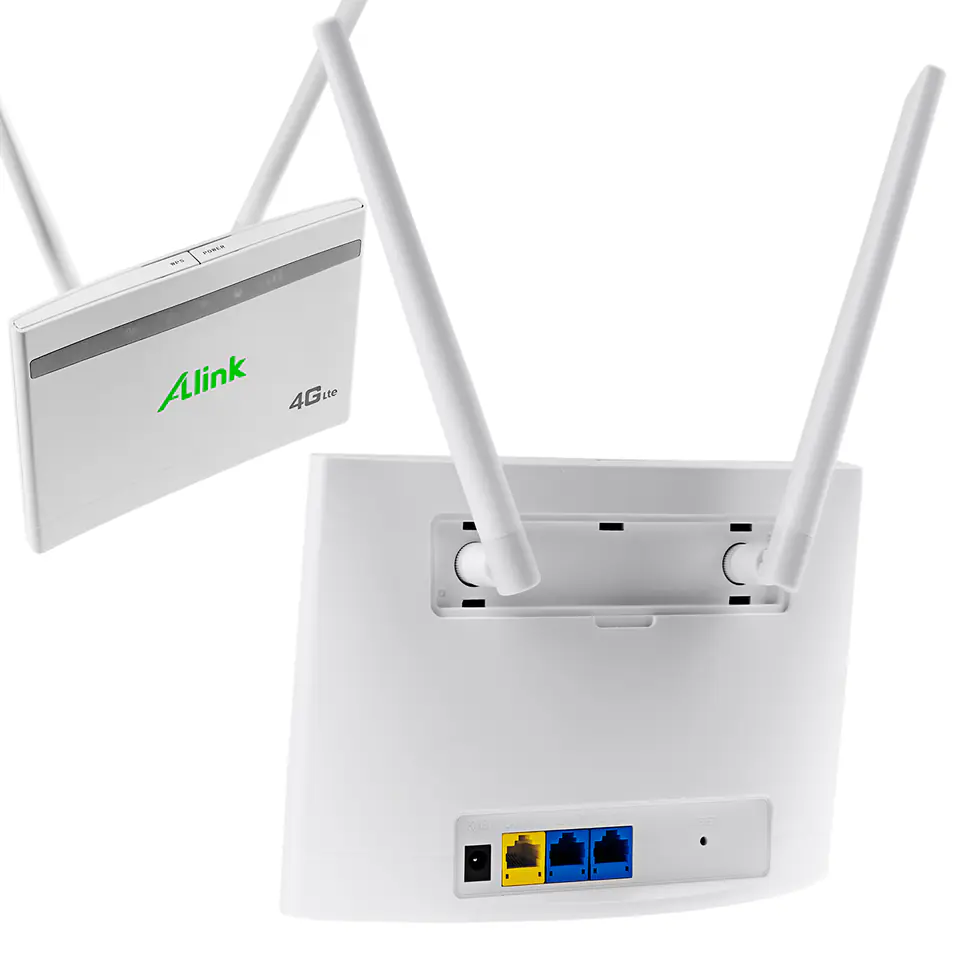

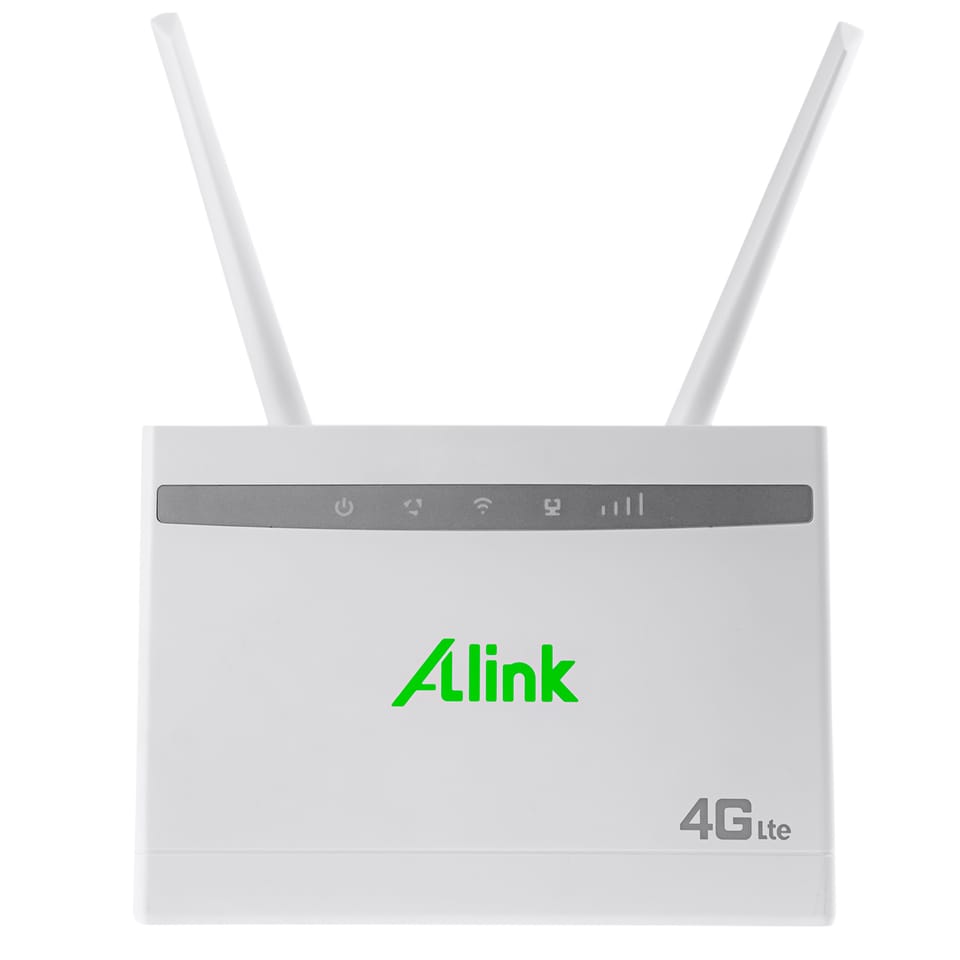

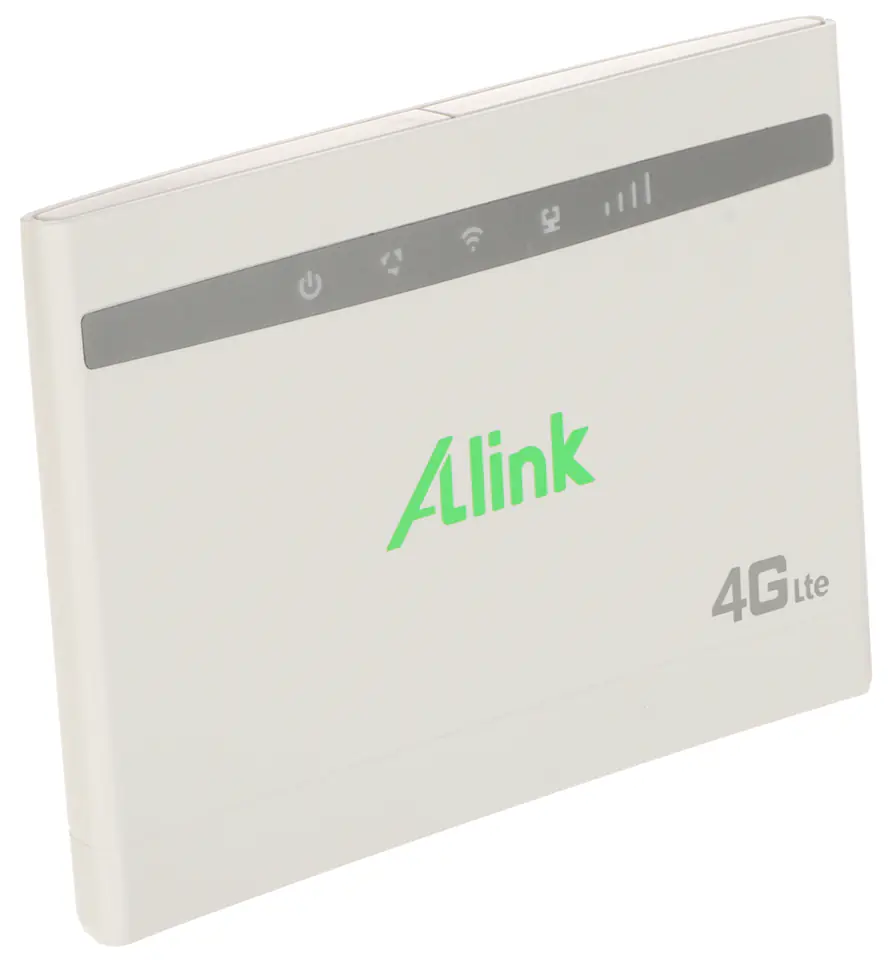

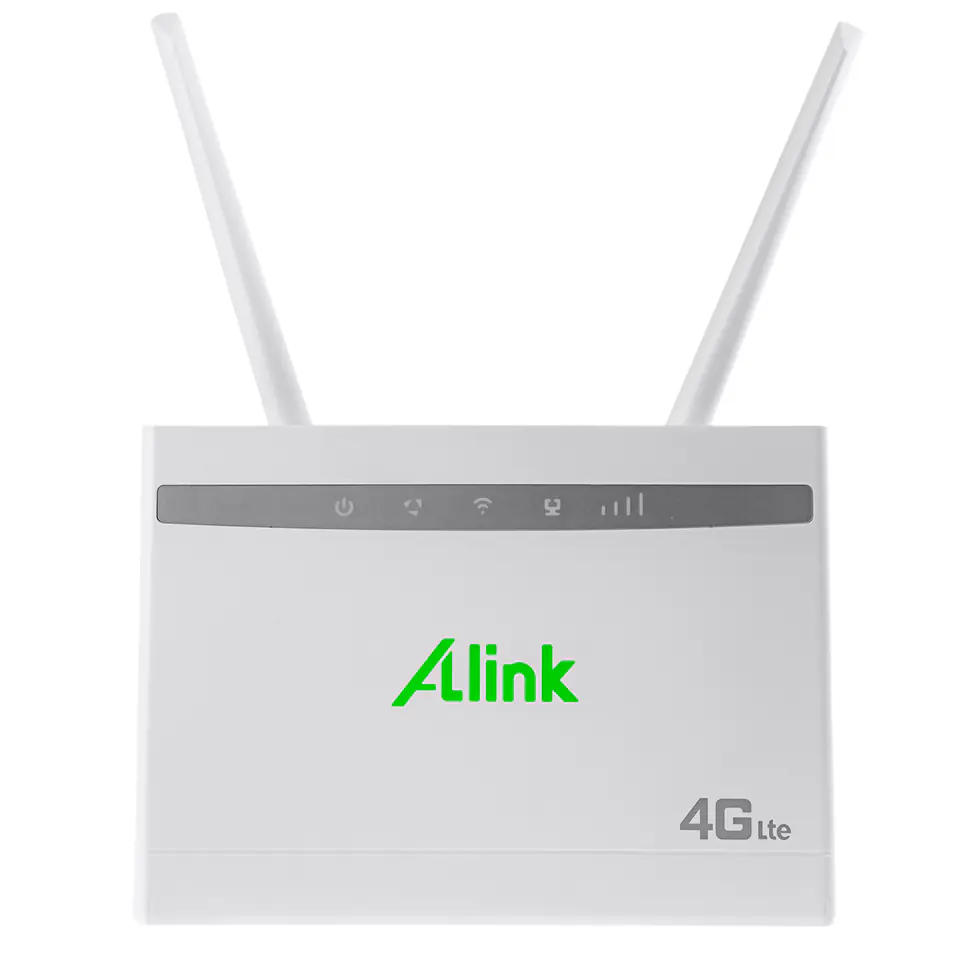

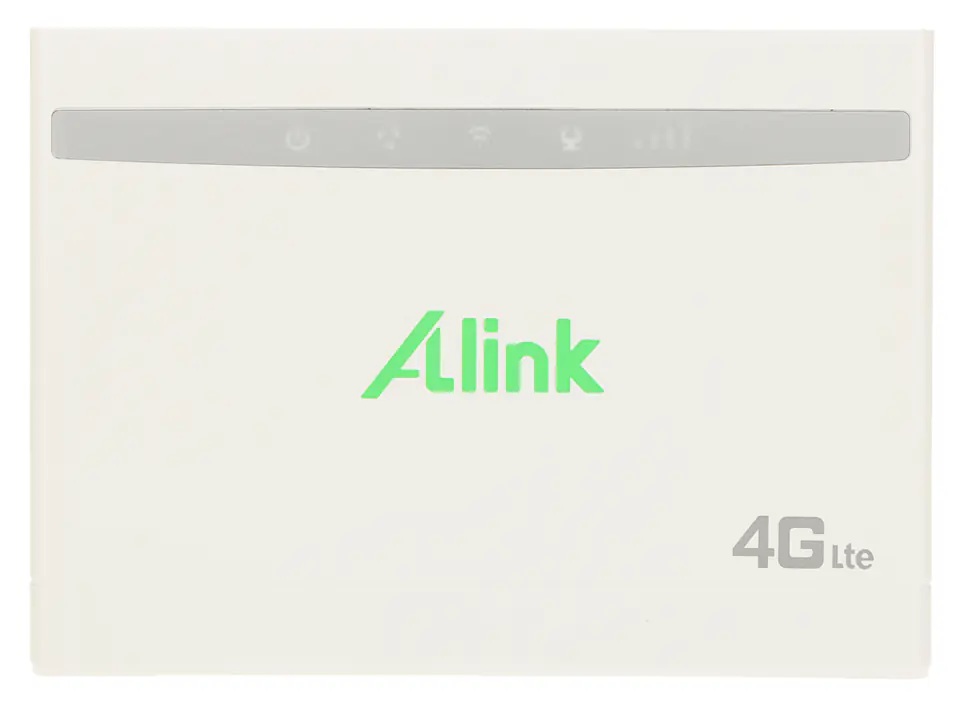

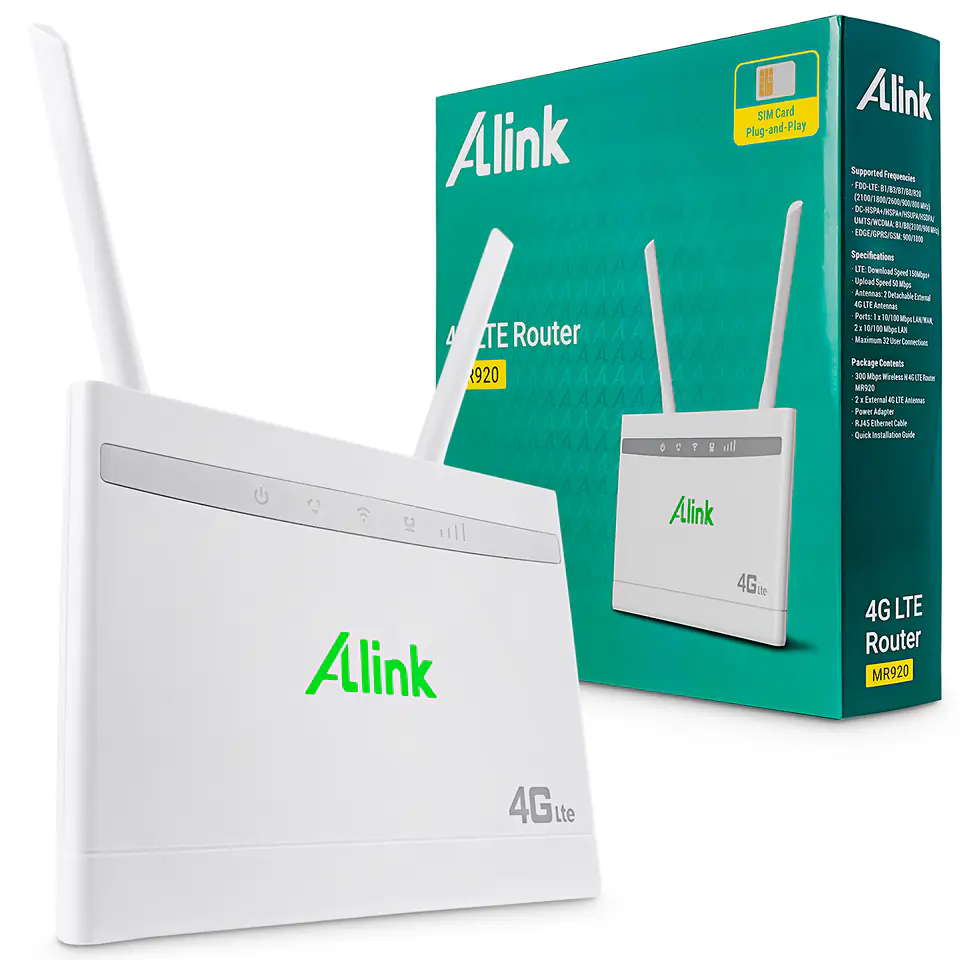

Router Alink MR920 4G LTE 300 Mbps
The Alink MR920 router allows you to download data in LTE technology up to 300 Mb/s. This translates into instant loading of websites, comfortable video viewing on the network or listening to music via streaming services. The files will download in no time. So it is an excellent device not only for home use, but also for the needs of a medium-sized business. The device allows you to connect another 2 devices using a standard LAN port and modem or another device using the LAN/WAN port (to be moved in the administration panel). This functionality is perfect for when you often work in the field and need to provide mobile internet for several devices at the same time.
High speed 4G LTE with reliable Wi-Fi
The MR920 uses 4G LTE technology to achieve download speeds of up to 100 Mbps and upload speeds of up to 50 Mbps. It also provides wi-Fi with a maximum speed of 300 Mbps on the 2.4GHz band for gaming, streaming, and more.

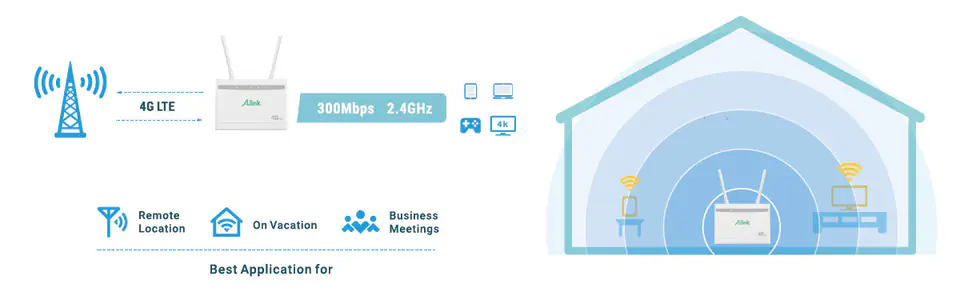

Designed for maximum coverage

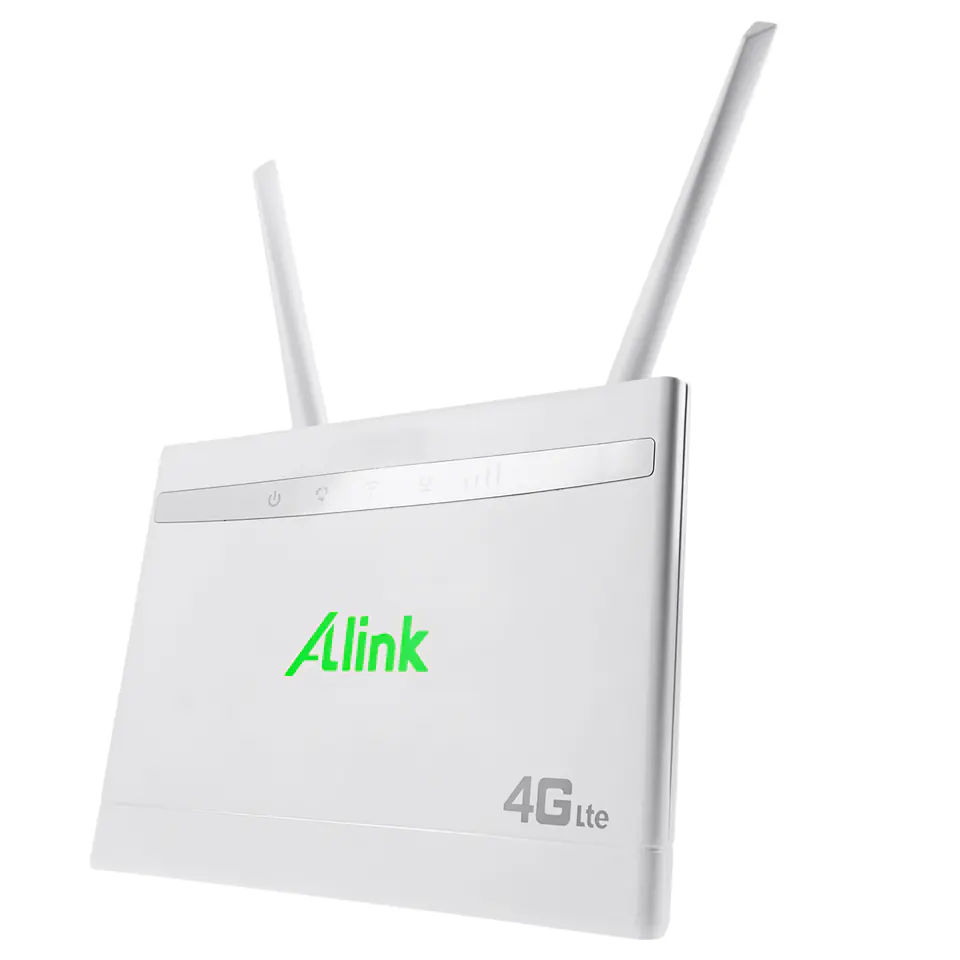

With two high external antennas (so-called sticks, they come with) 4G LTE, you provide efficient and stable connections to each device, creating a wide-range Wi-Fi network for your home.

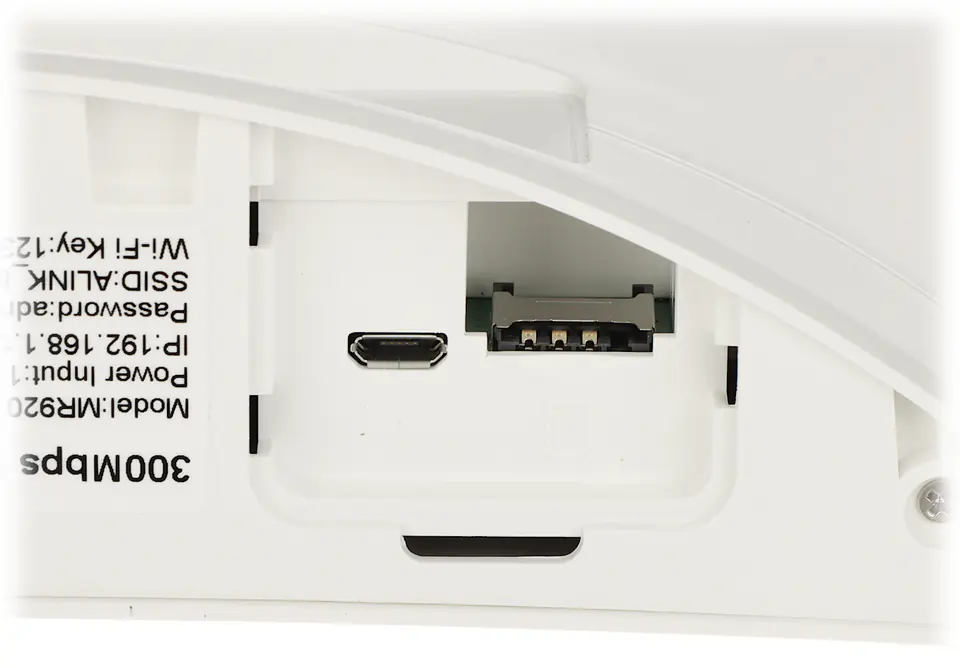

SIM Card Plug and Play

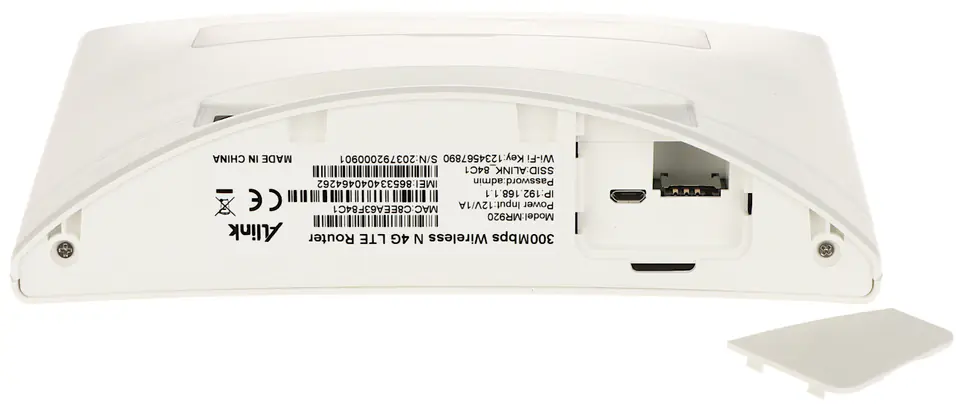

Simply insert the SIM card into the built-in slot, turn it on and start surfing. If it has a PIN, the device will ask you to enter it. After that, the autoconfiguration process will start and Alink MR920 will set the appropriate access points (APNs) itself and prepare for work.

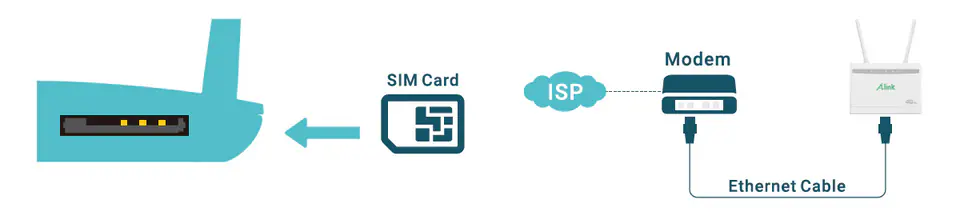

WAN connection backup
With a full-featured WAN/LAN port, you can enjoy various types of backup connections, including cable, fiber, and DSL modems.
Specification:
Hardware

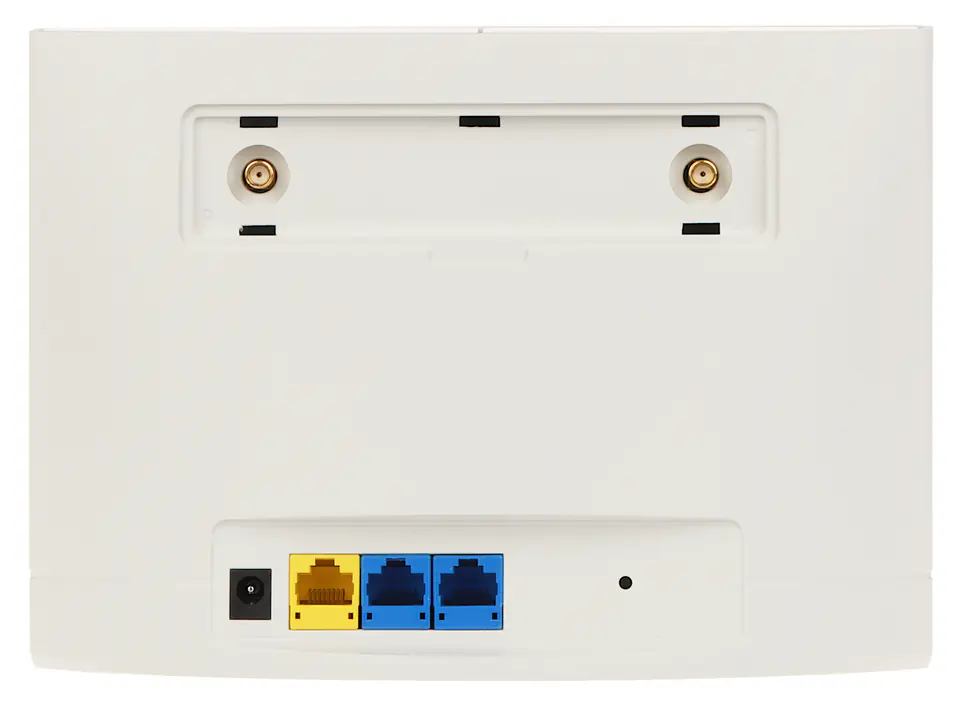

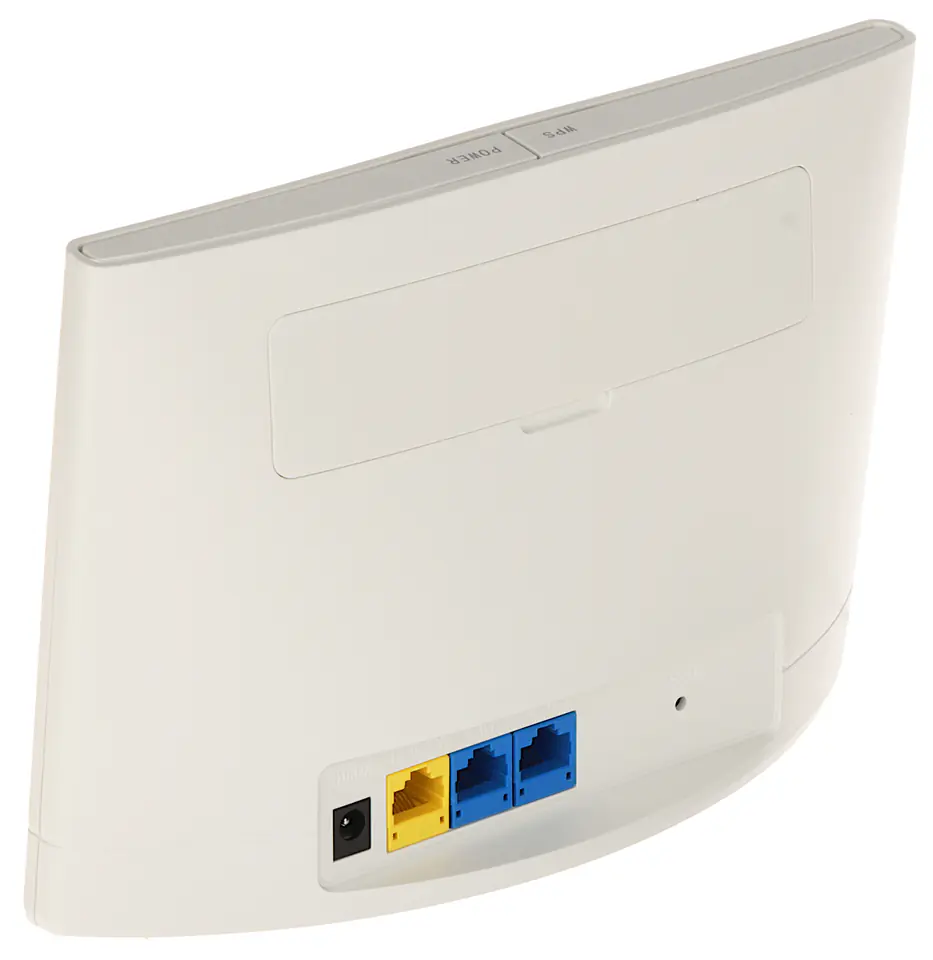

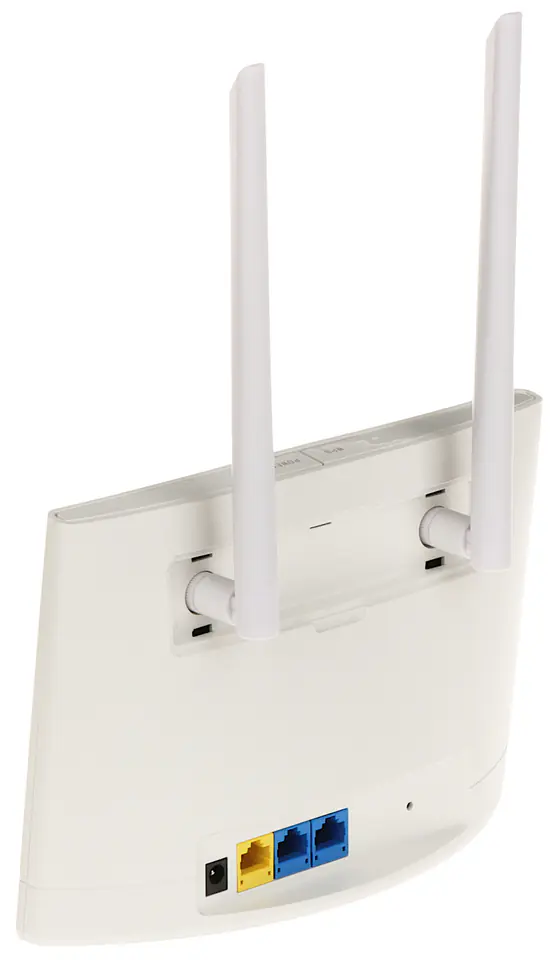

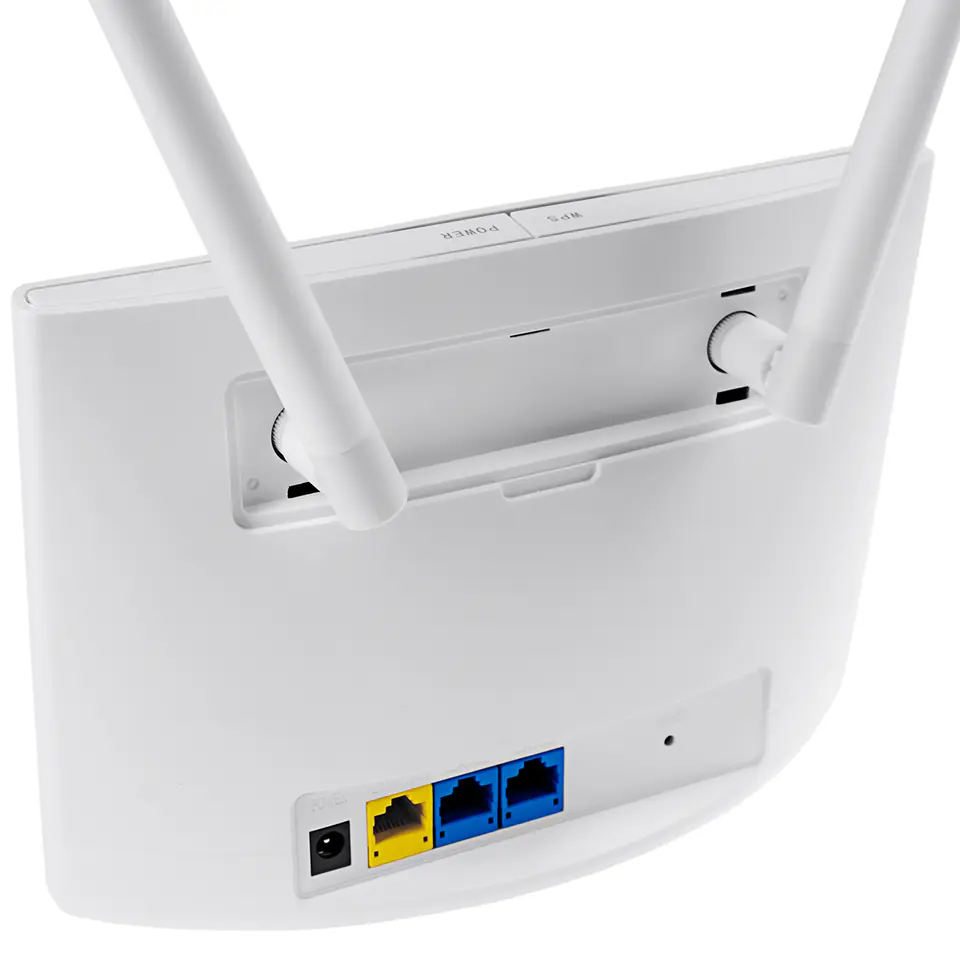

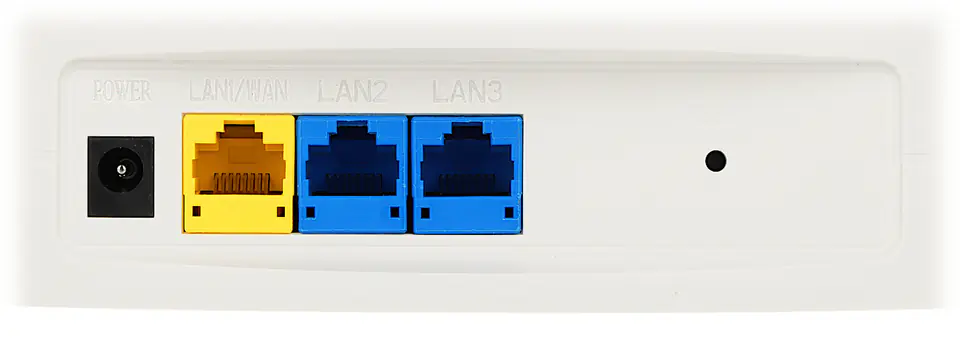

- Ports: 1x100Mbps LAN/WAN, 2x 100Mbps LAN, 1x SIM Card

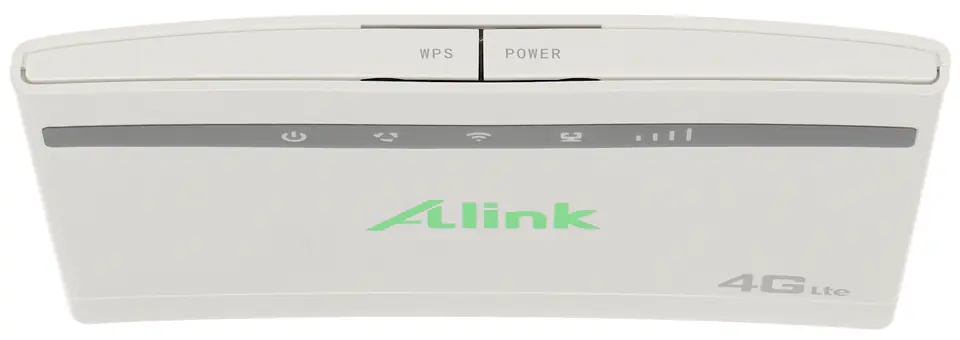

- Buttons: 1x power, 1x reset, 1x WPS
- 12V/1A or 5V/2A power supply with micro USB

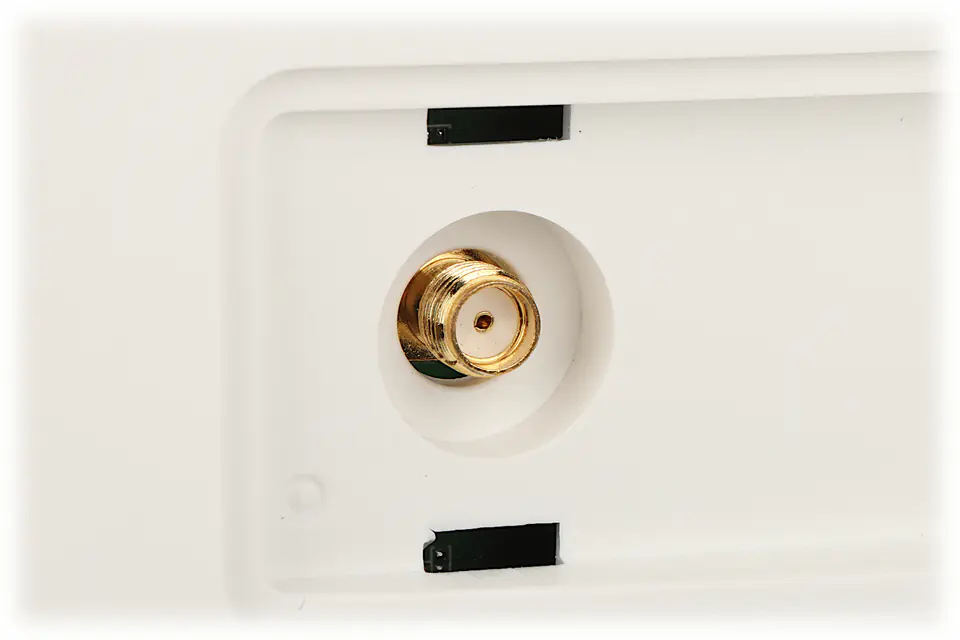

- Antenna: 2x 8dBi external antenna (stick)
- Management panel at 192.168.1.1, login details on the cardboard box (available languages: English and Chinese)
Network
- 4G: FDD-LTE: B1/B3/B7/B8/B20/B28 (2100/1800/2600/900/800/700 MHz)
- 4G: TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
- 3G: DC-HSPA+/HSPA/UMTS: B1/B8 (2100/900 MHz)
- Standards: IEEE 802.11 b/g/n 2.4GHz
- Frequency: 2.4GHz
- Wireless speed: up to 300 Mbps (2.4 GHz)
- Transmit power: <27 dBm (2.4 GHz)
- Receiving sensitivity: 11g54Mbps: -74dBm, 11nHT20 MCS7: -71 dBm, 11nHT40 MCS7: -67dBm
- Security: support WPA-PSK/WPA2-PSK, MAC address filtering, SSID
- WAN connection: DHCP. PPPoE, Static IP
- DHCP: server, client, DHCP list
Other
- Certificates: RoHS, CE
- Compatible systems: Windows10/8/7/Vista/Xp, Mac OS, Androis, iOS
- Operating temperature: 0 – 40 C
- Storage temperature: -40 - +70 C
- Humidity: 10% - 90%
- Storage humidity: 5% - 90%

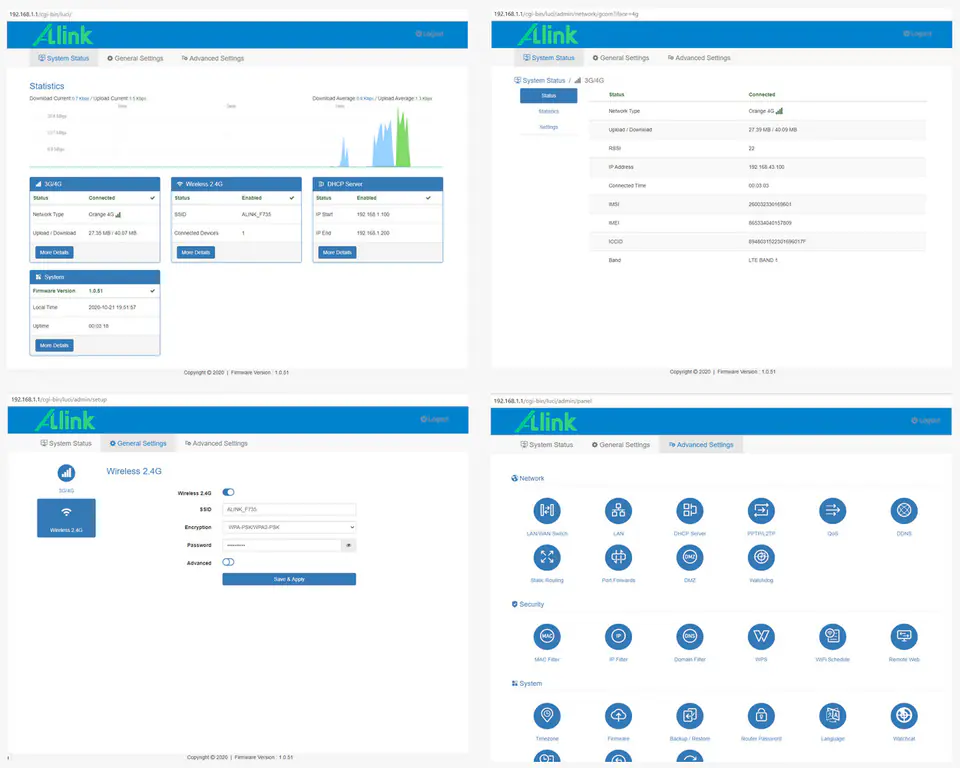

Graphics from the management panel:

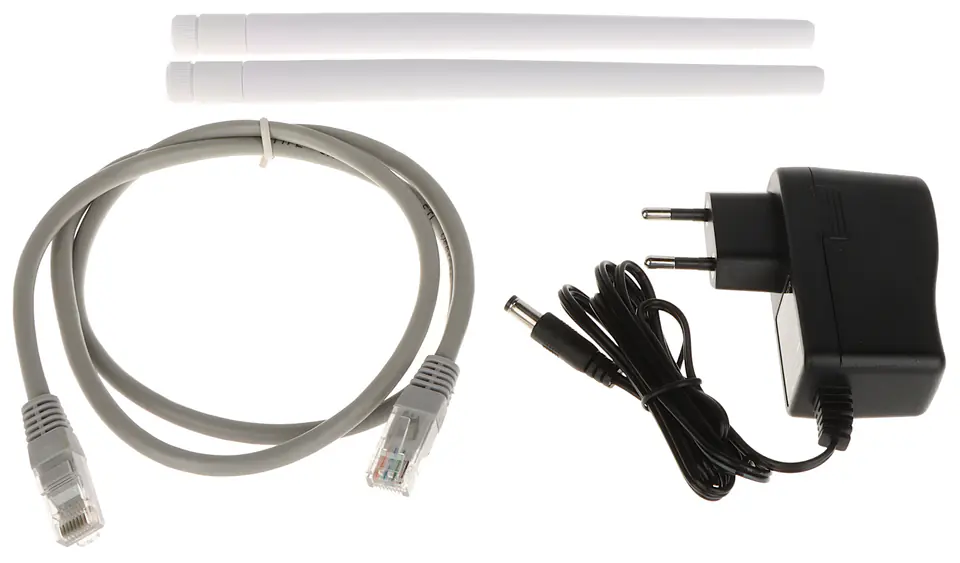

Included:
- Alink MR920 Router
- Power supply
- RJ45 cable
- User Manual
