DESCRIPTIONMast crossovers/adders with gain are used to sum up different signals from separate antennas into a collective signal fed further on one coaxial cable. They are equipped with an LTE filter so as not to interfere with the operation of GSM devices. They supply a voltage of 12 or 24 V from the power supply. The model is equipped with an LTE700 filter, which works in the truncated UHF band!
USE

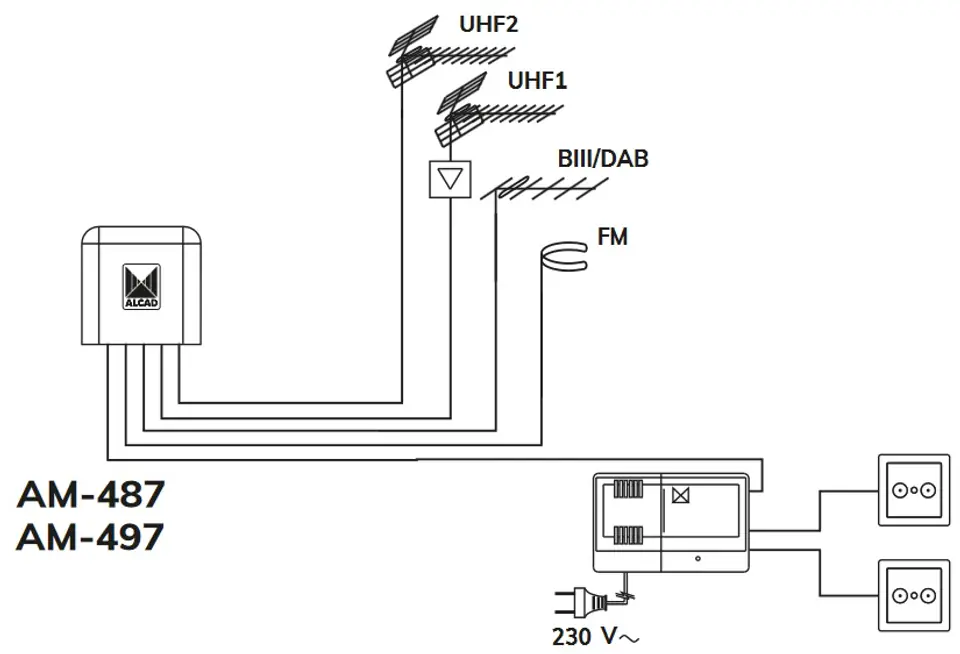

The AM-497 model sums up signals such as: 2xUHF+VHF+FM. The whole is fed further on one 75 Ohm coaxial wire.
CHARACTERISTICS

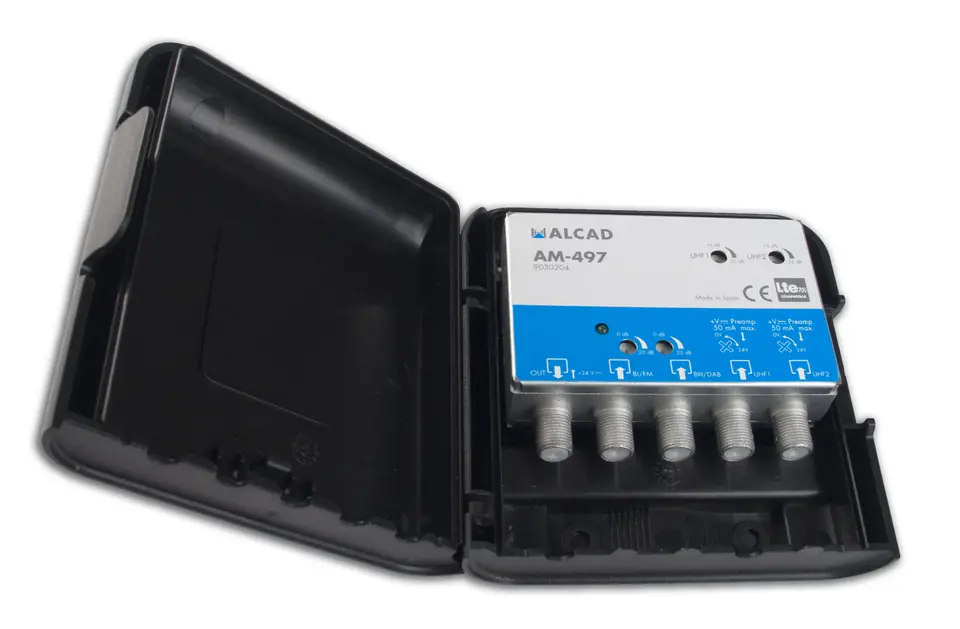

The crossover is closed in a tempered ABS plastic, which is resistant to weather conditions and well protects against moisture - IP33 standard. It has F-type connectors.
Made of the highest quality materials
Solid metal housing for maximum shielding, which translates into a high-quality stable signal. The product is resistant to weather conditions, which allows for long-term work even in heavier conditions.
