Mast diplexers/totalizers with amplification are used to sum different signals from separate antennas into a collective signal fed further on one coaxial cable. They are equipped with an LTE filter so as not to interfere with the operation of GSM devices. They supply 12 V voltage from the power supply. The model is equipped with an LTE700 filter, which works in the truncated UHF band!
USE
The AM-487 sums up signals such as: 2xUHF+VHF+FM. The whole is fed further on one 75 Ohm coaxial cable.
CHARACTERISTICS

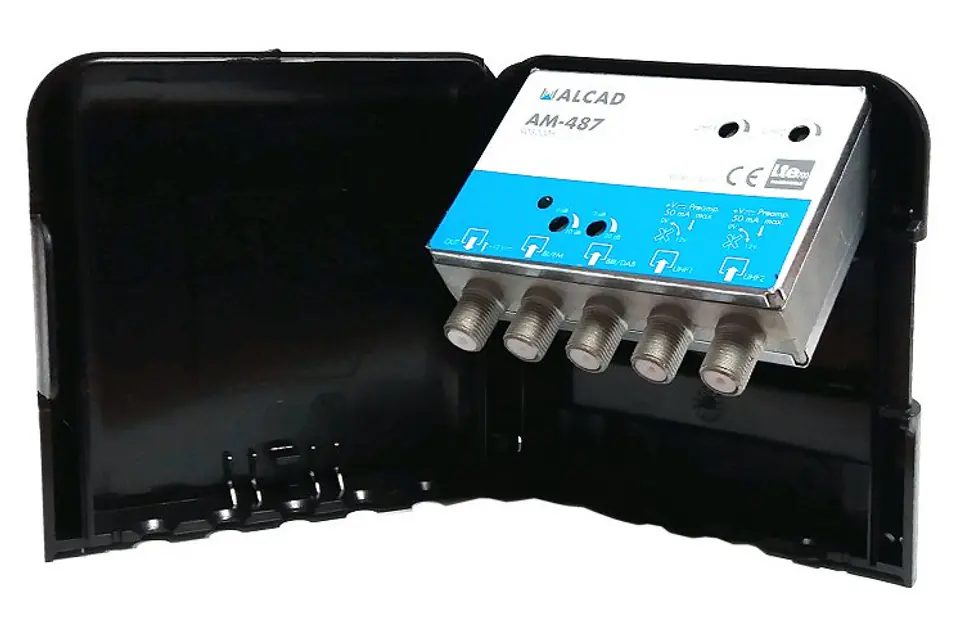

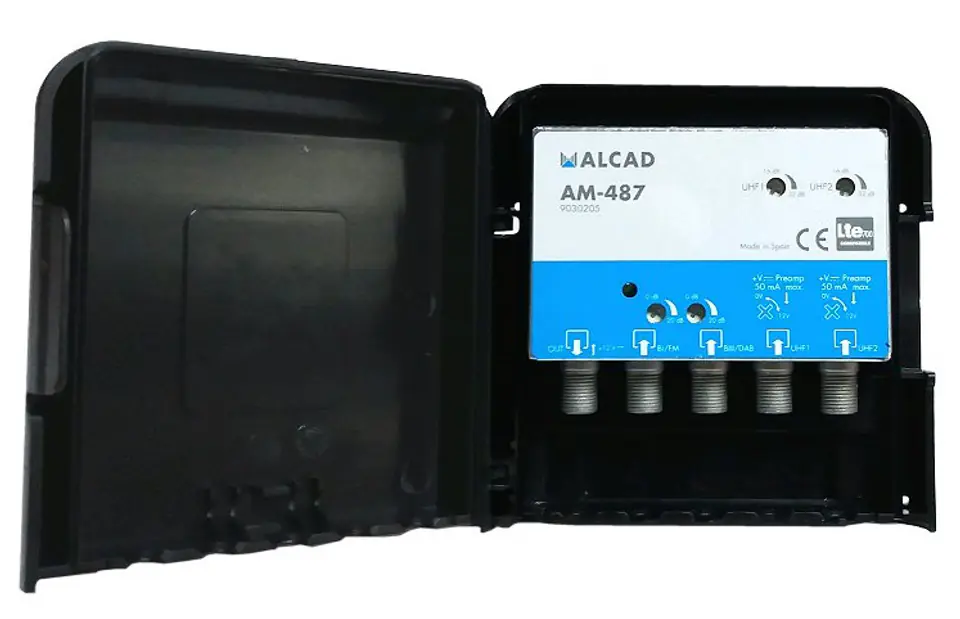

The crossover is closed in a box made of ABS plastic, which is resistant to weather conditions and protects well against moisture - IP33 standard. It has F-type connectors.
Made of the highest quality materials
Robust metal housing for maximum shielding, which translates into a high-quality, stable signal. The product is resistant to weather conditions, which allows for long-term operation even in harsher conditions.

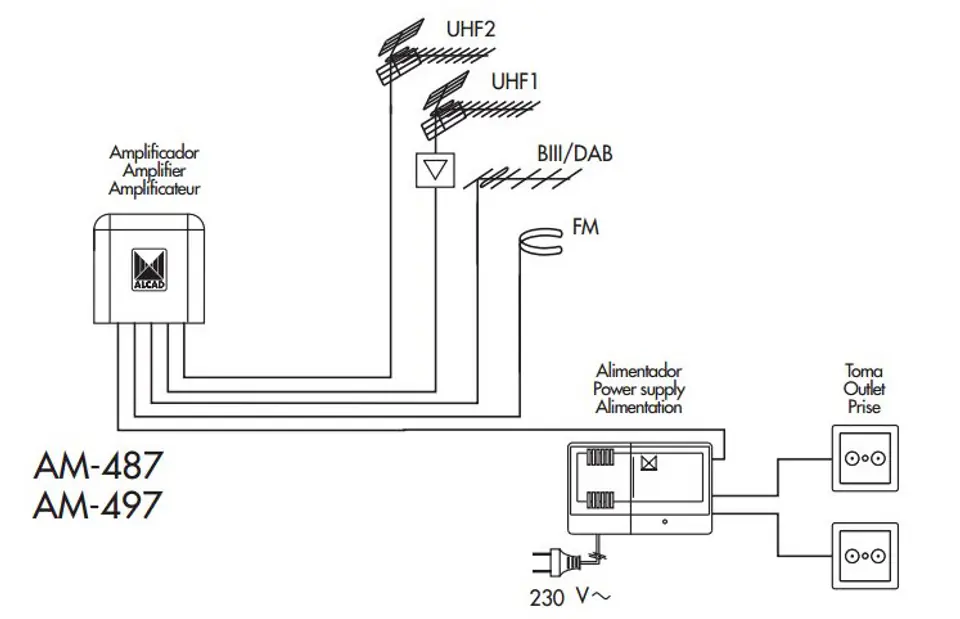

Example assembly diagram
