Wireless alarm eTiger S4 Combo Secual GSM/PSTN (Set x2)
The Etiger system is an ideal solution for people for whom complicated locks and anti-burglary doors are not enough to be 100% sure that their home and property are properly protected against visits from unwanted "guests". The Sim Secual system is equipped with a GSM/SMS transmitter that informs you immediately and directly on your mobile phone in case of a hack. The system is easy to install with the ability to program up to 1 million codes. Installation of wireless detectors is simple and fast, and thanks to the powerful 110 dB siren, the alarm will discourage burglars.
The main task of the control unit is to supervise the operation of wireless devices. The system can be retrofitted with a total of 50 PIR motion detectors, magnetic doors and windows, as well as smoke detectors and internal and external sirens. Thanks to this, the system allows you to protect the house and the immediate area not only against burglary, but also, for example, against fire. All devices are characterized by small size, so they can be discreetly mounted in the most convenient places.
You will receive a notification with your own tag name when the system is disarmed. This way you will know when your children will come back from school, and this is just one of many examples.
The control panel has been made of the highest quality materials in a very modern design, thanks to which the control panel will perfectly fit into the interior of any home. You can assign 5 phone numbers to the panel along with the ability to record voice messages. The 800mAh battery will allow you to work up to 8 hours in standby mode. Easy and quick access will allow you to control the activation and deactivation by the smartphone. The control panel has been equipped with an LCD display, which displays the necessary information regarding: alarm status, date, time. It also allows for quick and easy configuration of the entire system and viewing the history and active functions. Alarm detectors connect to the control panel wirelessly on a special frequency, difficult to interfere with. Thanks to this solution, the installation of the alarm is not complicated or expensive and there is no need to drag the wires to all detectors. We can also connect 2 wired detectors and a wired siren to the alarm control panel.
You can operate your eTiger alarm seamlessly in three ways. Voice messages via phone call, SMS and thanks to free application. Just download, install, configure and you have access to all the features.
You can expand the eTiger Secual GSM alarm with all available eTiger accessories: motion sensors, door contact, additional sirens, smoke detectors, keyboards. In our store you will find all the accessories you need to expand and strengthen the protection of your home.
- alarm information sent to the mobile phone
- the control panel supports 50 wireless and 50 RFID sensors
- possibility to program 5 emergency numbers and 1 speed dial number
- record voice memo
- arming and disarming via SMS or phone for free
- built-in siren (110dB)
- creating backups
- lithium-ion battery
- SMS notifications about power outage, power recovery and low battery level
- GSM frequencies: 850/900/1800/1900MHz
- radio frequency: 315MHz/433MHz (± 75kHz)
- input: AC 110-240V/50-60Hz
- output: DC 12V/500mA

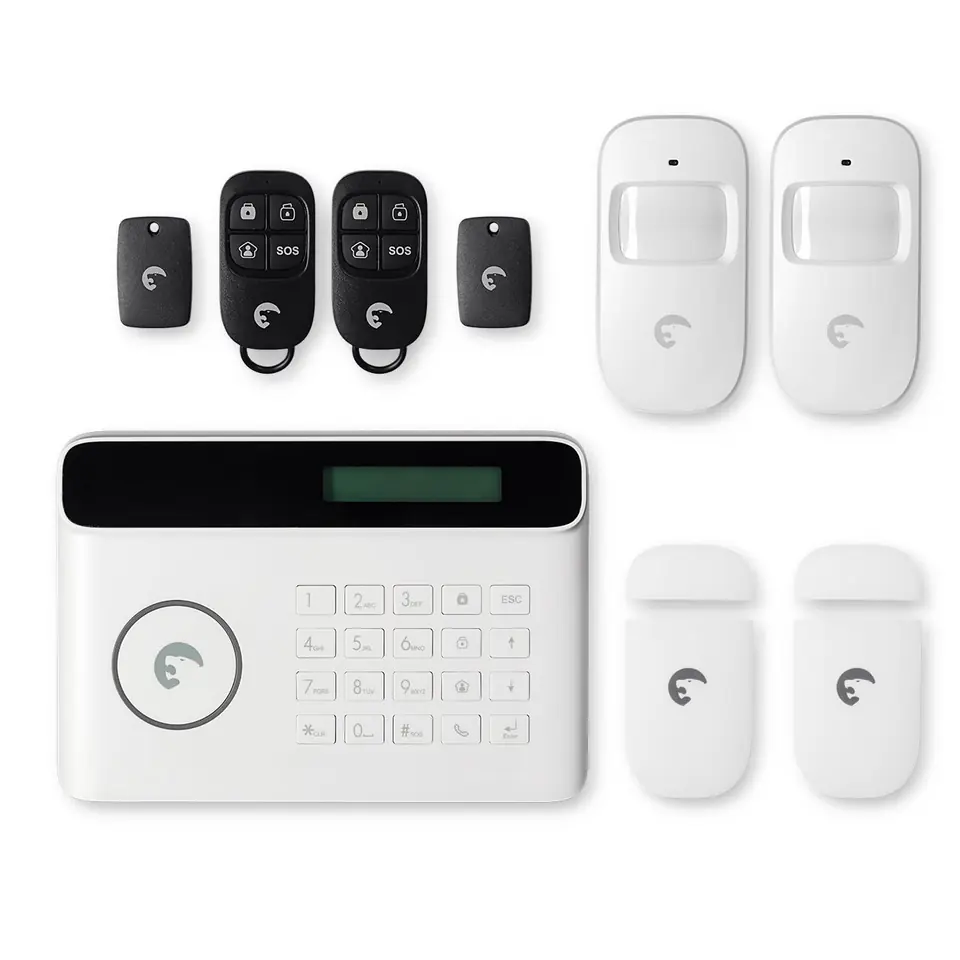

- panel (with battery and siren) x 1
- remote controls x 2
- RFID tags x 2
- door / window sensors contact x 2
- PIR motion detectors x 2
- AC adapter x 1
- user manual x 1
User manual PL >> here <<
https://dmtrade.pl/katalogi/etiger/Instrukcja_obslugi_Etiger_S4.pdf
command instructions for SMS and applications >> here <<
https://dmtrade.pl/katalogi/etiger/instrukcja_komend_sms.pdf
How do I set up the control panel?
The control panel of the alarm system can be set via SMS or via the application
The app is available for download on Google Play and the App Store
What is the default code for my alarm system?
By default, the password of the S3B control panel is 1234.
How do I register my accessories and RFID tags in the control panel?
Enter the 4-digit code. Press the call button on the control panel: the LED is on.
Slide the RFID in front of the blue highlighted circle on the control panel.
You will hear one signal: the registration was successful
How do I remove added wireless accessories or RFID ID from the control panel?
It is not possible to remove individually assigned wireless accessories from the control panel.
To remove all accessories and RFID, you need to reset the control panel to factory settings.
What are zones?
Each detector can be assigned to one of 4 zones: Normal zone, 'Home Mode' zone, "Delay" zone or 24h zone. When zones are on, motion sensors behave differently when the system is armed, disarmed or in Home mode
Normal zone
When the control panel is armed (or in Home mode), the detector assigned to the Normal zone will detect movement, then it triggers an alarm. When the system is disarmed, the sensor will not trigger an alarm.
Home zone
Detectors assigned to the main zone in this mode will not trigger an alarm when the system is armed in home mode.
Zone
Detectors assigned to the Delay zone will trigger only the alarm after a certain delay time (counting from the armament of the alarm system). This allows you to arm or disarm the alarm system from the control panel, without triggering an alarm.
We recommend that you assign the detectors located in the entrance to the house to this zone.
24h zone
Detectors assigned to the 24h zone will trigger an alarm when motion is detected, regardless of whether the system is armed or not. We recommend that you assign smoke detectors to the 24h zone.
To assign the detector to the selected zone, open the housing and move the jumpers according to the drawings in the instructions of your alarm system. When the zone has been changed, the sensor must be re-registered in the control panel.
How do I reset my alarm system to factory settings?
Method 1
Send an SMS with the text "0000" to the control panel.
Note, the SMS must be sent from the phone whose number is registered in the control panel.
Method 2
Within 3 seconds of turning on the control panel, press the tamper switch on the back of the control panel 5 times in 5 seconds. The control panel will beep two beeps: the factory settings have been restored. Accessories and RFID tags have been removed.
What SIM cards can I use for my alarm system?
The S3B control panel can be used both in GSM mode (with SIM card) or in PSTN mode (connected to a stationary phone).
In GSM mode, we recommend using a SIM card with a "no limit" plan
The SIM card must work in the GSM network. For more information, contact the mobile operator available in your market.
The S3B control panel only supports regular SIM cards. It does not support micro SIM or nano SIM cards.
How do I insert a SIM card into the control panel?
Insert the SIM card in the appropriate place in the battery compartment, with the chip towards the control panel.
I have a SIM card installed in the control panel, but the control panel cannot find the GSM signal (gsm signal indicator flashes once per second)
Make sure that the SIM card is inserted correctly into the control panel. Please note that the control panel only supports regular SIM cards. Micro SIM and Nano SIM cards are not supported.
After inserting the SIM card in the control panel, make sure that the SIM card is not locked with a PIN. Remove the SIM card from the control panel, insert it into your phone and deactivate the PIN. Then insert the SIM card in the control panel again.
If the previous steps did not solve the problem, move the control panel to another place where GSM reception is better.
How can I control the alarm system?
The alarm system can be controlled from the control panel, by RFID tags, by SMS or by an application available for download in Google Play and the App Store.
To control the system via SMS, you should send an SMS to the alarm control panel with the text "SMS Command". The control panel will not give a signal, but you can already enter numbers for alarm management. E.g. through the application.
Remark. It is recommended to perform a factory reset before starting the alarm setup.
I don't receive an SMS when my system is disarmed by an RFID tag.
To receive SMS notifications when the system is disarmed by RFID, you must:
- Have at least one phone number saved for RFID notifications in the control panel
- Have RFID tags (s) registered in the control panel.
To save the phone number for RFID ID notifications, send 6 via SMS to the control panel.
The first phone number saved (the phone number that is displayed on the first line of the SMS) will receive SMS notifications when the system is disarmed by an RFID tag.
To rename the RFID tag(s), send 10 SMS to the control panel.
If the operation described above does not resolve the issue, proceed to the activity using a different RFID.
