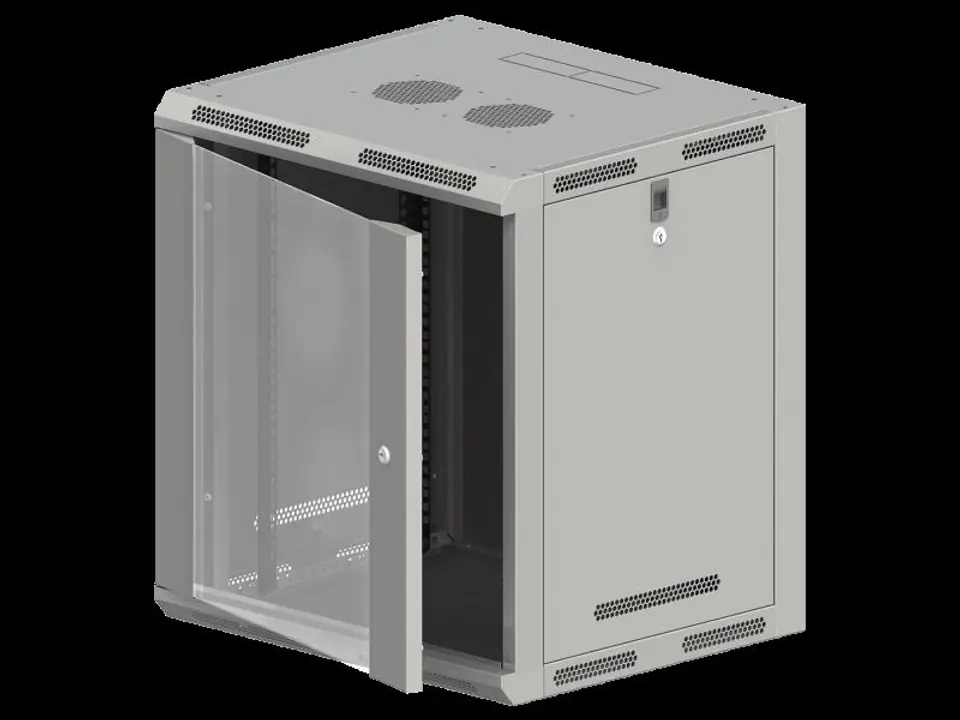

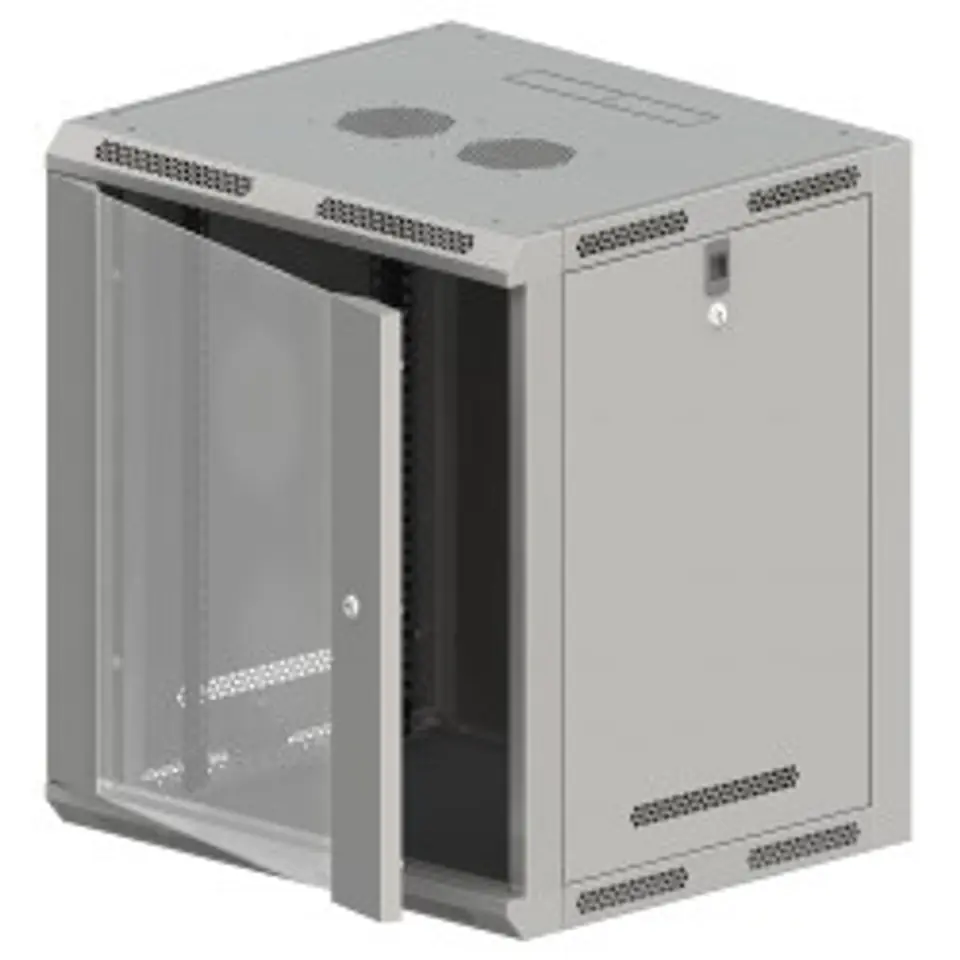

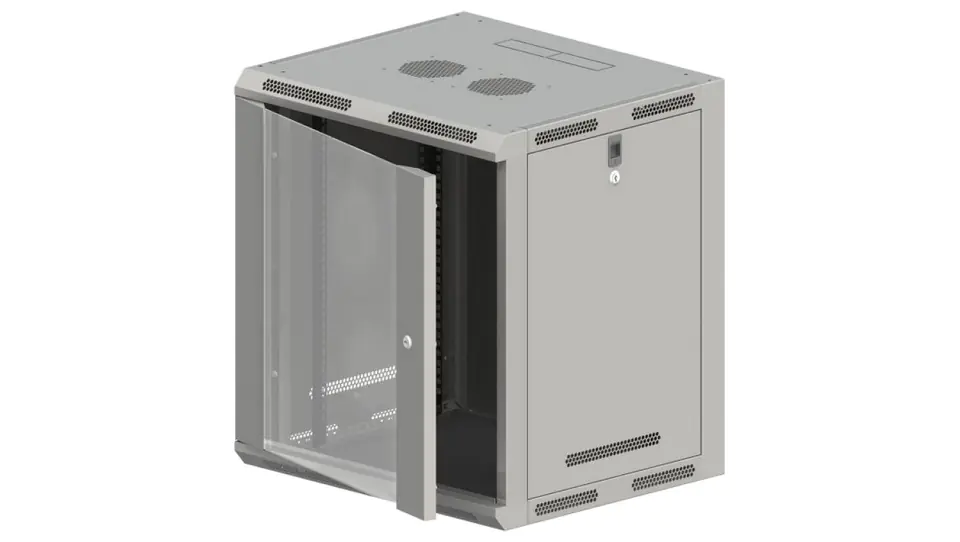

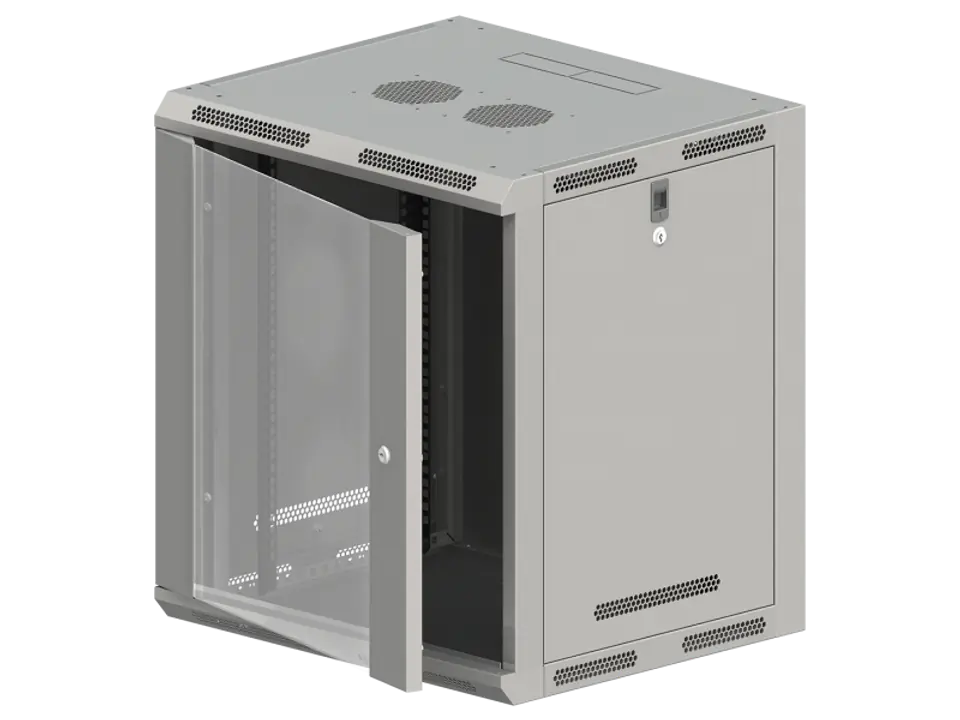

19" hanging-standing cabinets for self-assembly, designed for indoor use, available in 3 depths and 6 usable heights, with glass doors.
Wall cabinets have been designed in Poland and are designed for the installation of 19" cabling and active equipment installed indoors. They can also be successfully used in CCTV or security systems. Thanks to its well-thought-out design, the cabinet is easy to install, for which one person equipped with a Phillips screwdriver and pliers is enough. It is mounted to the wall using four special anchors included in the set. The cabinet has four double broken cable glands - two in the rear panel and one in the top and bottom cover. The cabinets are packed in cardboard boxes with assembly instructions, grounding cables and mounting accessories. The packaging of the cabinet is flat, which is a great convenience in transport and storage. The cabinet can be installed as a standing using an additional universal adjustable plinth (SA-CU-SW-600-S).
PROPERTIES
- 18 executions cabinet size
- cabinet made of steel sheet
- glass in the front door ESG safety hardening
- removable front door (reversible opening direction)
- removable side covers with zipper
- all cabinet doors lockable (patent lock)
- possibility of installing two 120x120 mm fans in the top cover
- protection class IP20 in accordance with PN-EN 60529
- Grey
- galvanized mounting rails
- Cabinets can be equipped with shelves, drawers, ventilation panels, etc.
- in 19" spacing
| DANE TECHNICZNE | DANE TECHNICZNE2 |
|---|---|
| Rozmiar | 15U |
| Wysokość [mm] | 770 |
| Szerokość [mm] | 570 |
| Głębokość [mm] | 600 |
| Maksymalny rozstaw belek | 420 / 450 |
| Maksymalne obciążenie | 30-60 kg |
| Rodzaj wyposażenia | niedzielone,drzwi szklane jednoskrzydłowe,tył osłona perforowana,osłony boczne ruchome perforowane, |
| Kolor | szary |
