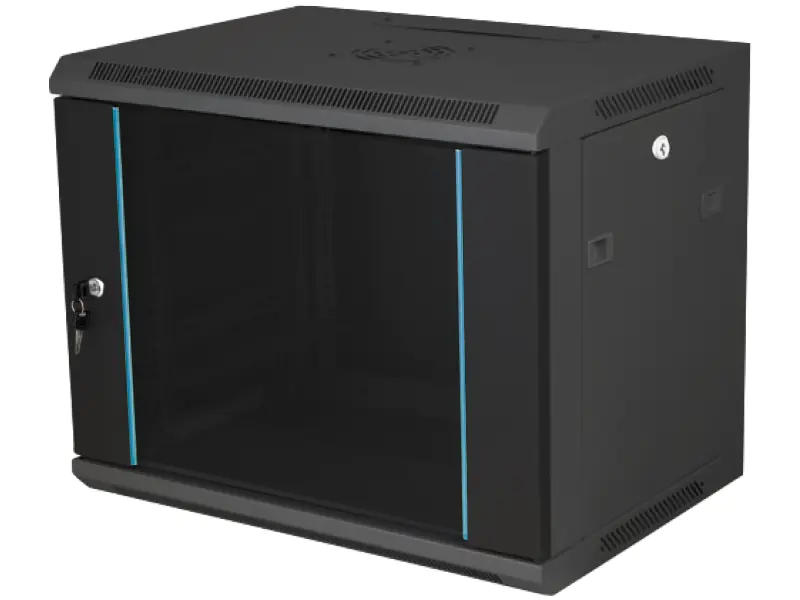

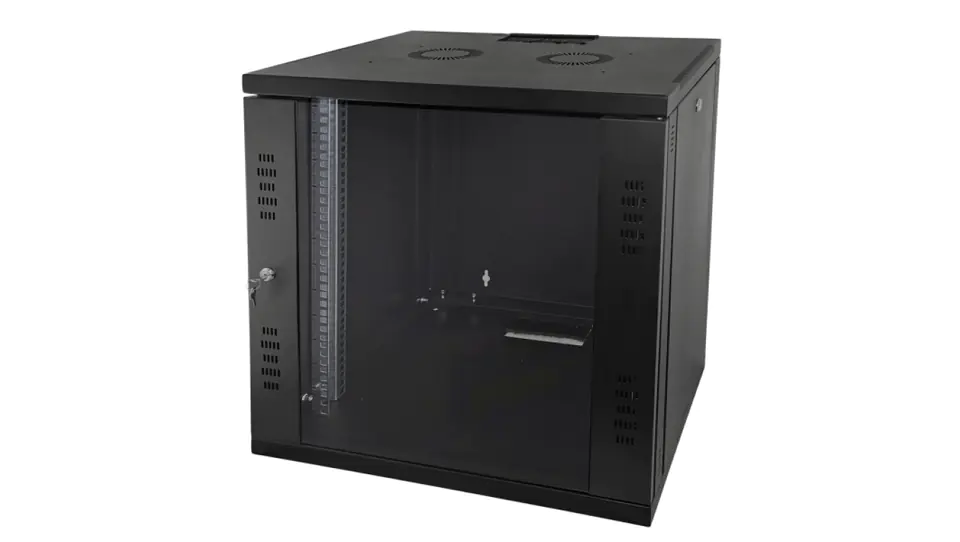

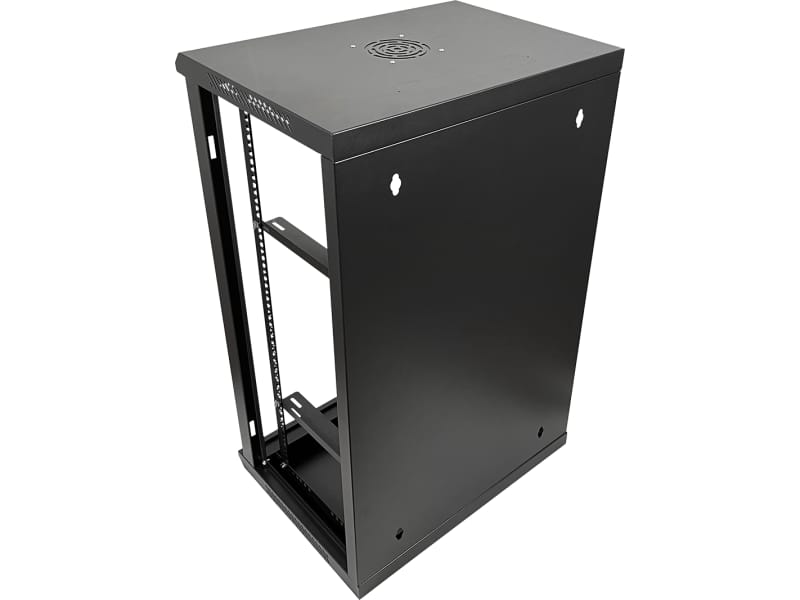

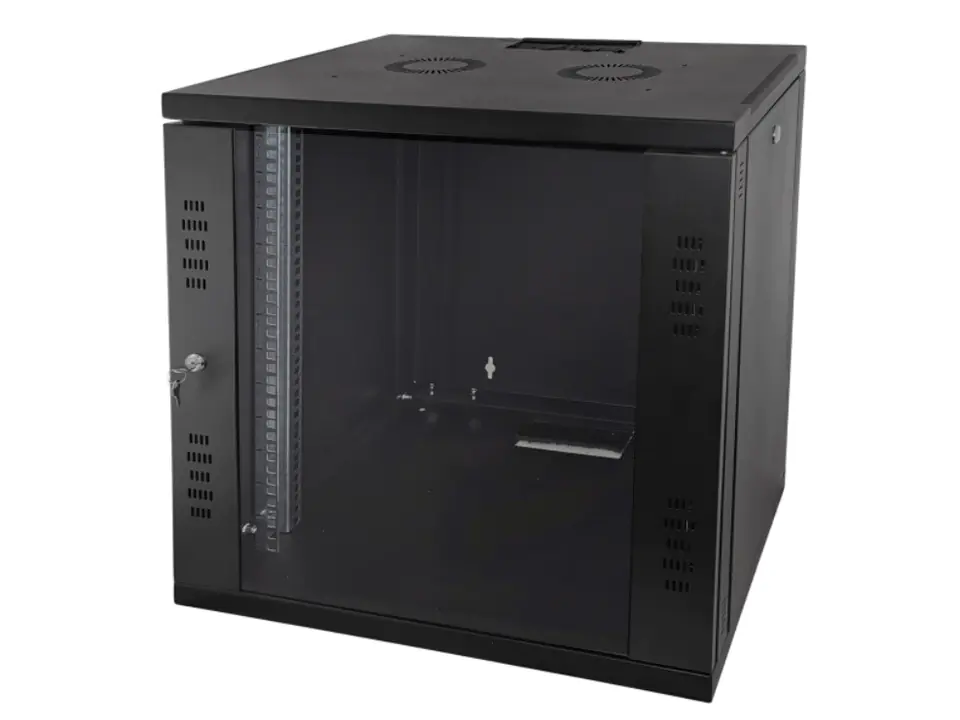

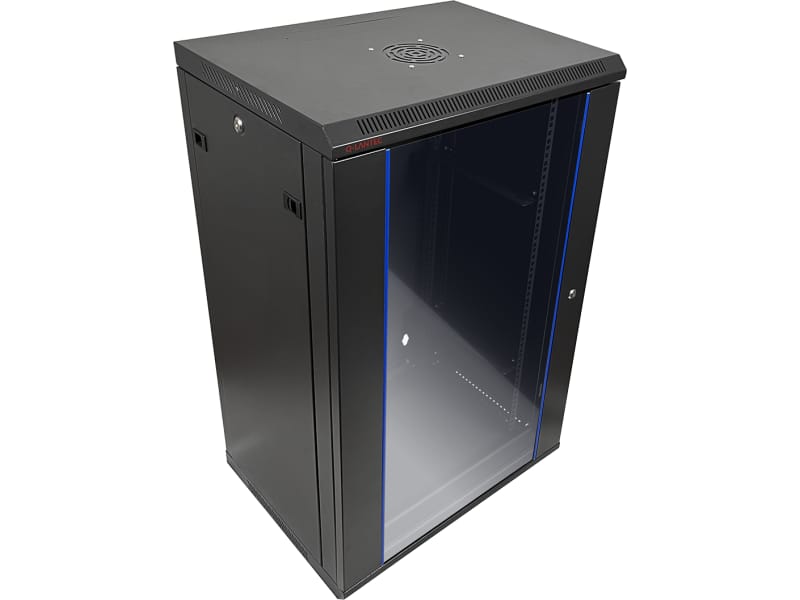

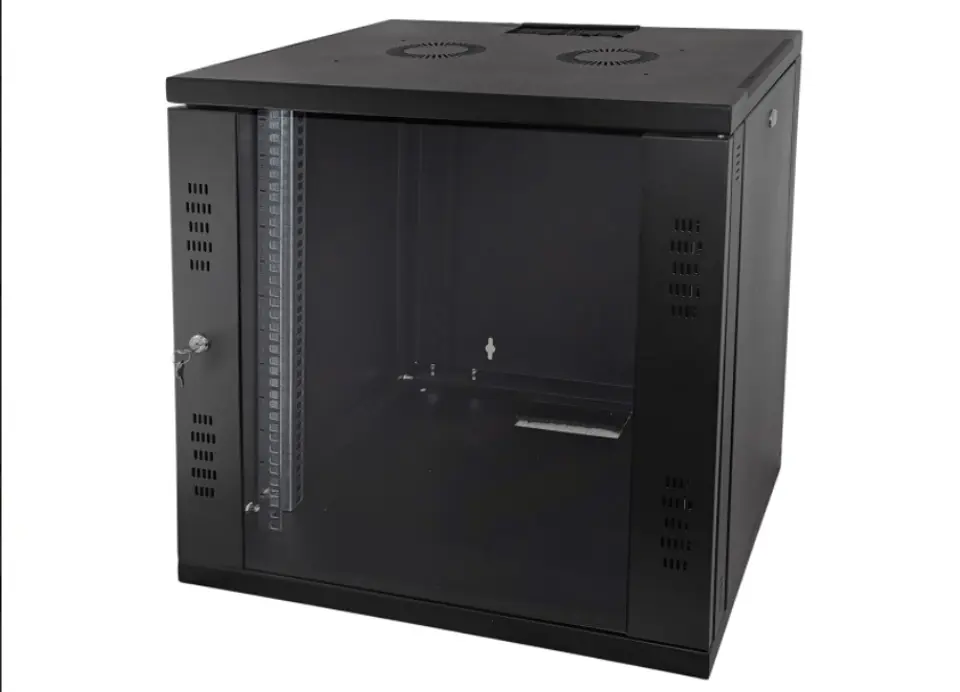

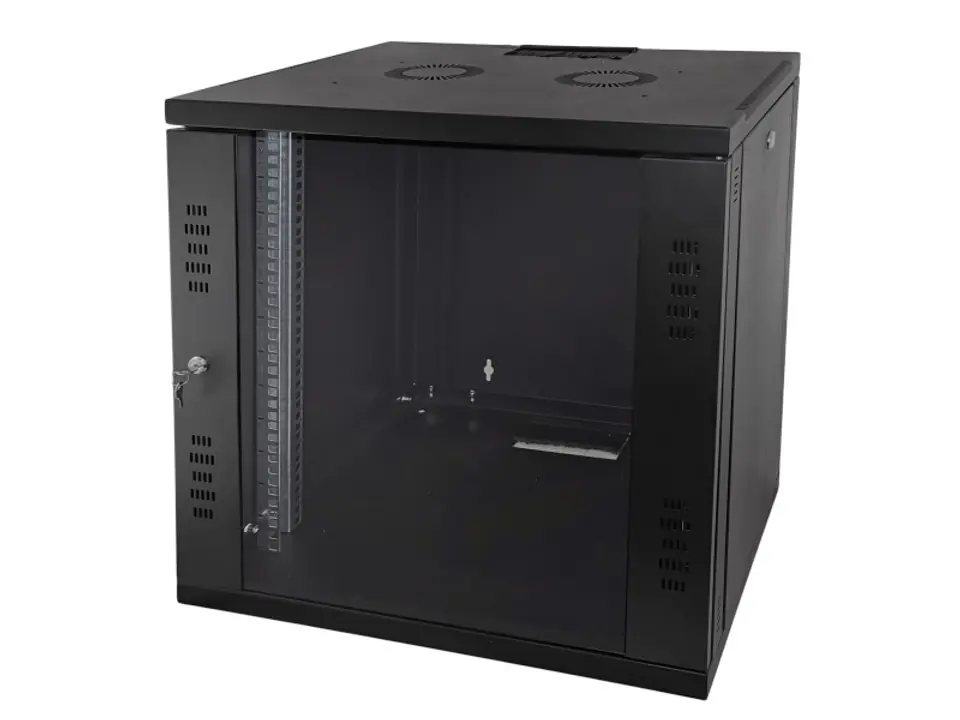

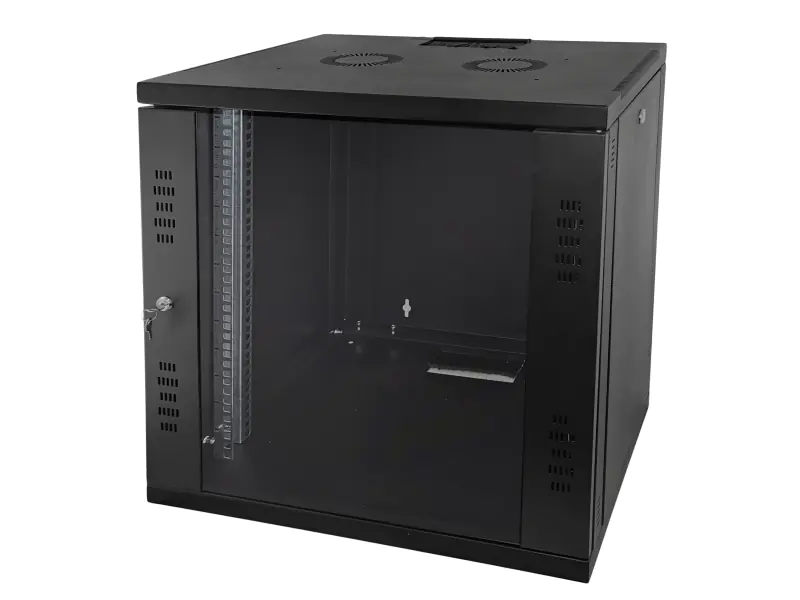

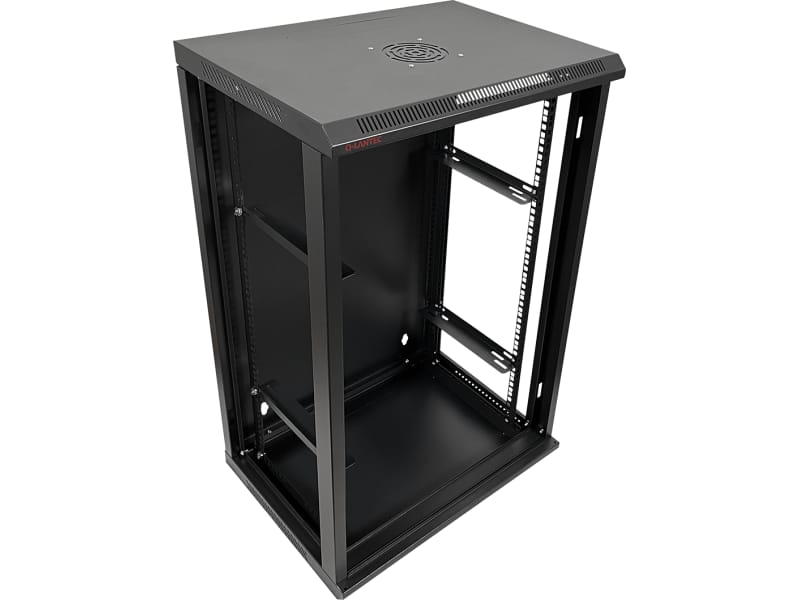

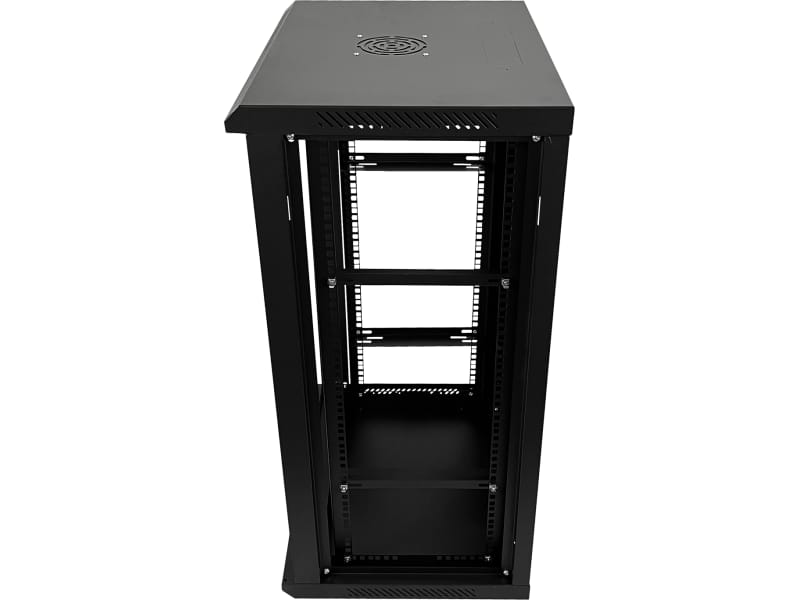

Hanging ICT cabinet with the possibility of using as a standing cabinet (legs included).
In contrast to the products commonly offered on the market, the cabinet is made of solid steel sheet with a thickness of 1.5 mm, which makes it a stable structure, not subject to deformation under extreme loads.
Packed in flat, ergonomic cardboard boxes, for self-assembly.
Available in 6 usable heights (4, 7, 9, 12, 15, 19 and 20U), with glass doors. Dedicated for installation of passive cabling and active IT equipment, CCTV, security in enclosed spaces.
The cabinet has two cable glands protected by a brush - one in each of the top and bottom cover. The cabinets are packed in a cardboard box with grounding cables and mounting screws included.
PROPERTIES
- 7 cabinet size versions
- cabinet made of steel sheet
- glass in the front door ESG safety hardening

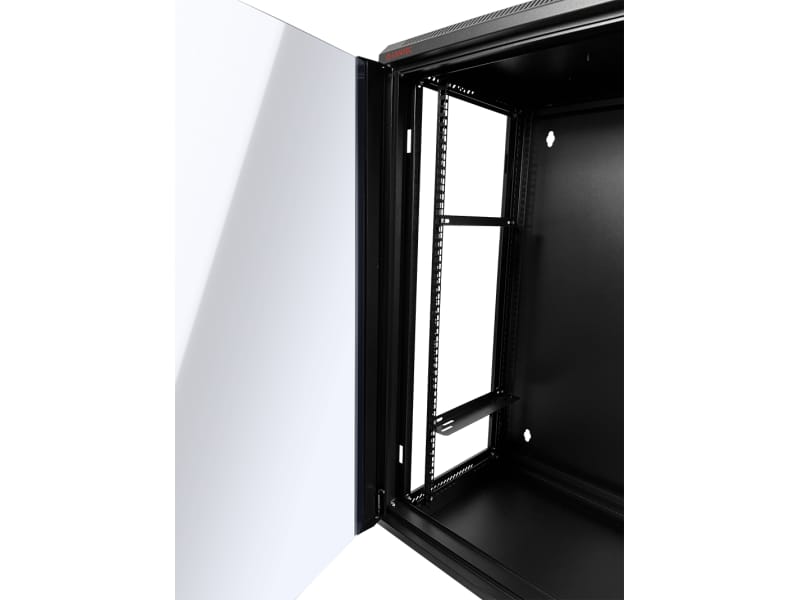

- removable front door (reversible opening direction)
- removable lockable side covers
- Lockable front door
- can be installed in the top fan cover
- protection class IP20 in accordance with PN-EN 60529
- Black
- galvanized mounting rails
- Cabinets can be equipped with shelves, drawers, ventilation panels, etc.
- in 19" spacing
- Bottom feet included
| DANE TECHNICZNE | DANE TECHNICZNE2 |
|---|---|
| Wysokość | 15U |
| Drzwi | szklane, szyba hartowana bezpieczna ESG |
| Kolor | RAL 9005 |
| Nośność | 60 kg (lub 200kg jako szafka stojąca) |
| Stopień ochrony | IP20 |
| Grubość ścian | 1,5 mm |
| Szerokość zewnętrzna | 550 mm |
| Głębokość zewnętrzna | 450 mm |
