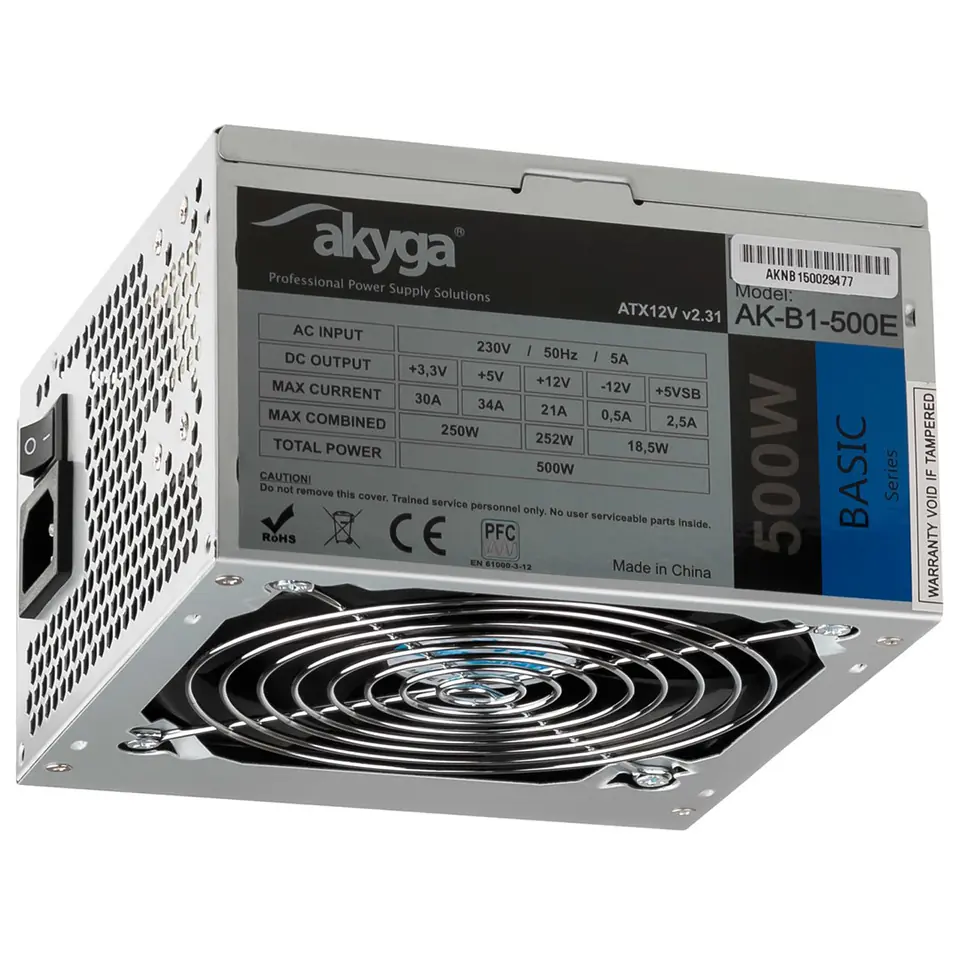

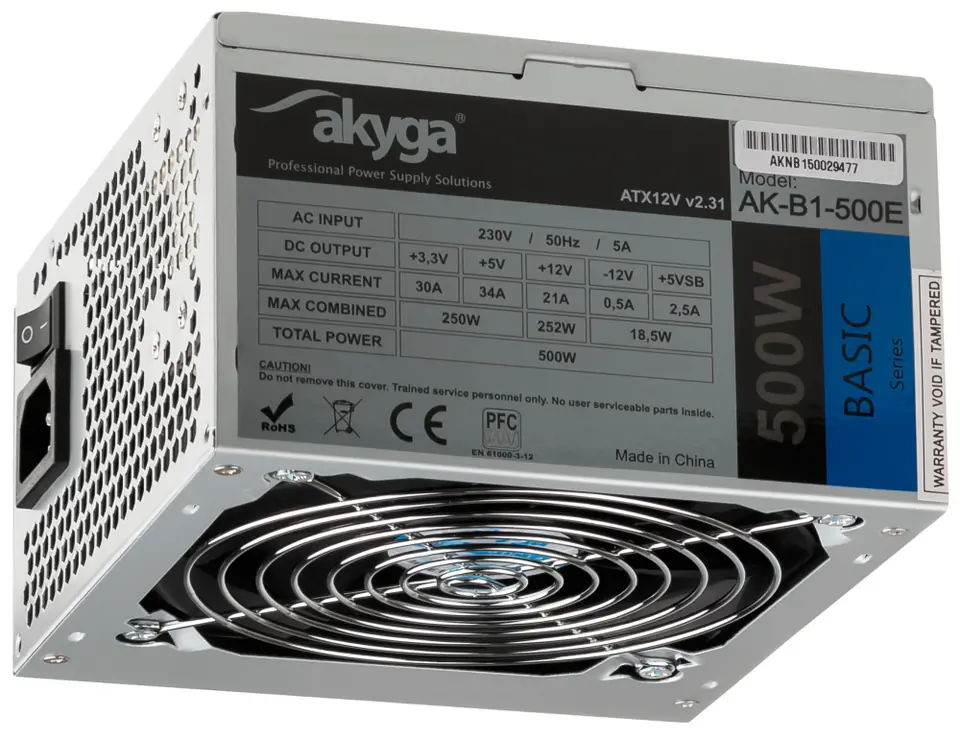

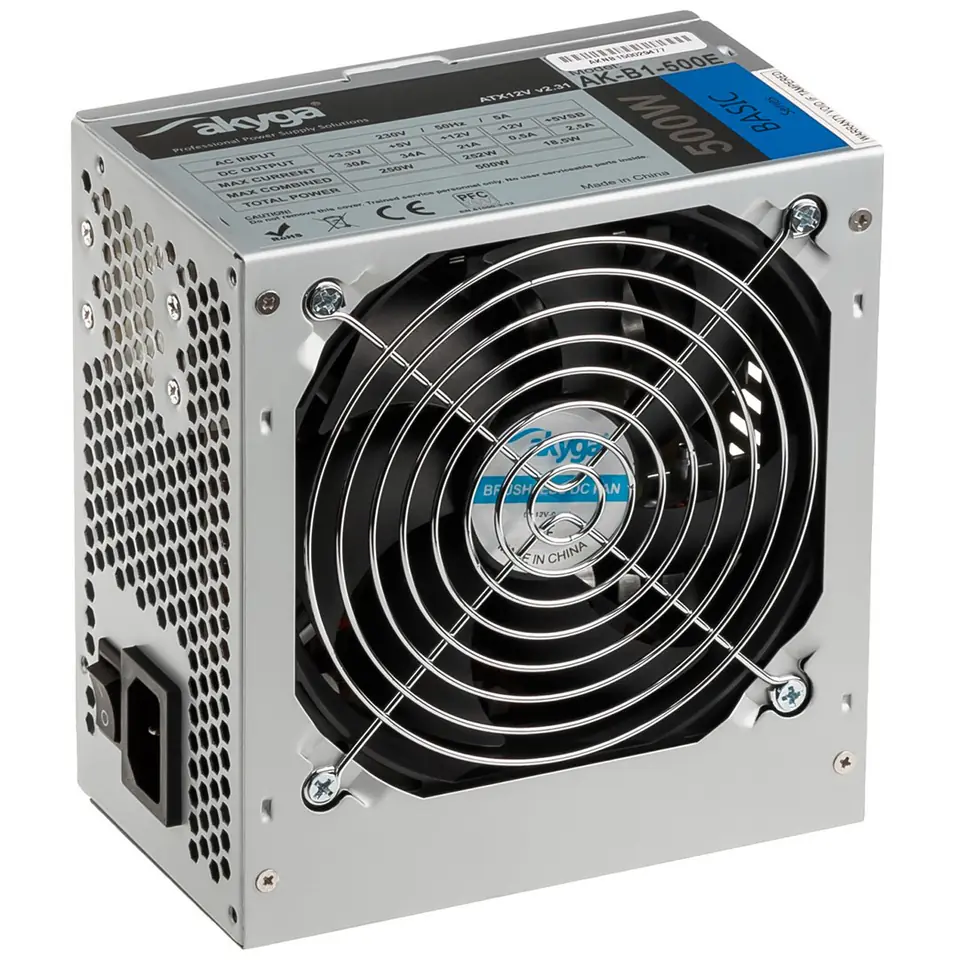

Akyga Basic AK-B1-500E Power Supply 500 W; Passive; 120 mm
€23.71
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- AK-B1-500E / 5901720133236
Share this product:
Specification
| Ac input voltage: | 220 V |
|---|---|
| Applied backlight: | No |
| Atx 24-pin plugs (20+4): | 1 |
| Atx version: | 2.31 |
| Atx version: | 2.31 |
| Built-in switch: | Yes |

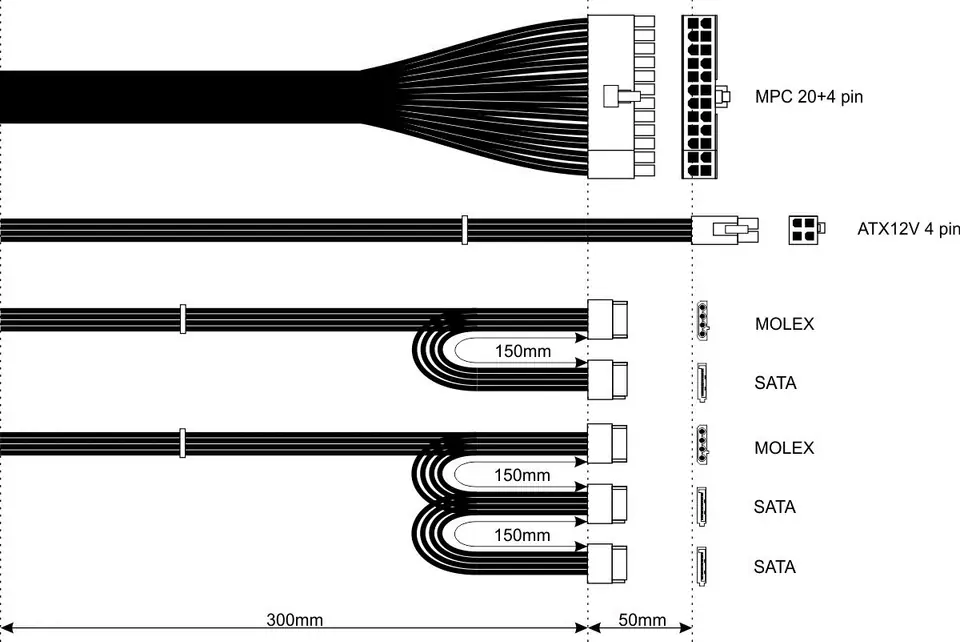

| Cables: | Peripheral (Molex) to SATA 3.3, SATA |
| Cables included: | Peripheral (Molex) to SATA 3.3, SATA |
| Combined power (+12v): | 252 W |
| Combined power (+3.3v): | 250 W |
| Combined power (+5v): | 250 W |
| Compliant standards: | ATX |
| Country of origin: | China |
| Depth: | 140 mm |
| Depth (mm): | 140 |
| Destiny: | PC |
| Diameter of fan canopy: | 12 cm |
| Environmental certificate (sustainability): | RoHS |
| Eps power connector (8-pin): | No |
| Eps power supply connector (8-pin): | No |
| Fan controller: | Yes |
| Fan diameter: | 12 cm |
| Height: | 85 mm |
| Height (mm): | 85 |
| Input current: | 5 A |
| Line: | Basic |
| Manual: | Yes |
| Max output current (+12v): | 21 A |
| Max output current (+3.3v): | 30 A |
| Max output current (+5v): | 34 A |
| Maximum output current (+12 v): | 21 amps |
| Maximum output current (+3.3v): | 30 amps |
| Maximum output current (+5 v): | 34 amps |
| Mean time between failures (mtbf): | 100000 h |
| Modular wiring type: | No |
| Molex plugins: | 2 |
| Motherboard power connector: | 20+4 pin ATX |
| Mtbf (mean time between failures): | 100000 h |
| Number of cables: | 4 |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 3 |
| On/off switch: | Yes |
| Operating temperature (t-t): | 5 - 50 °C |
| Other parameters: | Certificate: CE, RoHS |
| Package depth: | 220 mm |
| Package height: | 95 mm |
| Package type: | Box |
| Package weight: | 1.09 kg |
| Package width: | 160 mm |
| Pci express power connector (6-pin): | 1 |
| Pci express power connectors (6-pin): | 1 |
| Pci express power connectors (6+2 pin): | 1 |
| Pci express power connectors (6+2 pin): | 1 |
| Pci-e 6-pin slots: | No |
| Pci-e 8-pin plugs (6+2): | No |
| Pci-e 8-pin slots: | No |
| Peripheral (molex) power cable length: | 300 mm |
| Peripheral (molex) power cable length: | 300 mm |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Peripheral power connectors (molex) (4-pin): | 2 |
| Pfc: | Passive |
| Pfc (power factor correction) type: | Passive |
| Power factor correction (pfc) type: | Passive |
| Power supply (w): | 500 |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Grey |
| Product depth: | 140 mm |
| Product height: | 85 mm |
| Product weight: | 1.01 kg |
| Product width: | 150 mm |
| Purpose: | PC |
| Sata plugs: | 3 |
| Sata power cable length: | 300 |
| Security measures applied: | OCP, OVP, SCP, OTP, OPP |
| Supported motherboard form factors: | ATX |
| Supported motherboard type: | ATX |
| Sustainability certificates: | RoHS |
| Temperature range (operation): | 5 - 50 °C |
| Total power: | 500 W |
| Total power (+12 v): | 252 watts (Printing) |
| Total power (+3.3 v): | 250 watts (Printing) |
| Total power (+5 v): | 250 watts (Printing) |
| Type of cooling: | Fan 120 mm |
| Type of packaging: | Box |
| Type of power supply (psu): | ATX |
| User's guide: | Yes |
| Voltage tolerance: | 70% |
| Warranty: | 2 years |
| Warranty card: | Yes |
| Weight: | 1.01 kg |
| Weight (g): | none 1020 |
| Weight with packaging: | 1.09 kg |
| Width: | 150 mm |
| Width (mm): | 150 |
