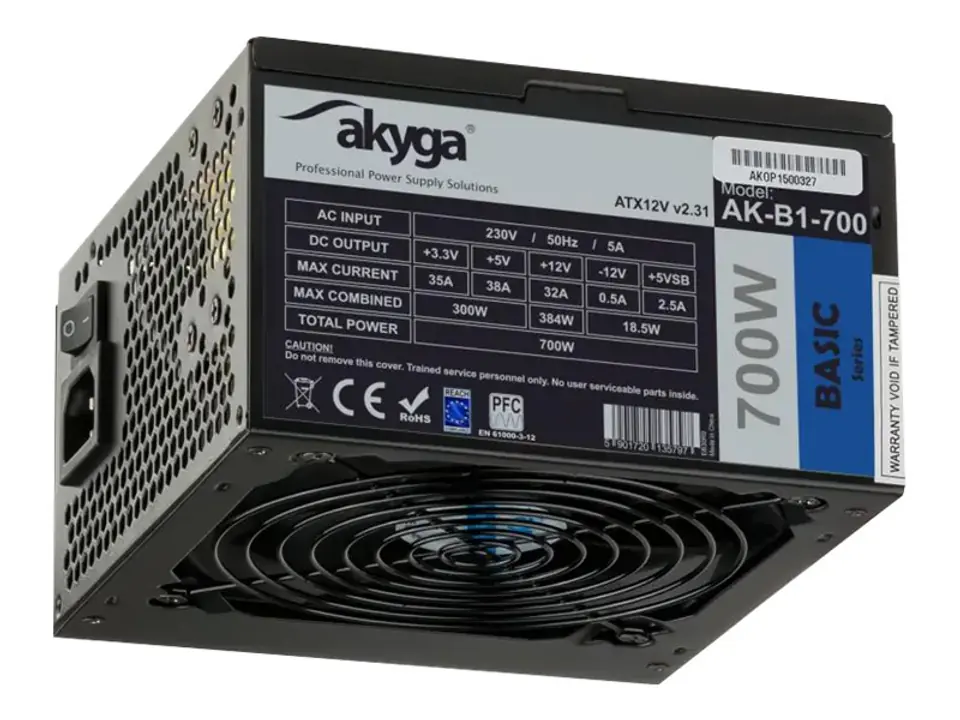

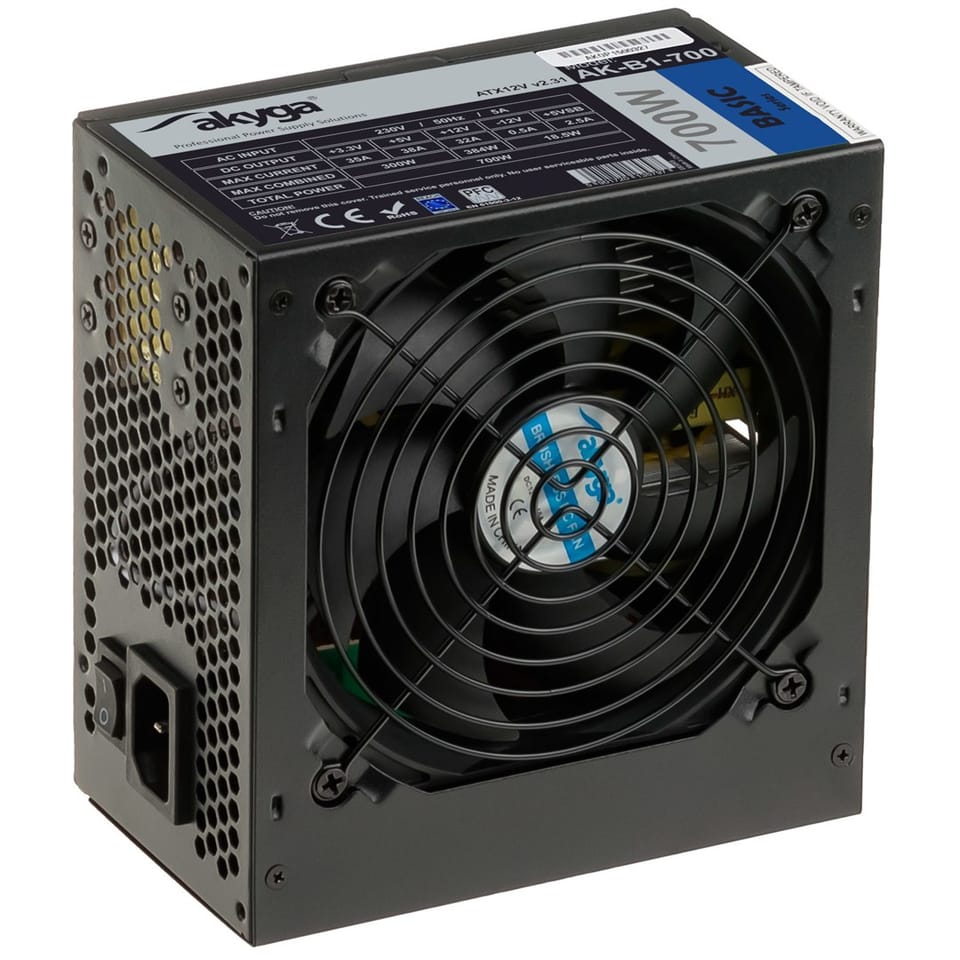

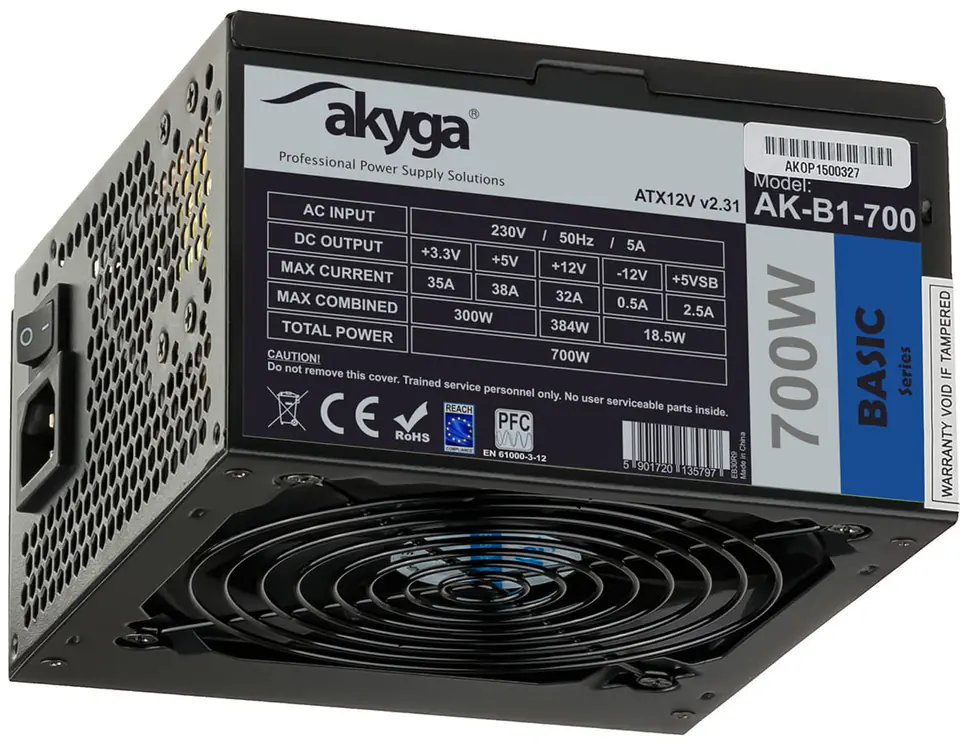

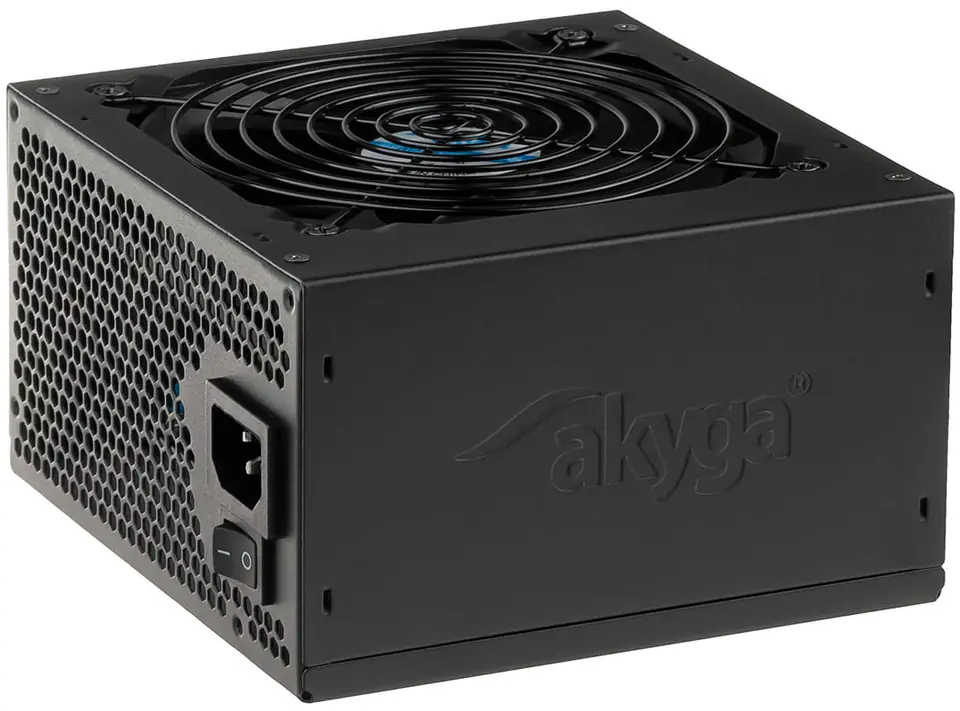

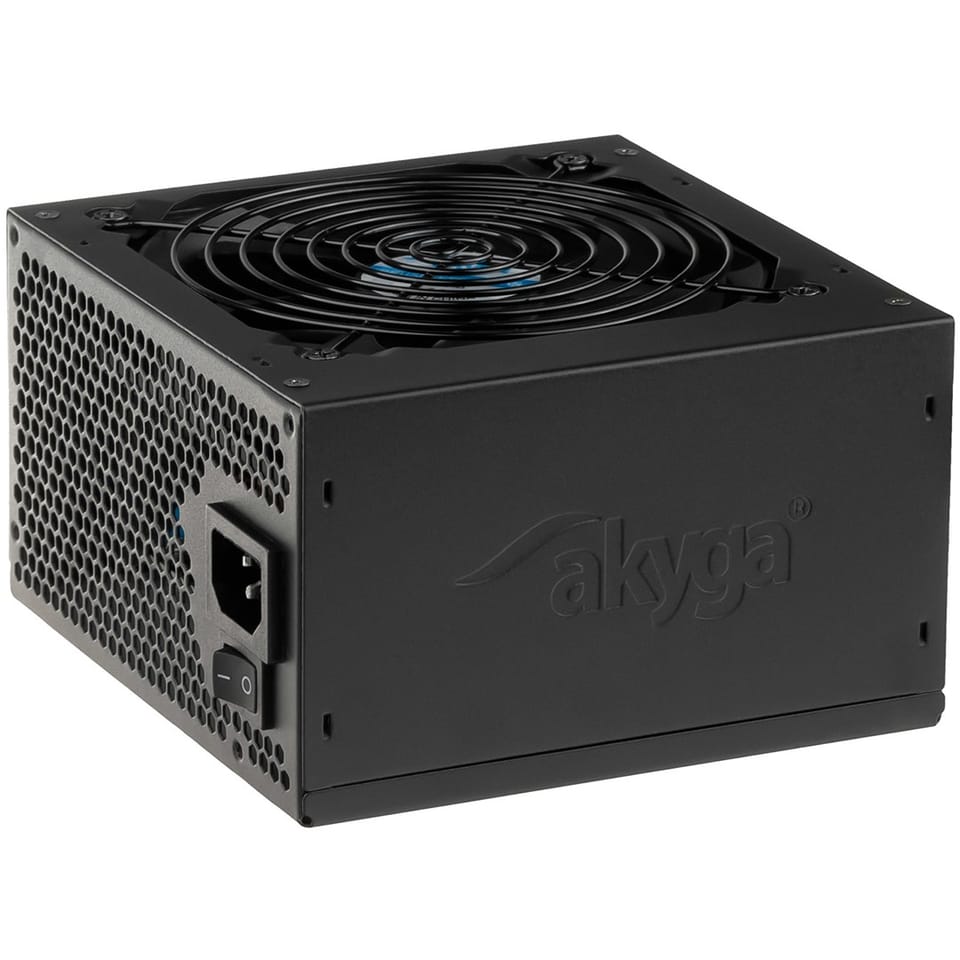

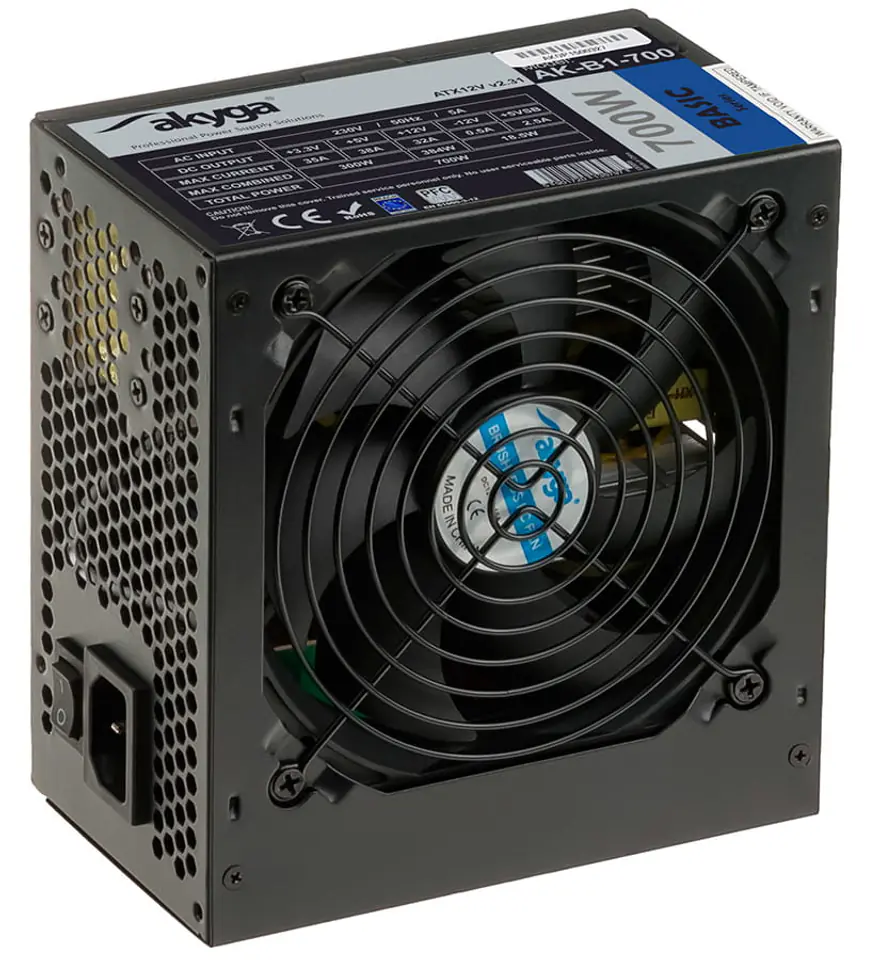

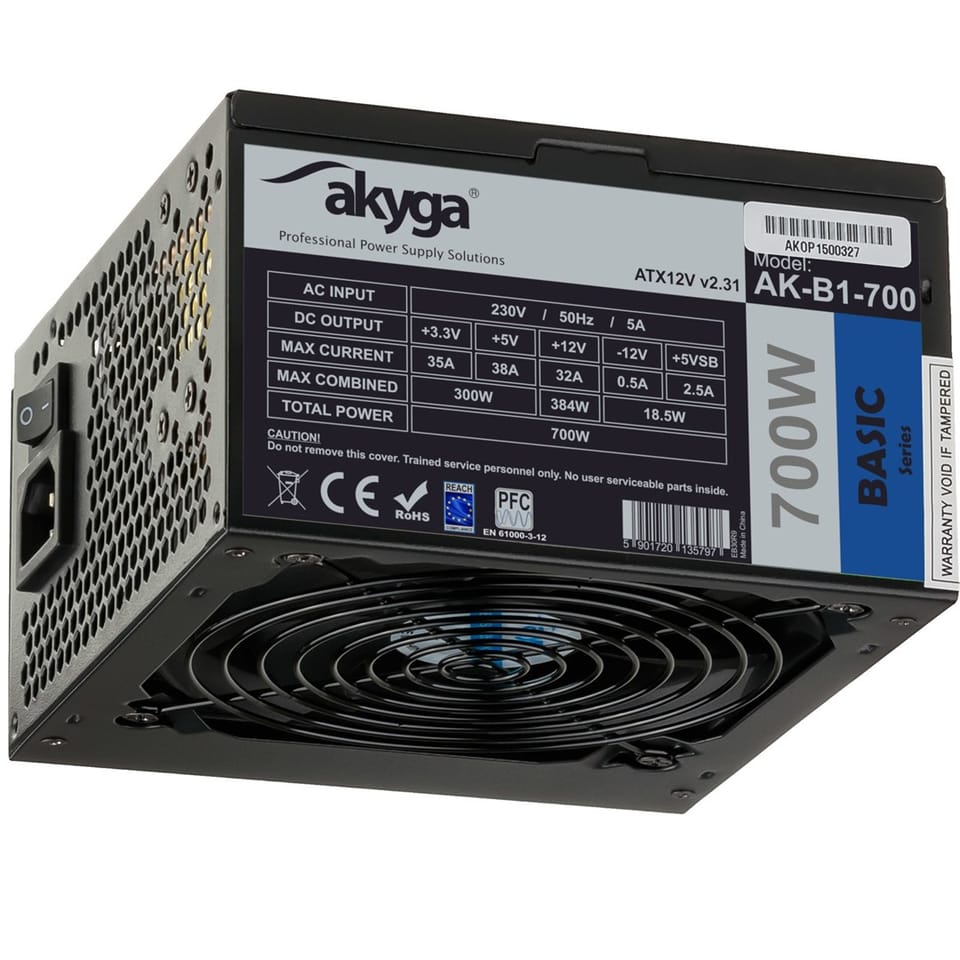

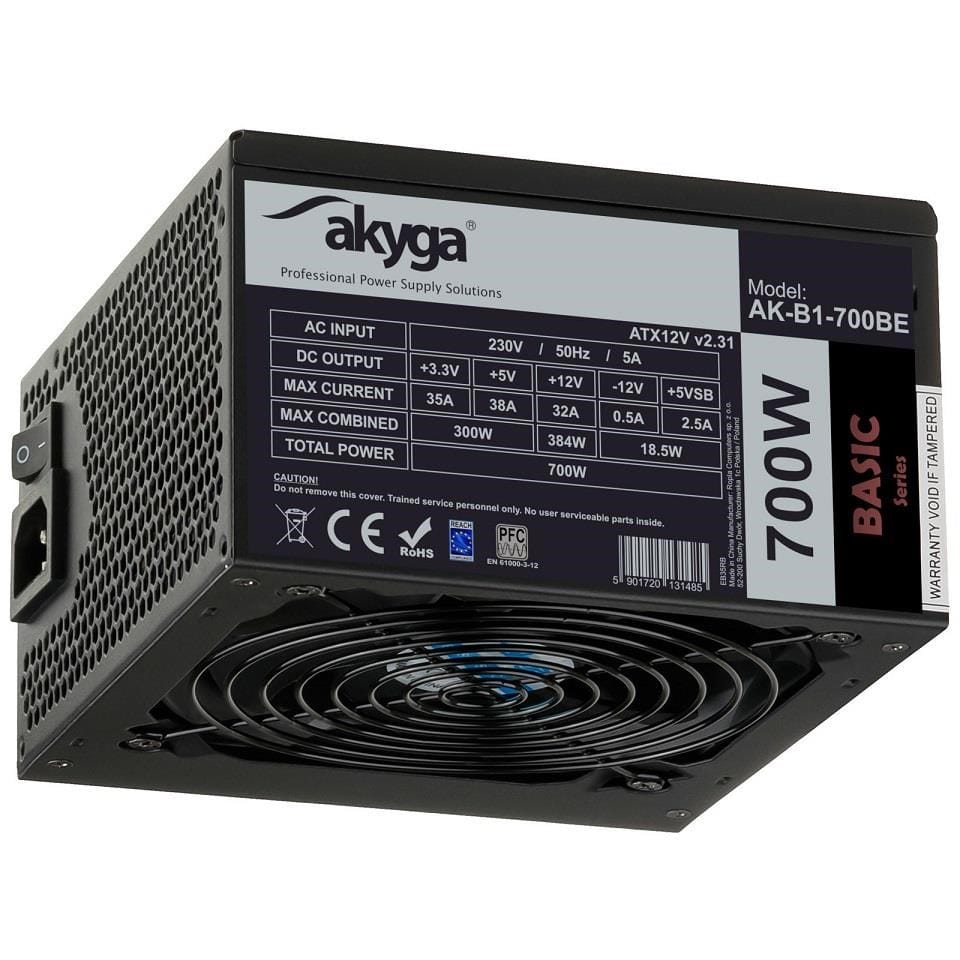

Akyga ATX power supply 700 W, 12 cm, AK-B 1-700BE
€47.50
Shipping from warehouse: M7
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Product code:
- AK-B1-700BE / 5901720135797
Share this product:
Specification
| Ac input frequency: | 50 Hz |
|---|---|
| Ac input voltage: | 230 V |
| Atx version: | 2.31 |
| Cabling type: | Non-Modular |
| Combined power (-12v): | 18.5 W |
| Combined power (+12v): | 384 W |
| Combined power (+3.3v): | 300 W |
| Combined power (+5v): | 300 W |
| Combined power (+5vsb): | 18.5 W |
| Compliance certificates: | RoHS |
| Depth: | 160 mm |
| Efficiency: | 70% |
| Eps power connector (4+4 pin): | Yes |
| Fan diameter: | 12 cm |
| Height: | 85 mm |
| Input current: | 5 A |
| Max output current (-12v): | 0.5 A |
| Max output current (+12v): | 32 A |
| Max output current (+3.3v): | 35 A |
| Max output current (+5v): | 38 A |
| Max output current (+5vsb): | 2.5 A |
| Mean time between failures (mtbf): | 100000 h |

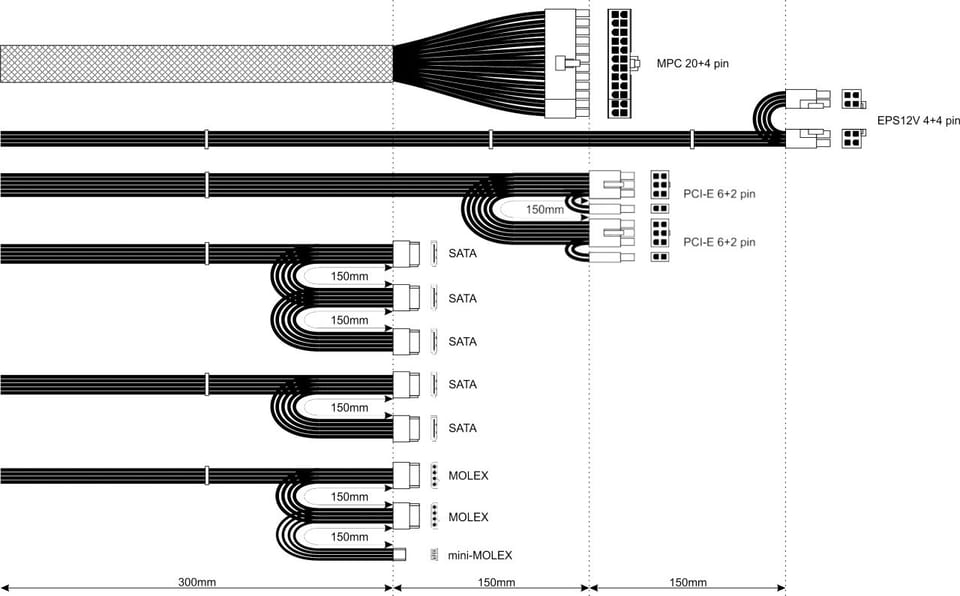

| Motherboard power connector: | 24-pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 5 |
| Operating temperature (t-t): | 5 - 50 °C |
| Package depth: | 180 mm |
| Package height: | 95 mm |
| Package type: | Box |
| Package weight: | 1.33 kg |
| Package width: | 260 mm |
| Pci express power connectors (6-pin): | 1 |
| Pci express power connectors (6+2 pin): | 1 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Power factor correction (pfc) type: | Passive |
| Power protection features: | Under voltage, Over power, Short circuit, Over voltage, Over current |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC/Server |
| Total power: | 700 W |
| Weight: | 1.26 kg |
| Width: | 150 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
