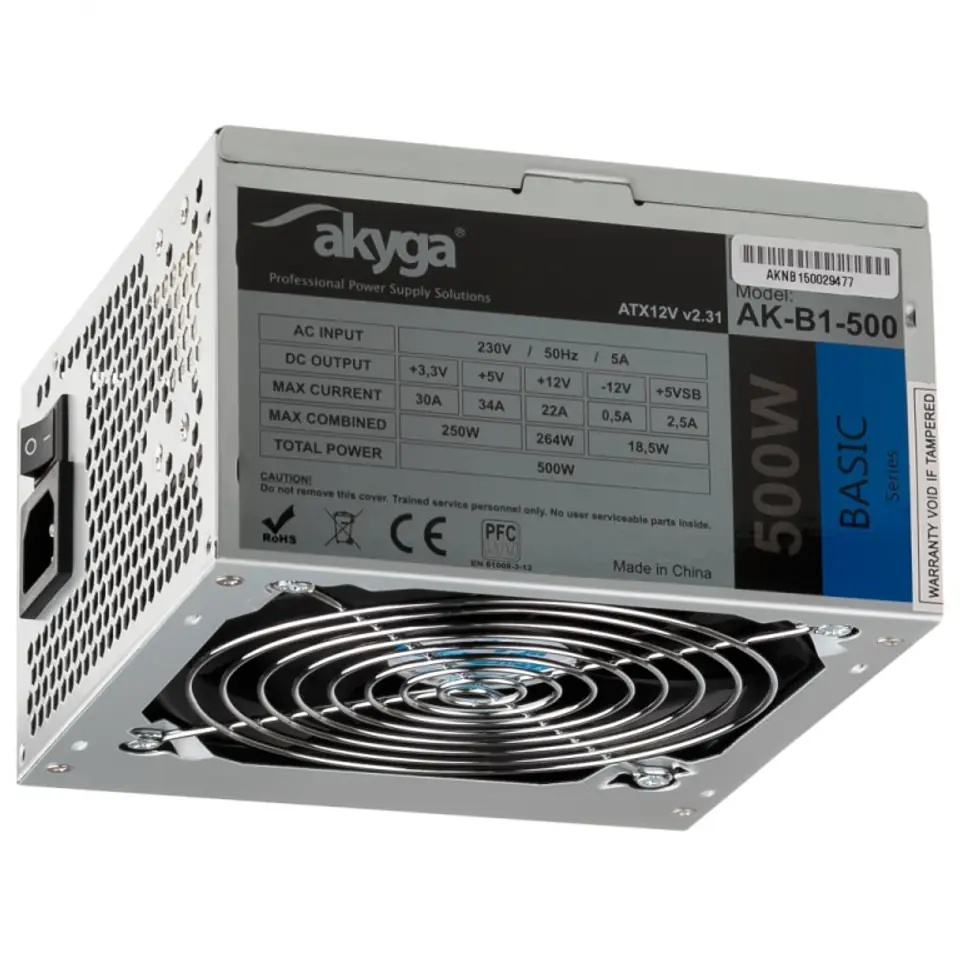

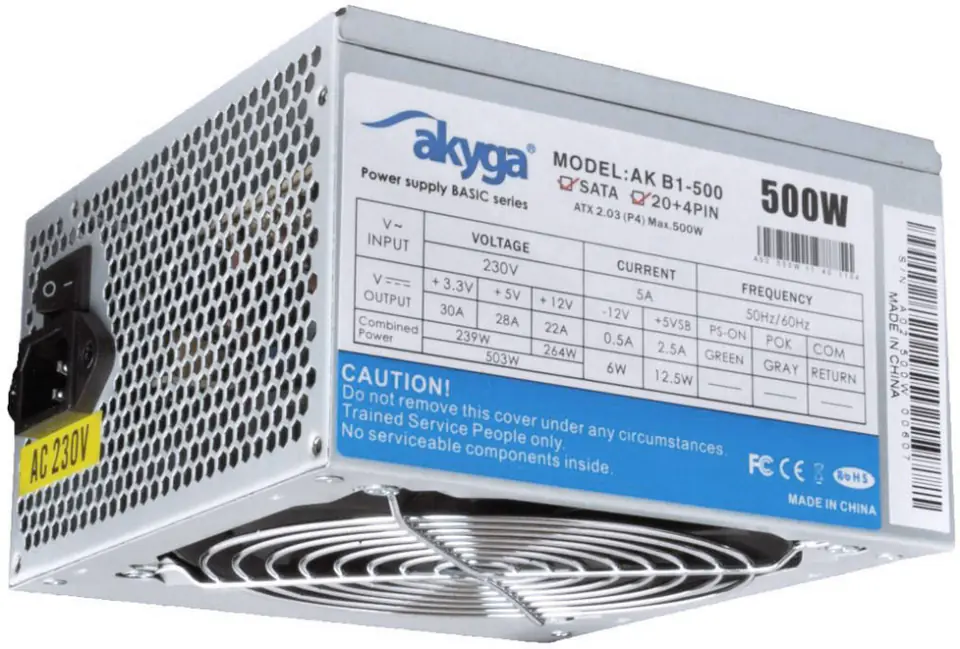

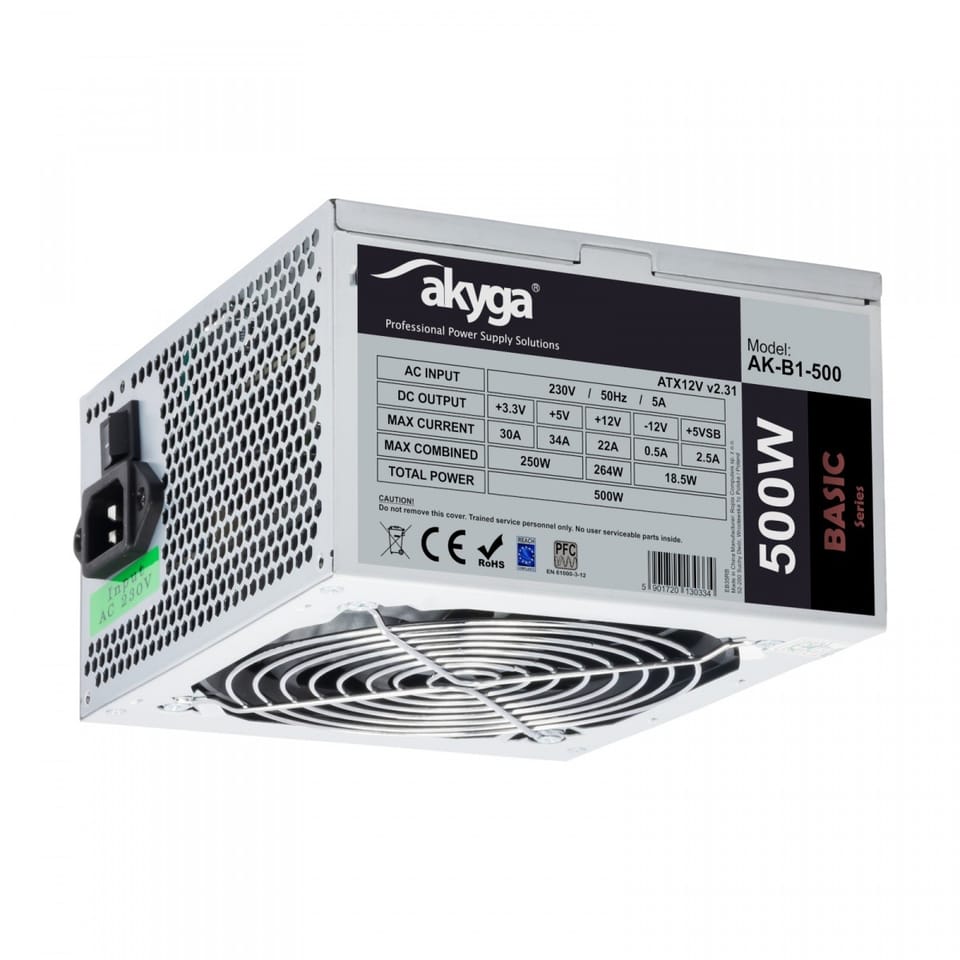

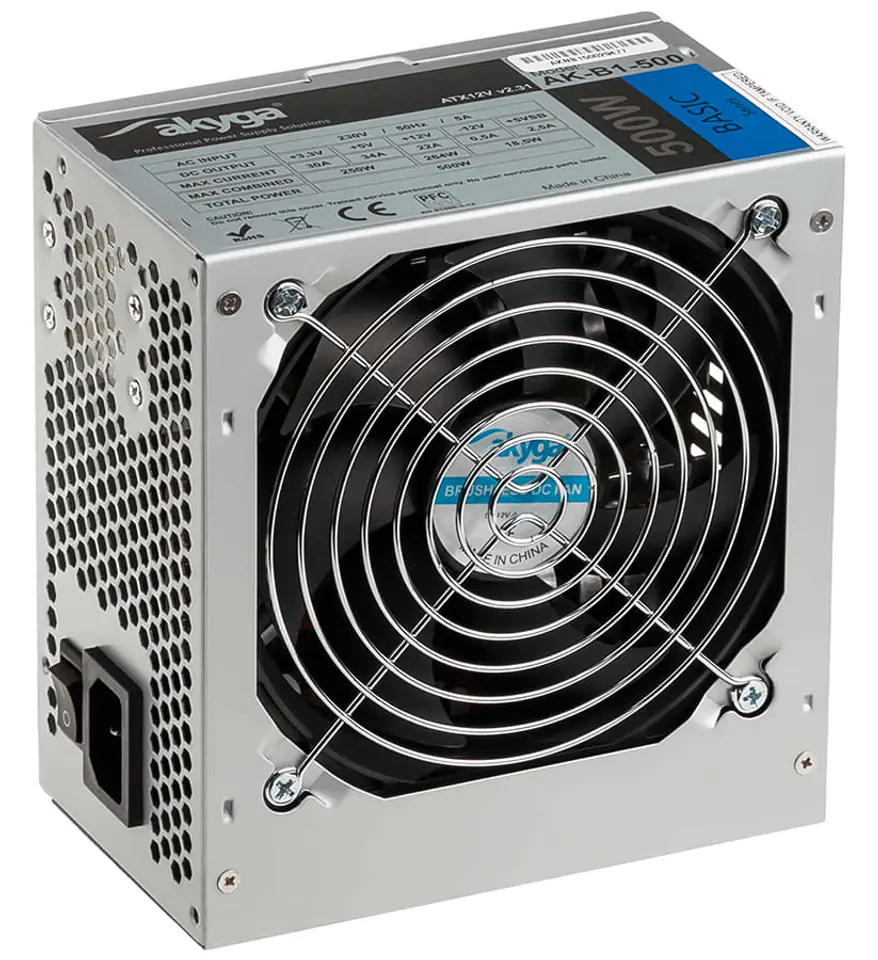

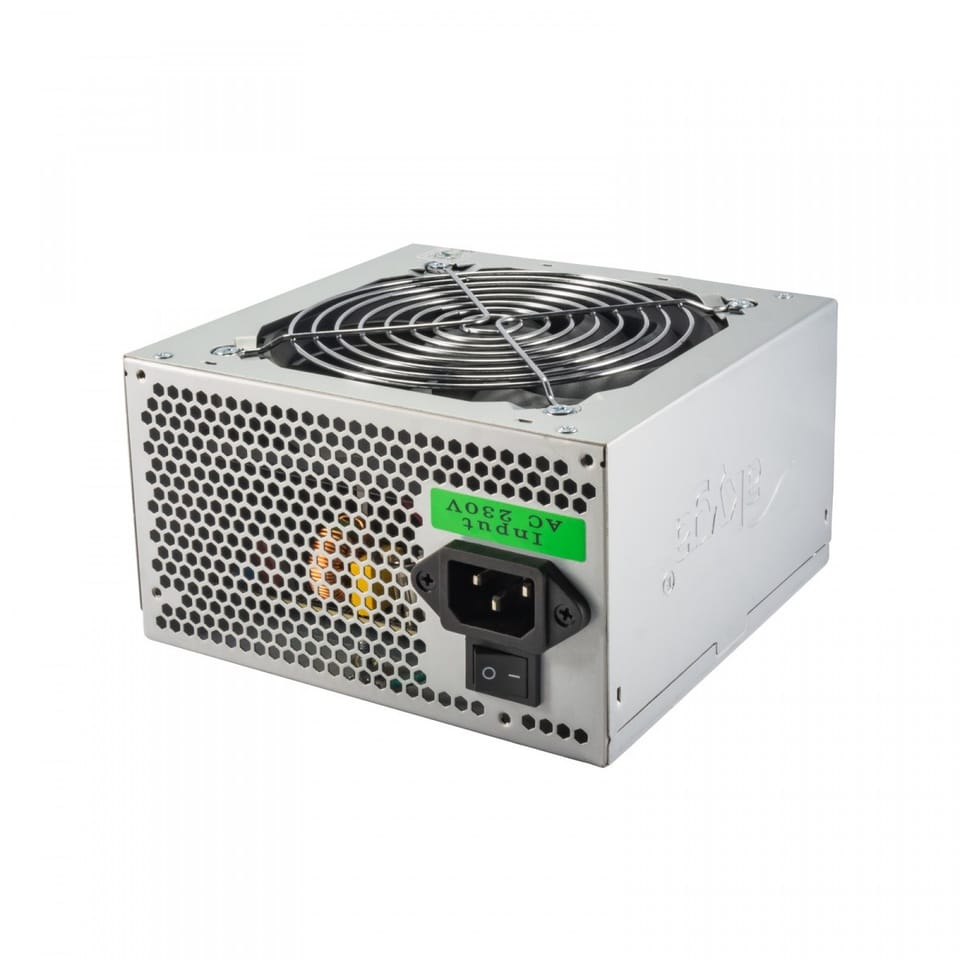

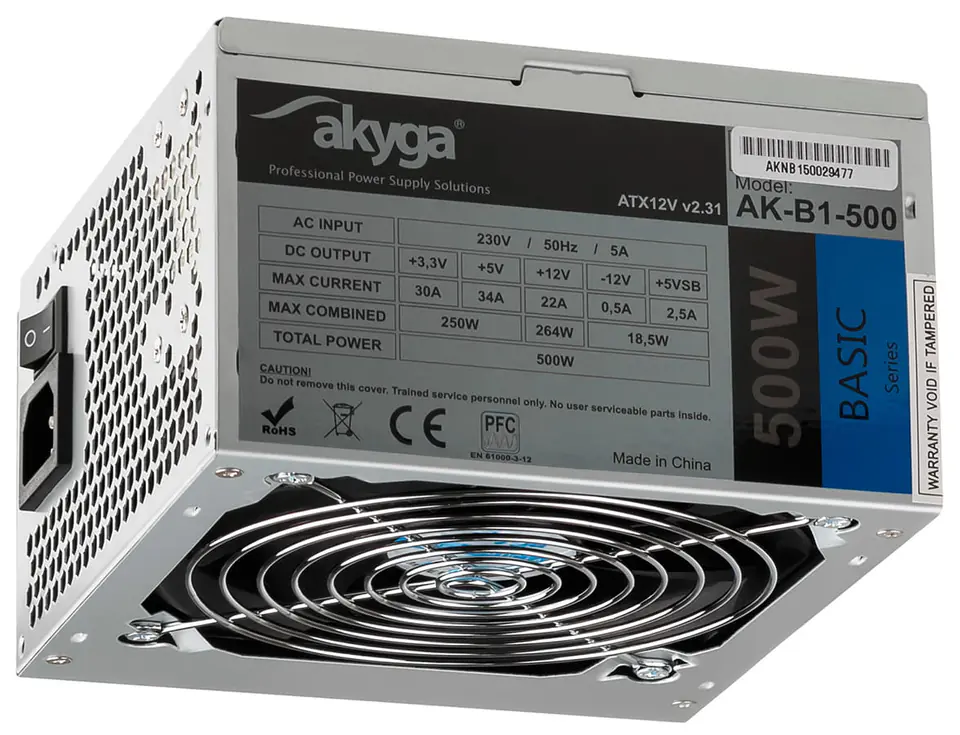

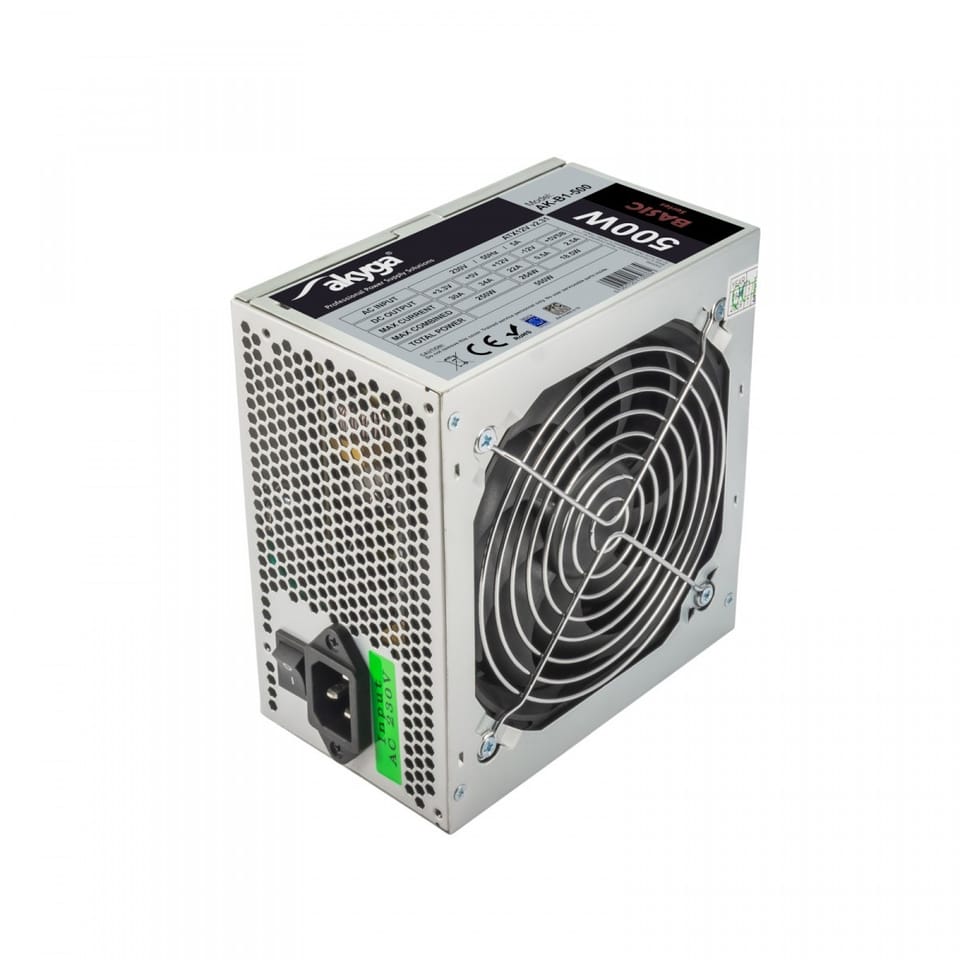

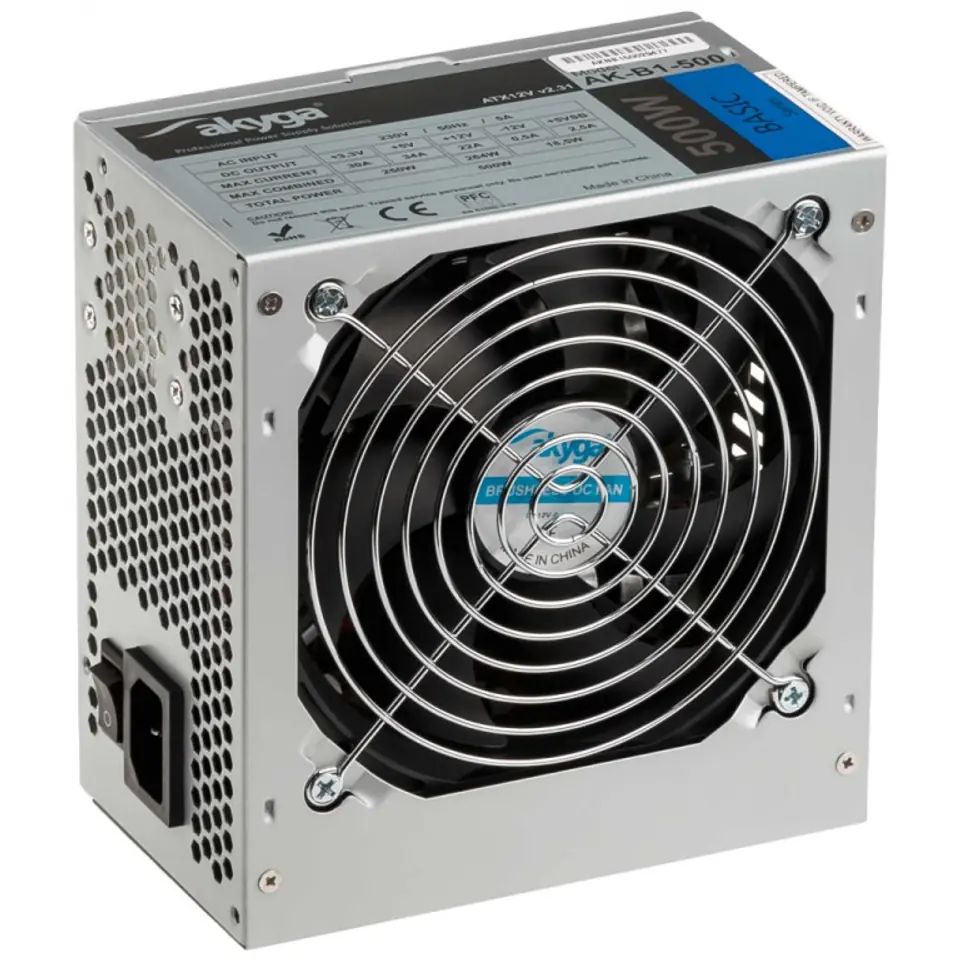

Akyga ATX power supply 500 W, 12 cm, AK-B 1 -500
€27.99
Shipping from warehouse: A3
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
Specification

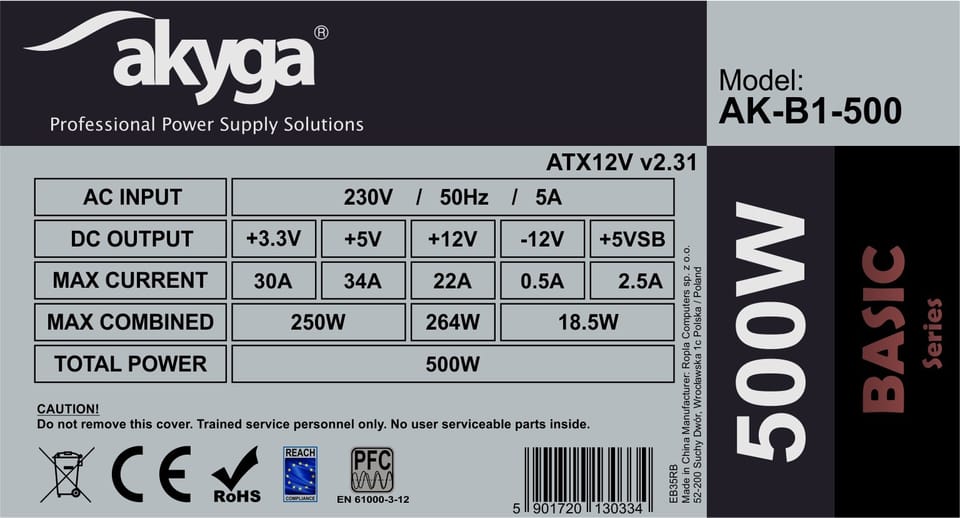

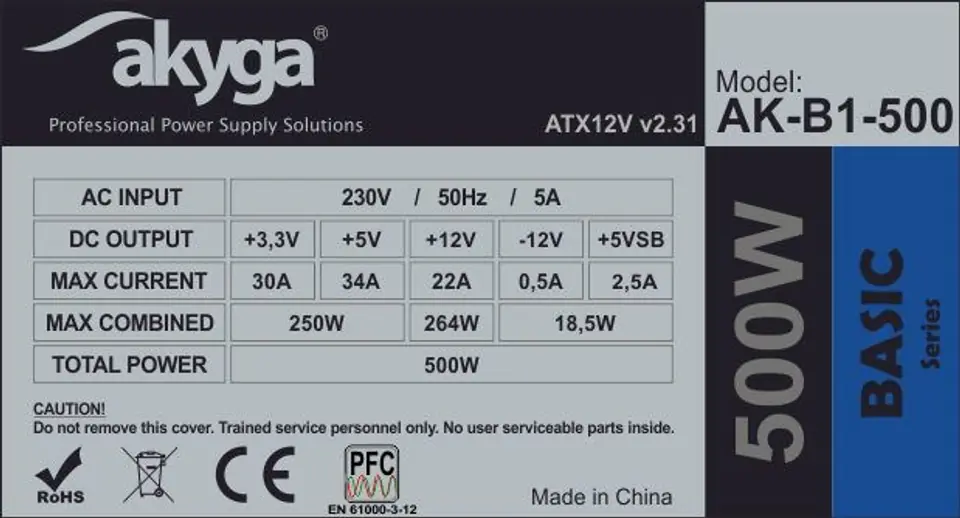

Ac input voltage: | 230 V |
---|---|
Atx power connector (20+4 pin): | Yes |
Atx version: | 2.31 |
Cabling type: | Non-Modular |
Combined power (-12v): | 18.5 W |
Combined power (+12v): | 264 W |
Combined power (+3.3v): | 250 W |
Combined power (+5v): | 250 W |
Combined power (+5vsb): | 18.5 W |
Cooling type: | Active |

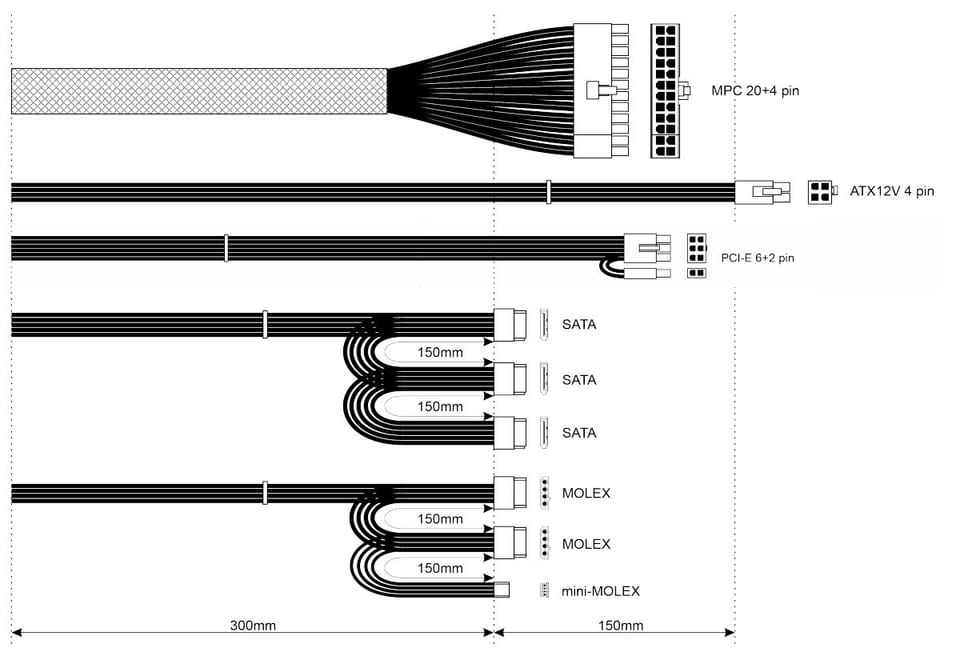

Cpu p4 connector (4-pin): | 1 |
Cpu power cable length: | 45 cm |
Depth: | 140 mm |
Efficiency: | 70% |
Fan diameter: | 12 cm |
Fan location: | Top |
Height: | 85 mm |
Input current: | 5 A |
Manual: | Yes |
Max output current (-12v): | 0.5 A |
Max output current (+12v): | 22 A |
Max output current (+3.3v): | 30 A |
Max output current (+5v): | 34 A |
Max output current (+5vsb): | 2.5 A |
Mean time between failures (mtbf): | 100000 h |
Motherboard power connector: | 20+4 pin ATX |
Number of fans: | 1 fan(s) |
Number of sata power connectors: | 3 |
On/off switch: | Yes |
Operating temperature (t-t): | 5 - 50 °C |
Package depth: | 220 mm |
Package height: | 95 mm |
Package type: | Box |
Package weight: | 1.1 kg |
Package width: | 160 mm |

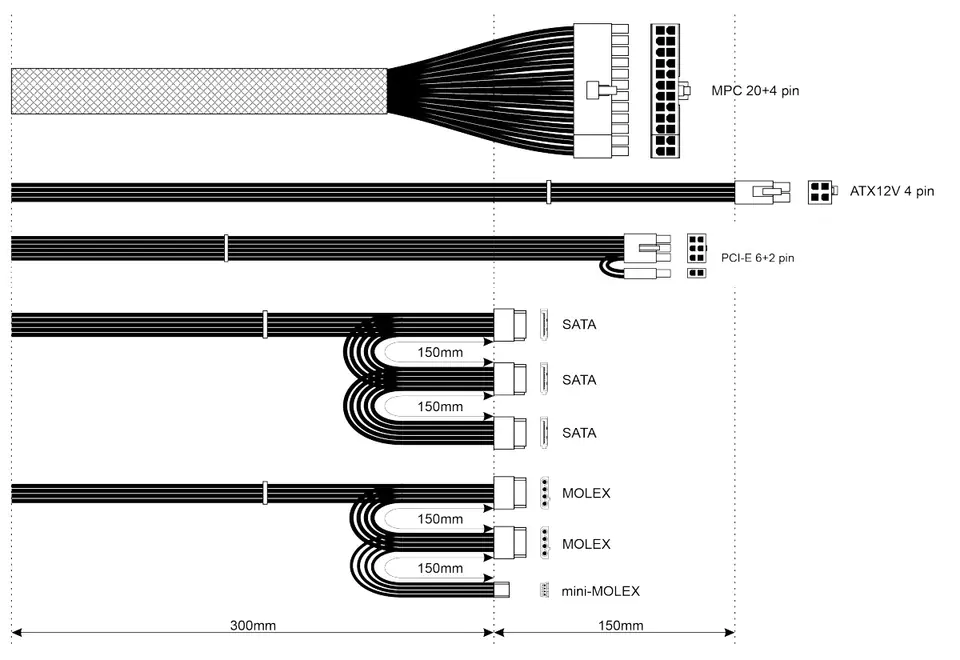

Pci express power connectors (6+2 pin): | 1 |
Peak power: | 500 W |
Peripheral (molex) power cable length: | 300 mm |
Peripheral (molex) power connectors (4-pin): | 2 |
Power protection features: | Overheating, Over power, Short circuit, Over voltage, Over current |
Power supply unit (psu) form factor: | ATX |
Product colour: | Grey |
Purpose: | PC |
Sata power cable length: | 300 mm |
Sustainability certificates: | RoHS |
Total power: | 500 W |
Warranty card: | Yes |
Weight: | 1.03 kg |
Width: | 150 mm |
