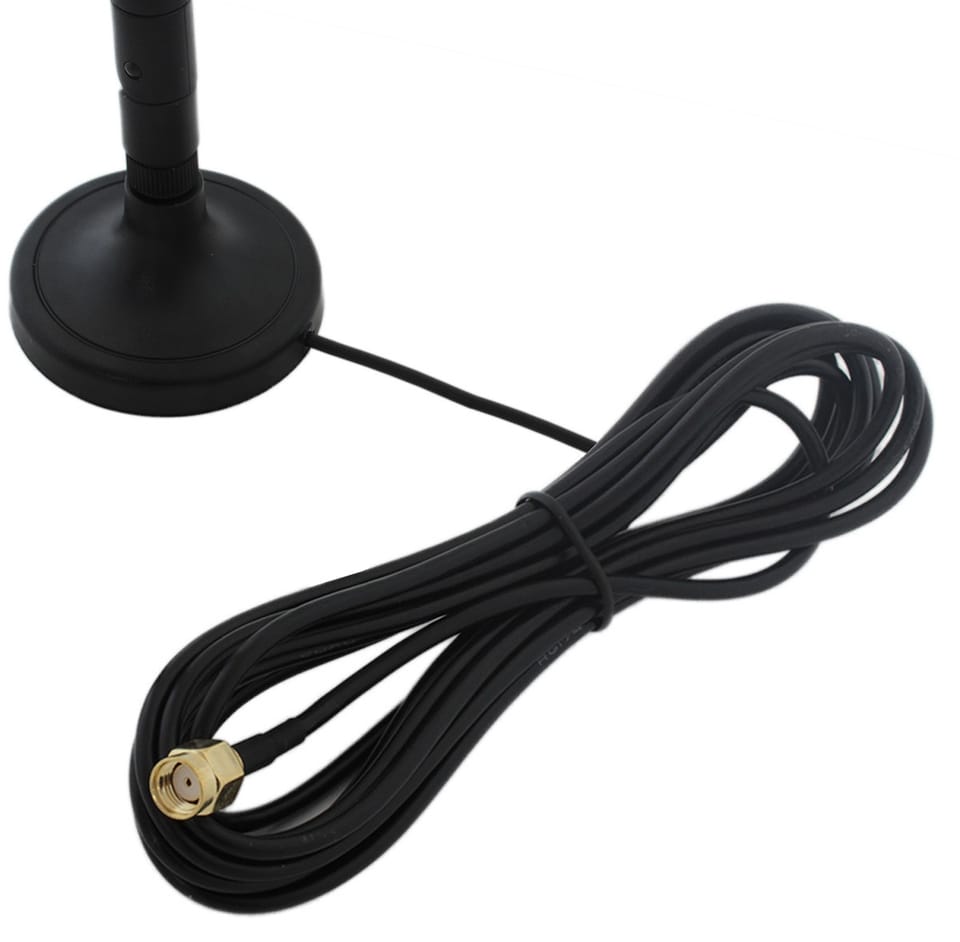

Omnidirectional 360° 9~12dBi 2.4GHz stick antenna screwed directly into wireless cards (RP-SMA connector on 3m cable) or directly into Access Points (RP-SMA antenna connector).
The antenna can be used in active devices (Access Point, PCI or USB wireless card), as well as in portable computers equipped with cards with RP-SMA connector.
Achieves 300-400% greater range/signal strength compared to a standard 2-3 dBi standard antenna
Features and specification of the product:- Energy gain: 9 - 12 dBi
- Working Frequency: 2.400-2.483GHz
- Height (antenna only): 37.5 cm
- Height (with stand): 41 cm
- VSWR (Standing Wave Ratio): < 1.5
- Radiation angle in vertical plane: 12 degrees
- Radiation angle in horizontal plane: 360 degree
- Polarization: vertical
- Impedance: 50 Ohm
- Operating temperature: -10 to +60 degrees Celsius
- Maximum input power: 50W

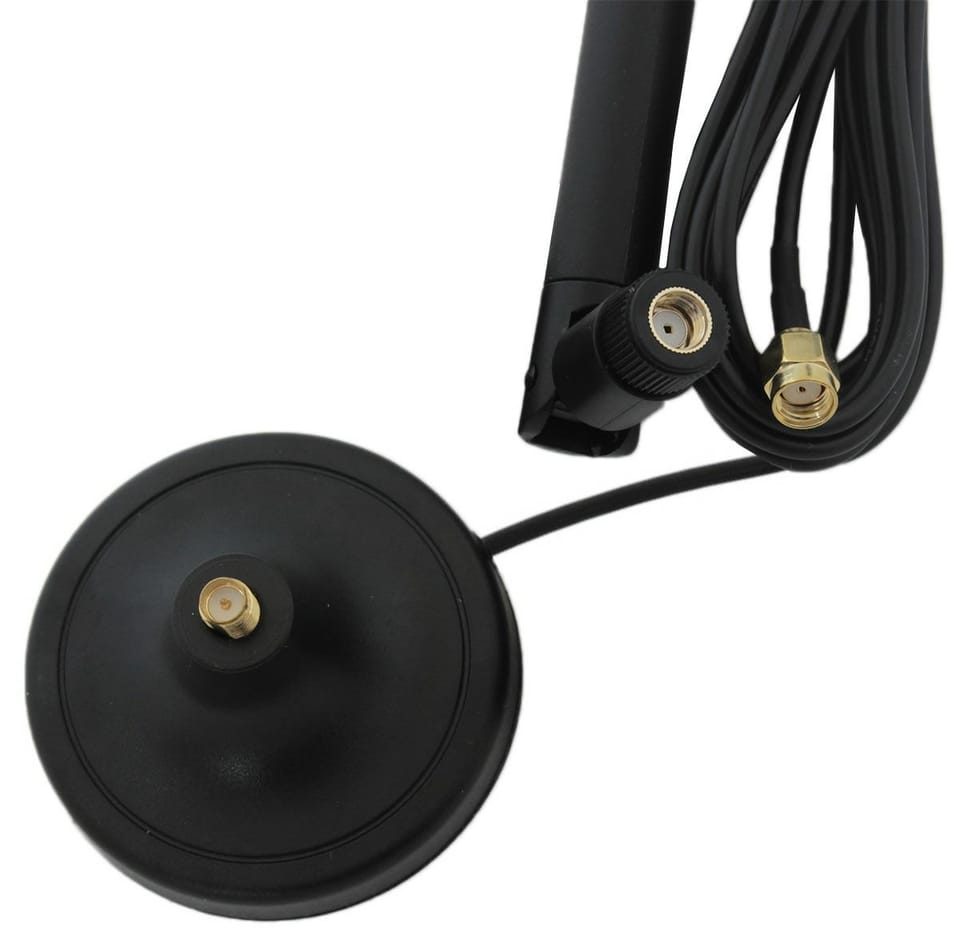

- Connector type: RP-SMA (socket) and RP-SMA (antenna)
- Wire length: 3 m
