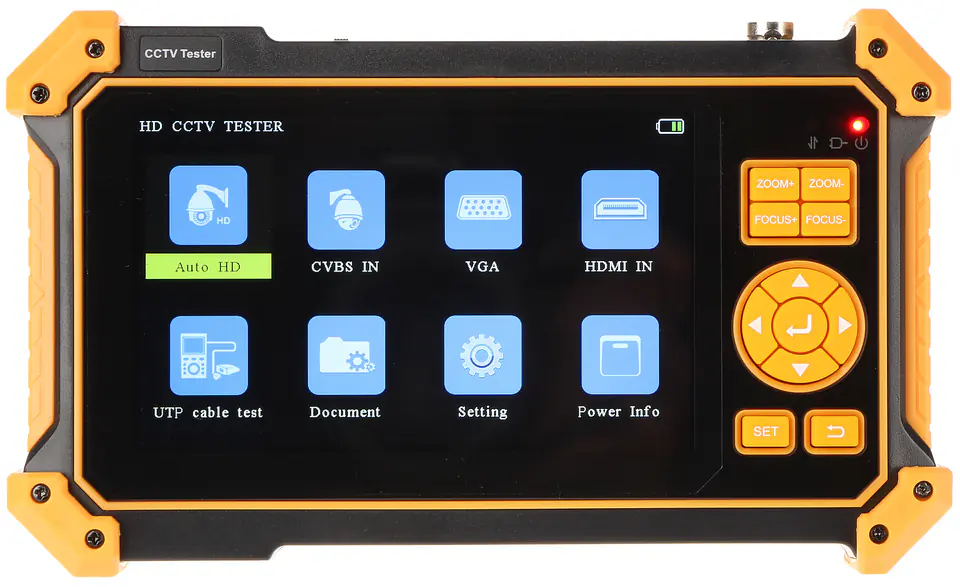

Multifunctional tester of AHD, HD-CVI, HD-TVI, analog cameras, Speed Dome (PTZ), equipped with many additional functions necessary when starting CCTV systems
AHD MONITOR, HD-CVI, HD-TVI, PAL MS-ACT50-4K 5"
€184.26
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- MS-ACT50-4K / 5902887058912
Share this product:
Specification
| Audio input:: | 1 pc. Jack socket 3.5 mm |
|---|---|
| Battery life:: | Min. 6.5 hours |
| Dimensions:: | 184 x 110 x 41 mm |
| Matrix diagonal:: | 5 " |
| Nominal resolution:: | 800 x 480 px |
| Operating temperature:: | 0 °C ... 50 °C |
| Permissible relative humidity:: | 30 % ... 90 % |

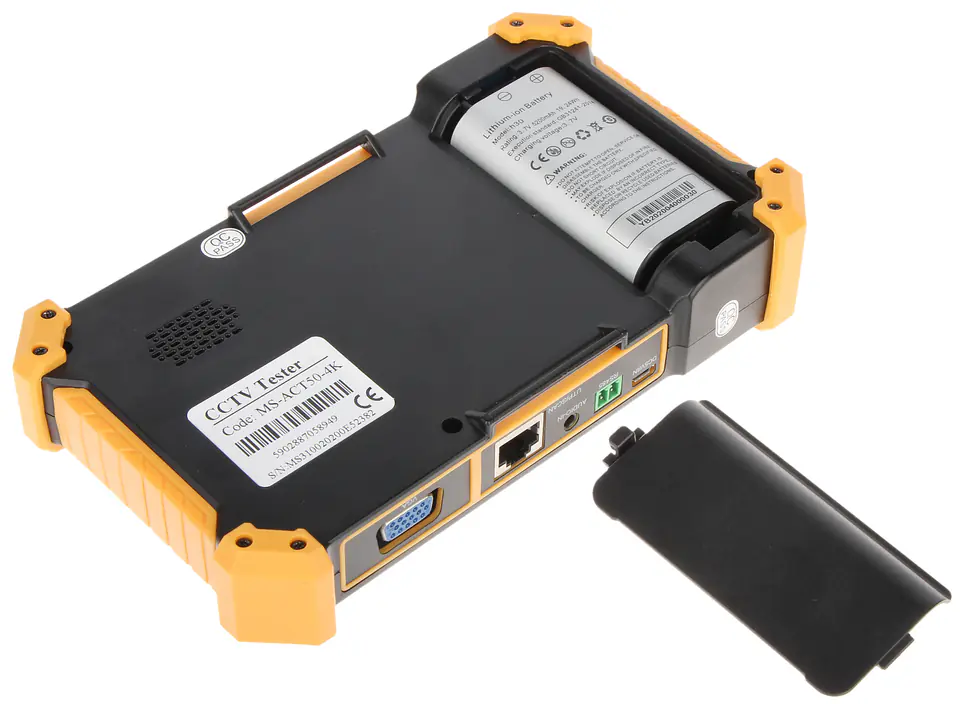

| Power:: | Li-Ion battery 3.7 V, 5200 mAh 5 V DC / 2 A - micro USB (power supply included) |

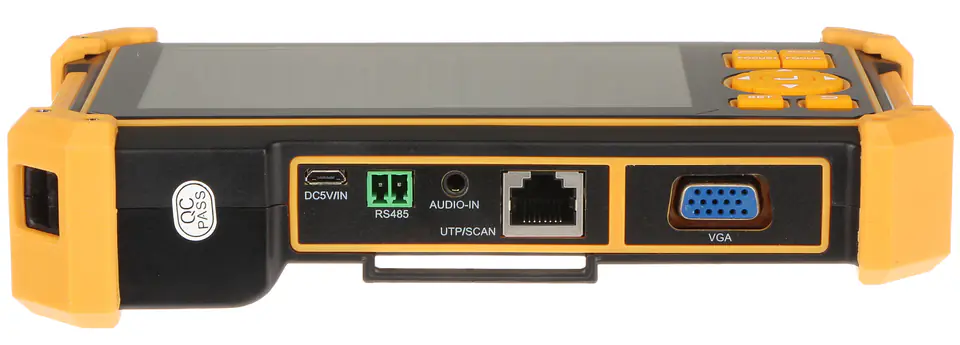

| Rs-485 interface:: | PELCO-D/P, SAMSUNG, PANASONIC, LILIN, YAAN, and othersMozoom lens control works exclusively after RS-485Transmission speed (Baudrate): 600 ... 115200 bps |
| Scales:: | 0.42 kg |

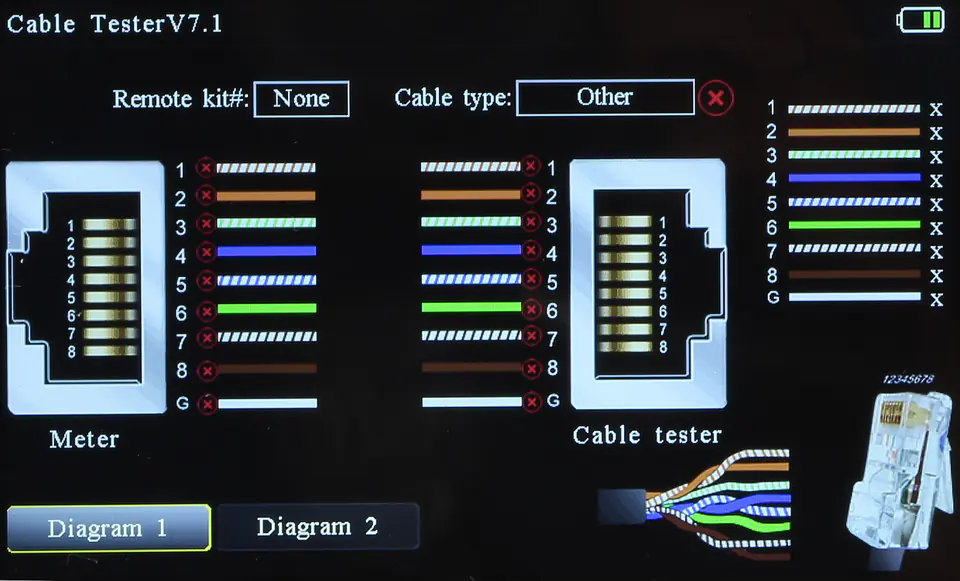

| Selected features:: | Twisted pair computer tester |
| Service:: | Large, easy-to-read buttons |
| Supported languages:: | Polish, Czech, English, French, German, Italian, Portuguese, Russian, Serbian, Spanish, Turkish |

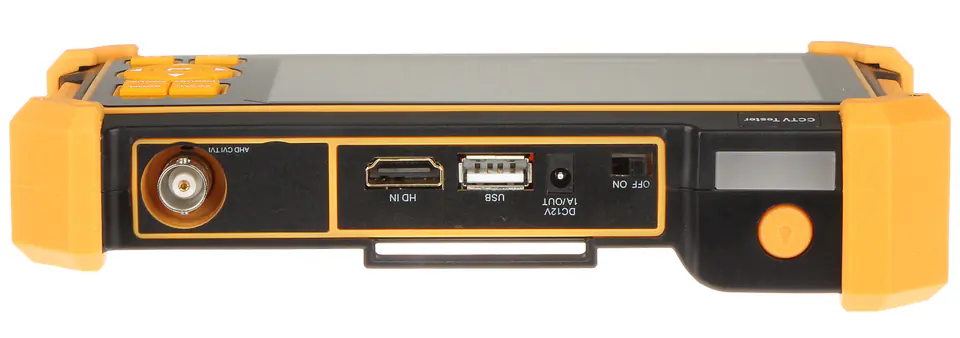

| Video input:: | 1 pc. - AHD / HD-CVI / HD-TVI / CVBS - PAL / NTSC, BNC socket 1 pc VGA (D-Sub 15-pin) max. 1920 x 1080 1 pc HDMI max. 3840 x 2160, 4K UHD |
| Vision standard:: | AHD - 8 Mpx @ 15 fps, HD-CVI - 8 Mpx @ 12.5, 15 fps, HD-TVI - 8 Mpx @ 12.5, 15 fps, PAL, NTSC |
| Warranty:: | 2 years |

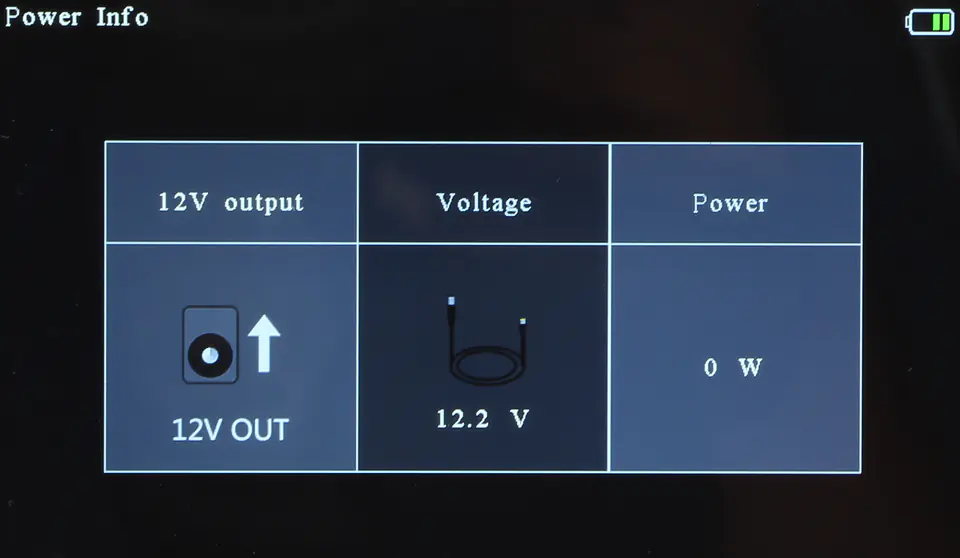

| Work as a power source:: | 12 V DC / 1 A 5 V DC 1 A - USB port |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
