| Alarm inputs / outputs: | 16 / 6 |
|---|---|
| Archiving on external media: | Screenshot of a frame of an image or recordings from an archive to a USB drive |
| Audio inputs: | 1 pc - BNC socket - Microphone16 pcs. - BNC16 jack - Coaxial cable audio support, HD-CVI only |
| Audio outputs: | 1 pc BNC socket |
| Colour: | Black |
| Country of origin: | China |
| Dimensions: | 440 x 463 x 95 mm |
| Image compression method: | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
| Motion detection: | Zoning the screen |
| Network features: | Full support via network, Remote copying of recordings, Built-in web server max. 128 users online |
| Operating modes: | 16 x AHD / HD-CVI / HD-TVI / CVBS / IP + 8 x IP |
| Power: | 230 VAC |
| Producer / brand: | DAHUA |
| Ptz rotary head control: | IP Cameras: PTZ HD-CVRS-485 - PELCO-D/P |
| Recorded image resolutions: | AHD / HD-CVI / HD-TVI: 5M-N - 1296 x 1440, 4M-N - 1280 x 1440 ,1080p - 1920 x 1080 ,1080N - 960 x 1080 ,720p - 1280 x 720 , AHD / HD-TVI: 3M-N 1024 x 1536 , CVBS: 960H - 960 x 576 IP: max. 8.3 MP 4K UHD - 3840 x 2160 |
| Recording modes: | Manual, motion detection, scheduling |
| Scales: | 6.7 kg |
| Search and play back recordings: | Search for recordings by time + timeline with recording type. Playback: forward, accelerate, decelerate, stepAdvancedSearch (up to the second) Intelligent AI face search - simultaneous search in the archive of face recordings based on max 8 photos taking into account the similarity threshold (for each photo separately)Synchronous playback divided into 1/4/9/16 channels |

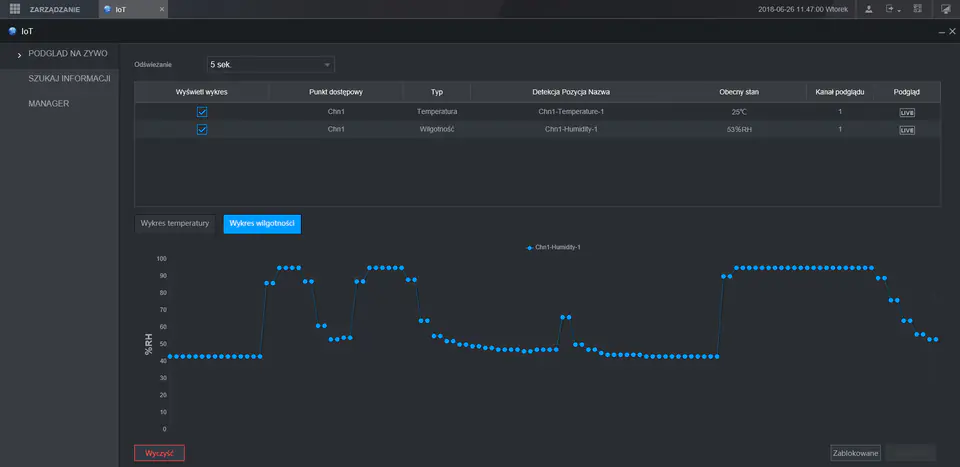

| Selected features: | Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - cooperation with devices installed in points of sale and displaying data from them in the form of overlaid text in the selected channel window, SMD PLUS - search for an object classified as: human, motor vehicle Coax audio/alarm support, intelligent image analysis : line crossing, intrusion, classification of people and vehicles Advanced face recognition and search features Support for up to 10 face databases, including 10,000 face photos Detection of faces not in the device database Search in face recordings based on up to 8 selected photos with the possibility of independently setting the similarity threshold for each photo RS-232 interface |
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
| Supported hard drives: | 8 x 16 TB SATA 1 x eSATA port |
| Supported languages: | Polish, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish |
| Usb: | 2 pcs. USB 2.02 pcs. USB 3.0 |
| Video inputs: | 16 pcs. BNC |
| Video outputs: | 2 pcs. HDMI1 pcs. VGA |
| Warranty: | 3 years |
| Write speed adjustment: | 8.3 Mpx IP @ 1 ... 25 fps 5M-N @ 1 ... 10 fps / s4M-N @ 1 ... 15 fps @ 1080p @ 1 ... 15 fps @ 1080N @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |

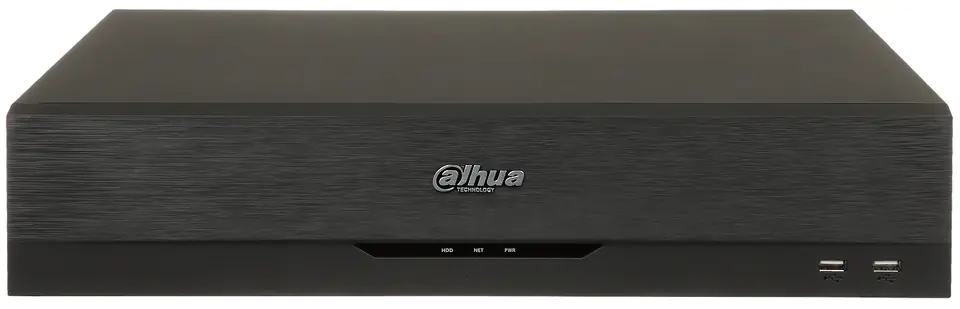

The XVR5816S-I3 with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS is a professional device used in CCTV systems

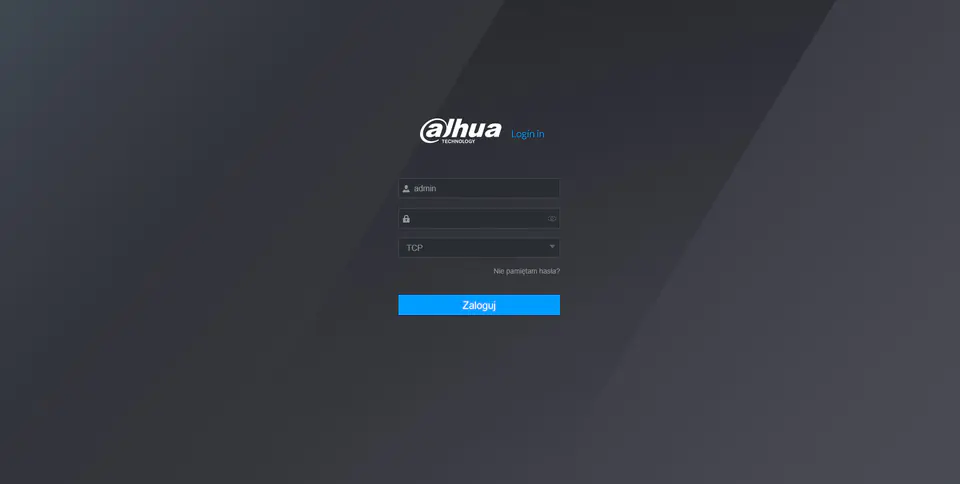

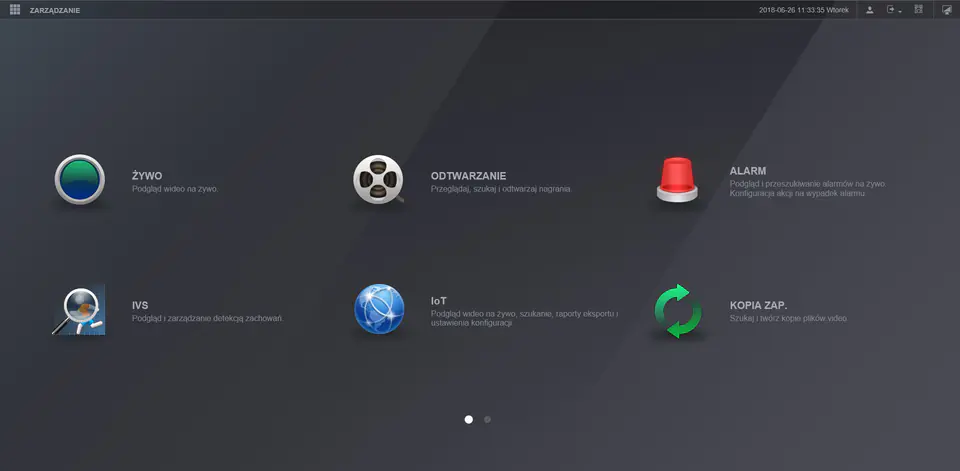

The menu has been designed in a way that makes it easier for everyone, even novice users, to navigate and make changes to the DVR settings
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
