| Alarm inputs / outputs: | 16 / 3 |
|---|
| Analog signal format system: | PAL, NTSC |
|---|
| Archiving on external media: | Screenshot of a frame of an image or recordings from an archive to a USB drive |
|---|
| Audio formats supported: | PCM, G.711 μ-law, G.711 A-law |
|---|
| Audio inputs: | 4 pcs. CINCH ,16 Channels - Coaxial audio support, HD-CVI only |
|---|
| Audio outputs: | 1 pc CINCH |
|---|
| Bit rate: | 64 Kbit/s |
|---|
| Channels quantity: | 16 channels |
|---|
| Colour: | Black |
|---|
| Dc voltage: | 12 V |
|---|
| Depth: | 289.4 mm |
|---|
| Dimensions: | 375 x 287 x 53 mm |
|---|
| Ethernet interface type: | Fast Ethernet, Gigabit Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Ethernet lan (rj-45) ports: | 1 |
|---|
| Hdmi ports quantity: | 1 |
|---|
| Height: | 53 mm |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
|---|
| Maximum video resolution: | 3840 x 2160 pixels |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
|---|
| Motion detection: | Zoning: 22 x 18 detection fields |
|---|

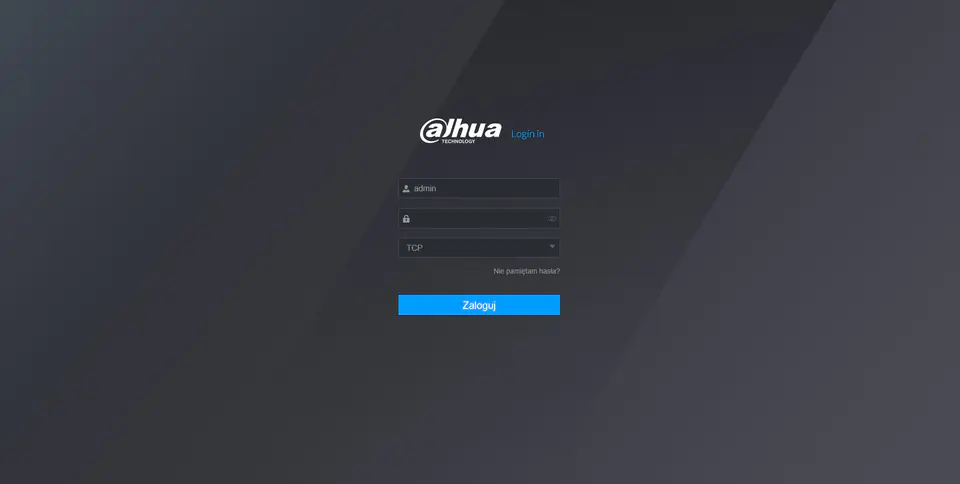

| Network features: | Full support via network, Remote copying of recordings, Built-in web server max. 128 users online |
|---|
| Operating modes: | 16 x AHD / HD-CVI / HD-TVI / CVBS / IP + 16 x IP |
|---|
| Operating relative humidity (h-h): | 10 - 90% |
|---|
| Operating system installed: | Embedded LINUX |
|---|
| Operating temperature (t-t): | -10 - 55 °C |
|---|
| Package depth: | 141 mm |
|---|
| Package height: | 366 mm |
|---|
| Package weight: | 2.98 kg |
|---|
| Package width: | 433 mm |
|---|
| Power: | 12 V DC / 5 A (power adapter included) |
|---|
| Power supply type: | DC |
|---|
| Producer / brand: | DAHUA |
|---|
| Product colour: | Black |
|---|
| Ptz rotary head control: | IP Cameras: PTZ HD-CVRS-485 - PELCO-D/P |
|---|
| Rack capacity: | 1U |
|---|
| Recorded image resolutions: | AHD / HD-CVI / HD-TVI: 8 Mpx - 3840 x 2160, 4K-N - 1920 x 2160, 6 Mpx - 2880 x 1920 - only HD-CVI, 5 Mpx - 2592 x 1944, 4 Mpx - 2560 x 1440, 4M-N - 1280 x 1440, 3 Mpx - 2048 x 1536 - only AHD / HD-TVI, 1080p - 1920 x 1080, 720p - 1280 x 720 CVBS: 960H - 960 x 576 IP: max. 8 MP - 3840 x 2160 |
|---|
| Recording modes: | Manual, alarm, motion detection, scheduling |
|---|
| Rs-485 ports: | 1 |
|---|
| Scales: | 1.8 kg |
|---|
| Search and play back recordings: | Search for recordings by time + timeline with recording type. Playback: forward, accelerate, decelerate, stepAdvanced-to-second-throughAll channels, Smart SearchSynchronous playback by 1/4/9/16 channels |
|---|

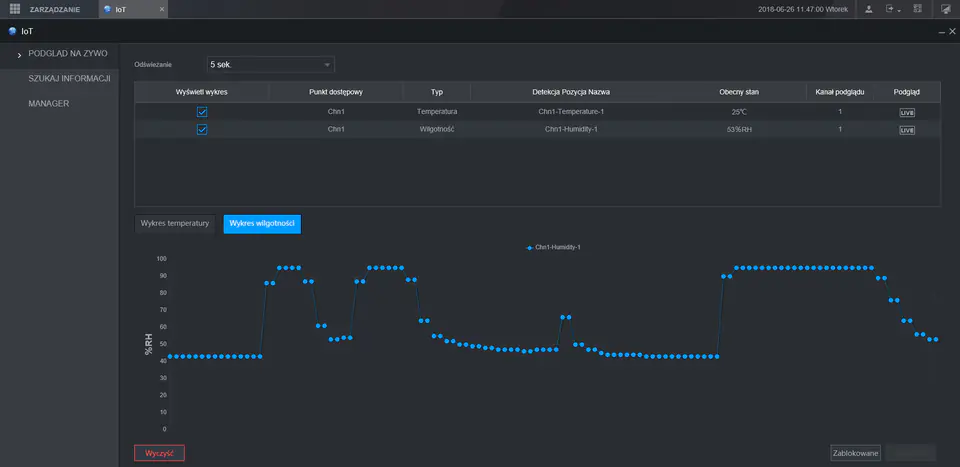

| Selected features: | Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - cooperation with devices installed in points of sale and displaying data from them in the form of overlaid text in the selected channel window, SMD PLUS - search for an object classified as: human, motor vehicle, non-motor vehicle Coax audio/alarm support, intelligent image analysis: crossing the line, crossing the warning zone, abandoned/missing object, People/vehicle classification, people/vehicle counting, advanced face recognition and search functions False alarm filtering based on person and vehicle recognition (line crossing, trespassing) Support for up to 10 face databases, including 20,000 face photos Detection of faces not in the device database Search in face recordings based on up to 8 selected photos with the possibility of independent similarity threshold setting for each Photos |
|---|
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
|---|
| Supported hard drives: | 2 x 16 TB SATA |
|---|
| Supported languages: | Polish, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish |
|---|
| Supported network protocols: | HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P |
|---|
| Usb: | 1 pc USB 3.01 pcs USB 2.0 |
|---|
| Usb 2.0 ports quantity: | 1 |
|---|
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
|---|
| Vga (d-sub) output ports: | 1 |
|---|
| Video capturing speed: | 30 fps |
|---|
| Video capturing speed (ntsc): | 30 fps |
|---|
| Video capturing speed (pal): | 25 fps |
|---|
| Video compression formats: | H.264+, H.265+, H.265, H.264 |
|---|

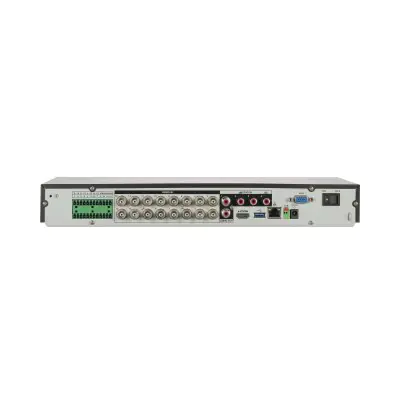

| Video inputs: | 16 pcs. BNC |
|---|
| Video outputs: | 1 pc HDMI 4K 1 pc VGAMability to configure the SPOT function on one of the video outputs |
|---|
| Video rca outputs: | 1 |
|---|
| Warranty: | 3 years |
|---|
| Weight: | 1.8 kg |
|---|
| Width: | 375 mm |
|---|
| Write speed adjustment: | 8 Mpx IP @ 1 ... 25 fps Mpx @ 1 ... 7 fps4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps / s4 Mpx @ 1 ... 15 fps / s4M-N @ 1 ... 25 fps Mpx @ 1 ... 15 fps @ 1080p @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |
|---|
