| Archiving on external media: | Screenshot of a frame of an image or recordings from an archive to a USB drive |
|---|
| Audio inputs: | 1 pc CINCH ,8 Channels - Coaxial audio support, HD-CVI only |
|---|
| Audio outputs: | 1 pc CINCH |
|---|
| Colour: | Black |
|---|
| Dimensions: | 375 x 290 x 53 mm |
|---|
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
|---|
| Motion detection: | Zoning: 22 x 18 detection fields |
|---|
| Network features: | Full support via network, Remote copying of recordings, Built-in web server max. 128 users online |
|---|
| Operating modes: | 8 x AHD / HD-CVI / HD-TVI / CVBS / IP + 8 x IP |
|---|
| Power: | 12 V DC / 4 A (power adapter included) |
|---|
| Producer / brand: | DAHUA |
|---|
| Ptz rotary head control: | IP Cameras: PTZ HD-CVRS-485 - PELCO-D/P |
|---|
| Recorded image resolutions: | AHD / HD-CVI / HD-TVI: 8 Mpx - 3840 x 2160, 4K-N - 1920 x 2160, 6 Mpx - 2880 x 1920 - only HD-CVI, 5 Mpx - 2592 x 1944, 4 Mpx - 2560 x 1440, 4M-N - 1280 x 1440, 3 Mpx - 2048 x 1536 - only AHD / HD-TVI, 1080p - 1920 x 1080, 720p - 1280 x 720 CVBS: 960H - 960 x 576 IP: max. 8 MP - 3840 x 2160 |
|---|
| Recording modes: | Manual, alarm, motion detection, scheduling |
|---|
| Scales: | 1.6 kg |
|---|
| Search and play back recordings: | Search for recordings by time + timeline with recording type. Playback: forward, accelerate, decelerate, stepAdvanced search (down to the second)Synchronous playback of all channels, Smart SearchSynchronous playback by 1/4/9 channels |
|---|

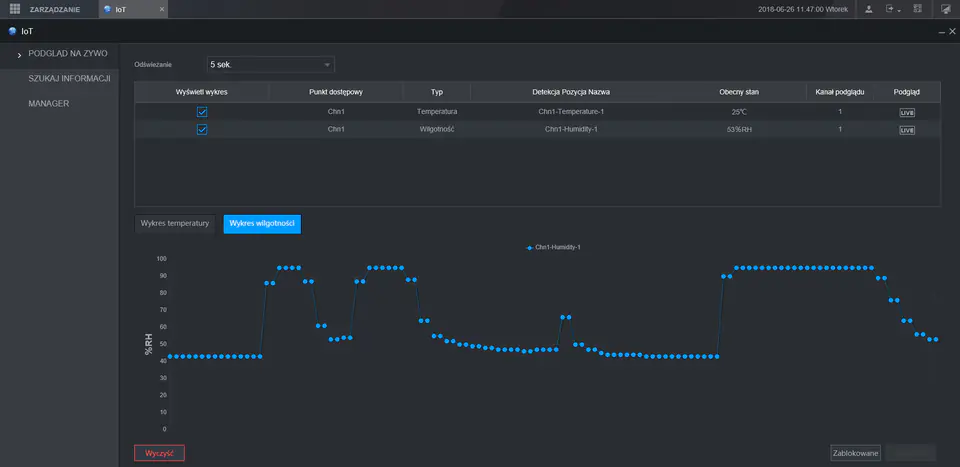

| Selected features: | Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - cooperation with devices installed in points of sale and displaying data from them in the form of overlaid text in the selected channel window, SMD PLUS - search for an object classified as: human, motor vehicle, non-motor vehicle Coax audio/alarm support, intelligent image analysis: crossing the line, crossing the warning zone, abandoned/missing object, People/vehicle classification, people/vehicle counting, advanced face recognition and search functions Filtering of false alarms based on recognition of people and vehicles (line crossing, intrusion) Support for up to 10 face databases, including 20,000 face photos Detection of faces not in the device database Real-time face recognition and analysis (max. 12 pictures per second) - supports 6 types of facial attribute extraction |
|---|
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
|---|
| Supported hard drives: | 2 x 16 TB SATA |
|---|
| Supported languages: | Polish, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish |
|---|
| Usb: | 1 pc USB 3.01 pcs USB 2.0 |
|---|

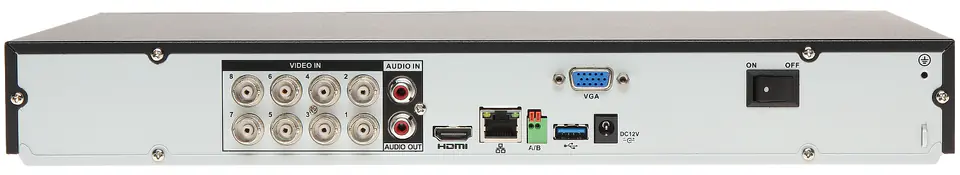

| Video inputs: | 8 pcs. BNC |
|---|
| Video outputs: | 1 pc HDMI 4K 1 pc VGAMability to configure the SPOT function on one of the video outputs |
|---|
| Warranty: | 3 years |
|---|
| Write speed adjustment: | 8 Mpx IP @ 1 ... 25 fps Mpx @ 1 ... 7 fps4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps / s4 Mpx @ 1 ... 15 fps / s4M-N @ 1 ... 25 fps Mpx @ 1 ... 15 fps @ 1080p @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |
|---|
