| Ac adapter included: | Yes |
|---|
| Analog signal format system: | NTSC, PAL |
|---|
| Archiving on external media: | Screenshot of a frame of an image or recordings from an archive to a USB drive |
|---|
| Audio formats supported: | PCM, G.711 μ-law, G.711 A-law |
|---|
| Audio inputs: | 1 pc CINCH16 Channel - Coaxial audio support, HD-CVI only |
|---|
| Audio outputs: | 1 pc CINCH |
|---|
| Audio rca outputs: | 1 |
|---|
| Bnc input ports: | 16 |
|---|
| Built-in memory: | No |
|---|
| Colour: | Black |
|---|
| Current: | 3 A |
|---|
| Dc voltage: | 12 V |
|---|
| Depth: | 257.1 mm |
|---|
| Dimensions: | 325 x 257 x 55 mm |
|---|
| Ethernet interface type: | Gigabit Ethernet |
|---|
| Ethernet lan: | Yes |
|---|
| Face detection: | Yes |
|---|
| Face recognition: | Yes |
|---|
| Hdd interface: | SATA III |
|---|
| Hdmi ports quantity: | 1 |
|---|
| Height: | 55 mm |
|---|
| Image compression method: | AI Coding / H.265+ / H.265 / H.264+ / H.264 |
|---|
| Maximum hdd capacity: | 16 TB |
|---|
| Maximum resolution of supported cameras: | 8 Mpx |
|---|
| Maximum video resolution: | 3840 x 2160 pixels |
|---|
| Mobile phone access: | Port: 37777 or cloud access (P2P) Android: Free DMSS app iOS (iPhone): Free DMSS app Watch the video on how to configure P2P in Dahua DVRs and how to enable the mobile application |
|---|
| Motion detection: | Yes |
|---|
| Motion detection: | Zoning: 22 x 18 detection fields |
|---|

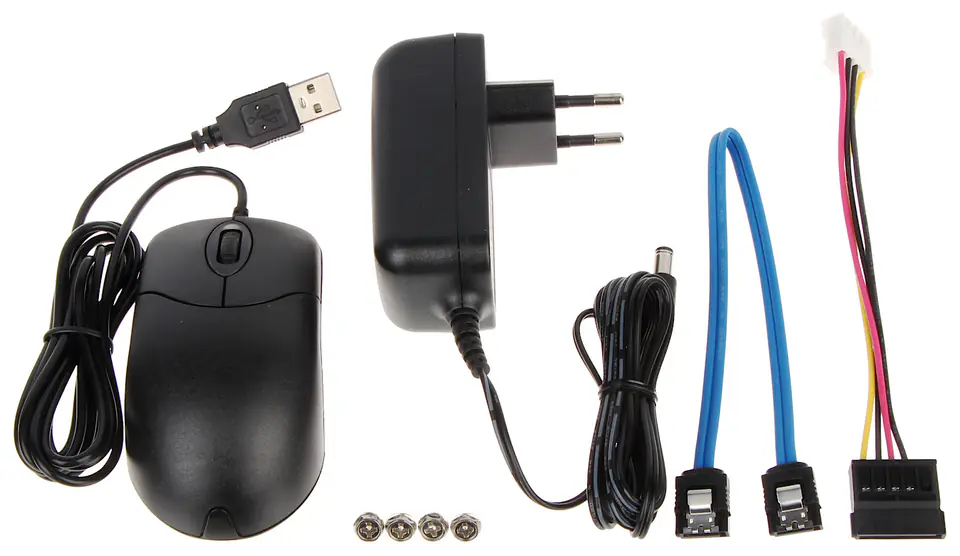

| Mounting kit: | Yes |
|---|
| Mouse included: | Yes |
|---|

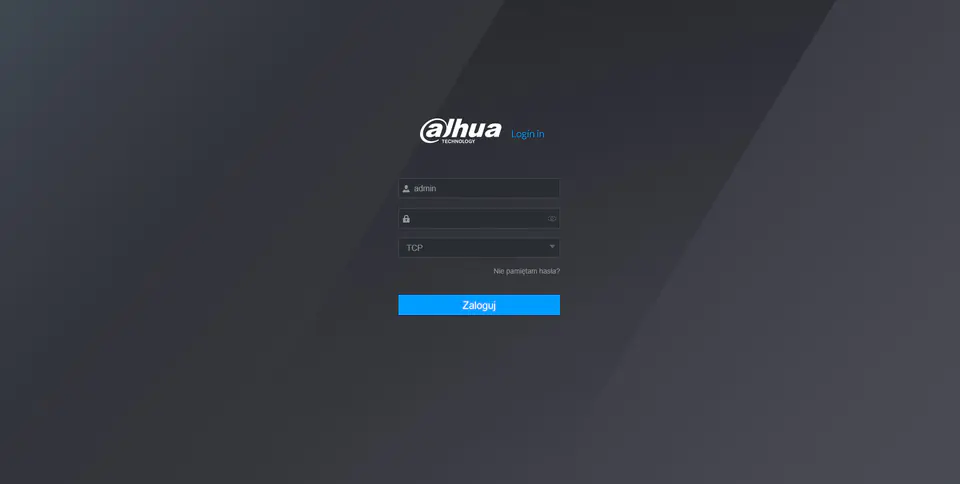

| Network features: | Full network support, Remote copying of recordings, Built-in web server |
|---|
| Number of hdds supported: | 1 |
|---|
| Number of usb 3.0 ports: | 1 |
|---|
| Operating modes: | 16 x AHD / HD-CVI / HD-TVI / CVBS / IP + 16 x IP |
|---|
| Operating relative humidity (h-h): | 10 - 90% |
|---|
| Operating system installed: | Linux |
|---|
| Operating temperature (t-t): | -10 - 55 °C |
|---|
| P2p: | Y |
|---|
| Package depth: | 117 mm |
|---|
| Package height: | 308 mm |
|---|
| Package weight: | 2.11 kg |
|---|
| Package width: | 372 mm |
|---|
| Power: | 12 V DC / 3 A (power adapter included) |
|---|
| Power consumption (typical): | 15 W |
|---|
| Power supply type: | DC |
|---|
| Privacy masking: | Yes |
|---|

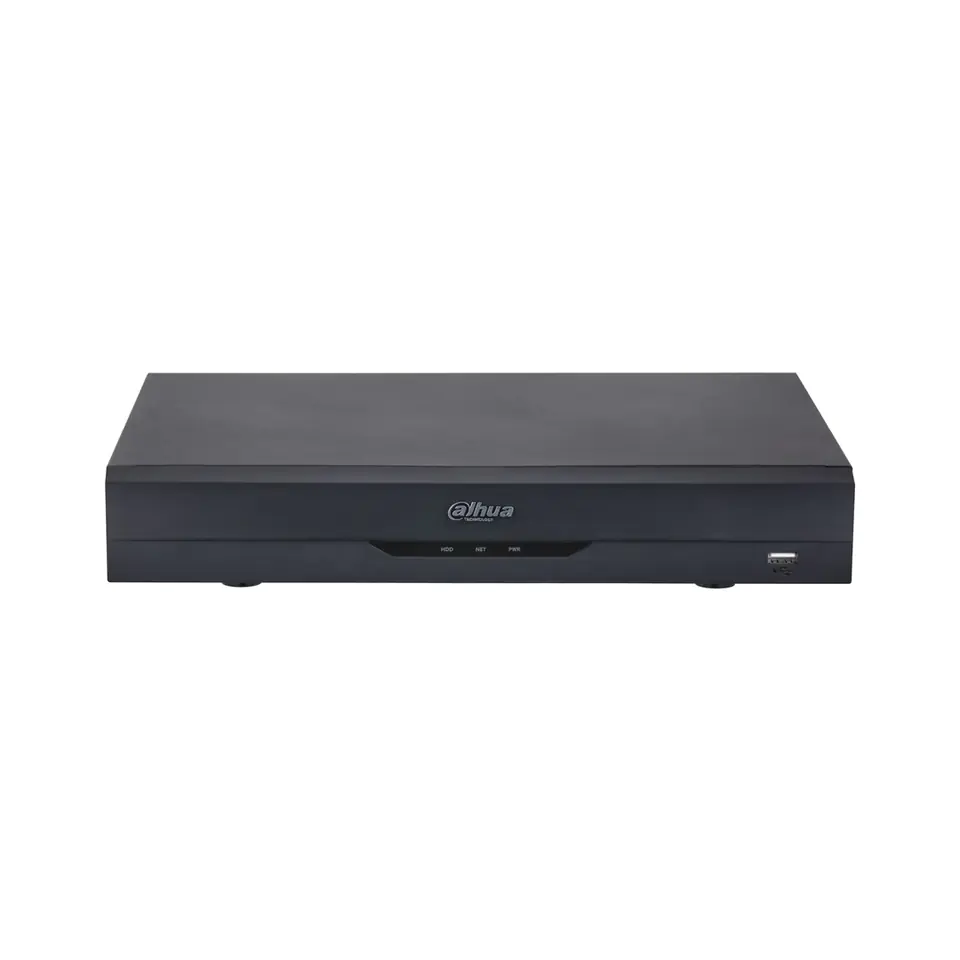

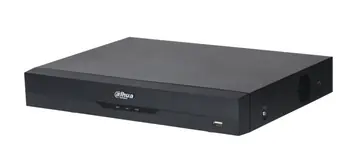

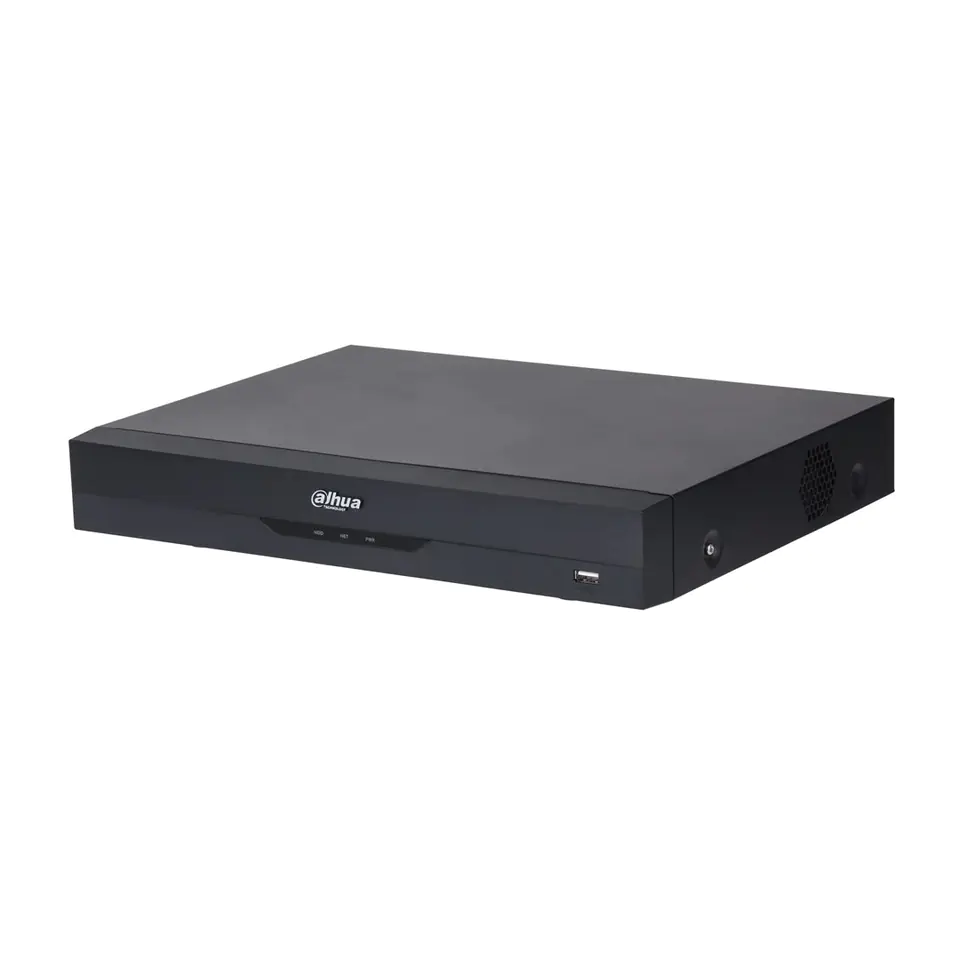

| Producer / brand: | DAHUA |
|---|
| Product colour: | Black |
|---|
| Ptz rotary head control: | IP Cameras: PTZ HD-CVRS-485 - PELCO-D/P |
|---|
| Quick start guide: | Yes |
|---|
| Rca input: | 1 |
|---|
| Recorded image resolutions: | AHD / HD-CVI / HD-TVI: 8 Mpx - 3840 x 2160, 4K-N - 1920 x 2160, 6 Mpx - 2880 x 1920 - only HD-CVI, 5 Mpx - 2592 x 1944, 4 Mpx - 2560 x 1440, 4M-N - 1280 x 1440, 3 Mpx - 2048 x 1536 - only AHD / HD-TVI, 1080p - 1920 x 1080, 720p - 1280 x 720 CVBS: 960H - 960 x 576 IP: max. 8 MP - 3840 x 2160 |
|---|
| Recording modes: | Manual, alarm, motion detection, scheduling |
|---|
| Rs-485 ports: | 1 |
|---|
| Scales: | 1.38 kg |
|---|
| Search and play back recordings: | Search for recordings by time + timeline with recording type. Playback: forward, accelerate, decelerate, stepAdvanced-to-second search)Synchronous playback by 1/4/9/16 channels |
|---|

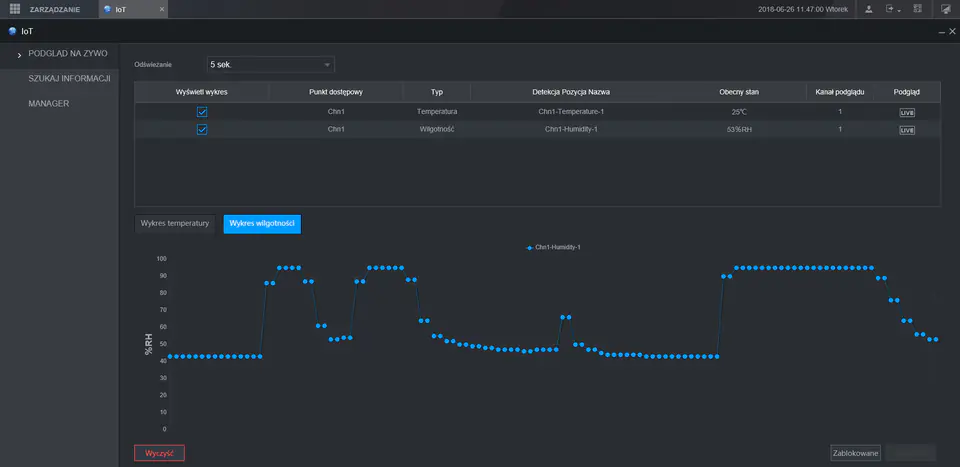

| Selected features: | Cooperation with Dahua devices working in the concept of the Internet of Things (IoT), POS - cooperation with devices installed in points of sale and displaying data from them in the form of overlaid text in the selected channel window, SMD PLUS - search for an object classified as: human, motor vehicle, non-motor vehicle Coax audio/alarm support, intelligent image analysis: crossing the line, crossing the warning zone, abandoned/missing object, Classification of people and vehicles, counting people / vehicles, advanced face recognition and search functions Filtering false alarms based on person and vehicle recognition (line crossing, trespassing) Support for up to 10 face databases, including 20,000 face photos Detection of faces not in the device database Search in face recordings based on up to 12 selected photos with the possibility of independently setting the similarity threshold for each Photos |
|---|
| Standard: | AHD, HD-CVI, HD-TVI, CVBS, TCP/IP |
|---|
| Supported hard drives: | 1 x 16 TB SATA |
|---|
| Supported languages: | Polish, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Portuguese, Romanian, Russian, Serbian, Slovak, Slovenian, Spanish |
|---|
| Supported network protocols: | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
|---|
| Two-way talk: | Yes |
|---|
| Usb: | 1 pc USB 3.01 pcs USB 2.0 |
|---|
| Usb 2.0 type-a ports quantity: | 1 |
|---|
| Vga (d-sub) output ports: | 1 |
|---|
| Video capturing speed (ntsc): | 30 fps |
|---|
| Video capturing speed (pal): | 25 fps |
|---|
| Video compression formats: | H.264+, H.264, H.265, H.265+ |
|---|
| Video in: | HDCVI/AHD/TVI/CVBS/IP |
|---|

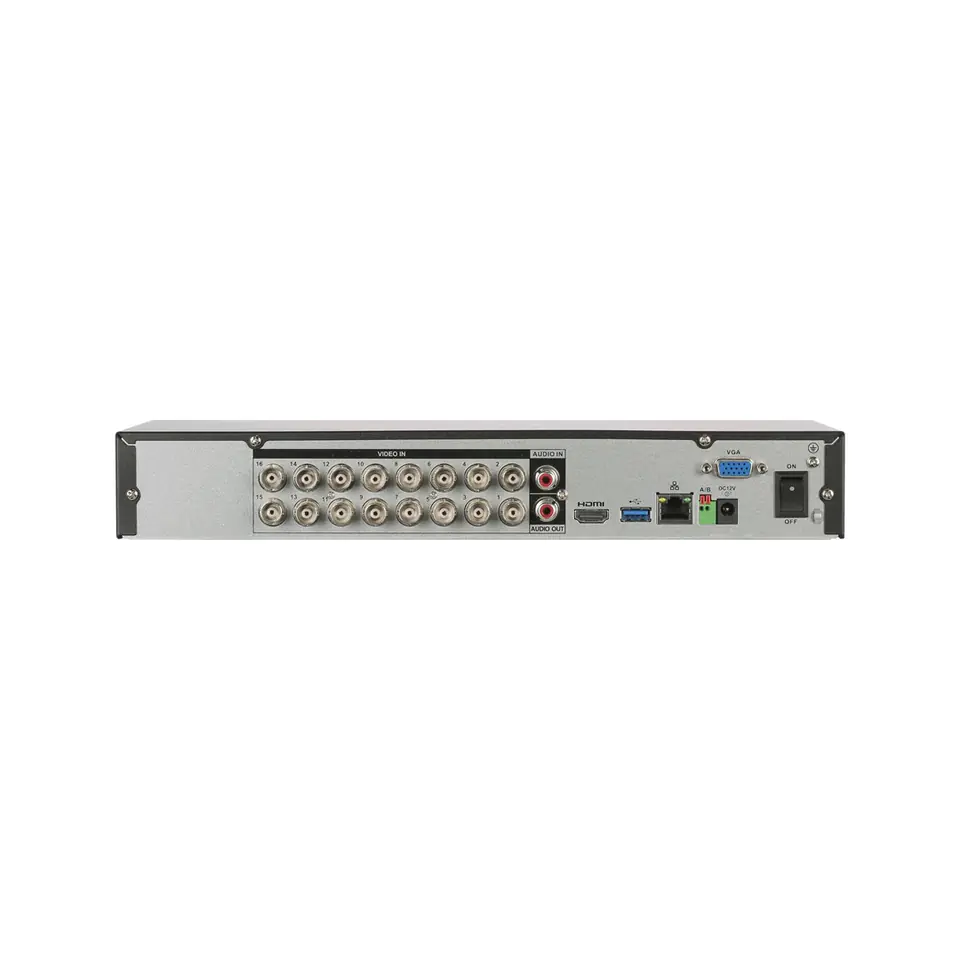

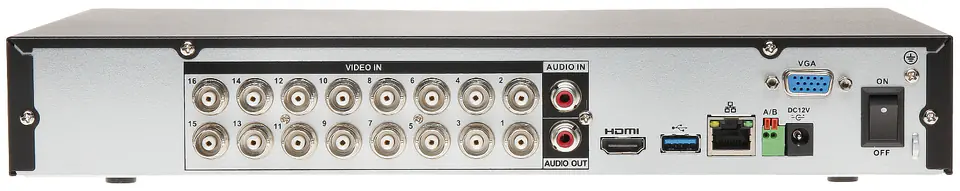

| Video inputs: | 16 pcs. BNC |
|---|
| Video outputs: | 1 pc HDMI 4K 1 pc VGAMability to configure the SPOT function on one of the video outputs |
|---|
| Warranty: | 3 years |
|---|
| Weight: | 1.23 kg |
|---|
| Width: | 325 mm |
|---|
| Write speed adjustment: | 8 Mpx IP @ 1 ... 25 fps Mpx @ 1 ... 7 fps4K-N @ 1 ... 15 fps 6 Mpx @ 1 ... 10 fps 5 Mpx @ 1 ... 12 fps / s4 Mpx @ 1 ... 15 fps / s4M-N @ 1 ... 25 fps Mpx @ 1 ... 15 fps @ 1080p @ 1 ... 25 fps @ 1 ... 25 fps @ 1 ... 25 fps per channel |
|---|
